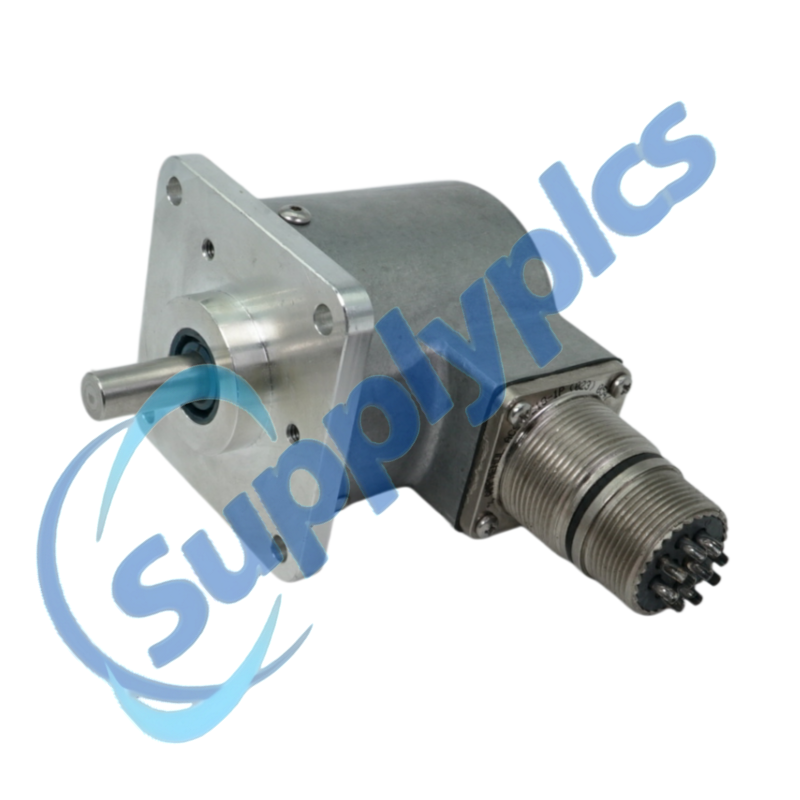

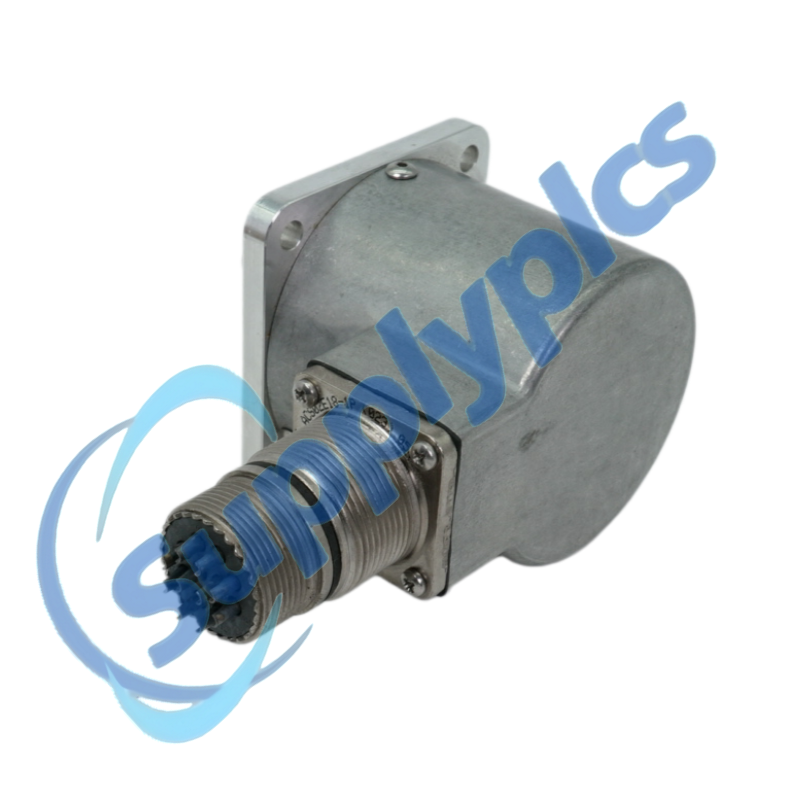

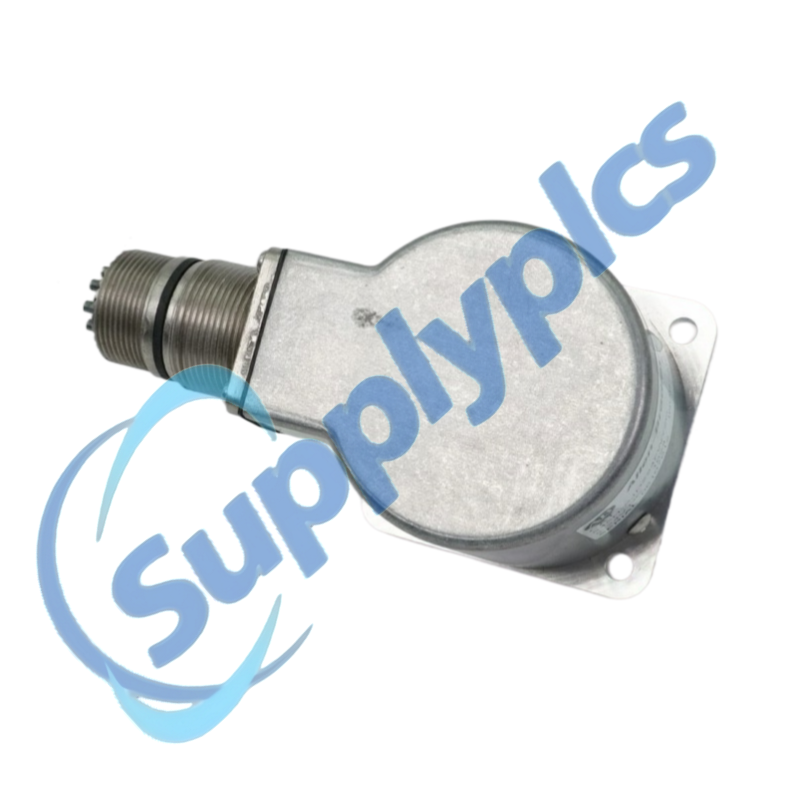

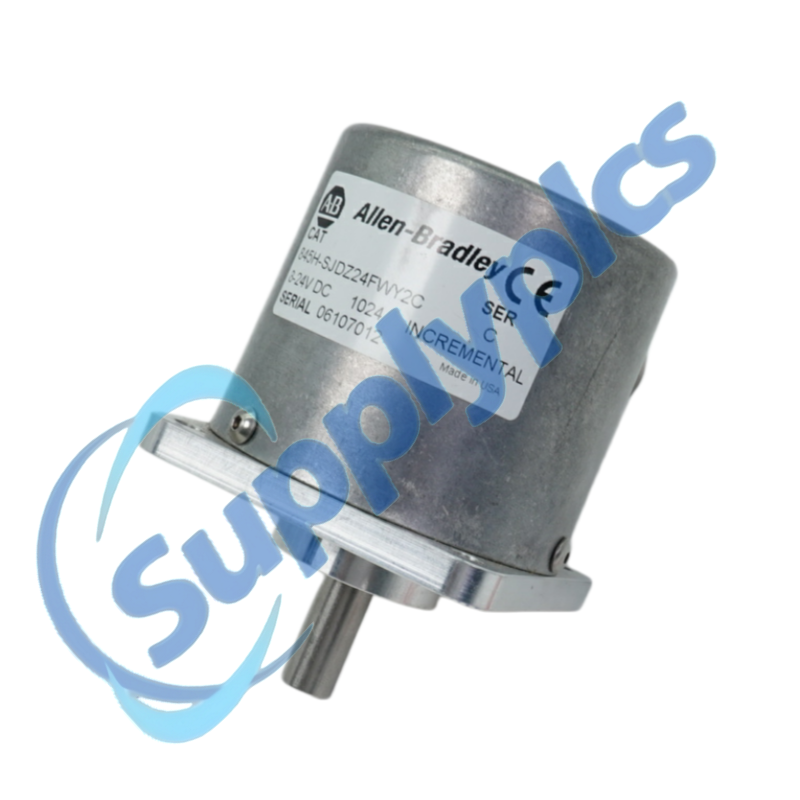

Product Name: Bulletin 845H Optical Incremental Encoder
Brand Name: Allen-Bradley
Model Number: 845H-SJDZ24FWY2C
Place of Origin: USA
Warranty: 12 Months
Whatsapp：+86 18020776782
Email：[email protected]
Sales |
Phone/Whatsapp |
|
Jim Pei |
| Product Name | Allen-Bradley 845H-SJDZ24FWY2C Bulletin 845H Optical Incremental Encoder |
| Manufacturer | Allen-Bradley |
| Product Type | Bulletin 845H Optical Incremental Encoder |
| Part Number | 845H-SJDZ24FWY2C |
| Weight | 0.48kg |
| Estimated shipping dimensions | 12.2x6.7x9.5cm |
| Place of shipment | Xiamen, China |
| Country of origin | USA |
| Product Family | Bulletin 845H |
| Product Type | Size 25 Incremental Encoder |
| Code Format | Incremental, 2 channels with zero index |
| Quadrature | 90° ±22°; Channel A leads B CCW |
| Symmetry | 50% ±10% |
| Zero Index Channel | Gated 1/2 cycle |
| Mounting Configuration – D | Square Flange |
| Shaft Option – Z | 3/8 in. diameter |
| Power Supply – 2 | 8–24 VDC unregulated |
| Output Configuration – 4 | Differential Line Driver, 5 VDC RS-422 |
| Resolution – FW | 1024 PPR |
| Connection Type – 2 | Radial Connector (Side) |
| Connection Option – C | With Mating Connector |
| Frequency Response – Data | 210 kHz |
| Frequency Response – Zero Index | 210 kHz |
| Operating Speed (Data) | 6000 RPM |
| Maximum Resolution | Up to 5000 PPR on code disk |
| Output Drive Capability – Differential Line Driver | ±20 mA |
| Starting & Running Torque | 2.5 Ncm typical (3.5 in-oz) |
| Moment of Inertia | 15 g·cm² (2.1 × 10⁻⁴ oz-in-sec²) |
| Slew Speed | 6000 RPM |
| Shaft Loading – Axial | 89 N (20 lb), 10 lb at 5000 PPR |
| Shaft Loading – Radial | 178 N (40 lb), 20 lb at 5000 PPR |
| Shaft Size | 6 mm, 10 mm, 6.4 mm (1/4 in.), or 9.517 mm (3/8 in.) diameter depending on option |
| Housing Rating | NEMA Type 4, 13; IP66 (IEC 529) |
| Operating Temperature | 0°C to +60°C (+32°F to +140°F) |
| Storage Temperature | -25°C to +90°C (-13°F to +194°F) |
| Humidity | 98%, noncondensing |
| Shock | 50 g (11 ms duration) |
| Vibration | 20 g (4 to 2000 Hz) |
|
Minimum Order Quantity |
1 Piece |
|
Price |
Contact for Jim |
|
Packaging Details |
Original new Factory Sealed |
|
Delivery Time |
3–7 Days |
|
Payment Terms |
T/T |
|
Shipping Method |
DHL / FedEx / UPS / TNT |
|
Supply Ability |
In stock |
The Allen-Bradley 845H-SJDZ24FWY2C is a Bulletin 845H Optical Incremental Encoder designed for accurate position, speed, and direction feedback in industrial motion control applications. Featuring 1024 PPR resolution, quadrature output with zero index, RS-422 differential line driver output, and operation up to 6000 RPM, it provides reliable feedback for compatible PLC, drive, and motion systems. The Allen-Bradley 845H-SJDZ24FWY2C is well suited for machine automation, motor feedback, positioning, conveyor systems, packaging equipment, and industrial encoder replacement applications.
