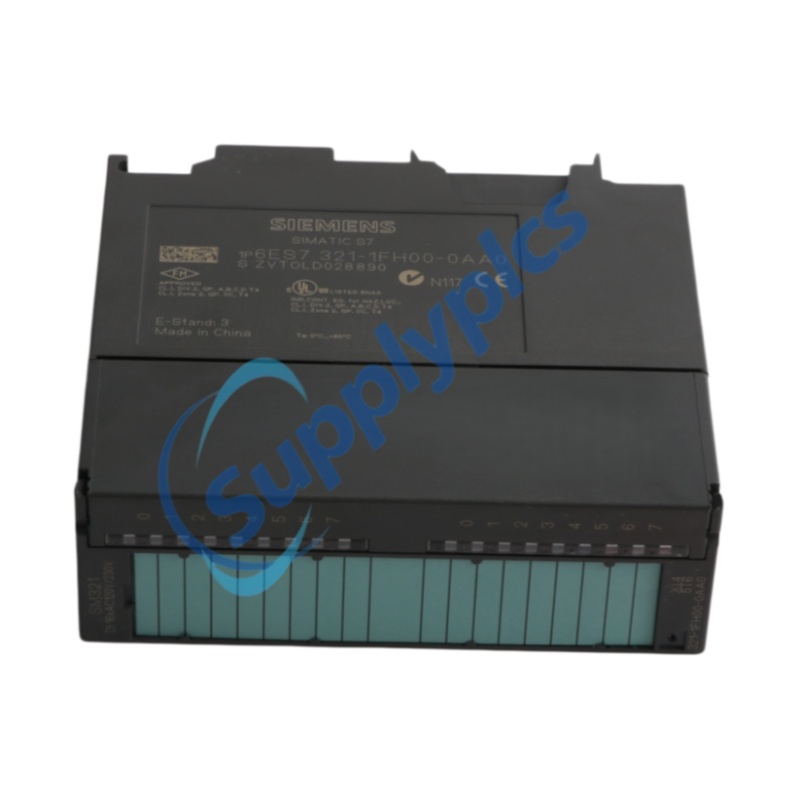

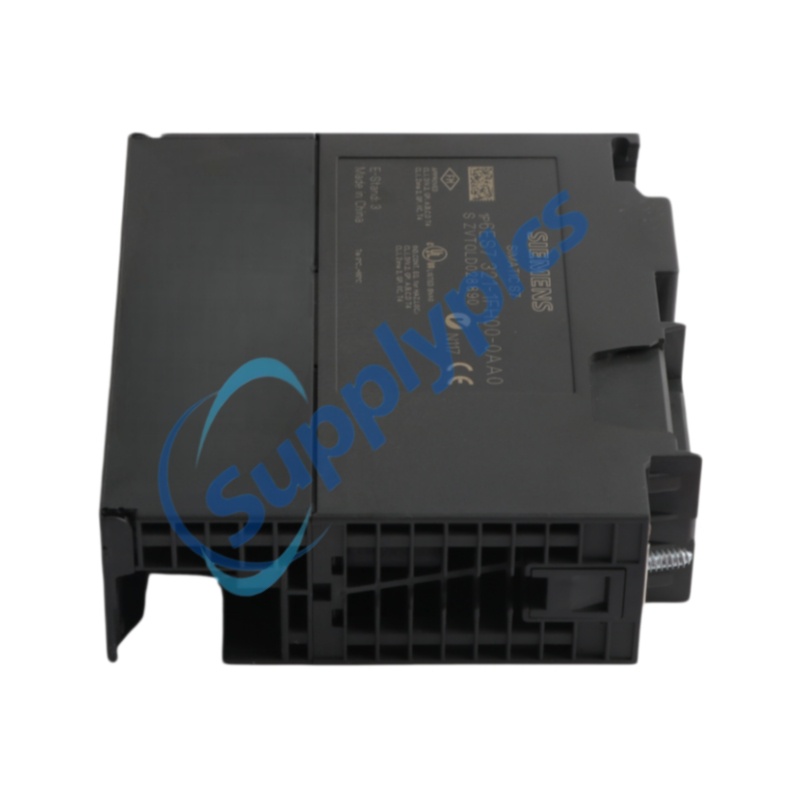

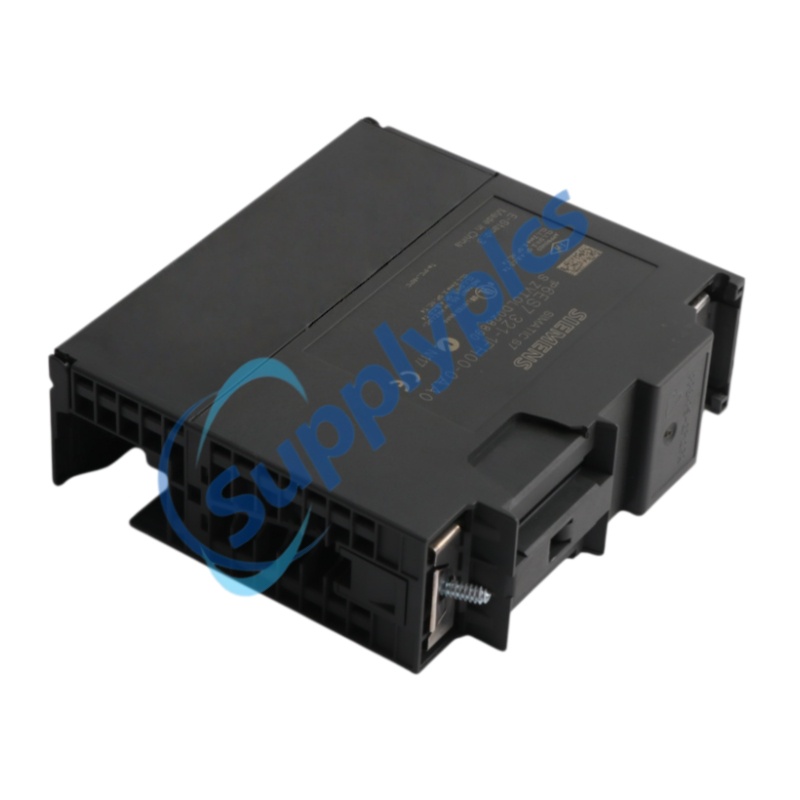

Siemens 6ES7321-1FH00-0AA0 MODUULKA ORIGAALKA EE GELIYAY (DIGITAL INPUT SM 321), la jiraa inuu ugu dhow yahay

Siemens 6ES7321-1FH00-0AA0 MODUULKA ORIGAALKA EE GELIYAY (DIGITAL INPUT SM 321), la jiraa inuu ugu dhow yahay

Magaca Qaarka: MODUULKA KORONTA DIGITAL EE SM 321

Magaca Brand: Siemens

Numbar ka talaabaha: 6ES7321-1FH00-0AA0

Bilowga Dhaqan Kala Duwan: JARMAN

Garanti: 12 Bilood

Whatsapp ：+86 18159889985

Email ：[email protected]

Appurtenance:

Faahfaahin
La xiriir ku saabsan qorshaha
Xoggaarka
Sharaxaad
Codsiyada
Saxda ah
Funkushenaha
Dhibaatooyinka soo galay
Qoraal
Bixiyo Oo La Sameeyo

Faahfaahin

Magaca Brand:	Siemens
Lambarka Modelka:	6ES7321-1FH00-0AA0
Dalka kaleyska:	Jermuun
Furaha Talaalada:	Cusub oo ah orijinaalka, oo ku dhaqmayn khasabta ah
Wakhtiga aad ugu yaraysid:	waxaa lagaa sameeyo
Shurtida Casirada:	T/T

La xiriir ku saabsan qorshaha

Mudirka Biyaha:	Stella
Ii email:	[email protected]
Xiriirka WhatsApp:	+86 18159889985

Xoggaarka

Farayn	Faahfaahinta
Nooca alaabta	6ES7321-1FH00-0AA0
Taxane	SIMATIC S7-300
Nimco Ee Moduulka	Qoraal ka Iibinaya SM 321
Kanaliyada In-ku-bixinta	16 DI
Xaalada Soo Kiray	120 / 230 V AC
Xadka Joogtada	47 – 63 Hz
Iskora Ee Fikradka “1”	79 – 264 V AC
Iskora Ee Fikradka “0”	0 – 40 V AC
Ku xadgudubka Energi	~4.9 W
Kurrunti ee Baakpléynka	Ugu yar 29 mA
Dheerirka Kabelka (Ka dhintay)	Ugu yar 1000 m
Dheerirka Kabelka (Laa kala qayb-tagi jirin)	Ugu yar 600 m
Kala joojin	4000 V DC la iskaydhiyey
Isolation Opto	Midha between inputs iyo backplane bus
Nooc casriga	kooniktor-ka midig ee 20-pin
Ballac	40 mm
Boqor	125 mm
Caliimo	120 mm
Miisaanka	~240 g

Sharaxaad

Waxaa 6ES7321-1FH00-0AA0 waa moduulka SM 321 ee digital ee SIMATIC S7-300 ee loogu sameeyay in ay ku xidhiin karaan isku daynayaasha AC ee dhexdooda ee qaybta oo ka saabsan nidaamada oo ka weyn ee ujeedada industriyada. Wuxuu leeyahay 16 input digital ee la isoleeyay optically oo ku xidhiin 120/230 V AC, si ay ugu dhisaaan karaan qaabka oo la jiro xadgudubka ee ku jira nidaamada ee ku xidhiin xadgudubka.

Waxaa 6ES7321-1FH00-0AA0 wuxuu siiyaa fikradaha oo ku xidhiin isku daynayaasha oo ku jira IEC 61131 Type 1, waxaana ku xidhiin isku daynayaasha oo ku jira xadgudubka dheer ee 1000 m ee xadgudubka oo la qalbigiyeeyo, taas oo ku xidhiin qaybta oo ka weyn ee ujeedada industriyada.

Kuwa oo la isoleeyay galvanically ku jira optocouplers, LED ee ku xidhiin hawlgal, iyo isku daynayaasha oo la jiro, 6ES7321-1FH00-0AA0 wuxuu ku xidhiin ku xidhiin oo la jiro iyo ku xidhiin oo la jiro ee ku xidhiin nidaamada SIMATIC S7-300 ee ujeedada industriyada.

Codsiyada

Warshadaha korontada: Nidaamyada kormeerka korontada iyo ilaalinta wareegga
Substations: Xadgudubka bus iyo xadgudubka isku daynayaasha
Magaalooyinka kemikaal: Ujeedada isku daynayaasha iyo xadgudubka isoleeyaha isku daynayaasha
Milaasaha dhinac: Nidaamada ugu sarreeya ee xasiloonka iyo xasiloonka gudaha la isticmaalo qalafaha
Usoocinta macaamiilka: Xariirka ugu dambaysa ee la isticmaalo qalafaha iyo xasiloonka macaamiilka

Saxda ah

mooduulka 16-chanel ee fikradka AC
Qaybta fikradka oo ku jira kala duwan oo ku jira qalafaha caadi ah
Waxay taageerayaan ishoo 120/230 V AC ee la isticmaalo qalafaha
Dhaqanka ka soo bixinta kable-ka ka badan 1000 m
Waxay leedahay isku dhafan IEC 61131 Type 1 ee fikradka
Isku dhafan LED ee muujinta hali-jirta

Funkushenaha

Ka soo bixinta fikradka AC
Xasiloonka hali-jirta ee switch-ka la isticmaalo qalafaha
Kala duwanidka elektrik iyo xamilaadka ishoo
Isku daynta sistema ee ku daryeelaya koornta
Ugu dhexeeya qaybta gacmaha ee jiritaanka sare ee ku saabsan nidaamka ujeedada

Dhibaatooyinka soo galay

Su’aal 1: Waa maxay wajibka ugu sarreeya ee 6ES7321-1FH00-0AA0?
Jawaab 1: Wuxu isticmaalka lahaa in lagu raadiyo ishoo digital ee 120/230 V AC ee ku saabsan nidaamka S7-300.

Su’aal 2: Kama soo gaabin karaa qaabkan 16 ishoo?
Jawaab 2: Wuxu baahinaya 16 qaybood ee ishoo digital ee la kala duwanayo oo ku saabsan optically.

Su’aal 3: Ma aha qaabkan caawinaan leh ku saabsan dhaqameynta dheer?
Jawaab 3: Haa, wuxu ku saabsan karaa dhaqameynta oo ka yar 1000 m ee dhaqameyn oo la xidhiyey.

Su’aal 4: Ma baahinaya kala duwanidka elektrik?
Jawaab 4: Haa, wuxu isticmaalka lahaa kala duwanidka optocoupler ee ku saabsan ishoo iyo buuska backplane.

Su’aal 5: Waa maxay nooca xawawaan ee ku yaal?
Jawaab 5: Wuxuu heleysa xawawaan AC ka iman 120 V ilaa 230 V ee nidaamada industriyada.
