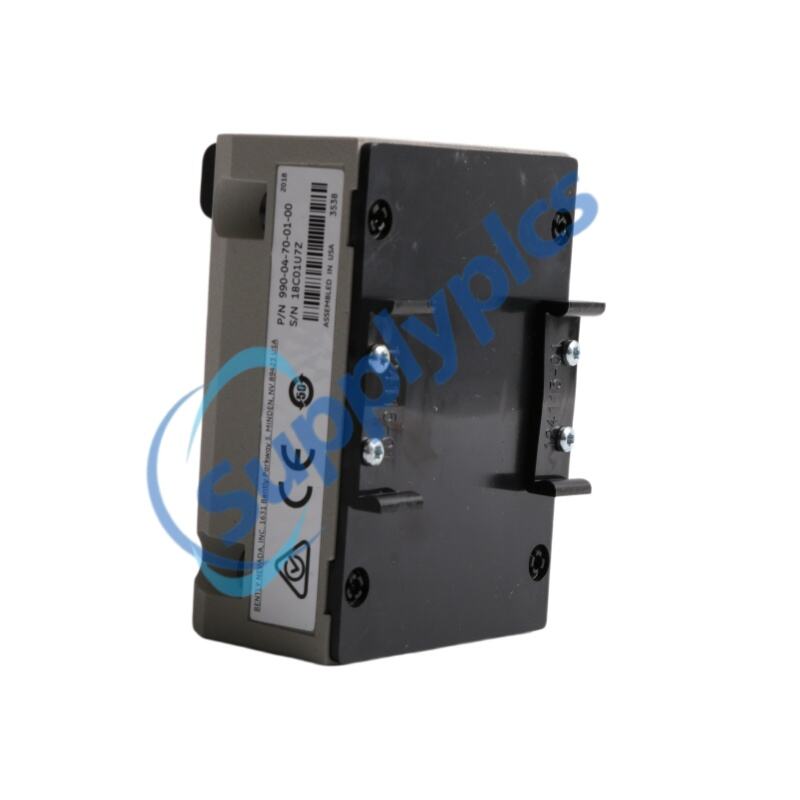

Product Name:990 Vibration Transmitter
Brand Name:BENTLY NEVADA
Model Number:990-04-70-01-00
Country of Origin: USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
Bently Nevada |
Model Number: |
990-04-70-01-00 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Specification Item |
Details |
|
Product Model |
990-04-70-01-00 |
|
Product Type |
Vibration Transmitter |
|
Input Signal |
3300 NSv Proximity Probe |
|
Output Signal |
4–20 mA proportional vibration signal |
|
Frequency Response |
5 Hz to 6,000 Hz |
|
Operating Voltage |
+12 to +35 Vdc |
|
Full Scale Range |
0–4 mils pp (0–100 μm pp) |
|
System Length |
7.0 meters (23 ft) |
|
Mounting Type |
35 mm DIN Rail Clips |
|
Operating Temperature |
-35°C to +85°C |
|
Probe Temperature Range |
-52°C to +177°C |
|
Relative Humidity |
100% condensing |
|
Output Impedance |
10 kΩ |
|
Dimension |
10x7.3x6cm |
|
Weight |
0.46kg |
|
Protection Features |
NOT OK signal defeat, power-up inhibit |
|
Certifications |
ATEX, IECEx, EMC, RoHS, ABS |
The Bently Nevada Bently Nevada 990-04-70-01-00 vibration transmitter is engineered for OEM centrifugal compressors, industrial pumps, motors, and rotating machinery requiring dependable 4–20 mA vibration monitoring. Designed with integrated signal conditioning technology, the transmitter converts dynamic shaft vibration data into a stable industrial output signal for PLC and machinery protection systems.
Built for compatibility with 3300 NSv proximity probes, 990-04-70-01-00 supports compact installations where mounting space is limited. Its rugged encapsulated construction offers reliable performance in humid industrial environments, including compressor skids, power units, and process automation systems.
Unlike conventional monitoring devices, the 990 Series combines simplified installation, DIN-rail mounting flexibility, and diagnostic signal access through PROX OUT connections. The transmitter also features NOT OK protection logic, external zero/span adjustment, and high-frequency response for accurate vibration trending in critical machinery applications.
Q1: What is the main function of the 990-04-70-01-00?
A1: It converts machinery vibration signals into a proportional 4–20 mA output for industrial monitoring systems.
Q2: Which probe is compatible with the 990 Series transmitter?
A2: The transmitter is designed for use with 3300 NSv proximity probes and extension cables.
Q3: Can the 990-04-70-01-00 operate in harsh environments?
A3: Yes, it supports high humidity, industrial vibration environments, and hazardous area approvals.
Q4: Does the transmitter support diagnostic testing?
A4: Yes, the PROX OUT connection allows access to dynamic vibration signals for diagnostics.
Q5: Is the 990-04-70-01-00 suitable for PLC integration?
A5: Yes, the 4–20 mA output is widely compatible with PLC, DCS, and machinery protection systems.
| Number | Describe |
|---|---|
| 123266-01 | Coaxial Cable Kit, includes four 1.5 m cables for signal connection |
| 02211505 | Single 1.5 m coaxial cable accessory |
| 01810700 | 9V alkaline battery for 990/991 Test Adapter |
| 02270056 | Universal AC adapter for test equipment power supply |
| 02198937 | North American AC power cord |
| 123133 | 990 Test Adapter User Guide documentation |
| 02173006 | Shielded twisted pair bulk cable for 4–20 mA loop wiring |
| 123655 | 990/991 Transmitter System Installation Guide |
| 330153-05 | Cable Connector Kit with miniature connectors and sealing accessories |
| 163356 | Connector Crimp Tool Kit with carrying case |
| 330951-01 | Spare mounting screw kit for 990 transmitter |
| 284726 | DIN rail mounting kit for 35 mm rail installation |
