Product Name: Weigh Scale Module
Brand Name: Allen-Bradley
Model Number: 1771-WS
Place of Origin: USA
Warranty: 12 Months
Whatsapp：+86 18020776782
Email：[email protected]

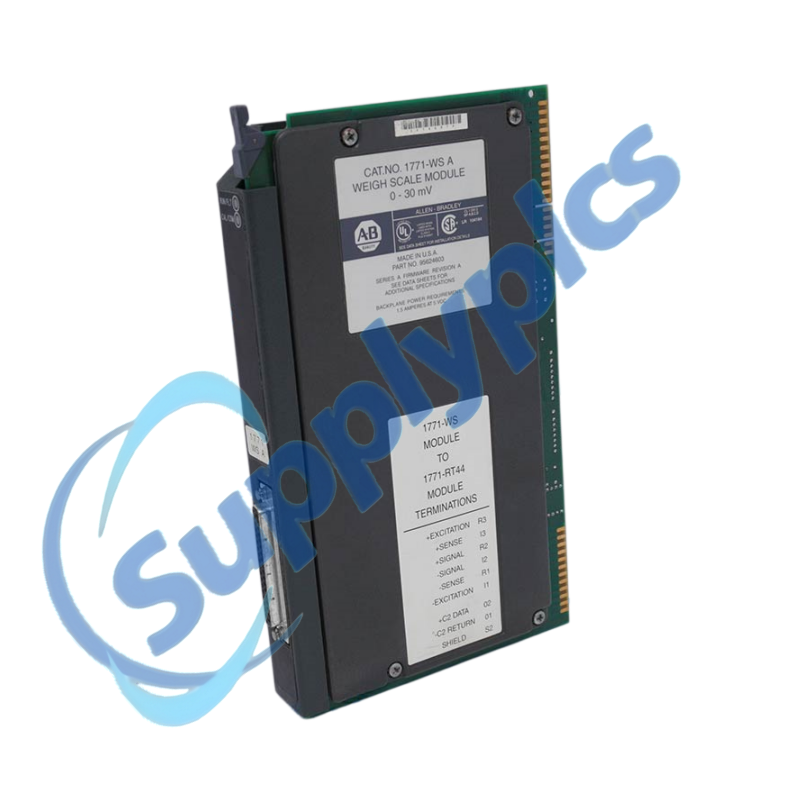

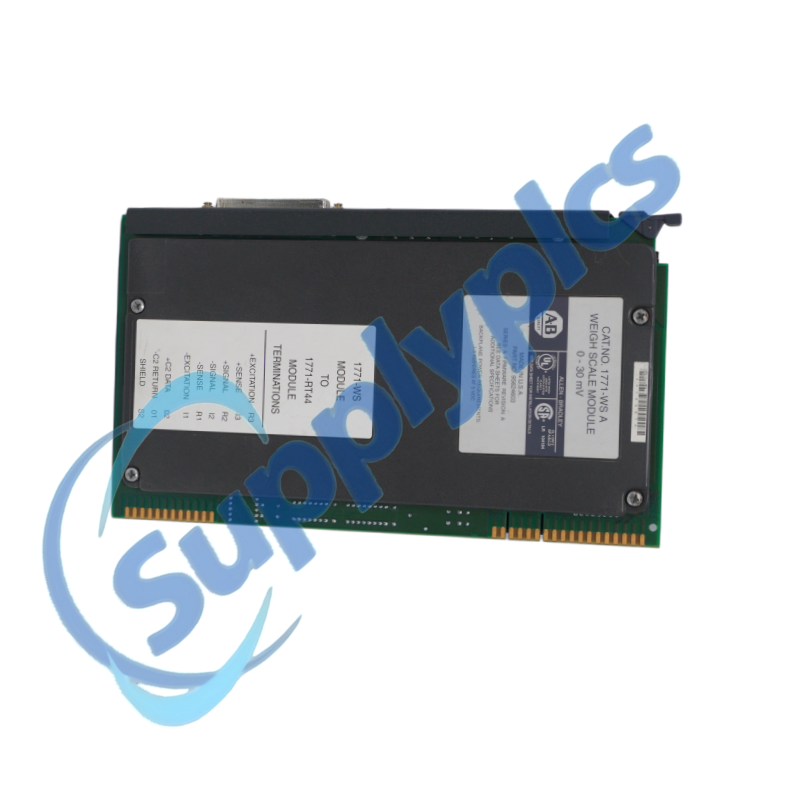

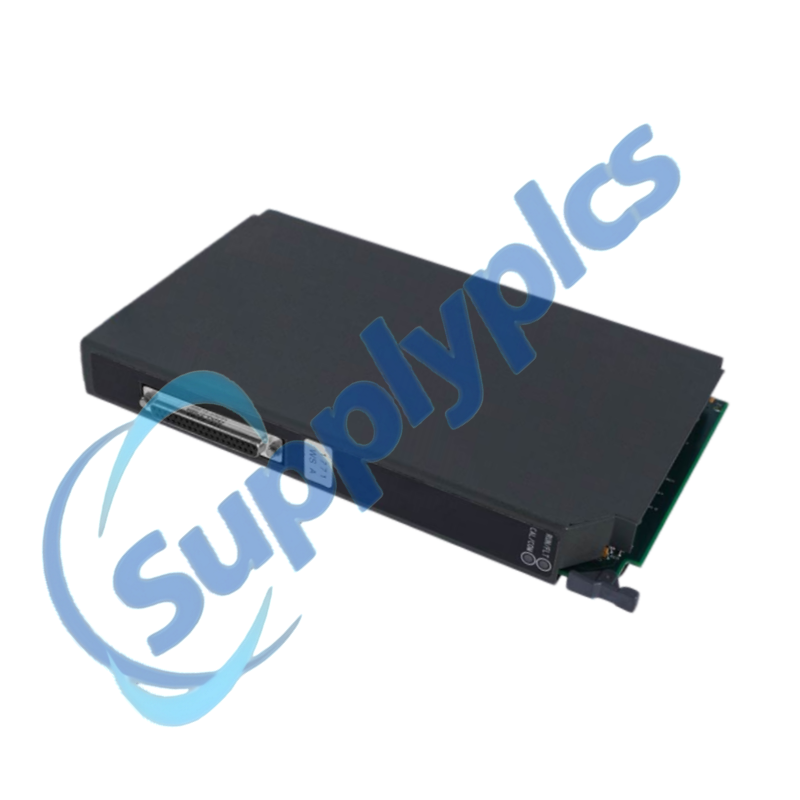

The Allen-Bradley 1771-WS is a weigh scale input module designed for the PLC-5 (1771) platform. It provides high-precision measurement of low-level analog signals from load cells and strain-gauge-based weighing systems. With 20-bit resolution and support for advanced data formatting, the module is widely used in industrial weighing applications such as batching, blending, filling, and material handling systems where accurate weight measurement is critical.
Reads and processes low-level analog signals from load cells and weighing sensors.
Converts weight measurements into digital data for PLC processing.
Supports high-precision industrial weighing applications such as batching and filling.
Provides real-time weight monitoring for process control systems.
Interfaces directly with PLC-5 backplane for data communication.
Enables accurate load measurement in industrial automation systems.
|
Minimum Order Quantity |
1 Piece |
|
Price |
Contact for Jim |
|
Packaging Details |
Original new Factory Sealed |
|
Delivery Time |
3–7 Days |
|
Payment Terms |
T/T |
|
Shipping Method |
DHL / FedEx / UPS / TNT |
|
Supply Ability |
In stock |
|
Sales: |
Email: |
Whatsapp: |
|
Jim Pei |
| Product Name | AB 1771-WS Weigh Scale Module |
| Manufacturer | Allen-Bradley |
| Product Type | Weigh Scale Module |
| Part Number | 1771-WS |
| Weight | 0.74 kg |
| Estimated shipping dimensions | 3x15.2x25.8cm |
| Place of shipment | Xiamen, China |
| Country of origin | USA |
| Number of Inputs/Outputs | 10 V Output, Sense Input, 1 Weigh Scale |
| Resolution | 20-bit resolution |
| Analog Inputs | 0–30 mV DC (Weigh sensor signal / load cells) |
| Analog Outputs | None |
| Data Format | 16-bit integer or 32-bit floating-point |
| Slots | 1 slot |
| Backplane Current Load | 1.5 A |
| External Power Required | None |
| Number of Channels | 1 Channel |
| Voltage | 5 V DC (backplane powered) |
| RTP Choice | 1771-RT44 |
High-Precision Weighing Performance
With 20-bit resolution, the 1771-WS delivers highly accurate and stable weight measurements compared with standard analog input modules.
Dedicated Weighing Functionality
Unlike general-purpose analog modules, it is specifically designed for load cell applications, ensuring optimized signal conditioning and improved measurement stability.
Stable Low-Level Signal Processing
Engineered for millivolt-level inputs (0–30 mV DC), it provides reliable handling of weak signals from strain gauge sensors in noisy industrial environments.
Flexible Data Handling
Supports both integer and floating-point formats, allowing seamless integration with different PLC programming and data processing requirements.
No External Power Required
Backplane-powered design simplifies installation and reduces wiring complexity compared with modules requiring external excitation or power supplies.
Seamless PLC-5 Integration
Designed specifically for the 1771 platform, ensuring straightforward installation, configuration, and long-term system compatibility.
Reliable Industrial Performance
Built for continuous operation in demanding environments such as batching, packaging, and material handling systems, ensuring consistent weighing accuracy and system stability.
