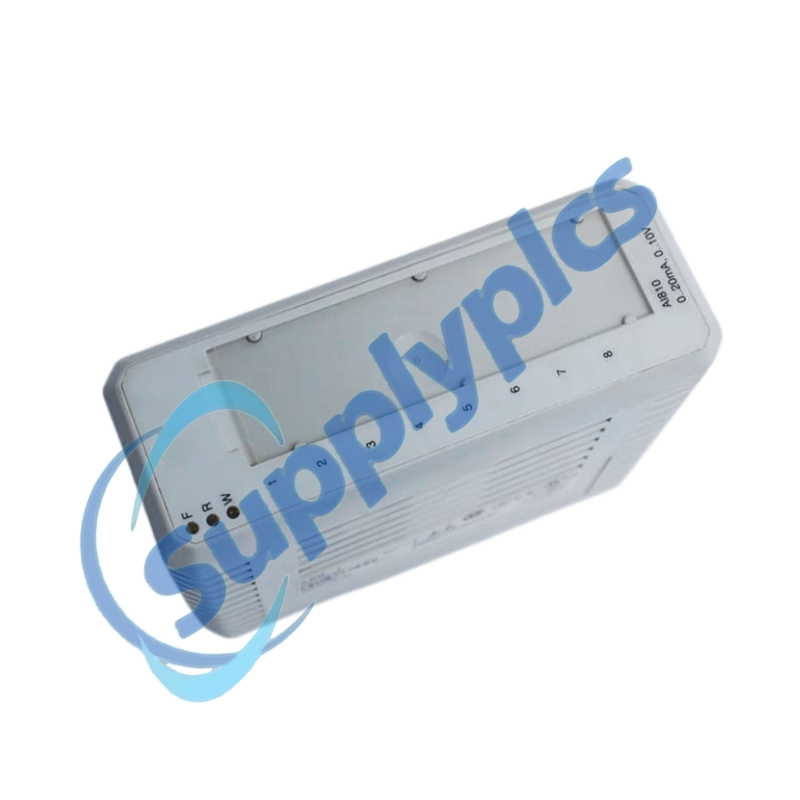

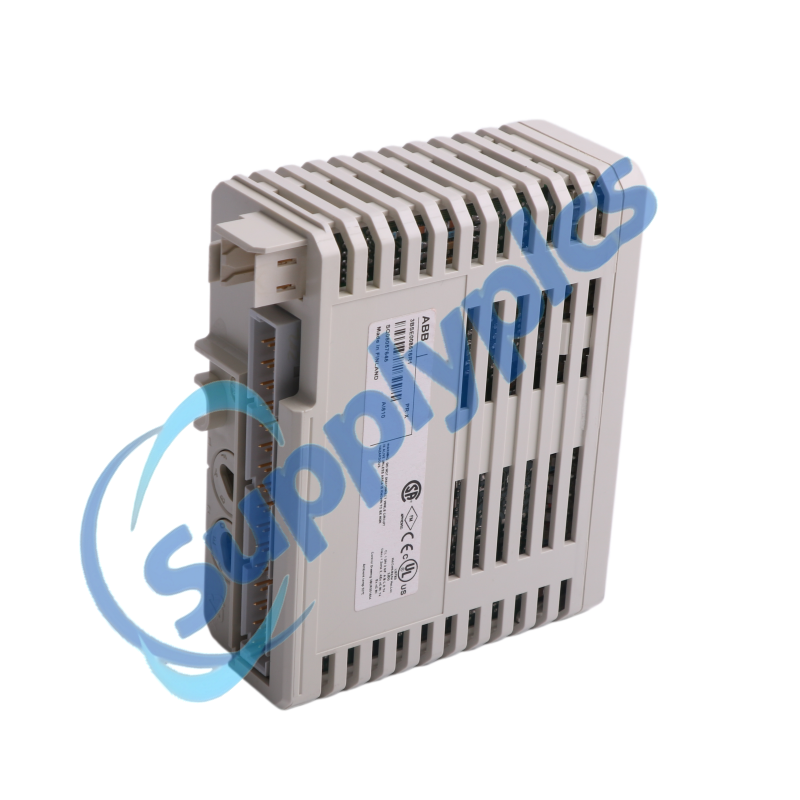

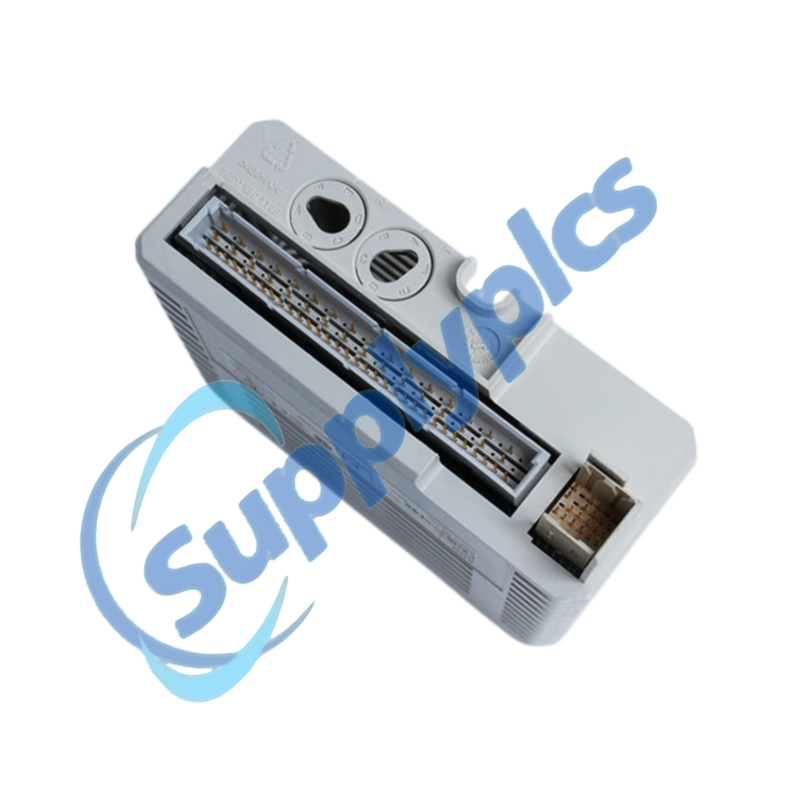

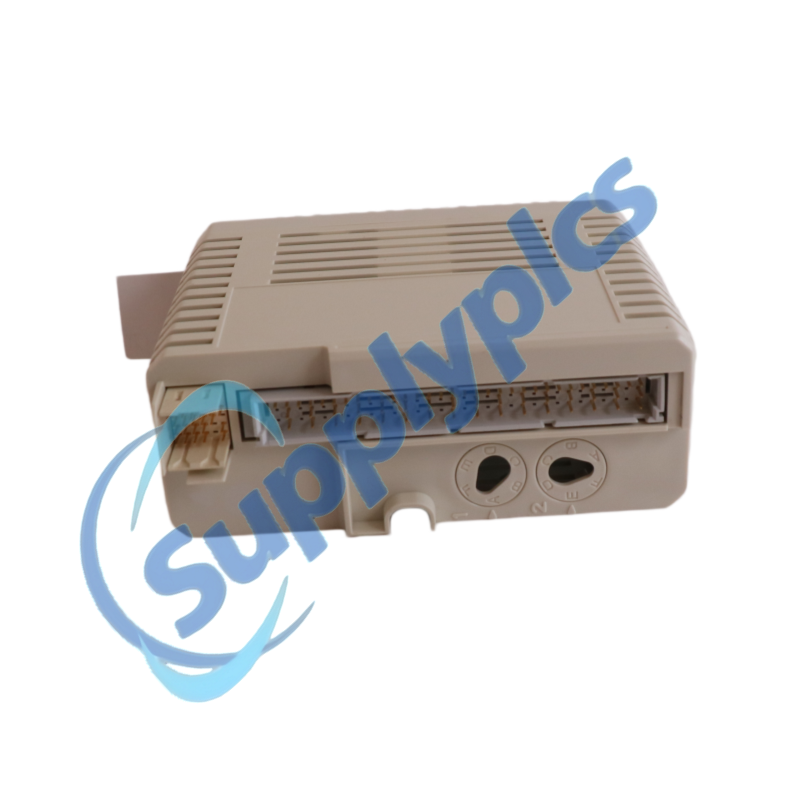

ABB AI810 3BSE008516R1 Analog Input Module

ABB AI810 3BSE008516R1 Analog Input Module

Product Name: Analog Input Module

Brand Name: ABB

Model Number: AI810 3BSE008516R1

Place of Origin: SWEDEN

Warranty: 12 Months

Whatsapp：+86 18020776782

Email：[email protected]

Appurtenance:

abb ai810 3bse008516r1 analog input module-1

Overview
Contact Info
Parameter
Introduction
Function
Features
Applications & Use Cases
System Compatibility
Recommended Products

Commercial Terms

Minimum Order Quantity	1 Piece
Price	Contact for Jim
Packaging Details	Original new Factory Sealed
Delivery Time	3–7 Days
Payment Terms	T/T
Shipping Method	DHL / FedEx / UPS / TNT
Supply Ability	In stock

Contact Info

Sales	Email	Whatsapp
Jim Pei	[email protected]	+86 18020776782

Parameter

Product Name	ABB AI810 3BSE008516R1 Analog Input Module
Manufacturer	ABB
Product Type	Analog Input Module
Part Number	AI810 3BSE008516R1
Estimated shipping dimensions	4.3x10.5x11.8cm
Weight	0.16kg
Place of shipment	Xiamen, China
Country of origin	SWEDEN
Channel Type	AI
Number of Input Channels	8
Number of Output Channels	0
Signal specification	0..20mA, 4..20mA, 0..10V, 2..10V
Resolution	12 bit
Under/over range	-0.333333333
Input filter (rise time 0-90%)	140 ms
Maximum field cable length	600 meters (656 yards)
Max input voltage (non destructive)	30 V d.c.
NMRR, 50Hz, 60Hz	> 40 dB
Rated insulation voltage	50 V
Dielectric test voltage	500 V a.c.
Power dissipation	1.5 W
Current consumption +5 V Modulebus	70 mA
Current consumption +24 V Modulebus	40 mA

Introduction

The ABB AI810 3BSE008516R1 is a high-performance analog input module designed for industrial automation systems within the ABB Advant OCS and Advant-800xA platforms. It is engineered to accurately acquire standard industrial process signals such as 0–20 mA, 4–20 mA, 0–10 V, and 2–10 V, enabling precise monitoring and control of process variables. With its robust design and reliable signal handling capability, the module is suitable for demanding industrial environments where measurement accuracy is critical.

The module features 8 analog input channels with galvanic isolation, ensuring stable and interference-resistant signal acquisition even in electrically noisy environments. Its 12-bit resolution and integrated signal conditioning functions allow it to capture fine process variations with high accuracy. Designed for flexible integration, the AI810 supports multiple MTU termination units and is easily configurable through ABB engineering software for different input types and applications.

Function

The primary function of the AI810 3BSE008516R1 module is to convert analog process signals into high-precision digital data for use in control and monitoring systems. It processes current and voltage inputs from field instruments such as pressure transmitters, temperature sensors, and flow meters, enabling accurate real-time process supervision. This ensures reliable data acquisition for industrial automation and control applications.

Each channel can be individually configured to handle either current or voltage input signals, providing flexibility for diverse field device requirements. The module also includes input filtering and diagnostic functions that enhance signal stability and continuously monitor module health and signal quality. These features help reduce measurement errors and improve system reliability.

In addition, the AI810 supports LED-based status indicators that provide immediate visual feedback on channel operation and fault conditions. This simplifies troubleshooting and reduces maintenance time by allowing operators to quickly identify wiring issues or channel failures without additional diagnostic tools.

Features

8 analog input channels with galvanic isolation for reliable signal acquisition.
Supports 0–20 mA, 4–20 mA, 0–10 V, and 2–10 V industrial signal standards.
High-precision 12-bit analog-to-digital conversion for accurate measurement.
Individually configurable channels for current or voltage input types.
Integrated signal conditioning and input filtering for improved stability.
Built-in diagnostic functions for continuous module and signal health monitoring.
LED status indicators for fast and easy fault identification.
Maximum field cable length up to 600 meters (656 yards).
Low power consumption with efficient operation (1.5 W typical dissipation).
High noise immunity with NMRR > 40 dB at 50/60 Hz.

Applications & Use Cases

Used in industrial process control systems for monitoring analog process variables.
Applied in chemical, oil and gas, and petrochemical industries for accurate sensor data acquisition.
Used in power generation plants for monitoring pressure, temperature, and flow signals.
Suitable for manufacturing automation systems requiring precise analog measurement.
Applied in water treatment and utility systems for continuous process monitoring.
Used in distributed control systems (DCS) for real-time process data acquisition.
Ideal for industrial environments with electrical noise requiring isolated signal input.
Supports condition monitoring and process optimization in critical industrial operations.

System Compatibility

The ABB AI810 3BSE008516R1 is fully compatible with ABB Advant OCS and Advant-800xA automation systems. It integrates seamlessly into ABB distributed control architectures, enabling reliable analog signal acquisition and processing within complex industrial environments.

The module supports a wide range of ABB Module Termination Units, including TU810, TU812, TU814, TU818, TU830, TU833, TU835, TU838, and TU850, allowing flexible system configuration and easy installation. Its standardized interface ensures smooth integration into existing ABB I/O systems.

The AI810 is designed for use in fully integrated ABB control environments, ensuring consistent performance, high measurement accuracy, and reliable long-term operation in industrial automation and process control applications.
