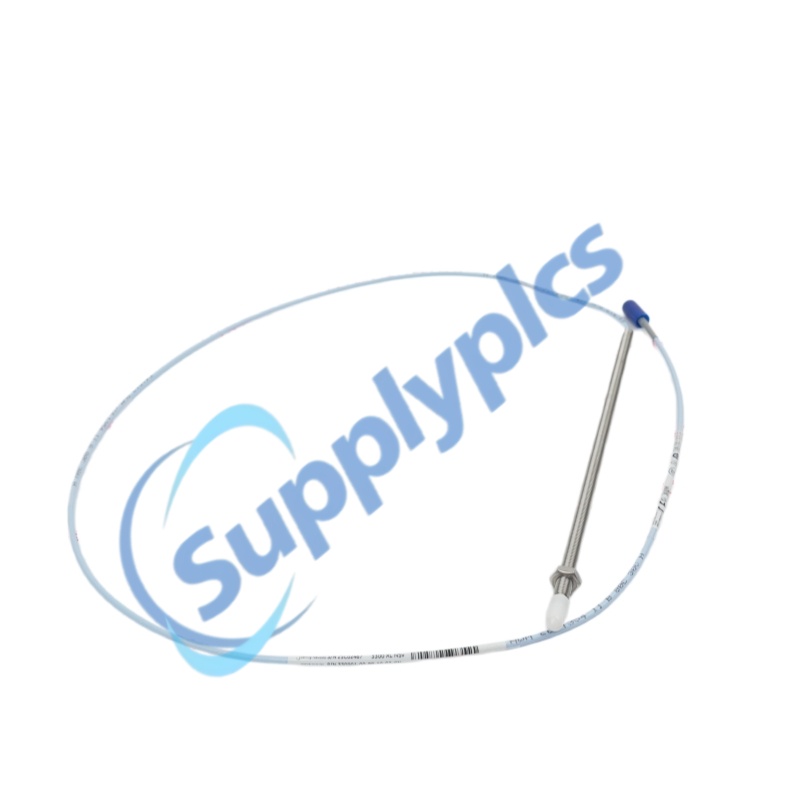

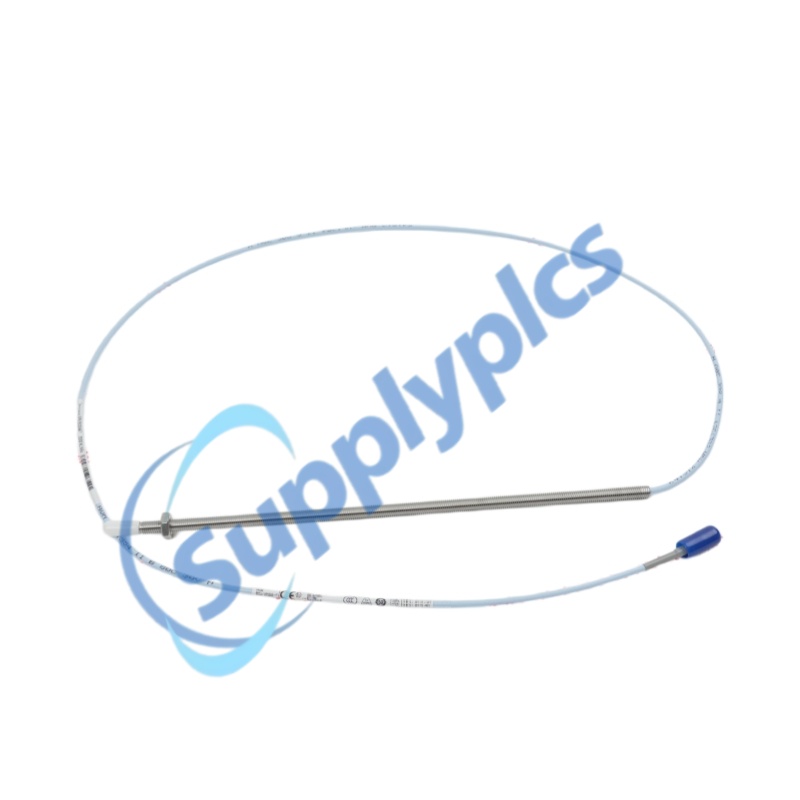

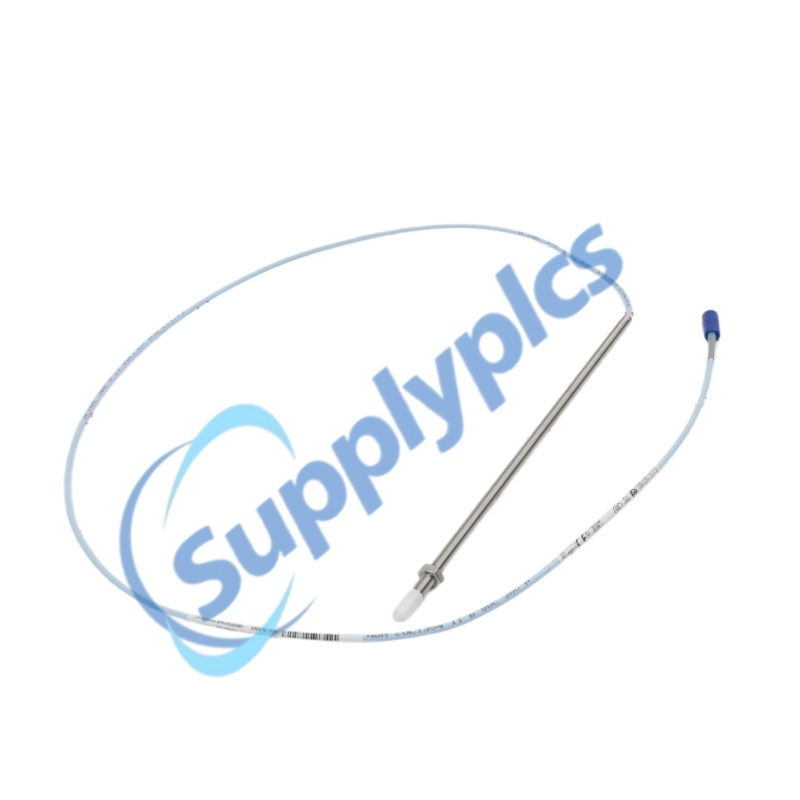

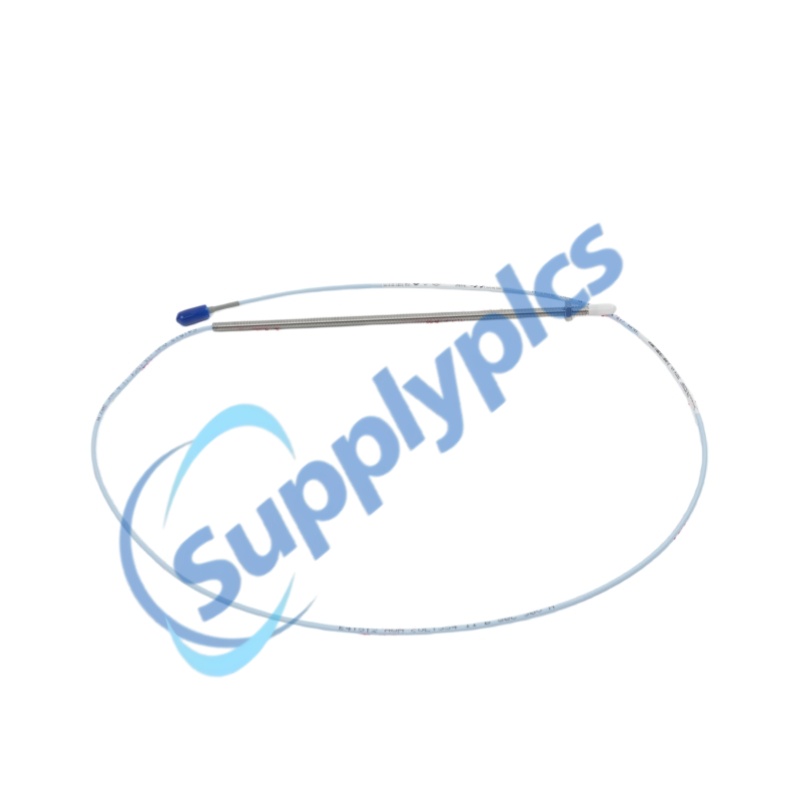

Product Name:3300 NSv Proximity Probes
Brand Name: BENTLY NEVADA
Model Number:330901-00-32-10-02-001
Country of Origin:USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
BENTLY NEVADA |
Model Number: |
330901-00-32-10-02-001 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Parameter |
Specification |
|
Model |
330901-00-32-10-02-001 |
|
Manufacturer |
Bently Nevada (Baker Hughes) |
|
Product Family |
3300 XL NSv Proximity Probe |
|
Probe Type |
3300 NSv Probe, 1/4-28 UNF thread, without armor |
|
Unthreaded Length (Option AA) |
00 = 0.0 in |
|
Overall Case Length (Option BB) |
32 = 3.2 in |
|
Total Cable Length (Option CC) |
10 = 1.0 metre (39 in) |
|
Connector Option (Option DD) |
02 = Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval (Option EE) |
001 = Specific approval variant |
|
Thread Size |
1/4-28 UNF |
|
Armor |
Without armor |
|
Probe Tip Material |
Polyphenylene sulfide (PPS) |
|
Probe Case Material |
AISI 304 stainless steel (SST) |
|
Probe Cable |
75Ω coaxial, FEP insulated |
|
Average Scale Factor |
7.87 V/mm (200 mV/mil) |
|
Linear Range |
1.5 mm (60 mils), from 0.25 to 1.75 mm (10 to 70 mils) |
|
Recommended Gap Setting |
1.0 mm (40 mils) |
|
Frequency Response |
0 to 10 kHz: +0, -3 dB typical |
|
Minimum Target Size (Flat) |
8.9 mm (0.35 in) diameter |
|
Minimum Shaft Diameter |
30 mm (1.2 in) standard X-Y configuration |
|
Probe Case Torque (Recommended) |
5.1 N·m (45 in·lb) for 1/4-28 |
|
Probe Case Torque (Maximum) |
7.3 N·m (65 in·lb) for 1/4-28 |
|
Minimum Cable Bend Radius |
25.4 mm (1.0 in) |
|
Probe Temperature Range |
–52°C to +177°C (–62°F to +351°F) |
|
Probe Weight |
Approximately 14 to 150 g (0.5 to 5.3 oz) |
|
Connector Type |
Gold-plated brass ClickLoc (finger-tight) |
|
System Length |
1 metre (probe only, no extension cable) |
|
Target Material (Default Calibration) |
AISI 4140 steel |
|
Sealing |
Viton O-ring |
|
Compliance |
CE, RoHS, FCC, SIL 2/3 |
The 330901-00-32-10-02-001 is a narrow-sideview proximity probe from Bently Nevada‘s 3300 XL NSv series, specifically engineered for machinery with severe installation space constraints. The 330901-00-32-10-02-001 features a 1/4-28 UNF threaded, unarmored stainless steel housing with a 3.2-inch case length and a 1.0-metre FEP-insulated coaxial cable terminated with a gold-plated ClickLoc connector. When paired with a 3300 XL NSv Proximitor Sensor, the 330901-00-32-10-02-001 delivers an industry-standard 7.87 V/mm (200 mV/mil) output. The 330901-00-32-10-02-001 is mechanically and electrically interchangeable with previous 3300 RAM probes while offering superior chemical resistance. The 330901-00-32-10-02-001 excels at radial vibration measurements on shafts smaller than 51 mm (2 in) and axial position monitoring on targets under 15 mm (0.6 in).
Narrow Side-View Design – Enables installation in counterbore, sideview, or rearview-restricted areas where standard 3300 and 3300 XL 5 mm and 8 mm probes cannot fit.
Small Target Capability – Measures radial vibration on shafts <51 mm (2 in) and axial position on flat targets <15 mm (0.6 in).
3300 RAM Drop-In Replacement – Mechanically and electrically compatible with previous 3300 RAM probes; existing probes, extension cables, and monitoring systems can be retained during upgrades.
Superior Chemical Resistance – Enhanced durability against chemicals compared to the older 3300 RAM probe series.
Superior Side-View Characteristics – Outperforms 3000-series 190 probe when gapped at the same distance from the target.
Gold-Plated ClickLoc Connectors – Corrosion-resistant connectors lock in place to prevent loosening; finger-tight installation, no special tools required.
Narrow Side-View (NSv) Geometry: Optimized for tight installation spaces with counterbore, sideview, or rearview restrictions
Unarmored Stainless Steel Construction: 1/4-28 UNF threaded probe with AISI 304 stainless steel case for durability
Patented TipLoc Molding: Provides a robust bond between the probe tip and probe body
CableLoc Design: Delivers 220 N (50 lb) pull strength to securely attach the probe cable to the probe tip
Gold-Plated ClickLoc Connectors: Corrosion-resistant, finger-tight connectors with positive locking mechanism
FEP-Insulated Coaxial Cable: 75Ω coaxial cable with excellent dielectric strength and chemical resistance
Viton O-Ring Pressure Seal: Designed to seal differential pressure between the probe tip and case
Wide Temperature Operation: Maintains specified performance from –52°C to +177°C
RFI/EMI Immunity: Improved immunity allows CE mark approvals without special mounting considerations
|
Certification |
Status |
|
CE Mark |
Compliant |
|
RoHS |
Compliant |
|
FCC |
Compliant |
|
SIL 2/3 |
Functional Safety Certified |
|
ATEX |
Available with applicable agency approval options |
|
IECEx |
Available with applicable agency approval options |
|
CSA |
Available with applicable agency approval options |
|
Maritime |
ABS 2019 Rules for Conditions of Classification |
Q1: What do the part number suffixes (00-32-10-02-001) represent for the 330901 probe?
A1: 00 = Unthreaded length (0.0 in); 32 = Overall case length (3.2 in); 10 = Total cable length (1.0 metre / 39 in); 02 = Miniature coaxial ClickLoc connector with standard cable; 001 = Specific agency approval variant.
Q2: What makes the NSv probe different from standard 3300 5 mm and 8 mm probes?
A2: The NSv (Narrow Side View) probe is specifically designed for areas where counterbore, sideview, or rearview restrictions limit the use of standard probes. It also excels at measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in).
Q3: Can the 330901-00-32-10-02-001 replace an existing 3300 RAM probe?
A3: Yes. The 3300 NSv probe and extension cable are mechanically and electrically compatible and interchangeable with Bently Nevada‘s previous 3300 RAM proximity probe and extension cable. Upgrading from a 3300 RAM system can utilize existing probes, extension cables, and monitoring systems.
Q4: What is the linear range and recommended gap setting for this probe?
A4: The linear range is 1.5 mm (60 mils), extending from approximately 0.25 mm to 1.75 mm (10 to 70 mils). The recommended gap setting is 1.0 mm (40 mils).
Q5: Does this probe require special tools for connector installation?
A5: No. The ClickLoc connectors are designed for finger-tight installation only. They will audibly “click” when properly engaged, and the locking mechanism prevents loosening. No special tools are required for installation or removal.
