Exact ordering code verified against official 3300 XL 8 mm documentation.
Scope of supply: quotation includes one probe only. Extension cable, Proximitor sensor, connector protector, mounting bracket and other accessories are excluded. A standard 1 m system does not use a separate extension cable.

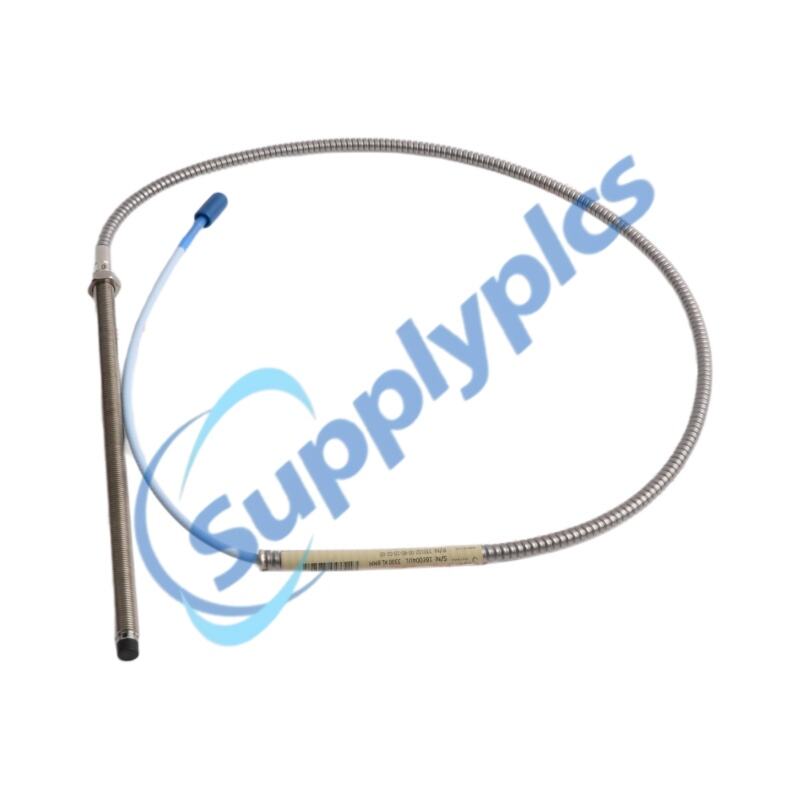

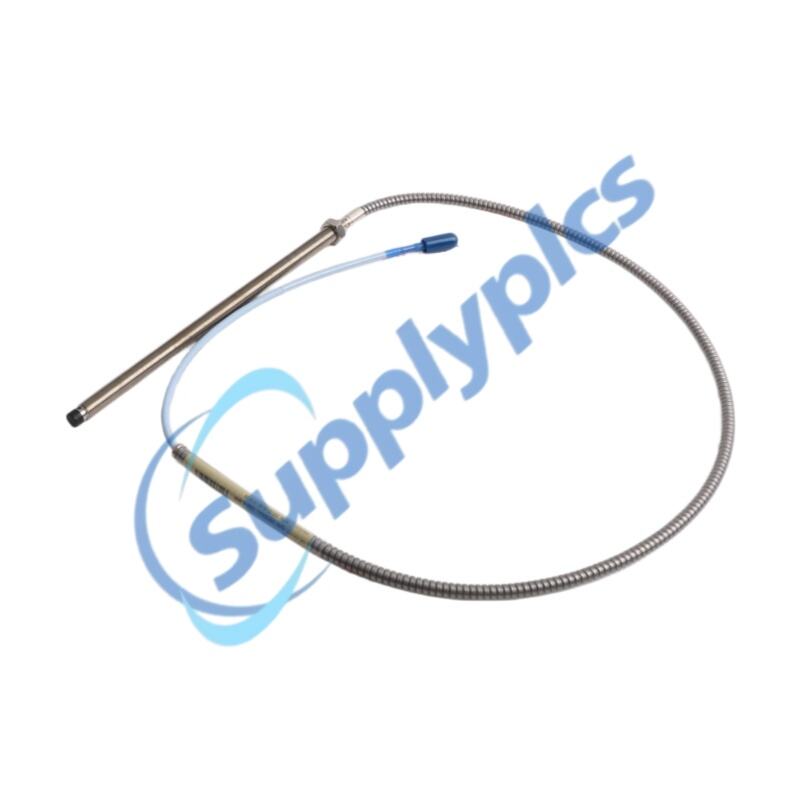

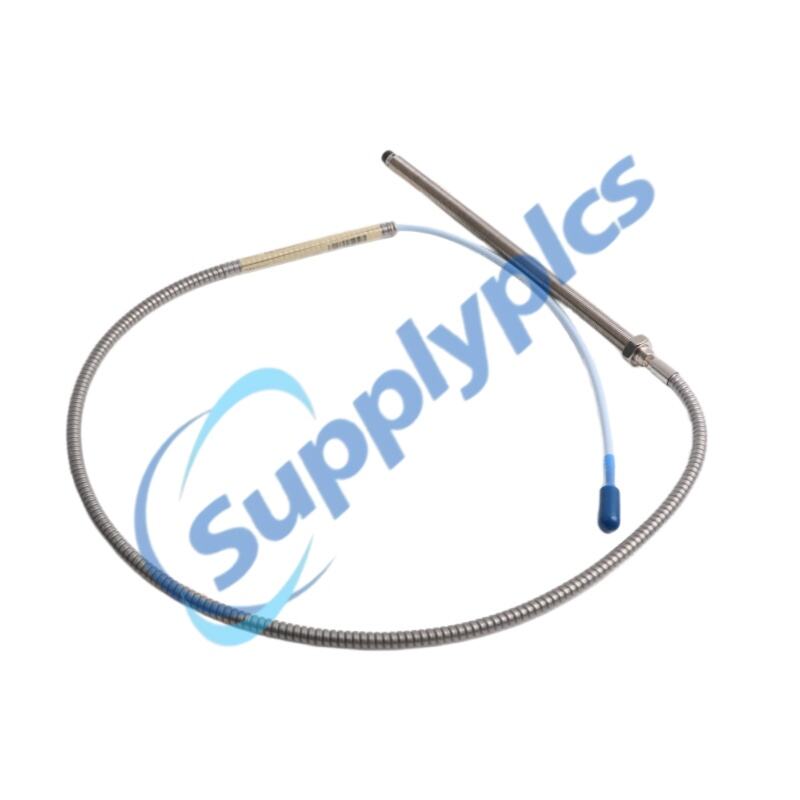

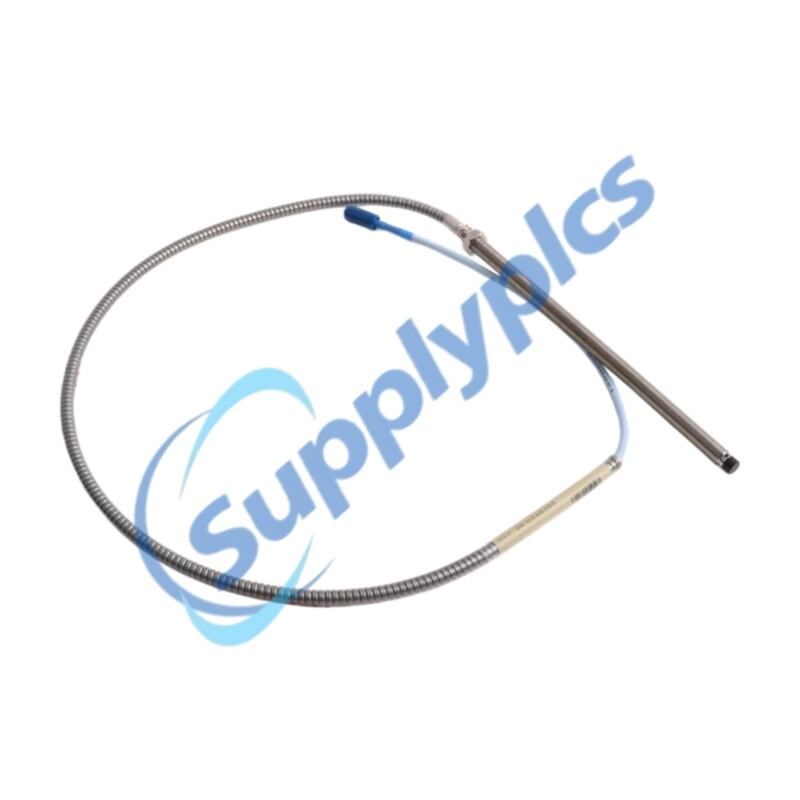

Bently Nevada 330102-00-30-10-02-05 is a 3300 XL 8 mm proximity probe with a 3/8-24 UNF thread and flexible armor. The complete code specifies 0.0 in unthreaded length, a 3.0 in overall case, 1.0 m total probe length, a miniature coaxial ClickLoc connector with standard cable, and approval option 05.
| Code | Selection | Meaning |
|---|---|---|
| 330102 | Probe family | 3300 XL 8 mm, 3/8-24 UNF, with armor |
| 00 | Unthreaded length | 0.0 in |
| 30 | Overall case | 3.0 in |
| 10 | Total probe length | 1.0 m (3.3 ft) |
| 02 | Connector / cable | Miniature coaxial ClickLoc, standard cable, no protector |
| 05 | Approvals | CSA, ATEX and IECEx option |
| Probe tip | 8.0 mm PPS |
|---|---|
| Case / armor | AISI 303/304 case; flexible AISI 302/304 armor with FEP jacket |
| Cable | 75-ohm triaxial FEP cable |
| Linear range | 2 mm, approximately 0.25–2.3 mm from target |
| Recommended gap | Approximately -9 Vdc / 1.27 mm |
| Scale factor | 7.87 V/mm (200 mV/mil) ±5% for standard 1 m system at 0–45 °C |
| Frequency | 0–10 kHz, +0/-3 dB |
| Temperature | -52 to +177 °C |
| Minimum bend radius | 25.4 mm |
The following text can be selected, copied and indexed independently of the image.
| Diagram No. | Component | Technical description |
|---|---|---|
| 1 | Probe tip | 8.0 mm (0.31 in) diameter PPS sensing tip |
| 2 | Mounting thread | 3/8-24 UNF thread for model 330102 |
| 3 | Case thread | Threaded stainless-steel probe case |
| 4 | Wrench flats | 5/16 in wrench flats for 3/8-24 probe threads |
| 5 | Cable / armor | 75-ohm triaxial cable protected by flexible stainless armor and FEP jacket |
| 6 | Connector | Miniature male coaxial ClickLoc connector |
| 7 | Unthreaded length A | 0.0 in for order option 00 |
| 8 | Case length B | 3.0 in for order option 30 |
| 9 | Maximum case diameter | 6.0 mm (0.235 in) maximum |
| 10 | Total length C | 1.0 m (3.3 ft) for order option 10 |
Is this the exact article?
Availability is verified against the full ordering code before quotation.
Does the quote include a complete system?
No. It includes one probe only unless other items are listed separately.
What does option 02 mean?
Miniature coaxial ClickLoc connector, standard cable, no connector protector.
Can photos, test information and warranty terms be supplied?
They can be confirmed for the quoted unit and agreed scope.
| Condition | Original new |
|---|---|
| Current photos | Gallery images show the current sale unit. |
| Testing / warranty | Scope and terms are stated in the formal quotation. |
| Dispatch / payment | Confirmed after quantity and destination are verified. |
Send the full model, quantity and destination.
