Product Name:3300 XL 8 mm Proximity Probes
Brand Name:BENTLY NEVADA
Model Number:330103-05-10-10-02-05
Country of Origin: USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
Bently Nevada |
Model Number: |
330103-05-10-10-02-05 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Specification |
Details |
|
Product Model |
330103-05-10-10-02-05 |
|
Product Type |
3300 XL 8 mm Proximity Probe |
|
Thread Type |
M10 × 1 Metric Thread |
|
Probe Diameter |
8 mm |
|
Total Length |
1.0 meter |
|
Cable Type |
Standard Cable |
|
Connector Type |
Miniature Coaxial ClickLoc Connector |
|
Armor Option |
Without Armor |
|
Linear Range |
2 mm (80 mils) |
|
Scale Factor |
7.87 V/mm (200 mV/mil) |
|
Frequency Response |
0 to 10 kHz |
|
Probe Material |
AISI 303/304 Stainless Steel |
|
Connector Material |
Gold-plated Brass / Beryllium Copper |
|
Operating Temperature |
-52°C to +177°C |
|
Cable Bend Radius |
25.4 mm Minimum |
|
Dimension |
1.8x1.5x113cm |
|
Weight |
0.08kg |
|
Certifications |
CSA, ATEX, IECEx |
|
Compliance |
API 670 Compatible |

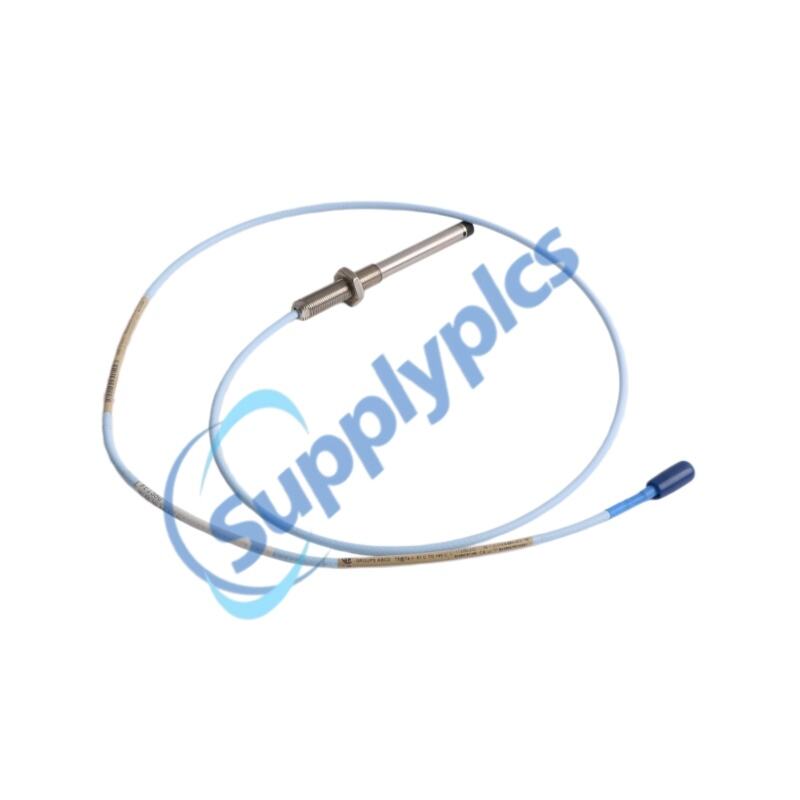

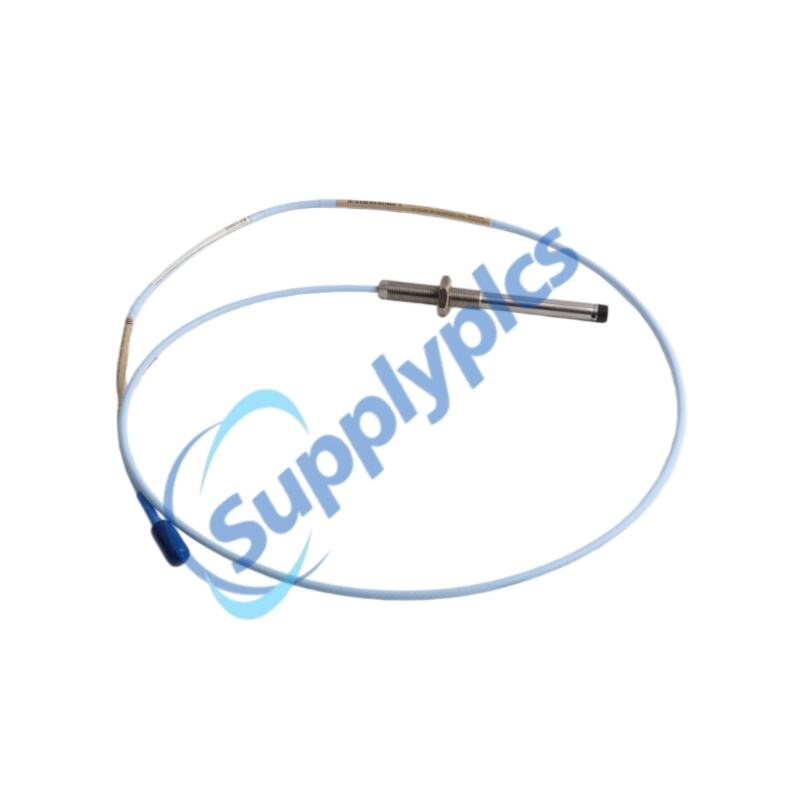

Bently Nevada 330103-05-10-10-02-05is a high-performance proximity probe from the3300 XL 8 mm Proximity Transducer System, engineered for accurate shaft vibration and position monitoring in rotating machinery. Designed with an M10 × 1 threaded housing and standard cable configuration, this model delivers stable signal output for critical industrial monitoring applications. It is widely used together with3300 XL Proximitor Sensorsand extension cables in turbine, compressor, and motor protection systems.
The330103-05-10-10-02-05probe utilizes advanced eddy current sensing technology to provide reliable non-contact measurement of shaft displacement, radial vibration, and speed reference signals. Compared with earlier3300 seriesprobes, the3300 XLplatform offers enhanced EMI/RFI resistance, stronger cable retention, and improved mechanical durability for harsh industrial environments.
Compatible withBently Nevada 3500 Seriesmonitoring systems, the330103,330104, and other3300 XL 8 mmprobes support API 670 compliant installations and interchangeable system components. Its rugged stainless-steel construction and gold-plated ClickLoc connectors simplify installation while ensuring long-term operational stability in power generation, oil & gas, petrochemical, and heavy manufacturing industries.
Q1:What is the main function of the 330103-05-10-10-02-05 probe?
A1:It is designed for non-contact shaft vibration and position measurement in rotating machinery systems.
Q2:Is the 330103-05-10-10-02-05 compatible with the 3500 monitoring system?
A2:Yes, it is commonly used with Bently Nevada 3500 Series monitoring and protection systems.
Q3:What industries typically use this proximity probe?
A3:Power generation, oil & gas, petrochemical, marine, and heavy industrial manufacturing industries widely use it.
Q4:Does the probe support hazardous area applications?
A4:Yes, the model supports CSA, ATEX, and IECEx certified installations when properly configured.
Q5:What connector type is used on this probe?
A5:It uses a miniature coaxial ClickLoc connector with corrosion-resistant gold-plated contacts.
| Number | Describe |
|---|---|
| 141078 | 3300 XL 8 mm and 3300 5 mm Proximity Transducer System Manual |
| 175751 | 3300 XL Multi-Purpose Stainless Steel Housing 12x12x6, supports up to 8 Proximitor sensors DIN-mount or 6 panel-mount, ATEX Zone 0/1 certified |
| 176467 | 3300 XL Multi-Purpose Stainless Steel Housing 12x8x6, supports up to 4 Proximitor sensors DIN or panel mount, ATEX Zone 0/1 certified |
| 330181 | 3300 XL Multi-Purpose Stainless Steel Housing 13x9.5x7, supports up to 8 Proximitor sensors DIN or 6 panel-mount, hazardous area certified (ATEX and North American Division 1/2) |
| 02120015 | Bulk field wire 1.0 mm² (18 AWG), 3-conductor twisted shielded cable with drain wire, cut-to-length supply |
| 138492-01 | Replacement panel-mount mounting pad |
| 138493-01 | Replacement DIN-mount mounting pad |
| 148722-01 | 3300 XL test plug with 3-pin adapter and banana leads for Proximitor sensor testing without removing wiring |
| 04310310 | 6-32 UNC panel-mount screw for 3300 XL Proximitor sensor, 4 screws required per sensor |
| 03200006 | Silicone self-fusing tape roll (9.1 m) for connector insulation and environmental protection |
| 40113-02 | Connector Protector Kit for 3300 XL 8 mm probes and extension cables with installation tools |
| 136536-01 | Connector protector adapter for compatibility with pre-1998 installation tools |
| 40180-02 | Connector protectors package (10 pairs) for 3300 XL 8 mm probe and extension cable connections |
