Bently Nevada Sensor

Overview

Brand Name:	Bently Nevada
Model Number:	330104-07-14-05-01-05
Country of Origin:	USA
Packaging Details:	Original new Factory Sealed
Delivery Time:	in stock
Payment Terms:	T/T

Contact us

Sales Manager:	Stella
Send an email:	[email protected]
Contact in Whatsapp:	+86 18159889985

Specifications

Parameter	Specification
Product Model: Armored eddy current proximity probe for non-contact shaft vibration and position monitoring, designed for the 3300 XL 8 mm system.	330104-07-14-05-01-05
Manufacturer: Industrial machinery condition monitoring and vibration protection specialist.	Bently Nevada
Probe Type: M10 × 1 metric threaded 8 mm proximity probe with stainless-steel armor.	Armored Probe
Unthreaded Length: Provides optimized installation clearance for industrial machinery.	70 mm
Overall Case Length: Supports secure mounting in standard monitoring applications.	140 mm
Total Cable Length: Factory-configured standard probe cable.	0.5 m
Connector Type: Miniature coaxial ClickLoc connector with connector protector and standard cable.	Option 01
Measurement Function: Supports shaft vibration, axial position, radial displacement, Keyphasor reference and speed monitoring.	Dynamic & Static Measurement
Linear Range: High-accuracy measurement over the specified operating range.	2 mm (80 mil)
Frequency Response: Suitable for high-speed rotating equipment monitoring.	0–10 kHz
Probe Thread: Industrial metric threaded mounting.	M10 × 1
Probe Material: Stainless steel housing with PPS probe tip and armored FEP cable.	AISI 303/304 SST
Dimension: Probe case length 140 mm with 70 mm unthreaded section, compact structure for industrial installation.	140 mm
Weight: Typical complete transducer system weight approximately 0.7 kg, probe weight approximately 323 g/m.	Approx. 0.7 kg

Description

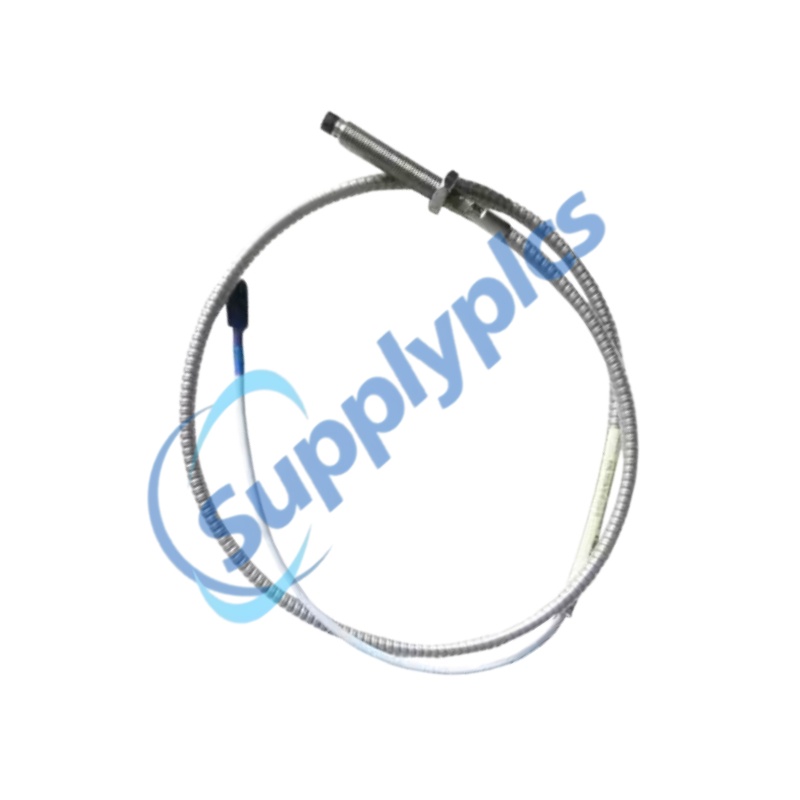

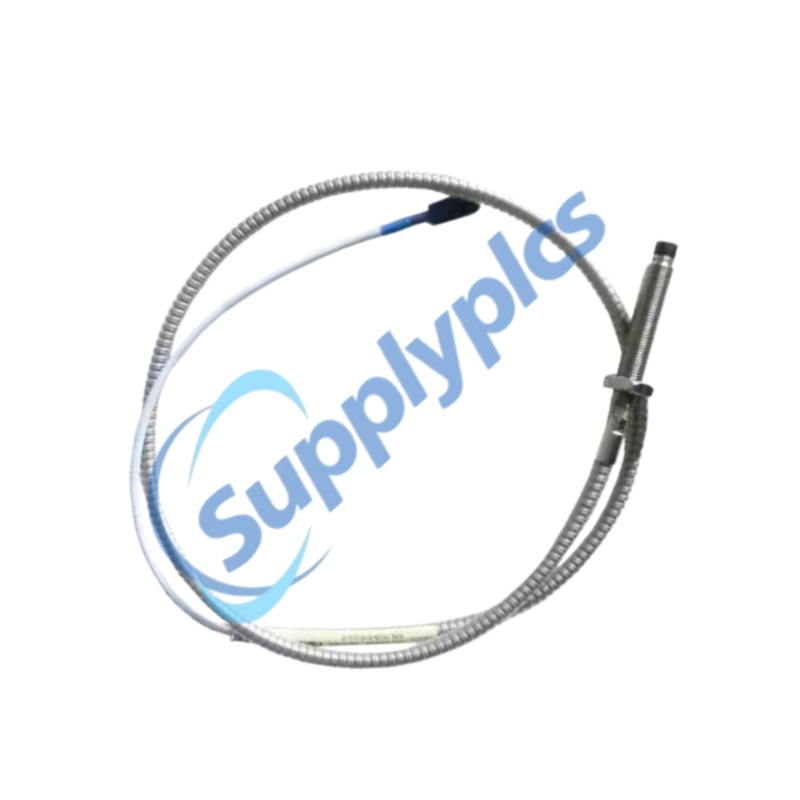

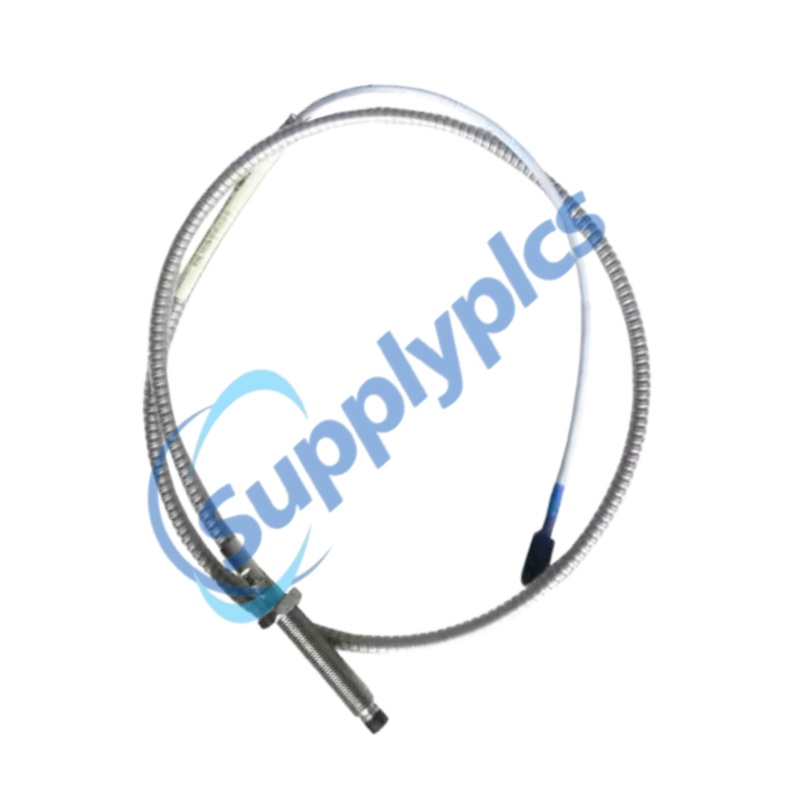

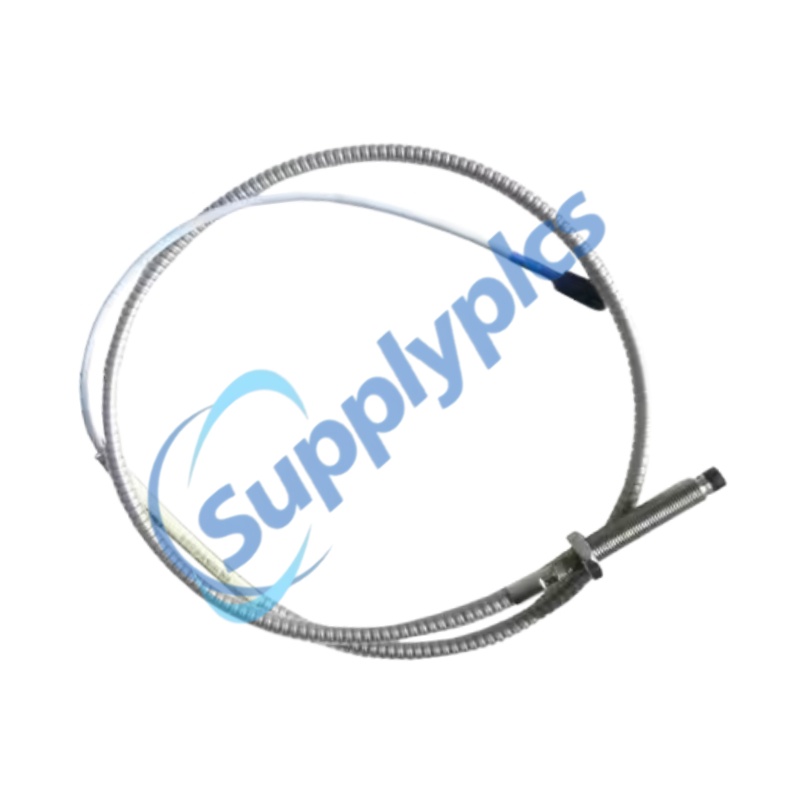

330104-07-14-05-01-05 is a high-performance armored eddy current proximity probe designed for the Bently Nevada 3300 XL 8 mm Proximity Transducer System. Featuring an M10 × 1 metric threaded housing, a 70 mm unthreaded length, 140 mm case length, 0.5 m standard cable, and CSA/ATEX/IECEx approvals, it provides reliable non-contact shaft displacement and vibration monitoring for rotating machinery operating in demanding industrial environments.

Compatible with 330103, 330104, 330130 extension cables, and 3300 XL Proximitor Sensors, the probe delivers accurate static position, radial vibration, axial displacement, Keyphasor reference, and speed measurements. Its interchangeable design minimizes calibration requirements while simplifying maintenance and replacement across existing 3300 XL installations.

Engineered with rugged stainless-steel armor, corrosion-resistant ClickLoc connectors, patented TipLoc construction, and excellent resistance to EMI/RFI interference, 330104-07-14-05-01-05 offers dependable long-term performance in turbines, compressors, pumps, motors, and other API 670-compliant critical rotating equipment. Its durable construction and high measurement stability make it an ideal solution for predictive maintenance and continuous machine condition monitoring.

Applications

Power plants: Used for steam turbine, generator, and auxiliary equipment vibration monitoring, ensuring reliable machine protection and predictive maintenance.
Oil & gas facilities: Monitor compressors, pumps, and critical rotating assets, improving equipment availability and reducing unexpected shutdowns.
Chemical plants: Perform continuous shaft displacement and vibration measurement in hazardous process environments requiring certified instrumentation.
Steel mills: Deliver stable condition monitoring for rolling mills, blowers, and heavy-duty motors operating under vibration and high-temperature conditions.
Paper mills: Support machine health monitoring of high-speed rollers, fans, and drive systems for improved production efficiency.
Water treatment plants: Monitor pump shafts and motor assemblies to detect mechanical wear before failures occur.
Machinery manufacturing plants: Integrate into automated equipment, rotating test benches, and industrial machinery diagnostic systems.

Control & Communication

Non-contact sensing: Measures shaft displacement without physical contact, eliminating mechanical wear.
High measurement accuracy: Provides linear output proportional to shaft movement for precise condition monitoring.
API 670 compatibility: Supports machinery protection systems complying with API 670 requirements.
Interchangeable architecture: Compatible with 3300 XL probes, extension cables, and Proximitor sensors for simplified maintenance.
Flexible installation: Supports DIN-rail and panel-mounted monitoring systems.
Stable signal transmission: ClickLoc connectors ensure secure electrical connections under vibration.
Predictive maintenance support: Enables real-time vibration analysis, equipment diagnostics, and early fault detection.

Environmental Strengths

Wide temperature capability: Standard operating temperature from -52°C to +177°C, with optional ETR versions supporting even higher temperatures.
Industrial durability: Stainless-steel armored construction resists abrasion, oil contamination, vibration, and mechanical impact.
Hazardous area certification: CSA, ATEX, and IECEx approvals enable safe deployment in explosive industrial environments.
Corrosion resistance: Gold-plated ClickLoc connectors and stainless-steel housing improve long-term reliability.
EMI/RFI immunity: Excellent resistance to electromagnetic and radio-frequency interference ensures stable signal quality.
Long service life: Patented TipLoc and CableLoc technologies improve cable retention strength and mechanical reliability.
High environmental protection: Suitable for demanding industrial applications requiring dependable continuous monitoring.

FAQ

Q1: What is the primary function of the 330104-07-14-05-01-05?
A1: It measures shaft vibration, position, and displacement using non-contact eddy current sensing technology.

Q2: Is the 330104-07-14-05-01-05 compatible with other 3300 XL components?
A2: Yes. It is fully compatible with matching 3300 XL extension cables and Proximitor Sensors.

Q3: Which industries commonly use this proximity probe?
A3: It is widely used in power generation, oil & gas, petrochemical, steel, mining, and heavy manufacturing industries.

Q4: Does this probe support hazardous area installations?
A4: Yes. This configuration includes CSA, ATEX, and IECEx approvals for certified hazardous locations.

Q5: What are the main advantages of the armored version?
A5: The armored cable provides superior mechanical protection, improved durability, and longer service life in harsh industrial environments.

Spares

Number	Description
148722-01	3300 XL Test Plug with three color-coded 1-meter leads and banana plugs for testing Proximitor Sensor performance without disconnecting field wiring.
04310310	3300 XL Proximitor Sensor panel-mount screw, 6-32 UNC thread-forming type. Four screws required per sensor installation.
03200006	Silicone self-fusing tape, 9.1 m (10 yd) roll, providing electrical insulation and environmental protection for connectors.
40113-02	Connector Protector Kit for 3300 XL 8 mm probes and extension cables, including connector protectors and installation tools.
136536-01	Connector protector adapter for compatibility with pre-1998 installation tools used with 75Ω ClickLoc connectors.
40180-02	Package containing 10 pairs of connector protectors for 3300 XL 8 mm probes and extension cables.
03839410	75Ω triaxial male connector protector for extension cable connections, providing environmental protection against moisture and contaminants.
03839420	75Ω triaxial female connector protector for probe and extension cable connections, providing environmental sealing and connector protection.
04301007	3/8-24 probe lock nut with dual safety-wire holes for secure probe mounting in vibration-prone applications.
04301008	M10 × 1 probe lock nut with dual safety-wire holes for secure installation and retention of proximity probes.
330153-01	3300 XL Connector Kit containing male and female ClickLoc connectors, color-coded sleeves, FEP tubing, and silicone tape for cable termination and maintenance.
