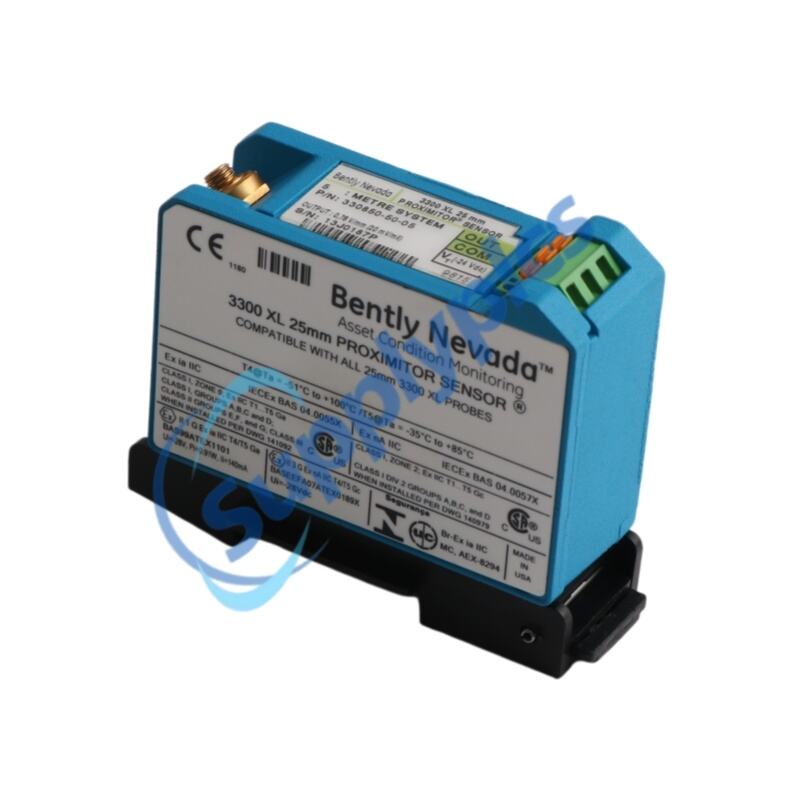

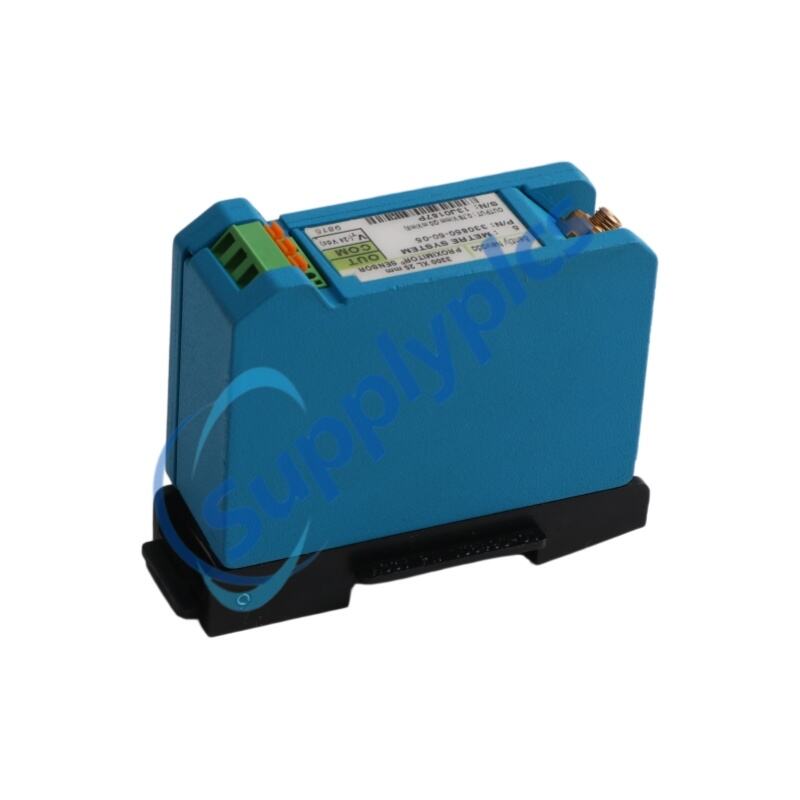

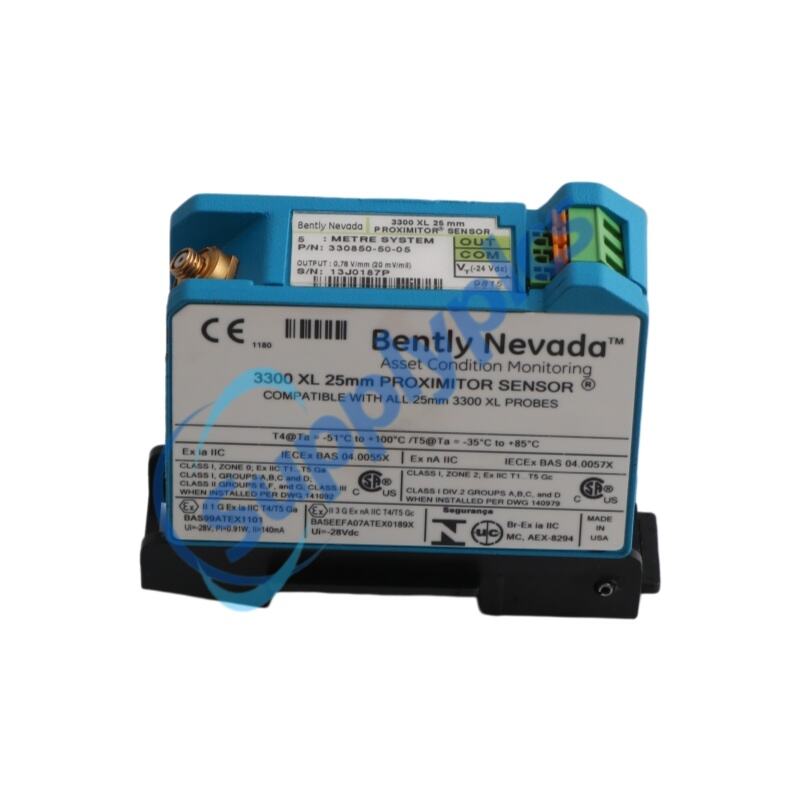

Product Name:3300 XL 25 mm Proximitor Sensor
Brand Name:Bently Nevada
Model Number:330850-50-05
Country of Origin: USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
Bently Nevada |
Model Number: |
330850-50-05 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Item |
Specification |
|
Product Model |
330850-50-05 |
|
System Type |
3300 XL 25 mm Proximitor System |
|
Measurement Type |
Vibration & Differential Expansion |
|
Output Sensitivity |
0.787 V/mm (20 mV/mil) |
|
Linear Range |
12.7 mm (500 mils) |
|
Operating Temperature (Probe) |
-35°C to +200°C |
|
Short-Term Temp |
Up to +250°C |
|
System Length |
5.0 m |
|
Probe Material |
Stainless Steel (AISI 304) |
|
Cable Type |
75 Ω triaxial PFA insulated |
|
Power Supply |
-17.5 Vdc to -26 Vdc |
|
Weight |
0.22kg |
|
Dimension |
8.8x3.5x7cm |
The330850-50-053300 XL 25 mm Proximitor System is a high-performance vibration and differential expansion monitoring solution designed for large rotating machinery such as steam turbines and generators. It integrates a probe, extension cable, and Proximitor Sensor to deliver accurate non-contact measurement of shaft vibration and axial movement.
The330850-50-05system provides a linear output of 0.787 V/mm (20 mV/mil), enabling precise monitoring across a 12.7 mm measurement range. It is engineered for demanding industrial environments where stable signal transmission and long-term reliability are critical.
As part of the 3300 XL series, the330850-50-05ensures seamless compatibility with legacy monitoring systems, offering easy upgrades without major configuration changes while maintaining high accuracy and operational stability
Q1: What is the 330850-50-05 used for?
A1: It is used for vibration and differential expansion monitoring in turbines and rotating machinery.
Q2: Can it operate in high-temperature environments?
A2: Yes, the probe supports continuous operation up to 200°C and short-term peaks up to 250°C.
Q3: Is the system compatible with older Bently Nevada equipment?
A3: Yes, it is fully compatible with legacy 3300 and 7200 series systems.
Q4: What industries commonly use this system?
A4: It is widely used in power plants, steel mills, chemical plants, and industrial manufacturing.
Q5: Does it support PLC or DCS integration?
A5: Yes, it provides standard analog outputs for seamless PLC and DCS system integration.
| Number | Description |
|---|---|
| 163235 | 3300 XL 25 mm Manual |
| 148722-01 | 3300 XL Test Plug for Proximitor sensor performance checking without removing field wiring |
| 330187 | Extended Range Micrometer Kit for acceptance testing of Bently Nevada extended range transducers |
| 02120015 | Bulk field wire 1.0 mm² (18 AWG), 3-conductor, twisted shielded cable with drain wire |
| 02173009 | Bulk field wire 1.0 mm² (18 AWG), 3-conductor, twisted shielded cable |
| 138492-01 | Replacement panel-mount mounting pad |
| 138493-01 | Replacement DIN-mount mounting pad |
| 04310310 | 3300 XL Proximitor Sensor panel-mount screws (4 pcs, 6-32 UNC thread forming) |
| 03200006 | Silicone self-fusing tape for connector protection and environmental isolation |
| 40113-02 | Connector Protector Kit for 3300 XL probes and extension cables |
| 29660-01 | Transducer Clamp for 1.06” smooth 3300 XL 25 mm probe case types |
| 136536-01 | Connector Protector Adapter for compatibility between legacy kits and 3300 XL systems |
| 40180-02 | Connector Protectors package (10 pairs) for environmental sealing |
| 03839410 | Male Connector Protector for extension cable and environmental connector protection |
