Product Name: ACOPOS servo drive
Brand Name: B&R
Model Number:8V1090.001-2
Country of Origin:Austria
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
B&R Industrial Automation |
Model Number: |
8V1090.001-2 |
Country of Origin: |
Austria |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Parameter |
Specification |
|
Manufacturer |
B&R Industrial Automation |
|
Part Number |
8V1090.001-2 |
|
Product Family |
ACOPOS Servo Drives |
|
Mains Input Voltage |
|
|
Frequency |
|
|
Installed Load |
|
|
Continuous Current |
|
|
Peak Current |
24 A |
|
Power Output |
|
|
Nominal Switching Frequency |
10 kHz (5 / 10 / 20 kHz selectable) |
|
DC Bus Capacitance |
|
|
Max. Motor Cable Length |
25 m |
|
Braking Resistor (Continuous) |
|
|
Braking Resistor (Peak) |
|
|
Dimensions (W × H × D) |
|
|
Weight |
|
|
Degree of Protection |
IP20 |
|
Operating Temperature |
5 to 40 °C (max. 55 °C with derating) |
|
Certifications |
CE, cULus E225616, KC, Functional Safety |

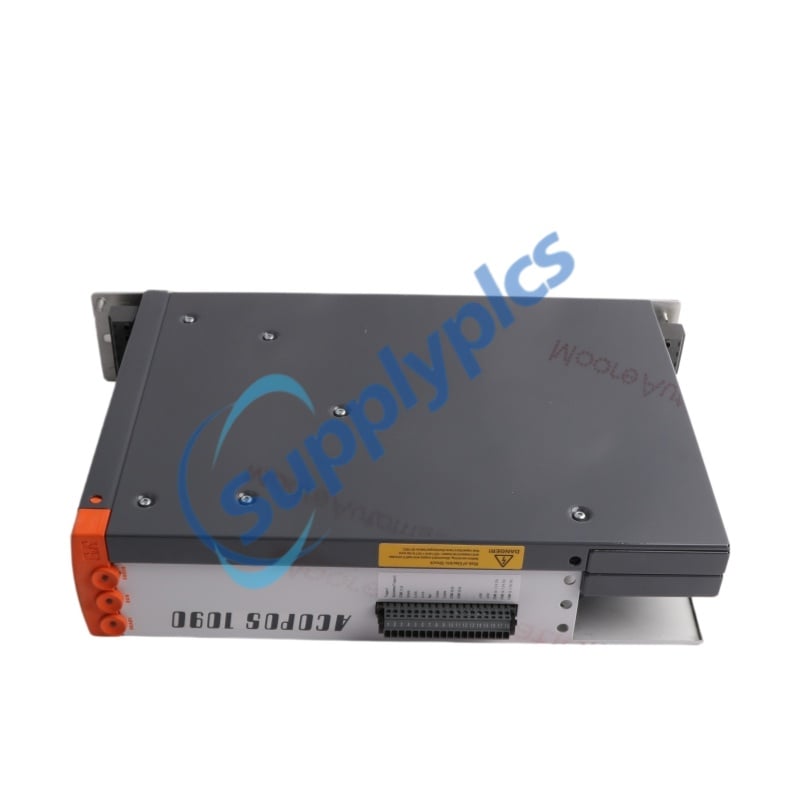

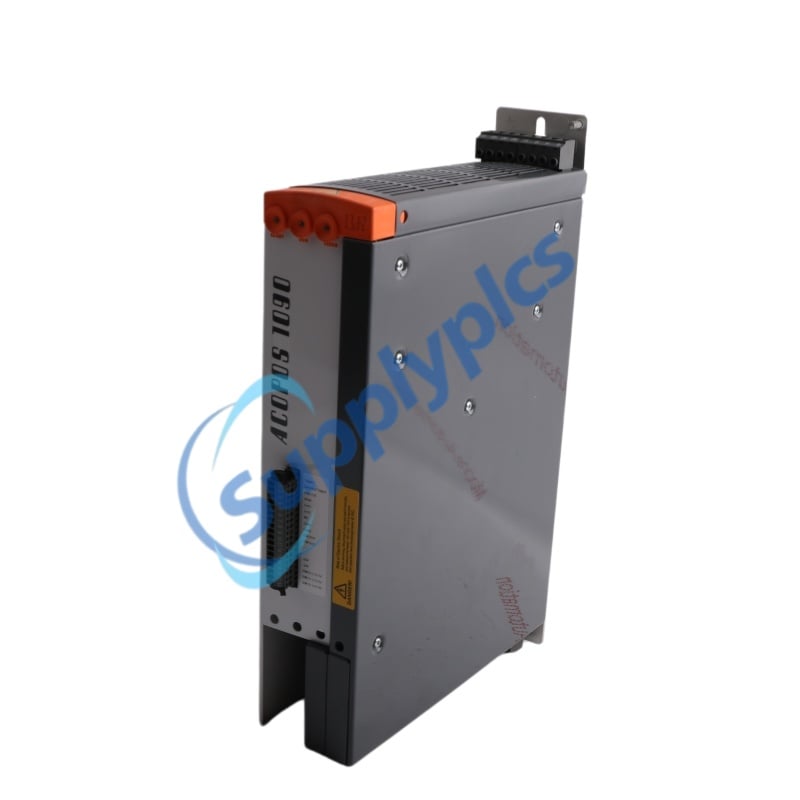

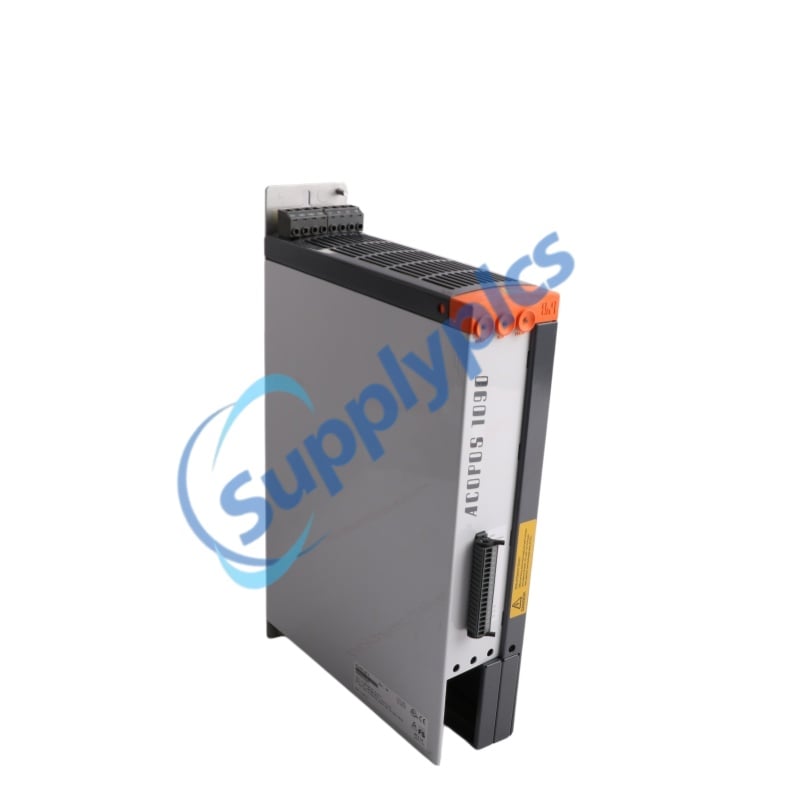

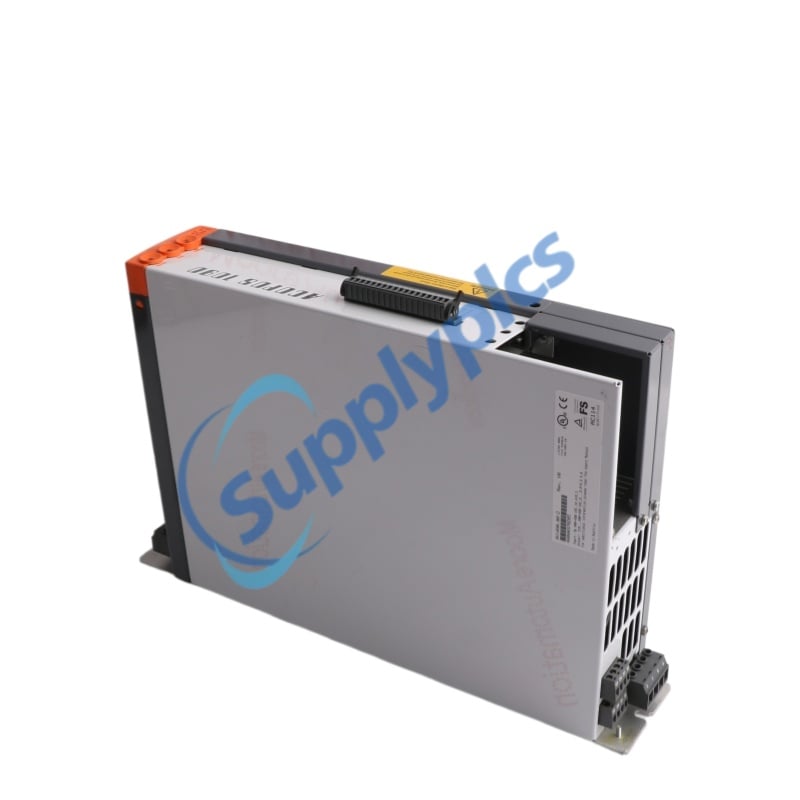

The 8V1090.001-2 is a 4 kW ACOPOS servo drive from B&R, engineered for high-performance motion control in industrial automation . This 8V1090.001-2 operates on a 3-phase 400-480 VAC supply, delivering 8.8 A continuous current, and features an integrated line filter and braking resistor . The 8V1090.001-2 includes four expansion slots for plug-in modules and a coated circuit board design for enhanced durability . The 8V1090.001-2 also incorporates an electronic safe restart interlock for improved operational safety .
High-power CNC machinery and precision machining systems
Robotics and pick-and-place automation
Packaging equipment and material handling systems
OEM panels requiring integrated servo control with safety
High-torque motion control applications in industrial automation
Integrated Hardware: Built‑in line filter and braking resistor reduce external component requirements
Electronic Safe Restart Interlock: Prevents unintended restart after power interruption for enhanced safety
Coated Circuit Boards: Partially-coated PCBs improve resistance to environmental influences
Modular Design: Four plug‑in slots for customizable expansion (encoder interfaces, fieldbuses, I/O)
Comprehensive Diagnostics: READY, RUN, and ERROR LEDs for quick status indication
Global Certifications: CE, UL, KC, and functional safety compliant
The 8V1090.001-2 converts AC mains power into controlled current for permanent magnet synchronous servomotors, executing precise torque, speed, and position control based on command values from a higher‑level controller . It provides regenerative braking via the integrated 200 W continuous / 7 kW peak resistor, filters input power for EMC compliance, and manages motor holding brakes . The module monitors for overload, short circuit, and ground faults. Its four expansion slots allow flexible integration of various encoder and fieldbus interfaces
Q1: What is the part number of this ACOPOS servo drive?
A1: The part number is 8V1090.001-2.
Q2: What are the output specifications of the 8V1090.001-2?
A2: It delivers 4 kW power with 8.8 A continuous current and 24 A peak current .
Q3: Does the 8V1090.001-2 have an integrated braking resistor?
A3: Yes, it includes an integrated braking resistor with 200 W continuous and 7 kW peak power .
Q4: What certifications does the 8V1090.001-2 hold?
A4: It is certified for CE, UL (cULus E225616), KC, and functional safety standards .
Q5: What is the maximum motor cable length for the 8V1090.001-2?
A5: The maximum permitted motor cable length is 25 meters.
