Home > Products > GE > GE 90-70 Series PLC
Product Name: Analog Input Module
Brand Name: General Electric
Model Number: IC697ALG230
Place of Origin: USA
Warranty: 12 Months
Whatsapp：+86 18020776782
Email：[email protected]
Sales |
||
Jim Pei |
|
Minimum Order Quantity |
1 Piece |
|
Price |
Contact for Jim |
|
Packaging Details |
Original new Factory Sealed |
|
Delivery Time |
3–7 Days |
|
Payment Terms |
T/T |
|
Shipping Method |
DHL / FedEx / UPS / TNT |
|
Supply Ability |
In stock |

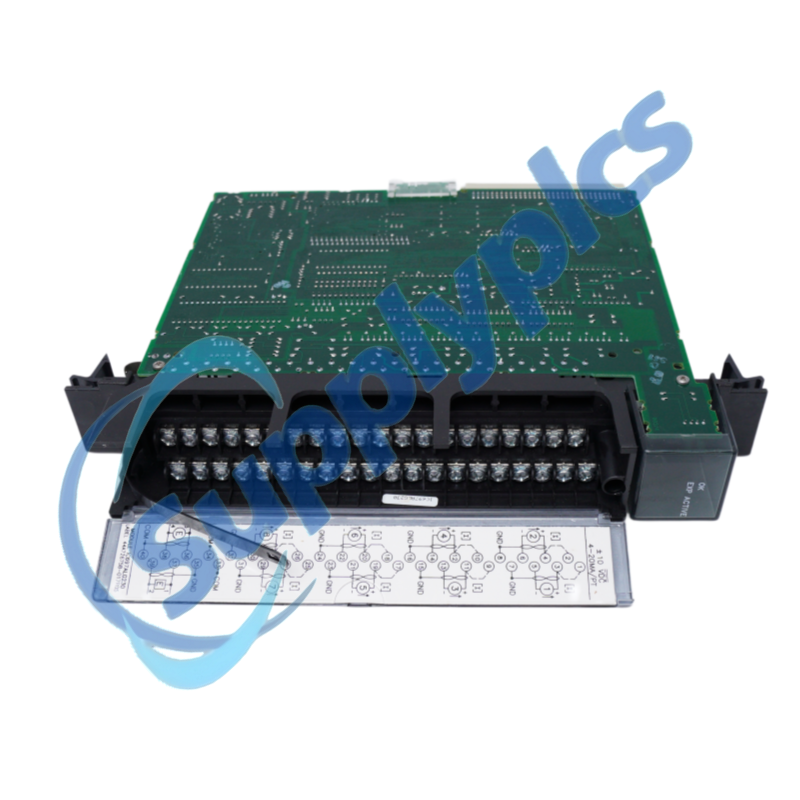

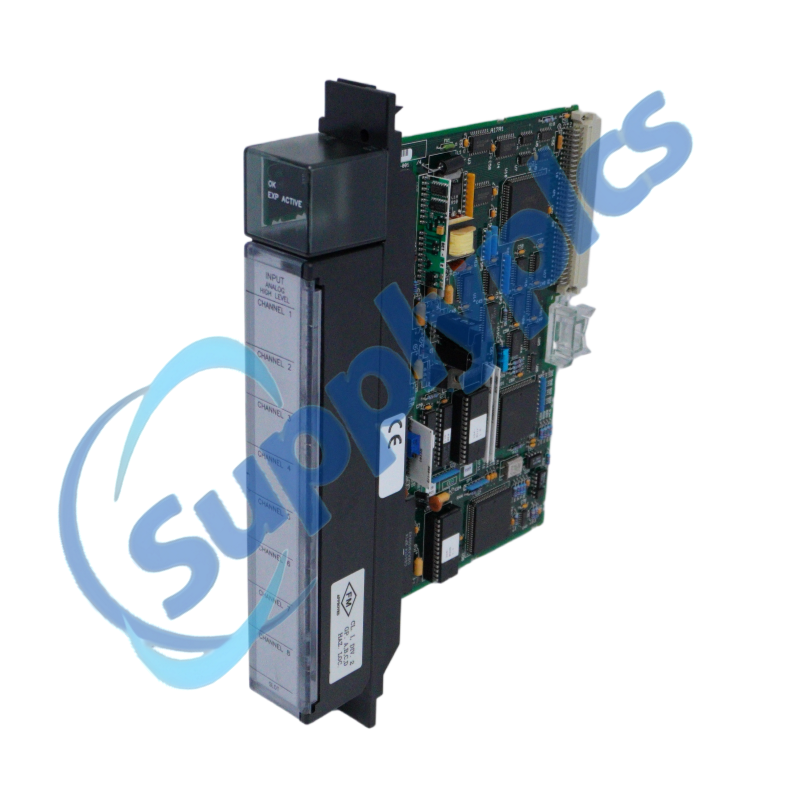

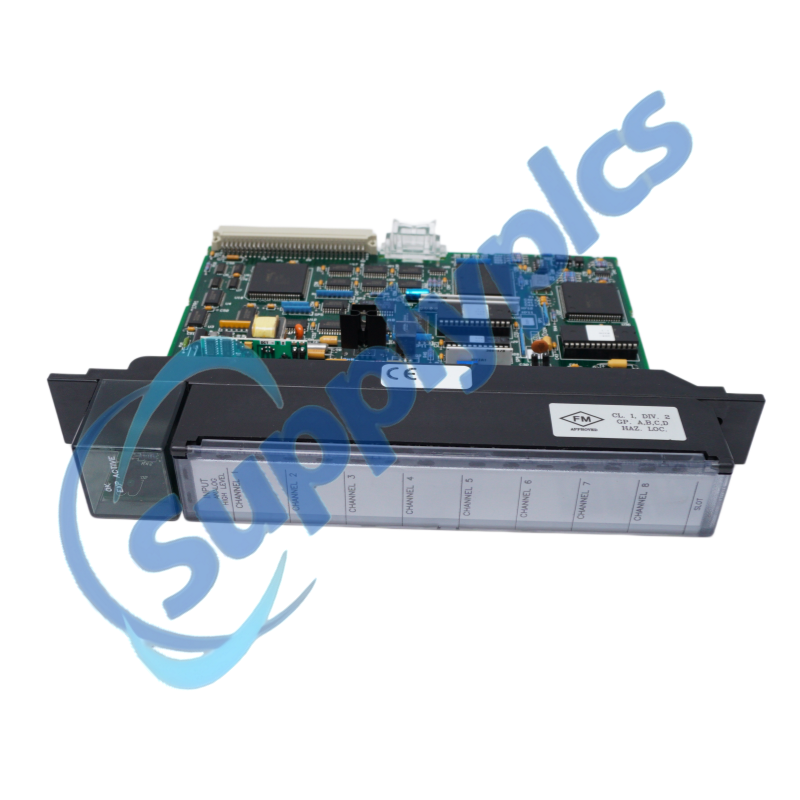

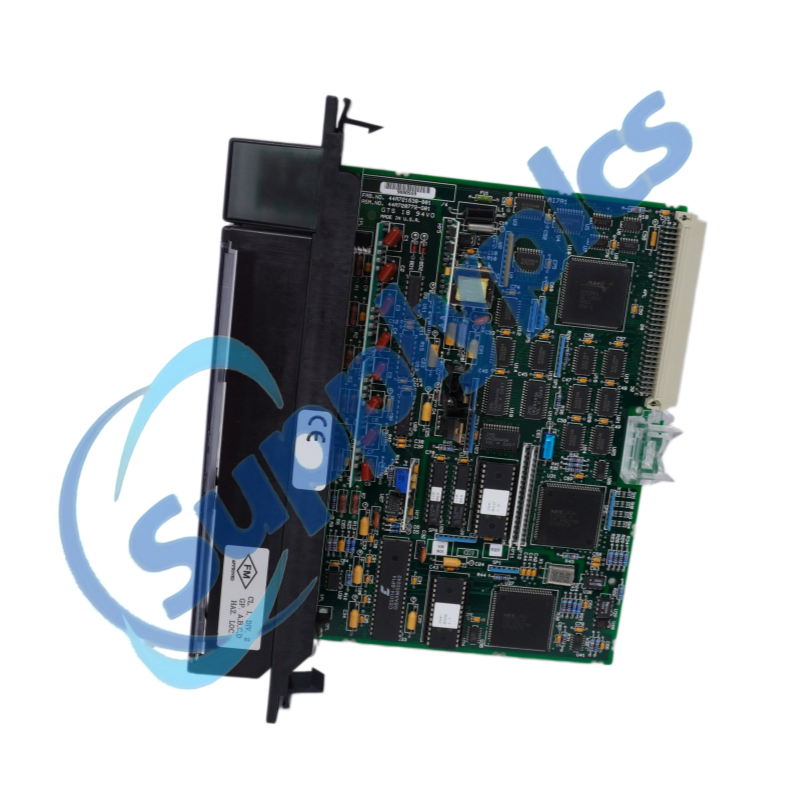

The GE IC697ALG230 is a base converter analog input module designed for the GE Fanuc Series 90-70 PLC system. It functions as the central analog signal acquisition unit, converting high-level analog inputs into digital data for processing by the PLC CPU. Originally manufactured by GE Fanuc and now supported under Emerson Automation, it is widely used in industrial process control and monitoring applications.
This module supports both voltage and current input signals, including ±10 V DC and 4–20 mA current loops. With 8 differential input channels and high-resolution conversion capability, it provides accurate and stable signal processing for complex automation systems requiring precise analog measurement and control.
| Product Name | GE IC697ALG230 Analog Input Module |
| Manufacturer | General Electric |
| Product Type | Analog Input Module |
| Part Number | IC697ALG230 |
| Weight | 0.66 kg |
| Estimated shipping dimensions | 4x21.8x29.2cm |
| Place of shipment | Xiamen, China |
| Country of origin | USA |
| Calibration | Base Converter Voltage: ±.01% of full scale, ±.02% of value Base Converter Current: ±.05% of full scale, ±.1% of value |
| Temperature Coefficient | ±5 PPM per °C typical ±15 PPM per °C maximum, voltage ±30 PPM per °C maximum, current |
| Voltage Accuracy | +/- 0.01% of full scale, +/- 0.02% of value |
| Calibration | Factory set at 10 Volts +/- 2 mV |
| Compatible expander modules | IC697ALG440 Voltage Expander Module; IC697ALG441Current expander modules |
| Current Accuracy | +/- 0.05% of full scale, +/- 0.1% of value |
| Power Requirement | 0.8 Amps (4 watts) at +5 Volts |
| Linearity | ±.02% of full scale over entire negative to positive range |
| Manufacturer | GE Fanuc (Formerly); Emerson Automation (Current) |
| Response times | 5.0% 30 milliseconds; 1.0% 42 milliseconds; 0.5% 51 milliseconds; 0.1% 67 milliseconds |
| Input ranges | Voltage: –10 volts to +10 volts (default) Current: 0.0 mA to 22.5 mA (4 to 20 mA default) |
High input flexibility: supports both voltage and current signals, reducing need for separate modules
High-resolution performance: 16-bit conversion improves measurement precision compared with standard analog input modules
Enhanced accuracy: oversampling and averaging techniques improve signal stability and reduce noise impact
Modular expandability: compatible with voltage and current expander modules for scalable system design
Strong protection design: built-in overvoltage protection increases reliability in harsh industrial environments
Compared with similar products: offers better resolution, dual-signal compatibility, and improved calibration accuracy than standard analog input modules
Compared with similar analog input modules, the IC697ALG230 provides higher precision, greater input flexibility, stronger noise resistance, and better scalability, making it suitable for high-performance industrial measurement and control systems.
The IC697ALG230 is fully compatible with GE Fanuc Series 90-70 PLC systems and integrates directly into the VME backplane architecture. It communicates seamlessly with CPU and controller modules within the same platform, ensuring synchronized acquisition and processing of analog signals across the automation system. Its standardized design allows stable integration without requiring additional interface hardware.
The module interoperates with IC697ALG440 current expander and IC697ALG441 voltage expander modules, enabling scalable analog input expansion for larger control systems. It also supports a wide range of industrial sensors and transmitters using ±10 V voltage signals and 4–20 mA current loops, ensuring flexible connectivity and smooth integration into diverse process control and industrial automation applications.
