Product Name: DC INPUT POWER SUPPLY BOARD
Brand Name: GE
Model Number:DS200TCPSG1ARE
Country of Origin:USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
General Electric |
Model Number: |
DS3800NTCF1C1C |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Parameter |
Specification |
|
Part Number |
DS200TCPSG1ARE |
|
Functional Acronym |
TCPS (Turbine Control Power Supply) |
|
Manufacturer |
General Electric (GE) – Speedtronic |
|
Series |
Mark V / Mark V LM / Speedtronic |
|
Primary Function |
DC-DC power conversion and distribution |
|
Input Voltage (Primary) |
125 V DC from TCPD board in the core |
|
Input Voltage (Alternate) |
24 V DC (depending on system configuration) |
|
Output Voltages |
+5 V DC, ±15 V DC, +24 V DC, ±24 V DC |
|
Output Current |
Up to 10 A (typical) |
|
Power Capacity |
Sufficient for multiple control boards |
|
Voltage Regulation |
±1% tolerance across varying load conditions |
|
Protection |
3 replaceable fuses (overcurrent / short-circuit) |
|
Connectors |
1 × 16-pin, 1 × 9-pin |
|
Test Points |
Integrated, for diagnostic access |
|
LED Indicators |
Power status, fault detection |
|
Isolation |
Electrical isolation between input and output circuits |
|
Mounting |
Mark V rack-mount / panel mount |
|
PCB Coating |
Normal coating (non-conformal) |
|
Operating Temperature |
–40°C to +70°C (industrial wide range) |
|
Storage Temperature |
–40°C to +85°C |
|
Dimensions |
28x21.2x6.7cm |
|
Weight |
1.22kg |
|
Country of Origin |
United States (USA) |
|
Manual Reference |
GEH-6353B |
|
Availability |
In Stock |

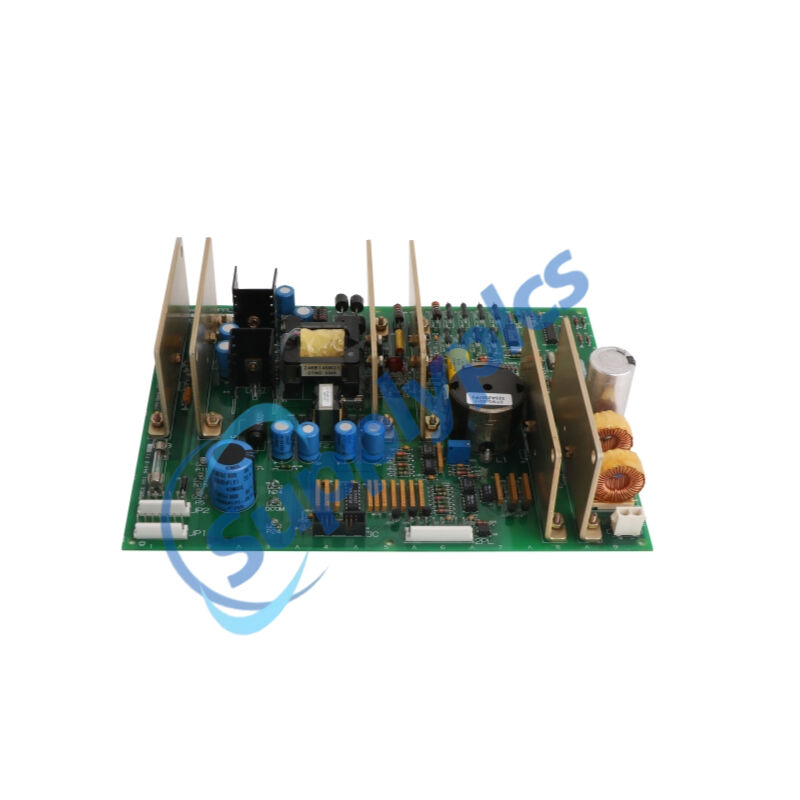

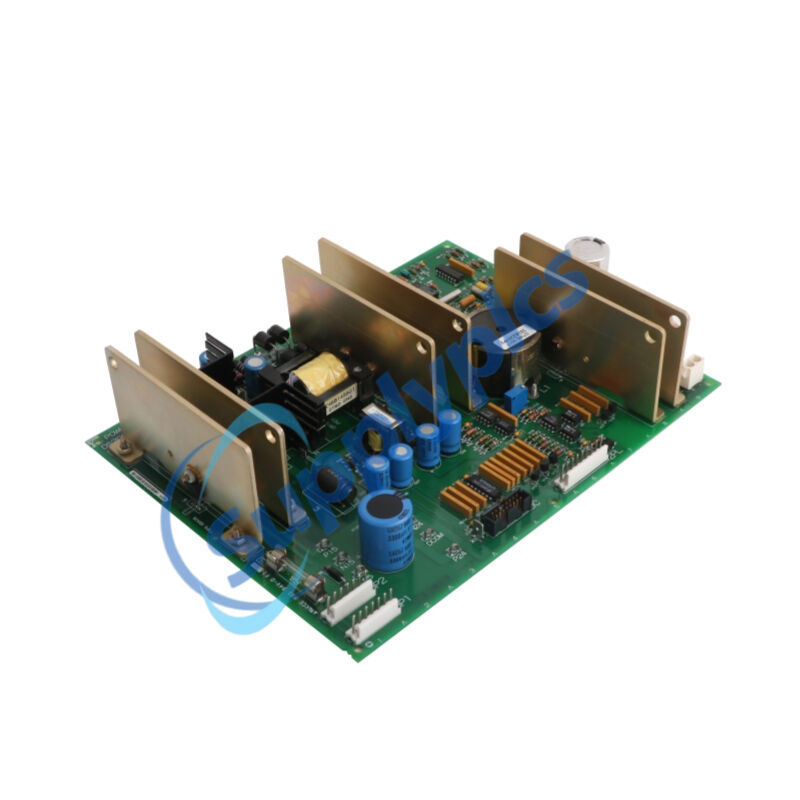

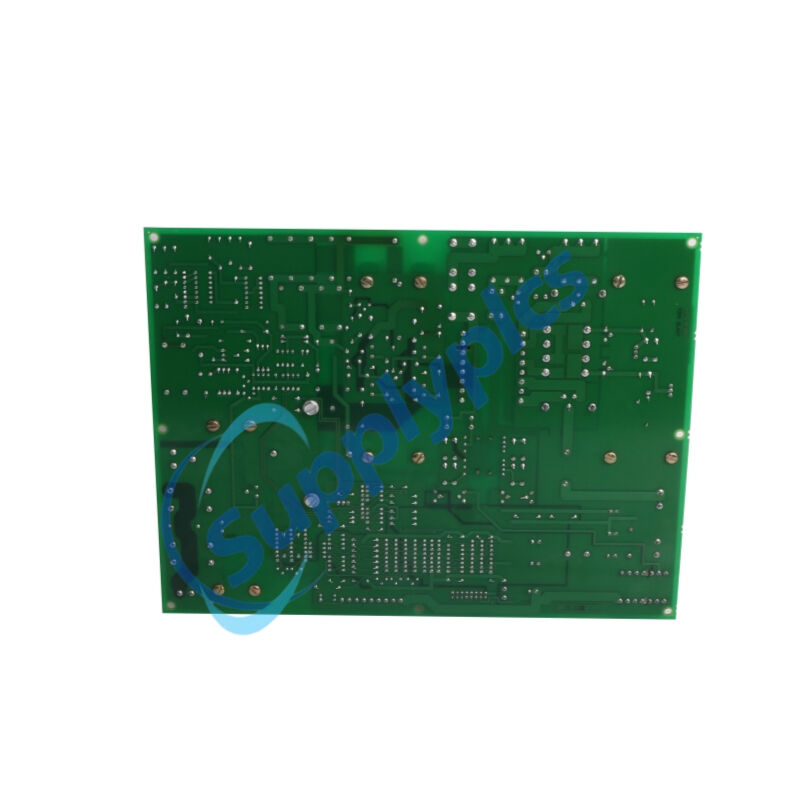

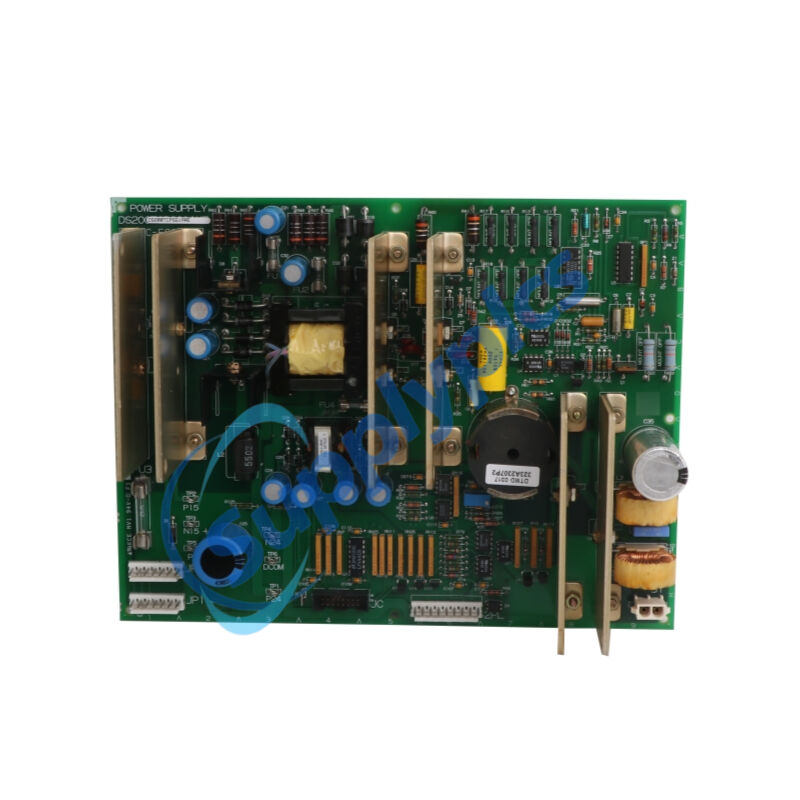

The DS200TCPSG1ARE is a DC input power supply board designed by General Electric for the Mark V / Mark V LM Speedtronic turbine control system. The DS200TCPSG1ARE converts incoming 125 V DC power from the upstream TCPD board into multiple regulated DC outputs including +5 V, ±15 V, and +24 V, essential for I/O modules, processors, servo valves and RTD circuits. With three replaceable fuses protecting against overcurrent, integrated test points for diagnostics, and precision voltage regulation within ±1%, the DS200TCPSG1ARE ensures stable power distribution for all core and I/O components, making it a critical component in legacy GE turbine control applications.
Gas and steam turbine control cabinets (Mark V / Speedtronic series)
Power generation plants requiring stable DC‑DC conversion for control electronics
Oil, gas, chemical, and water treatment industrial automation
Legacy system maintenance and spare part replacement (Mark V platforms)
Servo valve current supply and RTD temperature monitoring circuits
125 V DC input conversion: Converts raw 125 V DC from the TCPD board into multiple stabilized low‑voltage outputs (+5 V, ±15 V, +24 V, ±24 V) for all Mark V control components.
Precision voltage regulation: Maintains output voltages within ±1% tolerance across varying load conditions, ensuring reliable operation of sensitive processor and I/O circuits.
Three replaceable fuses: Overcurrent protection with easily serviceable fuses; isolates faults to individual power branches, minimising system downtime.
Integrated test points: Multiple onboard test points allow technicians to measure voltages and diagnose faults without removing the board.
Diagnostic LED indicators: On‑board LEDs provide immediate visual feedback for power status, output health, and fault conditions.
Plug‑in modular design: Standard Mark V form factor with keyed connectors ensures accurate installation and rapid replacement (≤30 minutes).
Wide industrial temperature range: Operates reliably from –40°C to +70°C, suitable for extreme outdoor turbine enclosures.
Electrical isolation: Galvanic isolation between input and output circuits protects downstream electronics from surges and ground loops.
Converts incoming 125 V DC (or 24 V DC, depending on configuration) into multiple regulated low‑voltage DC outputs.
Distributes +5 V, ±15 V, +24 V and ±24 V power to I/O modules, processors, servo valve drivers, and RTD circuits within the Mark V rack.
Filters and conditions input power, removing voltage spikes and electrical noise before downstream distribution.
Protects control circuits via three onboard replaceable fuses that isolate overcurrent events to specific branches.
Provides diagnostic access through test points and LED indicators for rapid fault‑finding without board removal.
Supports both simplex and TMR (triple‑modular‑redundant) configurations for high‑availability turbine control.
Q1: What is the primary input voltage for the DS200TCPSG1ARE?
A1: The DS200TCPSG1ARE primarily accepts 125 V DC input from the TCPD board in the core. Some configurations may accept 24 V DC depending on system setup.
Q2: What output voltages does the DS200TCPSG1ARE provide?
A2: The DS200TCPSG1ARE supplies +5 V DC, ±15 V DC, +24 V DC, and ±24 V DC. Typical output current capacity is up to 10 A.
Q3: Does the DS200TCPSG1ARE have protection features?
A3: Yes, the DS200TCPSG1ARE is populated with three replaceable fuses that protect the board and downstream circuits against overcurrent and short‑circuit events.
Q4: Is the DS200TCPSG1ARE hot‑swappable?
A4: The DS200TCPSG1ARE should be installed or replaced only after the connected power supply has been de‑energised. Always follow proper lockout/tagout procedures.
Q5: What diagnostic features does the DS200TCPSG1ARE include?
A5: The DS200TCPSG1ARE features integrated test points for voltage measurement, plus LED indicators for power status and fault detection, enabling rapid field troubleshooting.
