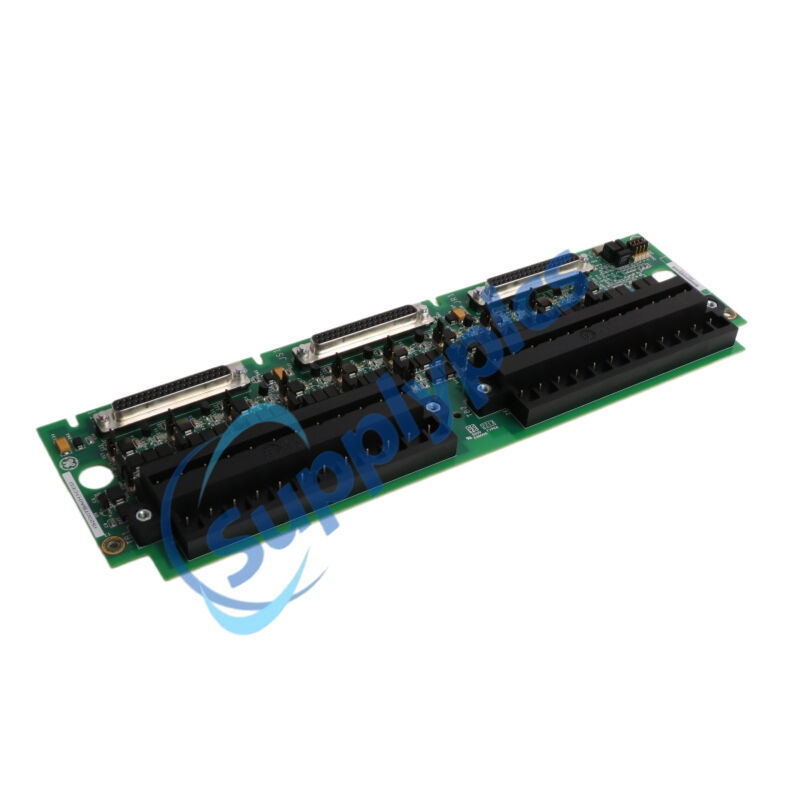

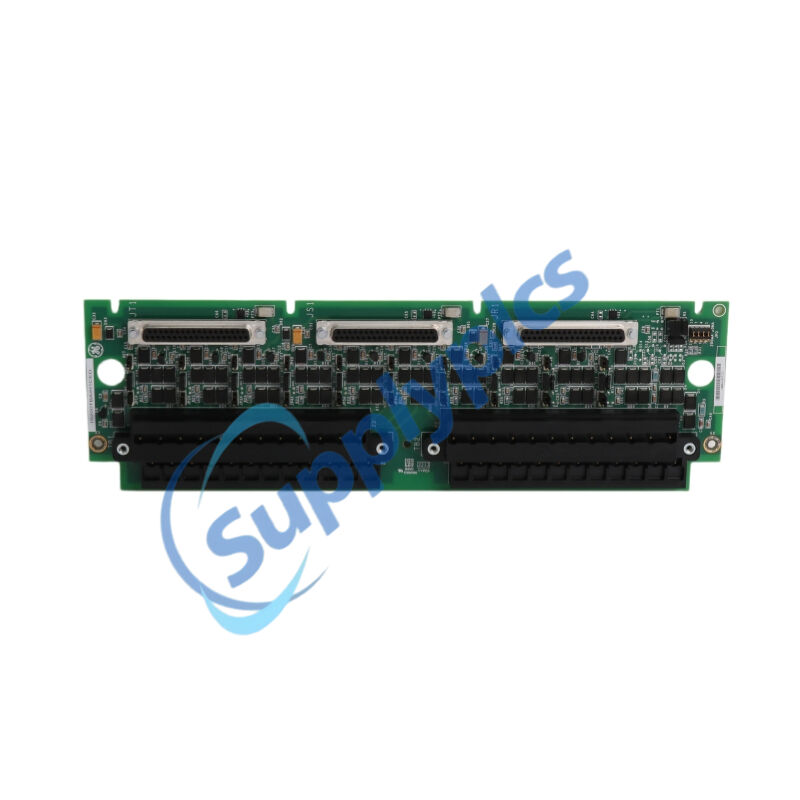

Product Name: ANALOG I/O TERMINAL BOARD
Brand Name: GE
Model Number:IS200TBAIH1CED
Country of Origin:USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
General Electric |
Model Number: |
IS200TBAIH1CED |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Parameter |
Specification |
|
Part Number |
IS200TBAIH1CED |
|
Manufacturer |
General Electric (GE) |
|
Series |
Mark VIe / Mark VI Speedtronic |
|
Product Type |
Analog I/O Terminal Board (TBAI) |
|
Analog Inputs |
10 channels (supports two-wire, three-wire, four-wire, externally powered transmitters) |
|
Analog Outputs |
2 channels (0-20 mA or 0-200 mA, jumper-configurable) |
|
Input Signal Range |
4-20 mA / ±10V / 0-5V (configurable) |
|
Input Span |
4-20 mA input corresponds to 1-5V DC internal span |
|
Output Power |
24V output, each channel up to 21 mA |
|
Noise Suppression |
Built-in surge and high-frequency noise protection |
|
Connectors |
Three DC-37 pin connectors for VAIC interface (JR1, JS, JT) |
|
Operating Temperature |
-30°C to +65°C |
|
Dimensions |
10.16 cm (W) × 33.02 cm (H) |
|
Redundancy Support |
Simplex / TMR (Triple Modular Redundant) |
|
Country of Manufacture |
United States of America (USA) |
|
Availability |
In Stock |
The IS200TBAIH1CED is an Analog I/O Terminal Board developed by GE for the Mark VIe control system. This IS200TBAIH1CED module serves as a versatile signal interface, handling up to 10 analog input channels from two-wire, three-wire, four-wire, or externally powered transmitters. Additionally, the IS200TBAIH1CED provides two analog output channels configurable for 0-20 mA or 0-200 mA current signals. Built-in noise suppression ensures signal integrity in harsh industrial environments. The IS200TBAIH1CED supports both simplex and TMR configurations, making it a dependable choice for turbine control applications
Gas turbine and steam turbine temperature monitoring (exhaust, bearing, casing, blade path)
Power generation and plant control systems requiring high-reliability analog signal acquisition
Compressor trains, large motors, and process heater temperature monitoring
Critical temperature point measurement in industrial plants
Wind turbine control systems (Mark VIe series)
General-purpose low-voltage analog signal acquisition
10 Analog Input Channels: Supports two-wire, three-wire, four-wire, and externally powered transducers with configurable 4-20 mA / ±10V / 0-5V input range
2 Analog Output Channels: Jumper-configurable for either 0-20 mA or 0-200 mA current output
Built-in Noise Suppression: Surge and high-frequency noise protection circuitry on all I/O channels ensures reliable performance

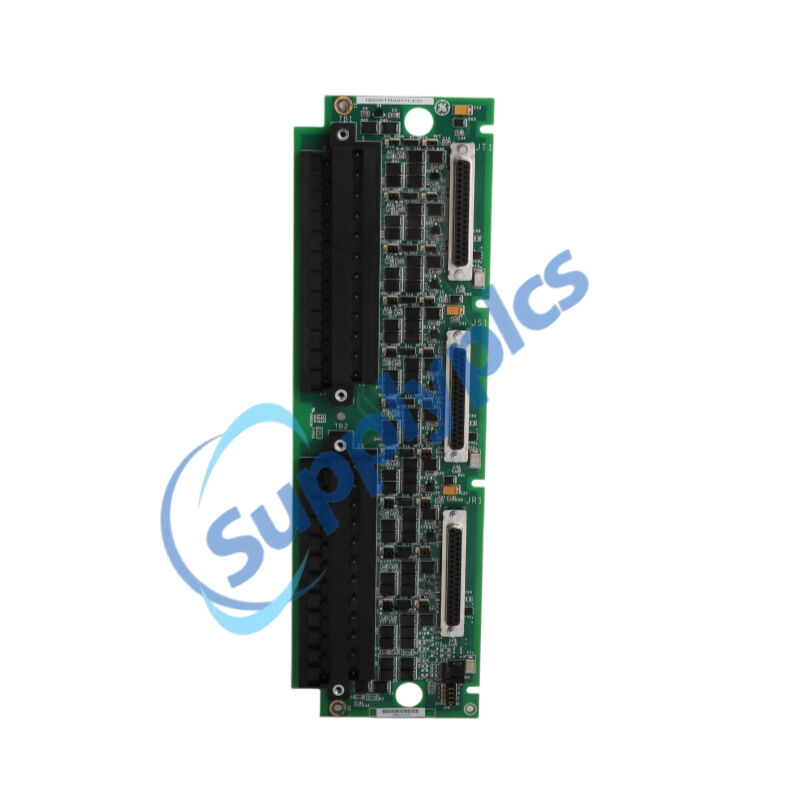

Three DC-37 Pin Connectors: Designed for VAIC interface; simplex mode uses JR1 connector, TMR redundancy mode uses all three connectors (JR, JS, JT)
TMR Operation Support: In triple modular redundant configurations, input signals are distributed across R, S, T control lines; the board combines outputs via a measuring shunt for precise regulation
Voltage Drop Monitoring: Series resistor monitors output current level; abnormal values trigger VAIC diagnostic alarms
Connector ID Device: Each cable connector contains an ID chip storing board serial number, type, revision, and connector location to prevent hardware incompatibility
Wide Operating Temperature: -30°C to +65°C suitable for harsh industrial environments
Converts analog field signals (current/voltage) from sensors and transmitters into digital data for control system processing
Enables precise current output modulation via configurable analog output channels (0-20 mA or 0-200 mA) for actuator control
Provides electrical isolation and noise filtering to maintain signal quality in electrically noisy turbine environments
Supports both simplex (single-controller) and TMR (triple-modular-redundant) system architectures
Performs diagnostic monitoring via voltage drop measurement and connector ID verification to detect faults early
Interfaces with Voltage Analog I/O Cards (VAICs) to deliver real-time control and protection functions
Q1: What is the IS200TBAIH1CED used for?
A1: It is an Analog I/O Terminal Board for GE Mark VIe systems, converting field sensor signals for turbine and power plant controls.
Q2: How many analog input channels does the IS200TBAIH1CED support?
A2: It supports 10 analog input channels, compatible with two-wire, three-wire, four-wire, and externally powered transmitters.
Q3: Can the IS200TBAIH1CED be used in redundant control systems?
A3: Yes. Simplex uses one connector; TMR (Triple Modular Redundant) uses all three DC-37 pin connectors for fail-safe operation.
Q4: What output current ranges are available on the IS200TBAIH1CED ?
A4: The two analog outputs can be jumper-configured for 0-20 mA or 0-200 mA, with 24V outputs providing up to 21 mA per channel.
Q5: How does the IS200TBAIH1CED detect hardware incompatibility?
A5: Each cable connector includes an ID chip. If VAICs detect mismatches in serial number, type, or revision, a hardware incompatibility fault is triggered.
