Product Name: Analog Input Terminal Board
Brand Name: GE
Model Number:IS200STAIH2ACB
Country of Origin:USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
General Electric |
Model Number: |
UR9GH |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |

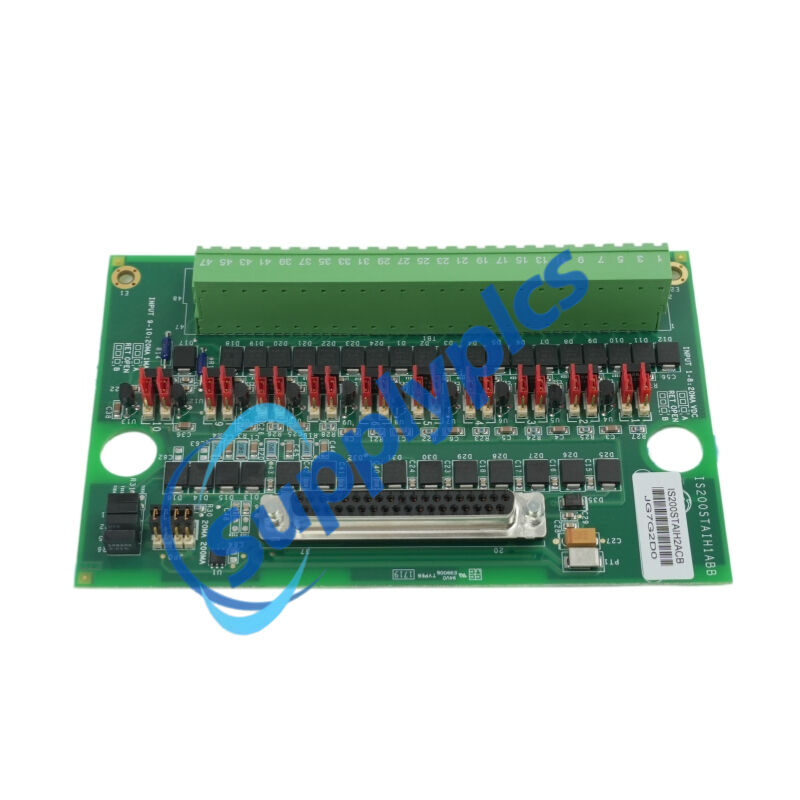

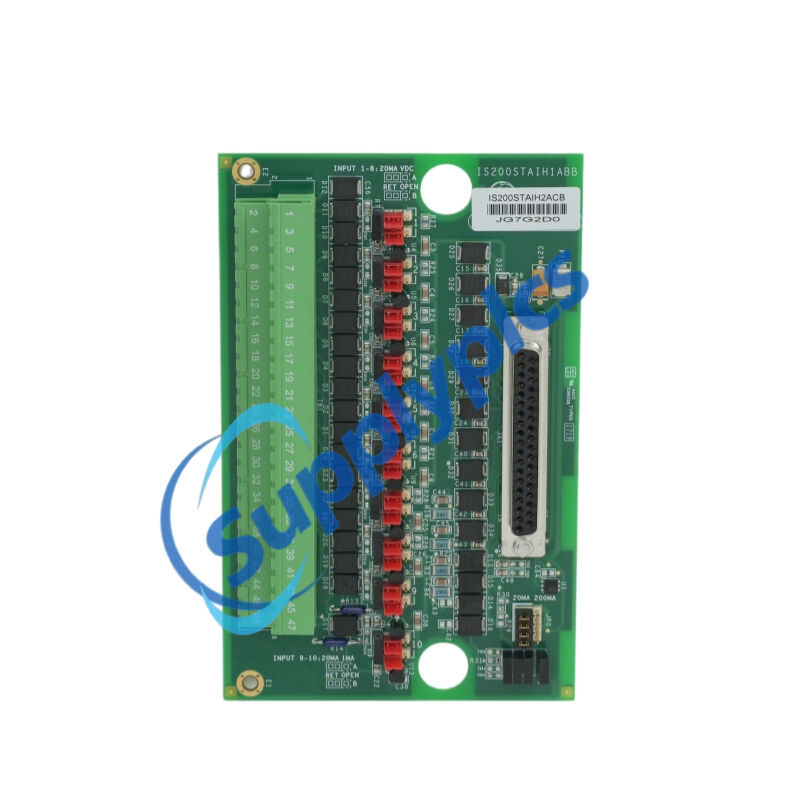

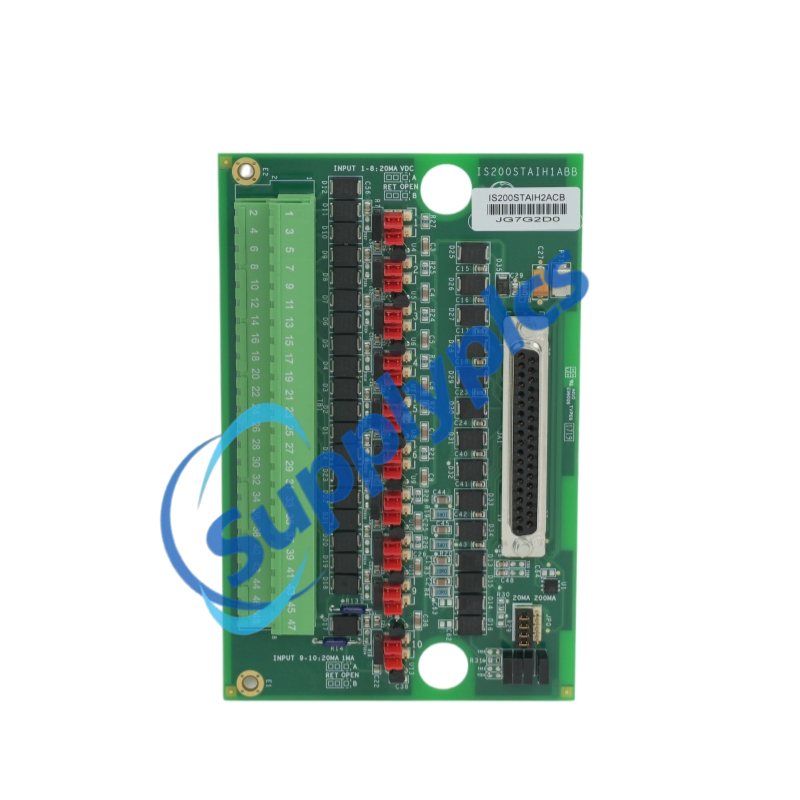

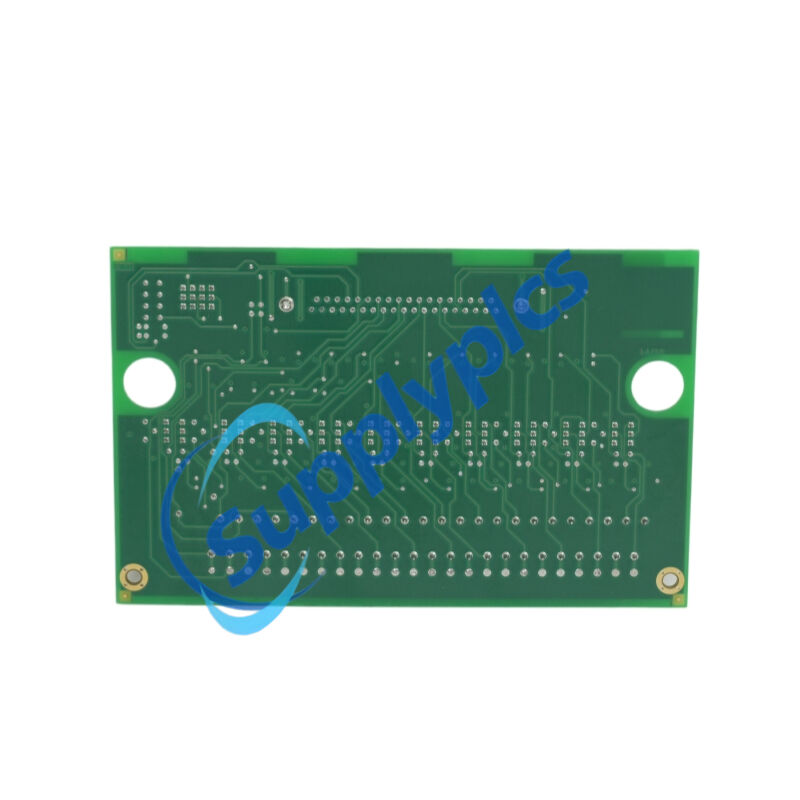

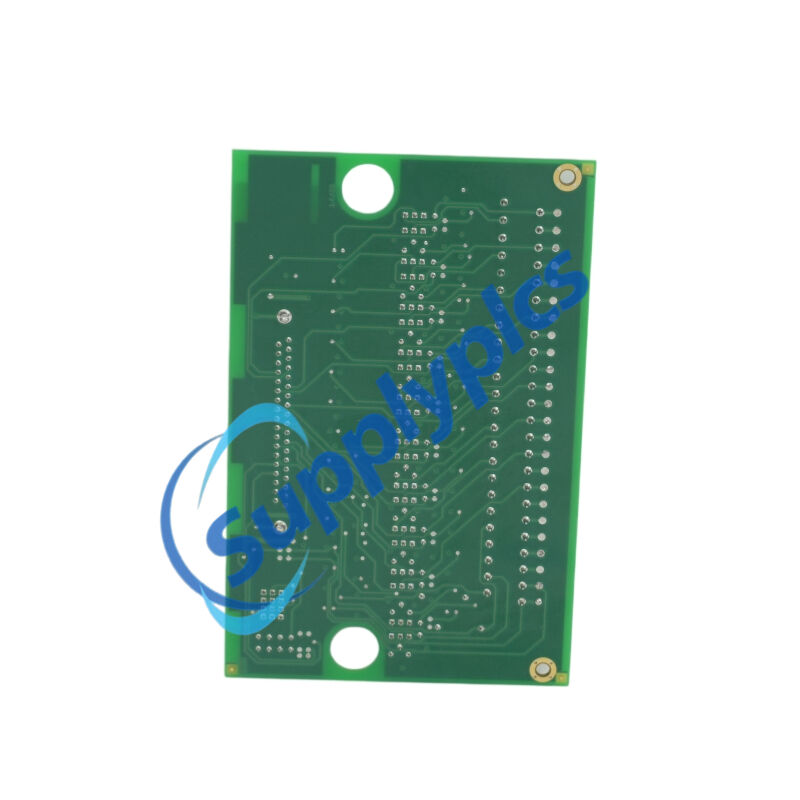

The IS200STAIH2ACB is a simplex analog input terminal board purpose‑built for GE’s Mark VIe control architecture. This compact module interfaces with up to ten field transmitters—including pressure, temperature, and flow sensors—converting their signals for the system’s I/O controller. Featuring an on‑board identification chip and jumper‑configurable inputs, the IS200STAIH2ACB streamlines diagnostics and installation. Designed for rugged environments, it is a core component in modern turbine and industrial automation applications.
Gas and Steam Turbine Control Systems: Real‑time monitoring of critical parameters such as exhaust temperature, compressor discharge, bearing metal temperature, and lube oil pressure.
Power Generation Plants: Robust analog signal acquisition for generators, heat recovery systems, and plant balance‑of‑plant equipment.
Industrial Automation & Manufacturing: Capturing analog signals from process sensors like flow meters, pressure switches, and level transmitters for automated production lines.
Transportation & Marine: Analog instrumentation in control panels for ships and railway applications.
Petrochemical Refining: Signal interface for valve positioners and critical process control loops.
High‑Density Analog I/O: Handles 10 analog inputs plus 2 analog outputs within a compact footprint.
Jumper‑Configurable Inputs: Easily switch between 4–20 mA current and ±5V/±10V voltage ranges on a per‑channel basis via jumper settings.
Transmitter Versatility: Seamlessly supports 2‑wire, 3‑wire, 4‑wire, and externally powered transmitters without additional conversion hardware.
Powerful Diagnostics: On‑board EEPROM ID chip stores critical board data (type, serial number, revision) for fast troubleshooting and replacement.
Wide Operating Temperature: Reliably functions across -30°C to +65°C, suitable for harsh industrial and outdoor installations.
Integrated Signal Conditioning: Passive R‑C filtering and common‑mode rejection minimize noise and stabilize measurements in electrically noisy environments.
Over‑Current Protection: Fused 24V outputs prevent a single‑channel fault from disrupting the entire board.
DIN Rail Mounting: Compact, space‑saving design allows quick installation in standard control cabinets.
Analog Signal Acquisition: Converts raw analog signals (e.g., 4‑20 mA from a pressure transmitter) into a digital format usable by the Mark VIe controller via the PAIC (Programmable Analog Input Controller).
Real‑Time Monitoring: Collects continuous data from turbine sensors to enable precise speed, temperature, and vibration control.
Diagnostic Reporting: Provides the control system with board identification, fault status, and health information via the on‑board ID chip to simplify maintenance.
Signal Conditioning & Filtering: Applies passive R‑C filtering and common‑mode rejection to ensure accurate analog measurements despite electrical noise.
Flexible Configuration: Allows technicians to select input type (current/voltage), measurement range (0‑20 mA, 0‑200 mA), and return path connections using on‑board jumpers, adapting the board to specific field instrument requirements.
Q1: What is the main purpose of the GE IS200STAIH2ACB board?
A1: The IS200STAIH2ACB serves as a dedicated analog signal interface. Its primary role is to connect field‑mounted sensors (transmitters for temperature, pressure, flow, etc.) to the Mark VIe control system, converting their raw analog signals into a stable digital format for the I/O controller to process.
Q2: How many analog inputs and outputs does the IS200STAIH2ACB support?
A2: The IS200STAIH2ACB provides 10 differential analog input channels. It also includes 2 analog output channels, with the first output typically configured for 0–20 mA, and the second jumper‑configurable to support a higher 0–200 mA output range.
Q3: Is the IS200STAIH2ACB compatible with redundant systems?
A3: No. The IS200STAIH2ACB is strictly a Simplex board, meaning it operates as a single, non‑redundant unit. While it lacks built‑in redundancy, a Simplex board is ideal for non‑critical data acquisition points where cost‑effective monitoring is prioritized over triple‑module redundancy.
Q4: Can I use this board with a 2‑wire 4–20 mA transmitter?
A4: Yes. The IS200STAIH2ACB is designed to accommodate all common transmitter wiring configurations. It features 24 VDC loop power available on each input channel, making it fully compatible with 2‑wire, 3‑wire, 4‑wire, or externally powered transmitters.
Q5: What is the function of the on‑board ID chip on the IS200STAIH2ACB?
A5: The built‑in EEPROM identification chip stores board‑specific data such as the part number, serial number, revision level, and connector location. The Mark VIe system reads this data to verify correct board installation and to streamline diagnostics, troubleshooting, and inventory management.
