Home > Products > GE > GE Mark Vle
Product Name: I/O pack
Brand Name: GE
Model Number:IS220PPDAH1B
Country of Origin:USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
General Electric |
Model Number: |
IS220PPDAH1B |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Manufacturer |
General Electric (GE) |
|
Part Number |
IS220PPDAH1B |
|
Series |
Mark VIe / Mark VIeS |
|
Functional Acronym |
PPDA |
|
Product Type |
I/O Pack / Power Distribution System Feedback Module |
|
Input Voltage |
24 VDC (nominal) |
|
Input Current |
1 A |
|
Output Voltage |
28 VDC |
|
Dimensions |
6x12.8x8.2cm |
|
Weight |
0.36kg |
|
Diagnostic Signals |
Two 115/230 VAC analog feedbacks, local ground, six fused AC |
|
Communication |
Dual redundant Ethernet (IONet), RS-485 |
|
Hardware Compatibility |
Mounts on JPDS, JPDM, JPDG, or JPDC 28 V DC control power boards |
|
Feedback Compatibility |
JPDB, JPDE, and JPDF boards |
|
Self-Diagnostic Tests |
Five automated internal checks |
|
Ground-Fault Detection |
Supported when paired with a JPDE board |
|
Operating Temperature |
-40°C to +70°C |
|
Storage Temperature |
-55°C to +85°C |
|
Standards |
UL, CE, ATEX, CSA, IECEx |
|
Country of Origin |
USA |
|
Manual Reference |
GEH-6721, GEH-6725 |

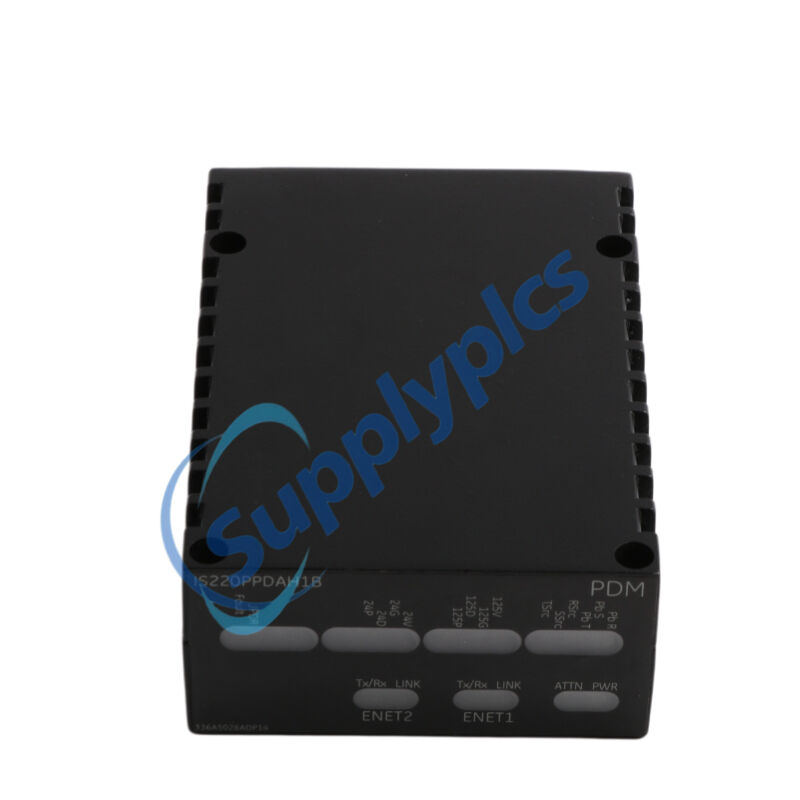

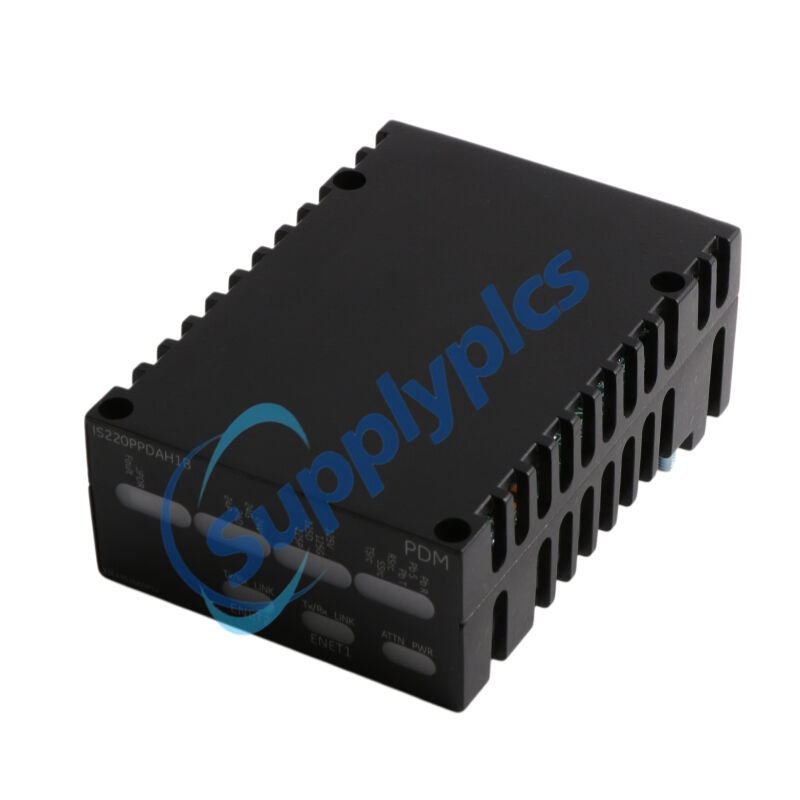

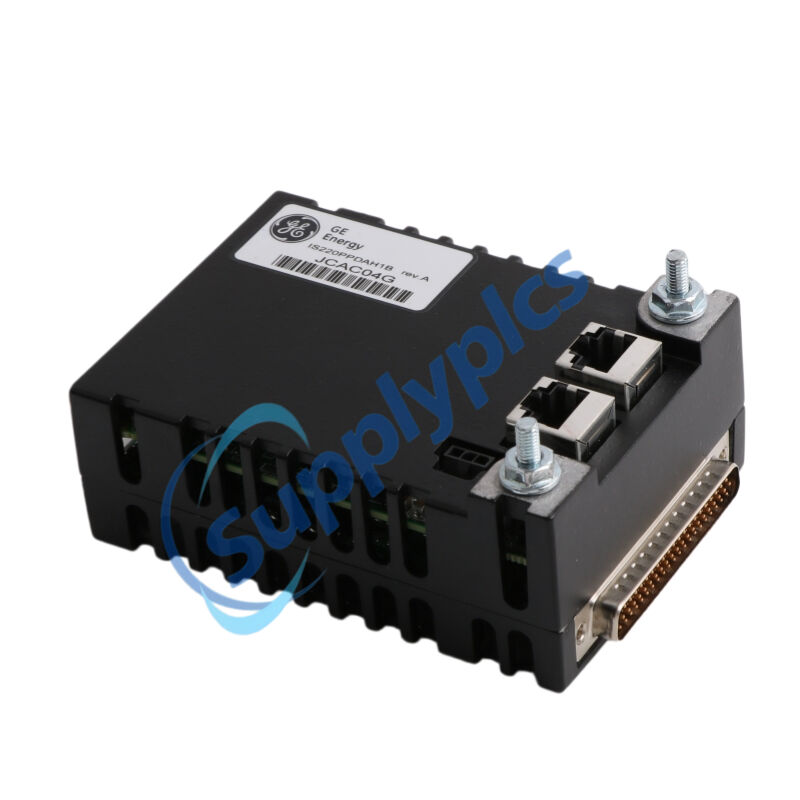

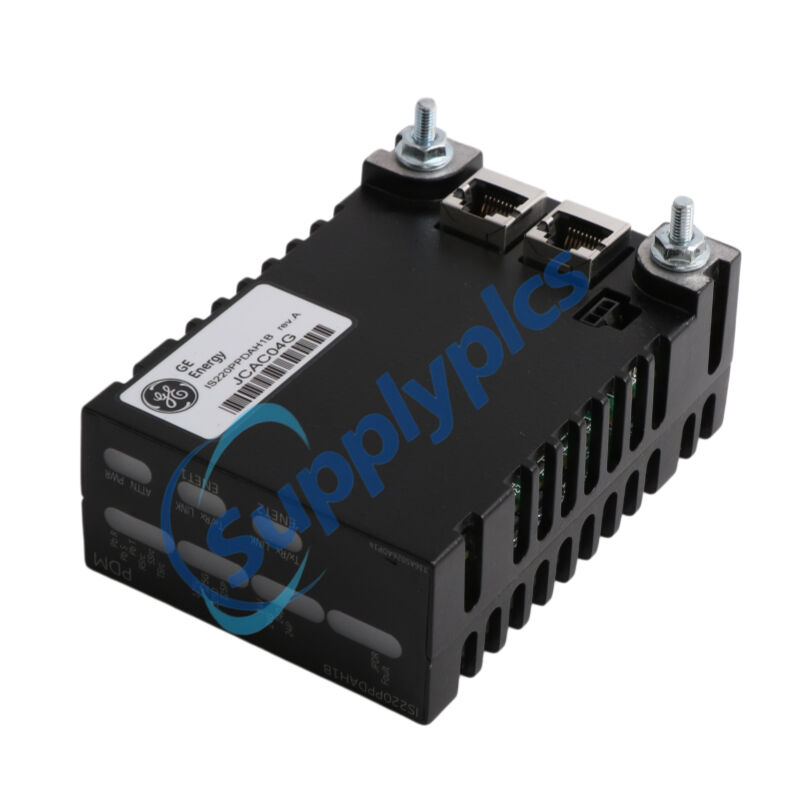

The GE IS220PPDAH1B is an I/O pack engineered by General Electric for the Mark VIe and Mark VIeS control platforms. As a core component of the Power Distribution Module (PDM), the IS220PPDAH1B monitors system feedback signals from up to six power distribution boards, including bus voltages, branch status, and power supply health. The IS220PPDAH1B conditions the raw feedback from JPDB, JPDE, or JPDF boards and transmits the data to system controllers via a dual‑redundant Ethernet interface. Designed for plug‑and‑play replacement with electronic ID recognition, the IS220PPDAH1B automates reconfiguration, minimizing maintenance downtime and ensuring reliable IONet communication for industrial turbine and distributed control applications.
Power generation – gas/steam turbine control systems, excitation systems, balance‑of‑plant auxiliary monitoring
Power distribution – switchgear, motor control centers, bus transfer and feeder protection schemes
Oil & gas – pipeline compressor stations, refinery process control, safety instrumented systems
Data centers – critical power monitoring and distribution for UPS systems and cooling equipment
Industrial process control – DCS and PLC‑based systems requiring redundant, high‑availability power feedback
Dual‑redundant Ethernet communication – two independent IONet ports ensure continuous data transfer to Mark VIe/VIeS controllers without single‑point failure risk
Electronic ID recognition – plug‑and‑play installation with automatic reconfiguration replaces manual setpoint loading and reduces commissioning time
Comprehensive diagnostic feedback – monitors AC analog feedback, fused AC status, branch circuit health, and local ground reference from up to six power distribution boards
Built‑in ground‑fault detection – enabled when paired with a JPDE board, allowing early detection of insulation breakdown before equipment damage occurs
Five automated self‑diagnostic tests – continuously verifies internal circuitry and reports faults to the controller for proactive maintenance scheduling
Collects power feedback signals – scans bus voltages, branch circuit status, and bulk power supply health from connected PDM boards
Conditions and filters raw inputs – analog and digital feedback is processed, noise‑filtered, and validated before transmission to the controller
Transmits data via dual Ethernet – sends conditioned power distribution data to Mark VIe/VIeS controllers over redundant IONet links
Enables automatic reconfiguration – recognizes electronic IDs of connected boards, automatically rebuilding IONet output tables without manual intervention
Reports diagnostics and faults – communicates self‑test results, ground faults, and branch anomalies to the system for annunciation and logging
Q1: What does the IS220PPDAH1B monitor?
A1: The IS220PPDAH1B monitors bus voltages, branch circuit status, ground faults, and bulk power supply health from up to six connected power distribution boards.
Q2: Which power distribution boards are compatible with the IS220PPDAH1B?
A2: The IS220PPDAH1B mounts on JPDS, JPDM, JPDG, or JPDC boards and accepts feedback signals from JPDB, JPDE, or JPDF boards.
Q3: Can the IS220PPDAH1B replace an older IS220PPDAH1A without software changes?
A3: Yes. The IS220PPDAH1B (with BPPC processor) is backward‑compatible and requires ControlST V04.07 or later to directly replace an earlier PPDAH1A module.
Q4: How does the IS220PPDAH1B simplify module replacement?
A4: Through automatic reconfiguration. The IS220PPDAH1B reads electronic IDs from connected boards and rebuilds IONet data without requiring manual setpoint reloading.
Q5: Does the IS220PPDAH1B perform self‑diagnostics?
A5: Yes. The IS220PPDAH1B executes five automated self‑diagnostic tests that verify internal hardware, reporting any failures to the Mark VIe controller for annunciation.
