Product Name: ransformer Protection Relay
Brand Name: GE
Model Number:T35E00HCHF8HH6UMXXP6UUXXWXX
Country of Origin:USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
General Electric |
Model Number: |
T35E00HCHF8HH6UMXXP6UUXXWXX |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Manufacturer |
GE Grid Solutions (GE Multilin) |
|
Part Number |
T35E00HCHF8HH6UMXXP6UUXXWXX |
|
Product Series |
Multilin UR (Universal Relay) Family |
|
Product Type |
Transformer Protection System / Digital Relay |
|
Differential Zones |
|
|
Protection Functions |
Percent differential, unrestrained differential, phase/ground overcurrent, thermal overload, underfrequency |
|
Inrush Inhibit |
2nd harmonic (traditional or adaptive mode) |
|
Overexcitation Inhibit |
5th harmonic |
|
Flexible Protection |
16 user-definable FlexElements |
|
Sampling Rate |
Up to 64 samples per cycle |
|
Event Recorder |
1024 time-stamped events |
|
Oscillography |
128 digital & up to 56 analog channels, up to 45s length, COMTRADE standard |
|
Communications |
3 independent Ethernet ports, IEC 61850 Ed.1/Ed.2, DNP 3.0, Modbus RTU/TCP, IEC 60870-5-103/104 |
|
Process Bus Support |
|
|
LAN Redundancy |
PRP per IEC 62439-3 (zero failover time) |
|
Time Synchronization |
IEEE 1588, redundant SNTP |
|
Display |
Optional 7" full color graphic HMI with bay mimic |
|
Cyber Security |
CyberSentry™ (RBAC, AAA/Radius, Syslog) |
|
Operating Temperature |
–40°C to +85°C |
|
Standards |
IEEE C37.91, IEEE C37.111-1999/2013, IEC 60255-24 Ed 2.0 |
|
Dimensions |
48.2x23x18cm |
|
Weight |
5.8kg |

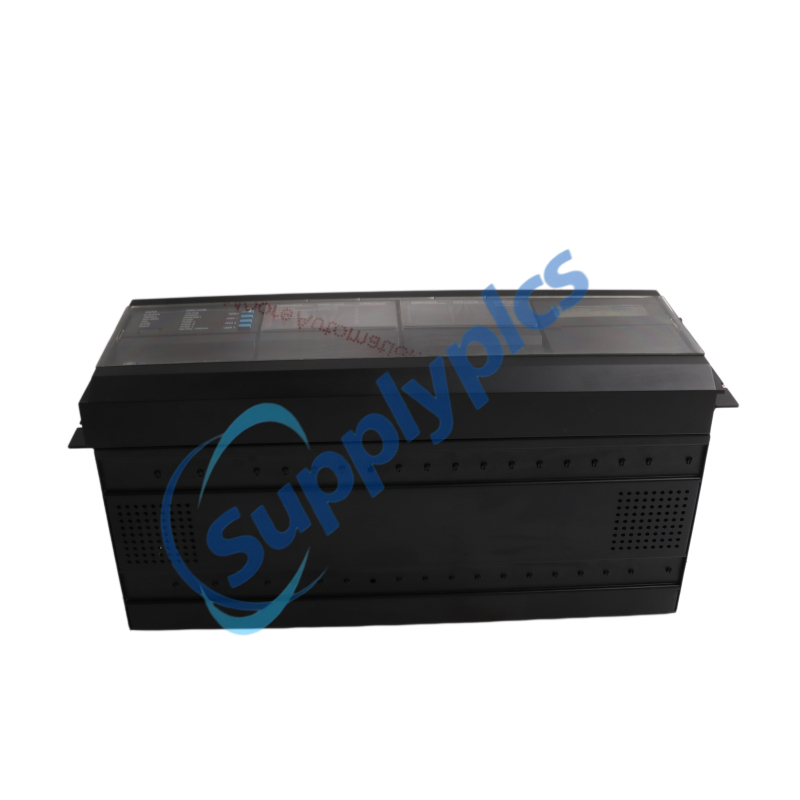

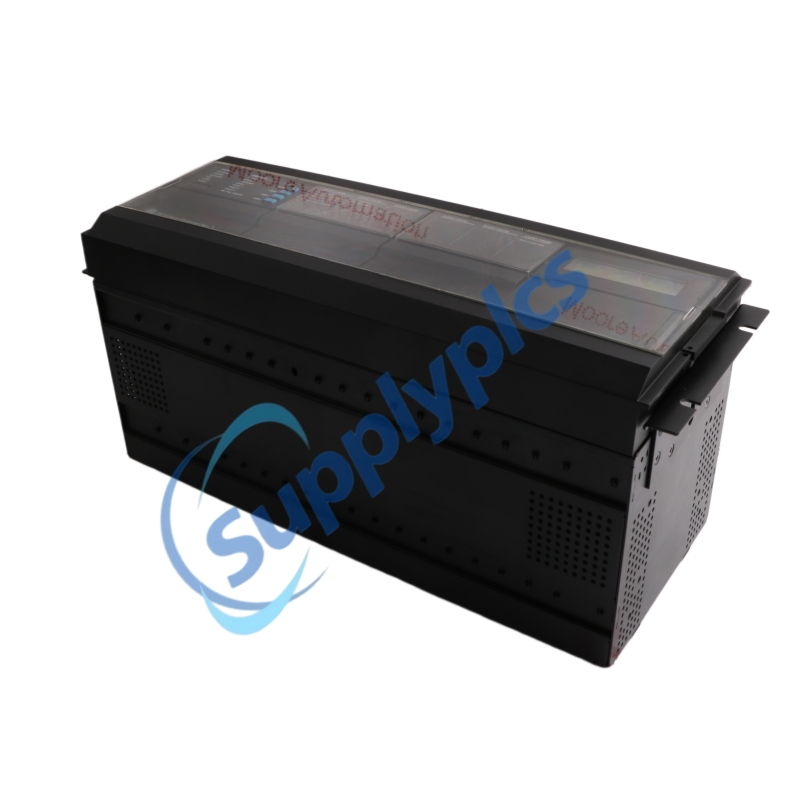

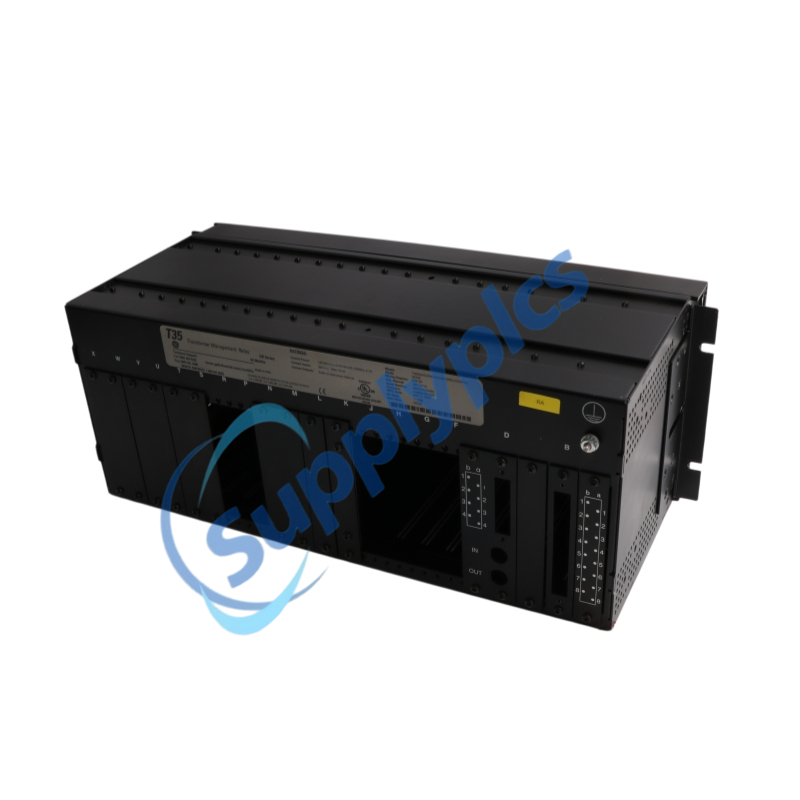

The GE Multilin T35E00HCHF8HH6UMXXP6UUXXWXX is a microprocessor‑based transformer protection relay from the Universal Relay (UR) family, engineered for comprehensive protection of power transformers with up to six windings. The GE Multilin T35E00HCHF8HH6UMXXP6UUXXWXX features percent differential protection with configurable dual‑slope characteristics, adaptive 2nd harmonic inrush inhibit, and 5th harmonic overexcitation blocking. With up to six CT inputs, flexible I/O configurations, and advanced communications including IEC 61850 Ed.1/Ed.2 and process bus support, the GE Multilin T35E00HCHF8HH6UMXXP6UUXXWXX delivers secure, high‑speed protection and seamless substation integration for critical transformer assets.
Primary and backup transformer protection – power transformers, autotransformers, reactors, split-phase and angle regulating transformers
Combined transformer and small bus zone protection – including breaker‑and‑a‑half and ring bus configurations
Three‑winding transformers – with windings in dual‑breaker arrangements
Substation automation – stand‑alone or integrated into automated control systems
Wide area protection and control (WAPC) – via Routable GOOSE (R‑GOOSE)
Multi‑CT configuration support – up to 6 sets of current inputs for complex transformer differential zones with multiple breakers
Dual‑slope percent differential – configurable dual‑breakpoint characteristic with inrush and overexcitation inhibits
Adaptive 2nd harmonic inrush inhibit – maximizes dependability on internal faults while ensuring security during energization
Unrestrained differential element – fast tripping on heavy internal faults to limit catastrophic damage
16 user‑definable FlexElements – programmable protection functions responding to any measured quantity
Advanced IEC 61850 Ed.1 and Ed.2 implementation – complete settings via SCL files, R‑GOOSE support
Process bus support – IEC 61850‑9‑2LE, IEC 61869, or IEC 61850‑9‑2 HardFiber
PRP LAN redundancy – zero failover time per IEC 62439‑3
CyberSentry™ cyber security – RBAC, AAA/Radius, Syslog for SEM integration
Large color graphic HMI – optional 7" display with bay mimic and annunciator functionality

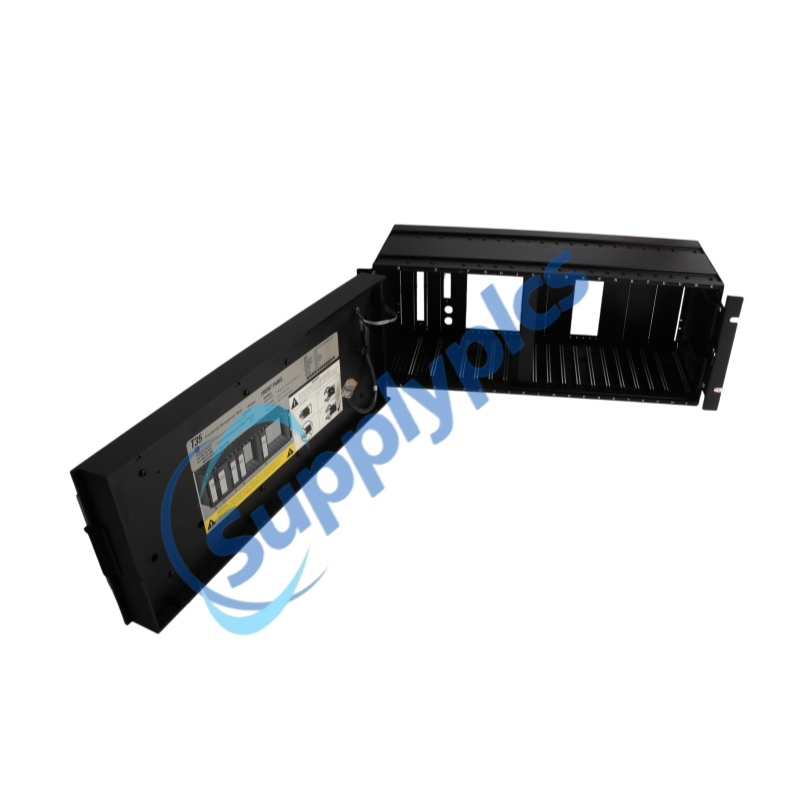

High‑density modular I/O – scalable hardware with multiple configuration options
Percent differential protection – compares winding currents with dual‑slope restraint characteristic; trips on internal faults while ignoring inrush and overexcitation
Unrestrained differential tripping – instantaneous operation on heavy internal faults for fast fault clearing
Overcurrent protection – thermal overload, phase, neutral, and ground time overcurrent elements
Inrush and overexcitation inhibit – 2nd harmonic (adaptive/traditional) and 5th harmonic blocking
Fault recording and diagnostics – 1024 SOE events, oscillography (up to 45s, COMTRADE), data logger
FlexLogic™ programmable logic – custom protection and control schemes without auxiliary components
SCADA/DCS communication – IEC 61850, DNP 3.0, Modbus, IEC 60870‑5‑103/104
Process bus data exchange – sample values (SV) and GOOSE messaging via fiber optic IEC 61850
Q1: How many CT inputs does the T35E00HCHF8HH6UMXXP6UUXXWXX support?
A1: The T35E00HCHF8HH6UMXXP6UUXXWXX supports up to 6 sets of current inputs, providing differential restraint for transformers with up to six windings or dual‑breaker arrangements.
Q2: What communication protocols are supported?
A2: The T35E00HCHF8HH6UMXXP6UUXXWXX supports IEC 61850 Ed.1/Ed.2, DNP 3.0 (serial & TCP/IP), Modbus RTU/TCP, IEC 60870‑5‑103/104, and EGD.
Q3: Does the T35E00HCHF8HH6UMXXP6UUXXWXX support process bus communication?
A3: Yes. The T35E00HCHF8HH6UMXXP6UUXXWXX supports IEC 61850‑9‑2LE, IEC 61869, and IEC 61850‑9‑2 HardFiber process bus with IEEE 1588 time synchronization.
Q4: What cyber security features are available?
A4: The T35E00HCHF8HH6UMXXP6UUXXWXX includes CyberSentry™ with Role‑Based Access Control (RBAC), AAA/Radius authentication, and Syslog for Security Event Management (SEM) integration.
Q5: What is the operating temperature range of the T35E00HCHF8HH6UMXXP6UUXXWXX?
A5: The T35E00HCHF8HH6UMXXP6UUXXWXX operates reliably from –40°C to +85°C.
