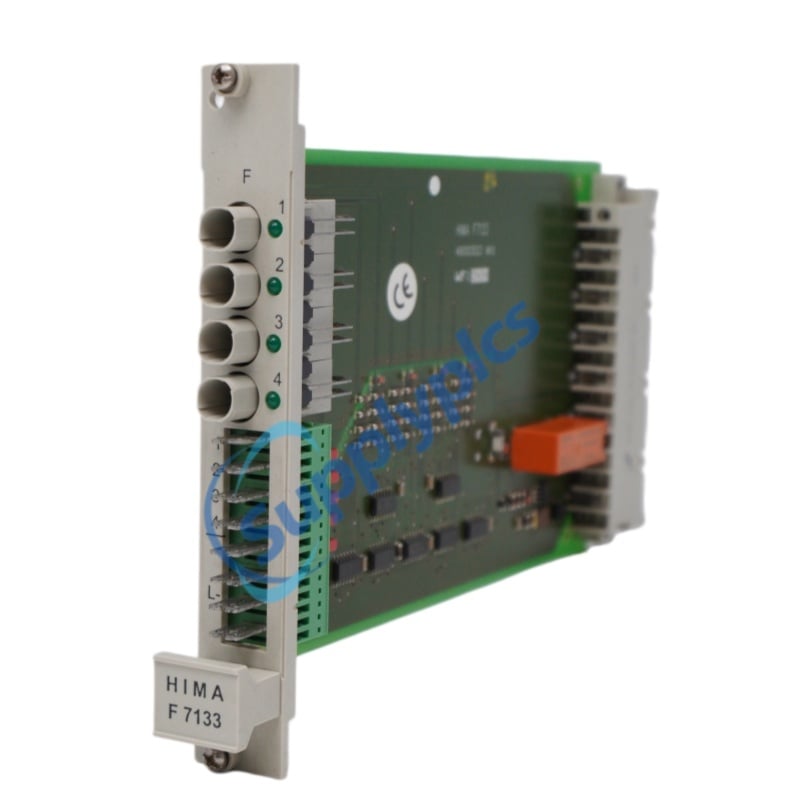

HIMA HIQuad 4 Channel Power Distribution Module F7133 In stock

HIMA HIQuad 4 Channel Power Distribution Module F7133 In stock

Product Name: 4 Channel Power Distribution Module

Brand Name: HIMA

Model Number:F7133

Country of Origin:GERMANY

Warranty: 12 Months

Whatsapp：+86 18159889985

Email：[email protected]

Appurtenance:

hima hiquad 4 channel power distribution module f7133 in stock-1

Overview
Contact for quotation
Specifications
Description
Applications
Features
Functions
FAQ
Recommended Products

Overview

Brand Name:	HIMA
Model Number:	F7133
Country of Origin:	GERMANY
Packaging Details:	Original new Factory Sealed
Delivery Time:	Delivery time in stock
Payment Terms:	T/T
Supply Ability:	in stock

Contact for quotation

Sales Manager:	Stella
Send an email:	[email protected]
Contact in Whatsapp:	+86 18159889985

Specifications

Parameter	Value / Description
Manufacturer	HIMA
Model Number	F7133
Product Type	4-channel power distribution module
Input Voltage	24 VDC (18–35 VDC range)
Output Channels	4 independent channels, each with miniature fuse protection
Fuse Rating	Max 4 A per channel
Output Current	Up to 2 A per channel
Relay Contact Rating	30 VDC / 4 A (continuous load)
Status Indication	4 LED indicators per fuse; relay contact d22/z24 for fault summary
Space Requirement	4 TE
Operating Temperature	-20°C to +70°C
Dimensions (approx.)	127 × 100 × 50 mm
Weight	Approx. 0.25 kg
MTBF	250,000 hours

Description

The HIMA F7133 is a 4-channel power distribution module designed for industrial automation and safety instrumented systems . The F7133 distributes 24 VDC power to I/O modules and field devices through four independent channels, each protected by a miniature fuse and monitored by an LED indicator . The HIMA F7133 features a relay contact that signals when all fuses are intact, enabling remote fault detection . As part of the HIMatrix series, the F7133 supports SIL 3 safety applications .

Applications

Power distribution for safety-related I/O modules in Safety Instrumented Systems (SIS)
Emergency shutdown (ESD) and process control systems
Oil & gas, chemical, power generation, and water treatment facilities
Redundant power supply architectures for high-availability systems

Features

4 independent channels: Each channel with a miniature fuse providing overcurrent protection and line protection
LED fault indication: Each fuse has an associated LED for immediate visual status indication
Relay output: A relay contact (d22/z24) provides a summarized fault signal; closed when all fuses are OK, open when a fuse is faulty or missing
Compact footprint: Occupies only 4 TE of rack space
DIN rail mounting: Supports easy installation
SIL 3 compatible: Suitable for use in safety-critical applications

Functions

Distributes 24 VDC power to four independent output channels for I/O modules and field devices
Protects each channel against overcurrent and short-circuit conditions via miniature fuses
Monitors fuse status and provides visual indication via four front-panel LEDs
Reports overall fault status via a relay contact that de-energizes when any fuse is blown or missing
Enables remote diagnostics and system monitoring through integrated status signaling

FAQ

Q1: What is the HIMA F7133?
A1:TheF7133is a 4-channel power distribution module that provides fused 24 VDC power to I/O modules in safety systems .

Q2: How does the F7133 indicate a blown fuse?
A2:Each channel has an LED that illuminates when its fuse is faulty or missing .

Q3: Does the F7133 provide a remote fault signal?
A3:Yes, theF7133has a relay contact (d22/z24) that is closed when all fuses are OK and opens if a fuse is faulty.

Q4: How many output channels does the F7133 have?
A4:TheF7133has 4 independent output channels, each with fuse protection .

Q5: What is the fuse rating for each channel on the F7133?
A5:Each channel uses a miniature fuse rated at a maximum of 4 A.
