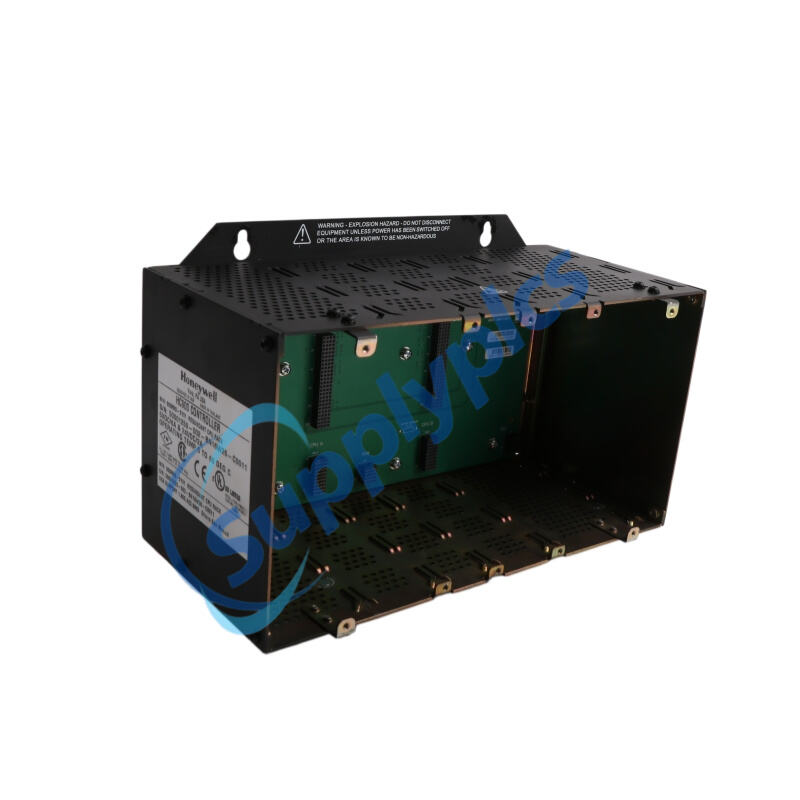

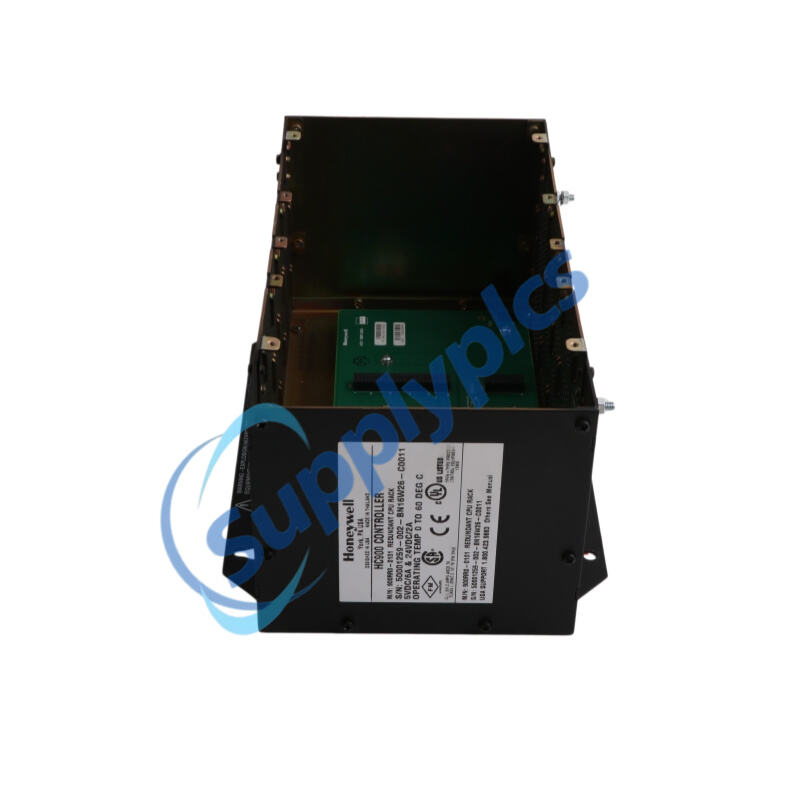

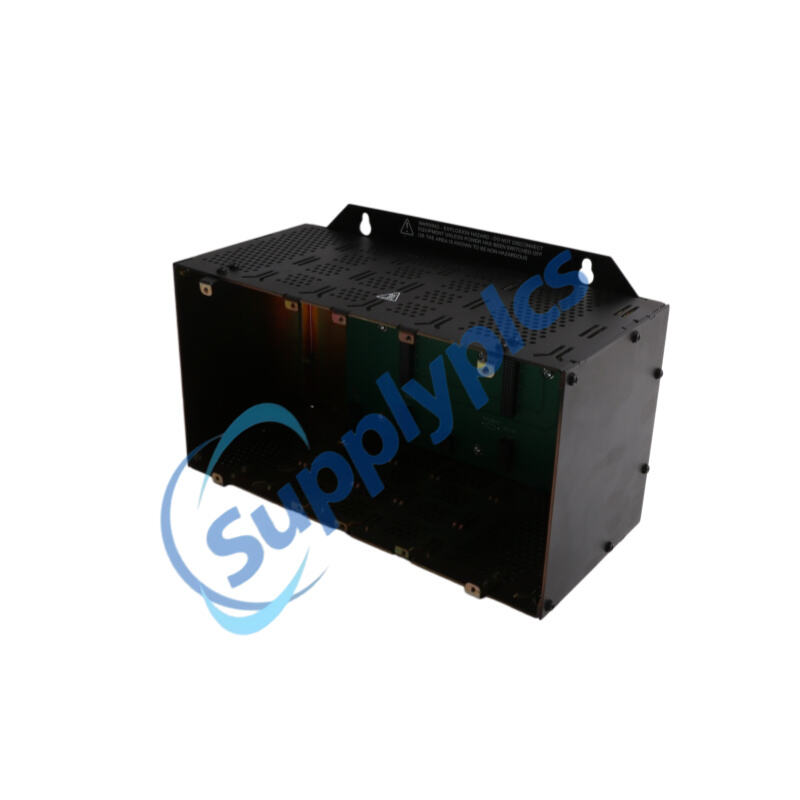

HONEYWELL ControlEdge HC900 900RR0-0101 Redundant CPM Rack Original new

The Honeywell 900RR0-0101 is a dedicated redundant CPU rack assembly purpose‑built for the ControlEdge HC900 platform. This Honeywell 900RR0-0101 houses two C75 CPUs in a hot‑backup configuration, providing fault‑tolerant architecture for safety‑critical and high‑availability processes. The Honeywell 900RR0-0101 eliminates single points of failure at the controller level by orchestrating seamless automatic switchover between the primary and standby units. Designed as a dedicated controller rack with no I/O slots, the 900RR0-0101 supports dual redundant power supplies and works in conjunction with the Redundancy Switch Module (RSM) to ensure bumpless transfer during failover events.

Oil & Gas Refining: Maintains continuous process control during CPU maintenance or unplanned failures

Chemical Processing: Guarantees uninterrupted safety instrumented functions (SIF) in SIL‑rated environments

Power Generation: Provides bumpless transfer between redundant controllers in turbine control, boiler management, and critical power station systems

Pharmaceutical Manufacturing: Prevents production stoppages during firmware upgrades or hardware replacement

Water/Wastewater Treatment: Enables high‑availability control for critical pumping, filtration, and distribution operations

Pipeline Monitoring: Sustains 24/7 supervisory control and data acquisition (SCADA) across remote assets

Metal & Mining: Delivers fault‑tolerant logic for material handling, conveyor systems, and processing equipment

Safety Instrumented Systems (SIS): Provides the physical backbone for dual‑CPU failover control in safety‑critical loops

Dual CPU Redundancy: Designed to house two C75 CPUs operating in a hot‑backup 1:1 redundant configuration, ensuring seamless failover with automatic bumpless transfer

Dedicated Controller Rack: The rack contains no I/O slots – all I/O is housed in separate expansion racks, isolating the control function from field I/O

Dual Redundant Power Supply Support: Each CPU receives its own independent power supply (P01 and P02), eliminating a single point of power failure

High‑Integrity Backplane: Provides deterministic communication and power distribution between redundant CPUs and the Redundancy Switch Module

RSM Integration Ready: Includes dedicated slot and backplane connections for the Redundancy Switch Module (900RSM-0101) positioned between the CPUs

Private I/O Network Architecture: Each C75 CPU has its own dedicated 100 Base‑T Ethernet physical link to I/O racks, ensuring redundant communication paths

Passive Cooling Design: Fanless convection cooling eliminates moving parts, reducing maintenance and improving long‑term reliability

Robust Industrial Construction: Heavy‑gauge steel chassis with built‑in grounding bars provides EMI protection and mechanical durability for harsh environments

Compliance Standards: Certified to IEC 60664 and UL 840 installation standards, with ATEX and cULus options for hazardous locations

Seamless ControlEdge HC900 Integration: Pre‑engineered and tested for optimal performance within Honeywell’s high‑availability control ecosystem

Physical Housing for Redundant CPUs: Provides the mechanical and electrical infrastructure to host a pair of C75 processors in a dedicated controller rack, including backplane connectivity, power distribution, and grounding

Automatic Failover Orchestration: Monitors the health of both the lead and reserve CPUs and automatically transfers control to the standby unit upon detection of a fault, enabling sub‑second bumpless transfer transparent to the process

Redundant Power Distribution: Physically accommodates and distributes power from two independent power supplies, one dedicated to each C75 CPU, ensuring continuous operation even if one supply fails

CPU State Synchronization: Supports inter‑CPU communication via dedicated backplane links for real‑time memory mirroring and process data synchronization between lead and reserve controllers

Private I/O Network Backplane: Provides the physical interface for each C75 CPU to connect (via external Ethernet switches) to Scanner 2 modules in I/O racks, with each CPU maintaining its own dedicated communication link

RSM Integration and Interface: Includes the physical slot and backplane connections required for the Redundancy Switch Module to sit between the CPUs and manage mode control and failover decision logic

Grounding and Noise Immunity: Incorporates built‑in grounding bars for field wiring shields and protective earth connections, essential for proper electrical noise rejection in safety applications

Q1: What is the purpose of the Honeywell 900RR0-0101?
A1: The Honeywell 900RR0-0101 is a dedicated redundant CPU rack that provides the physical and electrical infrastructure to host two C75 CPUs in a hot‑backup configuration. It works with the Redundancy Switch Module (900RSM-0101) and dual power supplies (900P01/900P02) to create a fault‑tolerant controller system that can fail over automatically without process interruption. This dedicated controller rack contains no I/O slots.

Q2: Does the 900RR0-0101 have its own I/O slots?
A2: No. The 900RR0-0101 is a dedicated controller rack that has NO I/O slots. All I/O modules must be housed in separate expansion racks (4‑slot, 8‑slot, or 12‑slot) connected to the controller rack via private Ethernet links through Scanner 2 modules. This architecture isolates the redundant control function from field I/O.

Q3: What components are required to build a complete redundant controller system around the 900RR0-0101?
A3: A complete redundant controller system requires: two C75 CPUs, two independent power supplies (900P01 or 900P02), one Redundancy Switch Module (900RSM-0101), and the Honeywell 900RR0-0101 rack assembly. Each CPU requires its own I/O network link to Scanner 2 modules. For power redundancy, a Power Status Module (PSM) is required when using a second power supply in I/O racks. All component model numbers must match for compatibility.

Q4: What happens when a failover occurs in the 900RR0-0101 rack?
A4: When the lead CPU fails, the backup CPU assumes control immediately. The Redundancy Switch Module within the 900RR0-0101 rack detects the fault and executes an automatic sub‑second, bumpless transfer to the standby controller. The new lead CPU continues to communicate with I/O racks over its dedicated Ethernet ports, and the reserve CPU (previously the failed unit) is automatically synchronized once repaired or replaced.
