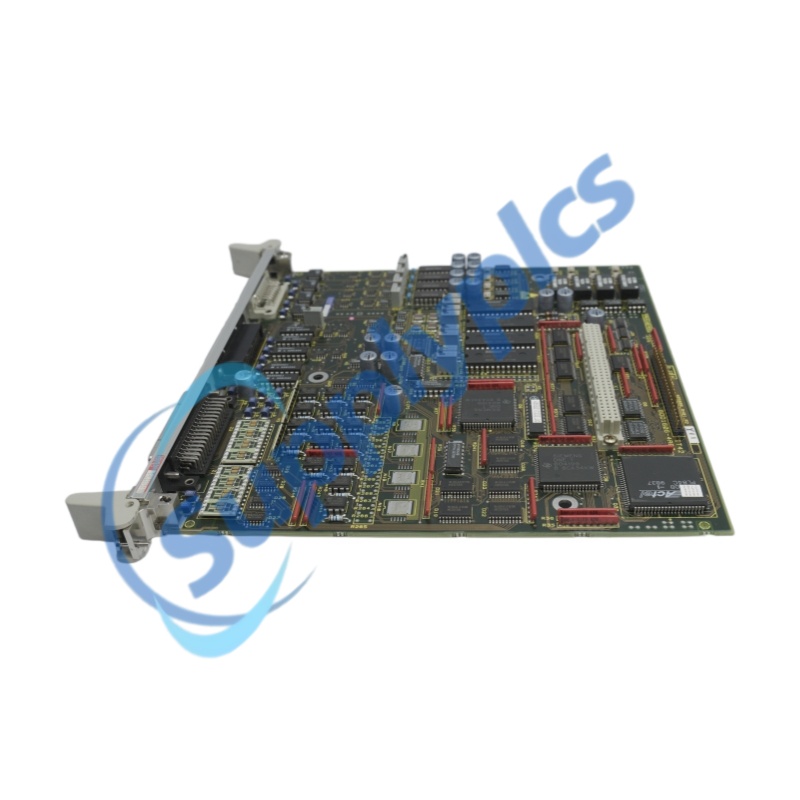

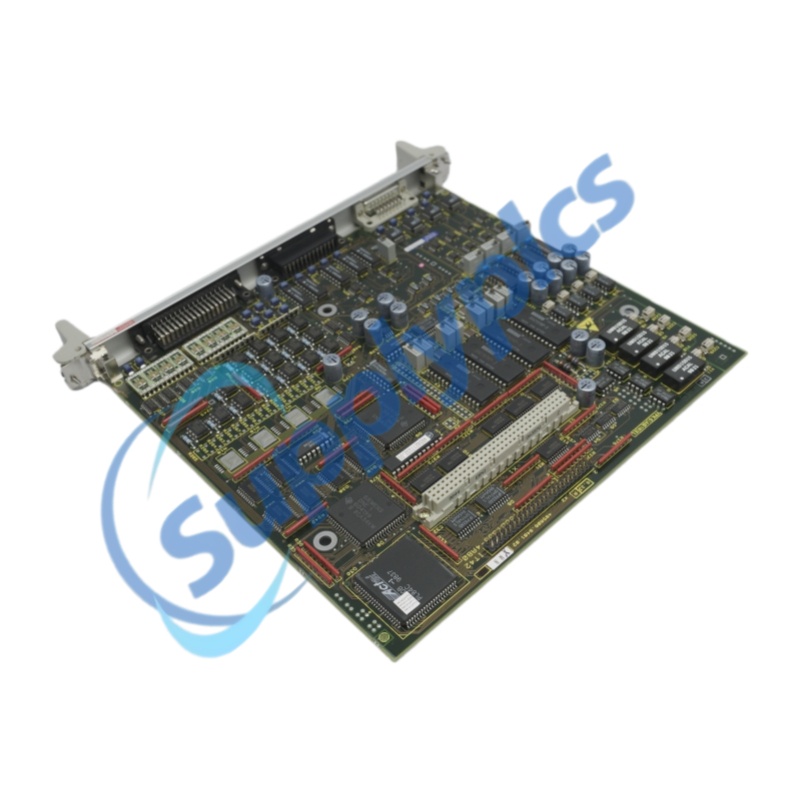

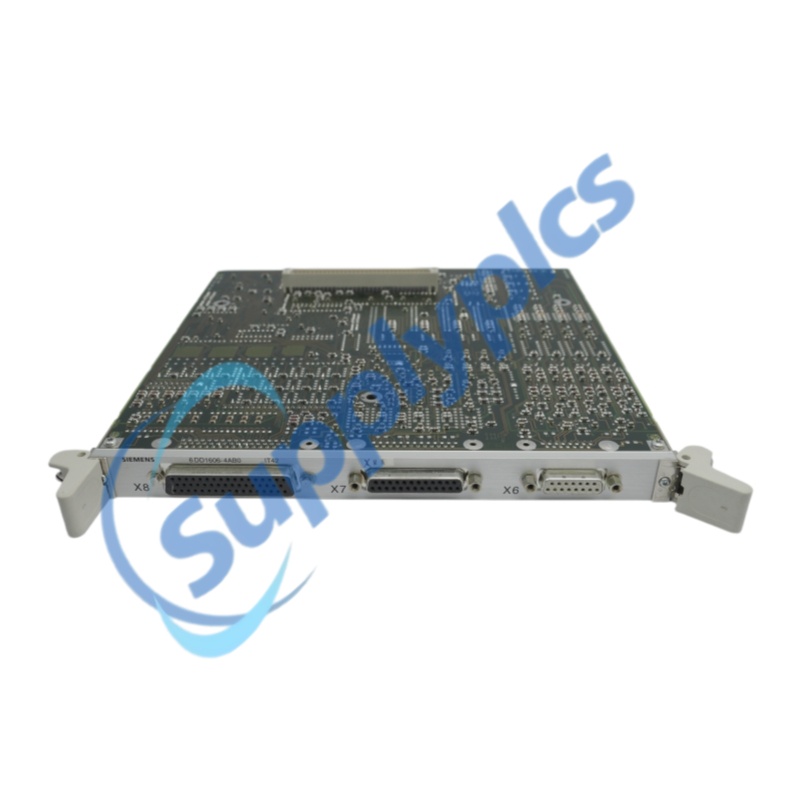

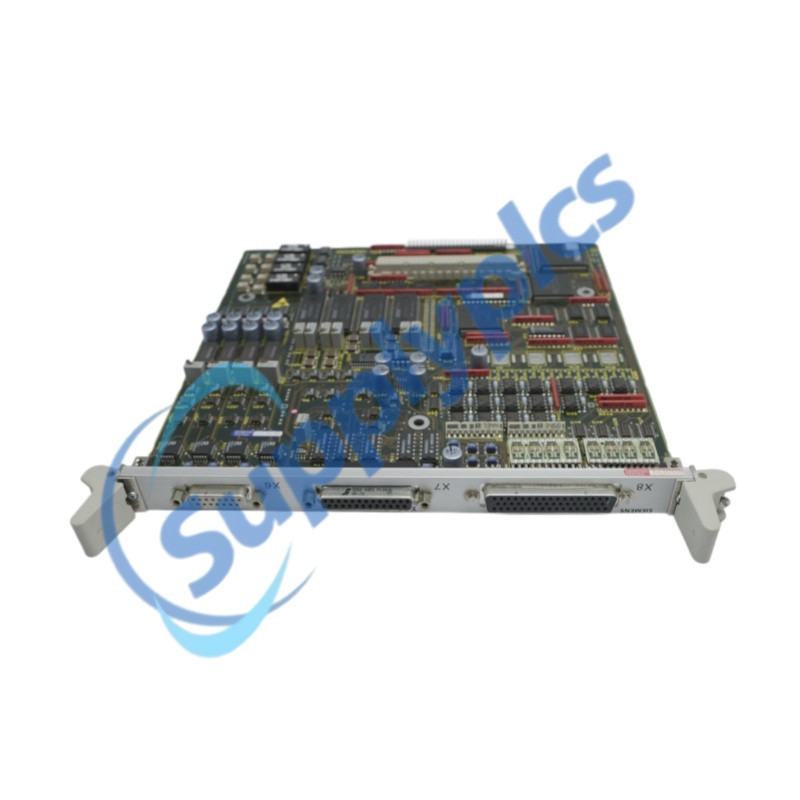

Siemens 6DP1900-8AA SIMADYN D IT42 expansion module Original new

Siemens 6DP1900-8AA SIMADYN D IT42 expansion module Original new

Product Name:SIMADYN D IT42 expansion module

Brand Name:Siemens

Model Number:6DP1900-8AA

Country of Origin:Germany

Warranty:12 Months

Whatsapp：+86 18159889985

Email：[email protected]

Appurtenance:

siemens 6dp1900 8aa simadyn d it42 expansion module original new-1

Overview
How to get price
Specifications
Description
Applications
Environment and Certification
Features and Benefits
FAQ
Spares
Recommended Products

Overview

Brand Name:	Siemens
Model Number:	6DP1900-8AA
Country of Origin:	Germany
Packaging Details:	Original new Factory Sealed
Delivery Time:	in stock
Payment Terms:	T/T

How to get price

Sales Manager:	Stella
Send an email:	[email protected]
Contact in Whatsapp:	+86 18159889985

Specifications

Parameter	Specification
Product Model:	6DD1606-4AB0, SIMADYN D IT42 expansion I/O module for PM5 and PM6 CPU systems.
Module Type:	Mixed analog and digital expansion module for industrial automation and process control.
Analog Inputs:	4 integrating high-resolution differential analog inputs plus 4 standard differential analog inputs.
Analog Outputs:	4 non-floating analog outputs, ±10 V output range, ±10 mA output current, 16-bit resolution.
Digital Inputs:	16 non-floating digital inputs, 24 VDC nominal input voltage with fast 50 µs response.
Digital Outputs:	16 protected digital outputs, 24 VDC, 50 mA per channel with electronic short-circuit protection.
Analog Resolution:	Integrating inputs up to 17-bit resolution, standard analog inputs with 12-bit resolution.
Input Voltage Range:	Analog input range of -10 V to +10 V for both integrating and standard channels.
CPU Compatibility:	Compatible with Siemens SIMADYN D PM5 and PM6 processor modules, supporting up to two ITxx expansion modules.
Interface Support:	Compatible with SU10, SU12, SB10, SB60, SB61, SB70, and SB71 interface modules using SC49, SC50, SC51, and SC54 cables.
Dimension:	20.14 × 233.4 × 220 mm (W × H × D).
Weight:	Approximately 0.5 kg.

Description

6DD1606-4AB0 is a versatile SIMADYN D IT42 expansion module designed to extend the input and output capabilities of Siemens PM5 and PM6 CPU modules. Installed directly onto the CPU, the module provides a comprehensive combination of 4 high-resolution integrating analog inputs, 4 standard analog inputs, 4 analog outputs, 16 digital inputs, and 16 digital outputs, making it ideal for advanced industrial automation and process control applications.

Built for high-precision signal acquisition, 6DD1606-4AB0 incorporates integrating V/f conversion technology, delivering measurement resolutions of up to 17 bits depending on integration time. Fast analog conversion, high-speed digital response, and electrically isolated interface connections ensure reliable operation even in electrically noisy industrial environments. The module also supports multiple interface modules and plug-in cable options for flexible system integration.

Compatible with SIMADYN D PM5, PM6, and other ITxx expansion modules, 6DD1606-4AB0 offers scalable system expansion for power generation, metallurgy, process industries, and high-performance machine automation. Its compact design, precise analog performance, and dependable digital I/O processing make it an excellent solution for demanding real-time industrial control systems.

Applications

Power plants: Collects high-accuracy analog process signals and digital status information for turbine and generator control.
Substations: Supports relay logic, protection systems, switchgear monitoring, and auxiliary automation equipment.
Chemical plants: Integrates precision analog measurement with reliable digital control for continuous process automation.
Steel mills: Performs high-speed I/O processing for rolling mills, furnace automation, and heavy industrial equipment.
Machinery manufacturing plants: Controls automated production lines, robotic cells, CNC equipment, and assembly systems.
Water treatment facilities: Acquires sensor data and controls pumps, valves, and monitoring systems.
Oil & gas facilities: Enables reliable process signal acquisition and actuator control in continuous operation environments.
Industrial research systems: Supports high-resolution measurement, laboratory automation, and specialized test equipment.

Environment and Certification

Designed for continuous industrial operation within SIMADYN D automation platforms.
Supports operation without forced cooling under appropriate installation conditions.
Noise-immune performance achieved through secure mechanical mounting.
Differential analog inputs improve measurement stability in electrically noisy environments.
Electrically isolated interface modules enhance plant safety and signal integrity.
Compatible with multiple Siemens interface modules for flexible installation.
Robust construction supports long-term industrial reliability.
Suitable for process industries requiring stable analog acquisition and digital control.
Designed according to SIMADYN D hardware specifications.
Optimized for demanding real-time industrial automation applications.

Features and Benefits

Provides 4 integrating high-resolution analog inputs for precision signal acquisition.
Includes 4 standard analog inputs with fast conversion performance.
Offers 4 analog outputs with 16-bit resolution for accurate control signals.
Supports 16 digital inputs and 16 digital outputs for flexible automation tasks.
High-resolution integrating measurement reaches up to 17-bit accuracy depending on integration time.
Fast analog conversion time of 45 μs improves real-time system response.
Supports external trigger inputs for synchronized integrating measurements.
Modular expansion allows up to two ITxx modules per compatible CPU.
Wide interface compatibility simplifies system integration and field wiring.
Compact expansion design maximizes I/O capacity without increasing rack complexity.

FAQ

Q1: What is the primary function of the 6DD1606-4AB0 module?
A1: It expands SIMADYN D CPU modules with additional high-resolution analog inputs, analog outputs, and digital I/O channels.

Q2: Which CPU modules support the 6DD1606-4AB0?
A2: It is designed for Siemens SIMADYN D PM5 and PM6 CPU modules and supports stacked ITxx expansion configurations.

Q3: How many analog and digital channels are available?
A3: The module provides 8 analog inputs, 4 analog outputs, 16 digital inputs, and 16 digital outputs.

Q4: What is the maximum resolution of the integrating analog inputs?
A4: The integrating analog inputs achieve up to 17-bit resolution, depending on the selected integration time.

Q5: Is the 6DD1606-4AB0 suitable for high-precision industrial measurement?
A5: Yes. Its integrating V/f conversion technology and high-resolution analog inputs make it well suited for precision measurement and advanced industrial control applications.
