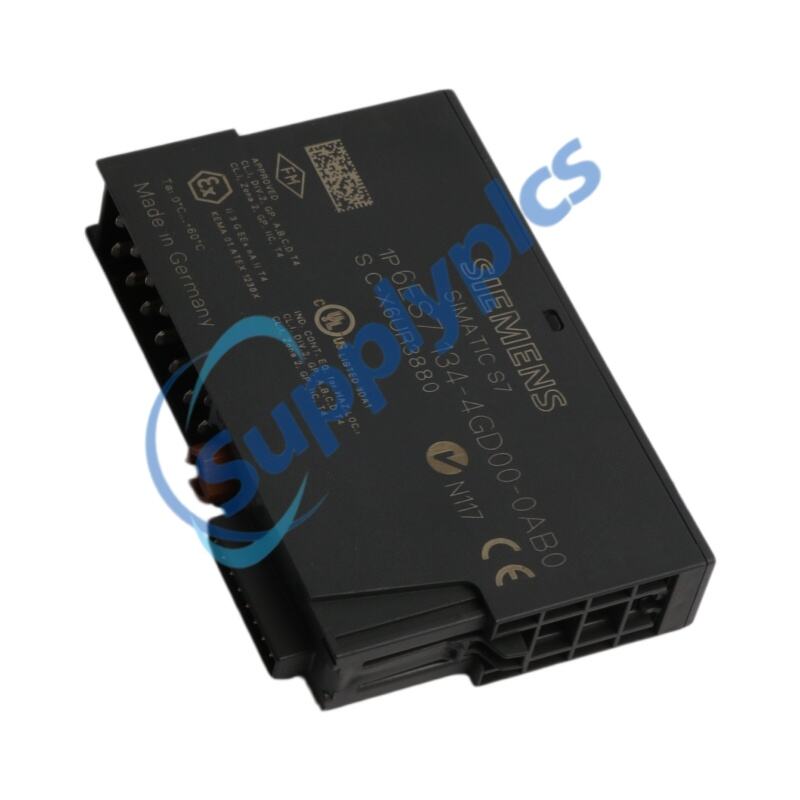

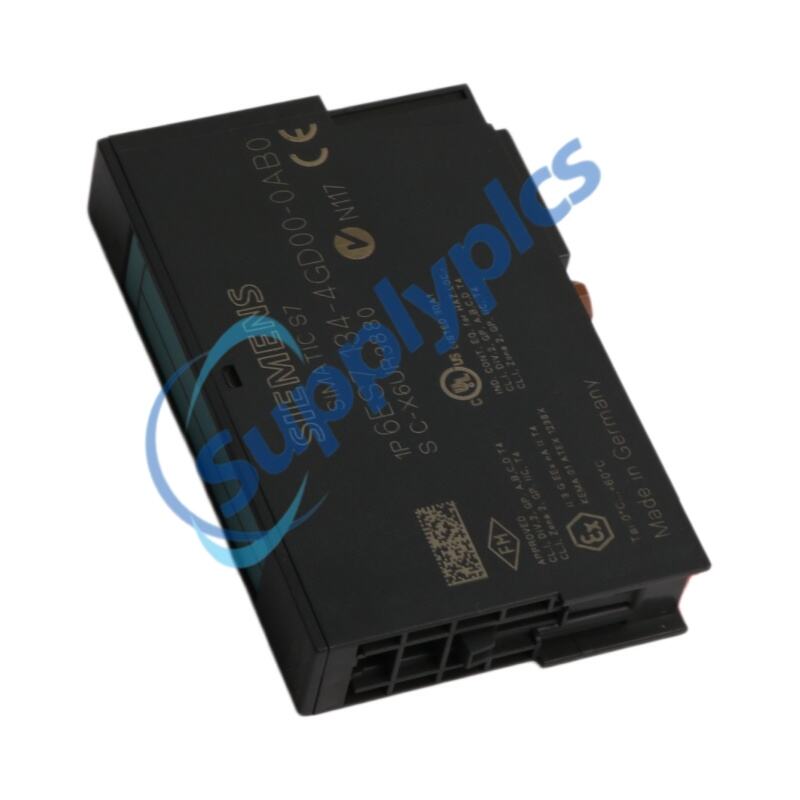

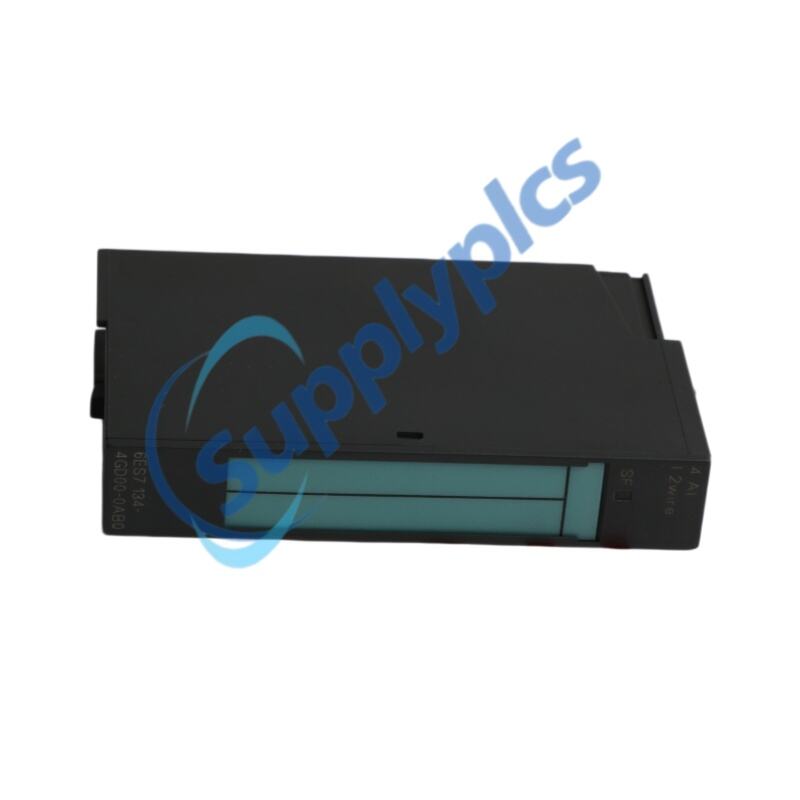

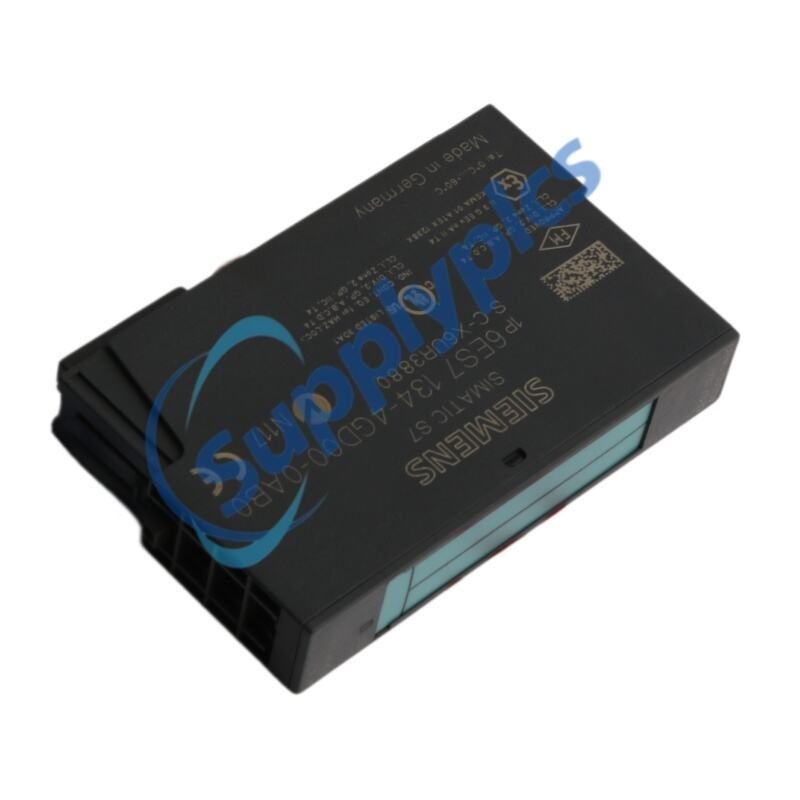

Product Name:Electronics module ET 200S 4AI standard I-2-wire
Brand Name:Siemens
Model Number:6ES7134-4GD00-0AB0
Country of Origin:Germany
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
Siemens |
Model Number: |
6ES7134-4GD00-0AB0 |
Country of Origin: |
Germany |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
| Parameter | Value |
|---|---|
| Product Model | 6ES7134-4GD00-0AB0 |
| Product Type | Analog Input Module |
| System | SIMATIC ET 200S |
| Input Channels | 4 AI |
| Input Signal Type | 4–20 mA (2-wire transmitters) |
| Resolution | 13-bit |
| Cycle Time | 40 ms per module |
| Supply Voltage | 24 V DC (via power module) |
| Load Current | Max. 125 mA |
| Backplane Current | Max. 10 mA |
| Power Loss | Approx. 0.6 W |
| Cable Length | Up to 200 m (shielded) |
| Measurement Error | ±0.3% (25°C), ±0.4% full range |
| Diagnostics | Wire-break, overflow, group fault |
| Dimensions (W × H × D) | 15 × 81 × 52 mm |
| Weight | 0.04 kg |
| Isolation Voltage | 500 V DC |
The 6ES7134-4GD00-0AB0 is a Siemens SIMATIC ET 200S analog input electronic module designed for precise measurement of 4–20 mA signals in industrial automation systems. It supports 4-channel standard analog input configuration for 2-wire transmitters, ensuring stable and accurate process signal acquisition.
The 6ES7134-4GD00-0AB0 delivers 13-bit resolution with integrated diagnostics, including wire-break detection and group fault indication via SF LED. Its compact 15 mm design allows high-density installation in distributed I/O architectures.
Engineered for reliability and efficiency, the 6ES7134-4GD00-0AB0 provides robust signal processing with low power loss, making it ideal for continuous monitoring and control applications in modern industrial environments.
Q1: What is the main function of 6ES7134-4GD00-0AB0?
A1: It is an analog input module for measuring 4–20 mA signals in ET 200S systems.
Q2: How many input channels does it support?
A2: It provides 4 analog input channels.
Q3: What type of sensors is it compatible with?
A3: It supports 2-wire 4–20 mA transmitters.
Q4: Does it support fault diagnostics?
A4: Yes, it includes wire-break detection and group fault indication.
Q5: What is the resolution of this module?
A5: It offers 13-bit resolution for precise signal measurement.
|
