Home > Products > SIEMENS > SIMATIC S7 Series
|
4 AO
Analog outputs |
+/-10 V / 4...20 mA
Output ranges |
11 bit
Resolution |

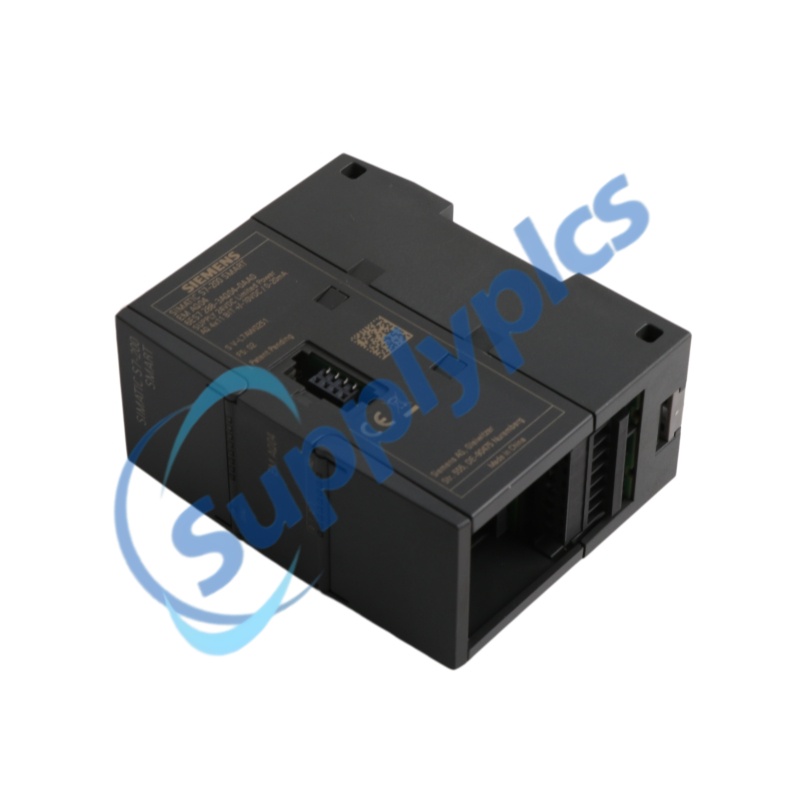

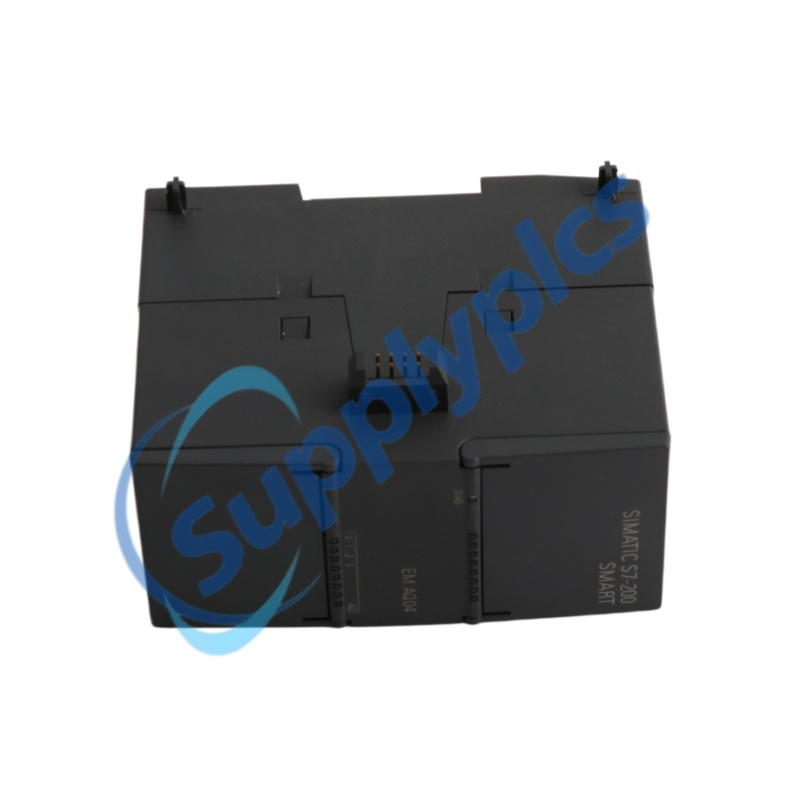

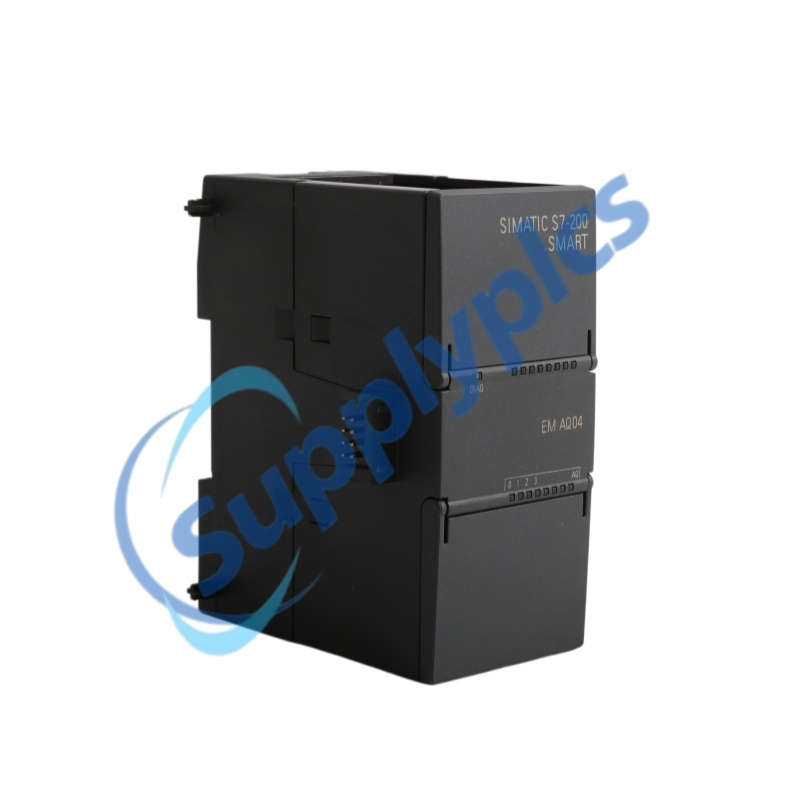

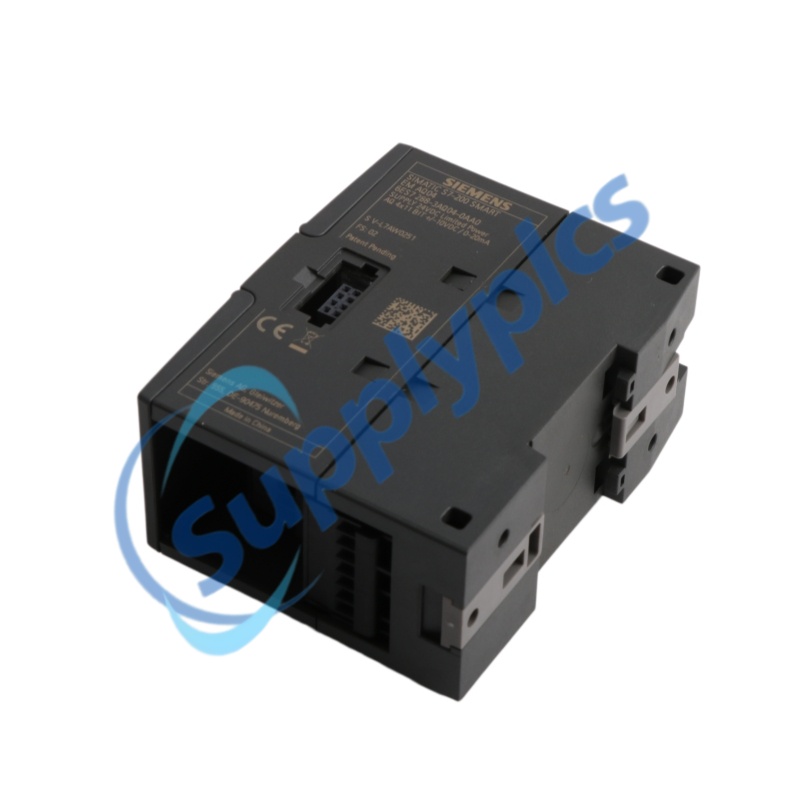

Siemens SIMATIC S7-200 SMART 6ES7288-3AQ04-0AA0 is the SM AQ04 module described by Siemens as Analog output SM AQ04, 4 analog outputs, +/-10 V, 11 bit resolution, or 4...20 mA, 11 bit resolution.
Product type designation: SM AQ04, AQ 4x11 bit. Confirm the complete article number and current documentation revision before quotation.
Article number |
6ES7288-3AQ04-0AA0 |
Series |
SIMATIC S7-200 SMART |
Official description |
Analog output SM AQ04, 4 analog outputs, +/-10 V, 11 bit resolution, or 4...20 mA, 11 bit resolution |
Core verified point |
4 AO analog outputs |
|
Article number
|
6ES7288-3AQ04-0AA0
|
|
Analog inputs
|
0
|
|
Analog outputs
|
4
|
|
Output ranges
|
+/-10 V or 4...20 mA
|
|
Resolution
|
11 bit
|
|
Product type designation
|
SM AQ04, AQ 4x11 bit
|
|
Rated supply
|
24 V DC; permissible range 20.4 to 28.8 V DC
|
|
Current consumption, maximum
|
103 mA
|
|
Backplane bus current at 5 V DC, maximum
|
61 mA
|
|
Power loss, typical
|
2.7 W
|
|
Dimensions W x H x D
|
45 x 100 x 81 mm
|
|
Approximate weight
|
170.5 g
|
|
Module profile
SM AQ04, AQ 4x11 bit |
Wiring status
Exact pin allocation must be confirmed from the official manual. |
The official system manual assigns AQ 0 through AQ 3 and their reference terminals across terminal blocks X10 to X13, with L+, M and functional earth on X10. Follow the exact pin table before wiring.
Do not copy a terminal assignment from a similar module. Confirm signal references and supply terminals for 6ES7288-3AQ04-0AA0 before installation.
|
Signal protection
|
Confirm transmitter, actuator, surge and circuit-protection coordination for the actual installation.
|
|
Cabinet environment
|
Ambient temperature, humidity, altitude, pollution degree and enclosure selection are subject to verification.
|
|
Cable practice
|
Confirm shielding, grounding, separation and reference-potential instructions in the official manual.
|
|
Approvals
|
Required certificates and their current revisions are available on request and subject to verification.
|
|
Module identity
|
Protection and environmental decisions must use the exact article number 6ES7288-3AQ04-0AA0.
|
|
01
|
Confirm the complete article number: 6ES7288-3AQ04-0AA0.
|
|
02
|
Confirm whether every field device requires +/-10 V or 4...20 mA, the load characteristics, reference wiring, supply arrangement and CPU/system compatibility.
|
|
03
|
Confirm signal references, shielding, grounding and terminal assignment.
|
|
04
|
Confirm available expansion capacity and CPU/system compatibility.
|
|
05
|
Confirm environmental limits and any required approvals.
|
|
06
|
Record the selected ranges and wiring decisions in the quotation request.
|
|
Identity
|
Match 6ES7288-3AQ04-0AA0 and the complete suffix on the product nameplate.
|
|
Signal profile
|
Verify every configured analog range against the connected field device.
|
|
Condition
|
Confirm New, Used or Refurbished before quotation.
|
|
Photos
|
Current physical-product and nameplate photos are available on request.
|
|
System fit
|
Verify CPU, module position and available expansion capacity.
|
|
Electrical fit
|
Verify supply, signal references, load and grounding.
|
|
Documents
|
Confirm the latest Siemens datasheet and system manual.
|
|
Commercial record
|
Check the written quotation, payee information and agreed transaction terms.
|
|
Stock status
|
Subject to verification. Request current inventory evidence for 6ES7288-3AQ04-0AA0.
|
|
Condition
|
New, Used or Refurbished: confirm before quotation.
|
|
Current photos
|
Physical-product and nameplate photos are available on request.
|
|
Warranty
|
Confirm before quotation.
|
|
Dispatch time
|
Confirm before quotation.
|
|
Testing
|
Subject to verification; available test records can be requested.
|
|
Payment methods
|
Available on request and subject to the written quotation.
|
|
Quotation response time
|
Subject to verification.
|
|
Transaction confidence
|
Request company details, written quotation, payee verification and an agreed transaction record before payment.
|
|
