Siemens SIMATIC S7-200 SMART 6ES7288-3AR04-0AA0 Analog Input SM AR04 RTD 4xAI RTD Module

Siemens SIMATIC S7-200 SMART 6ES7288-3AR04-0AA0 Analog Input SM AR04 RTD 4xAI RTD Module

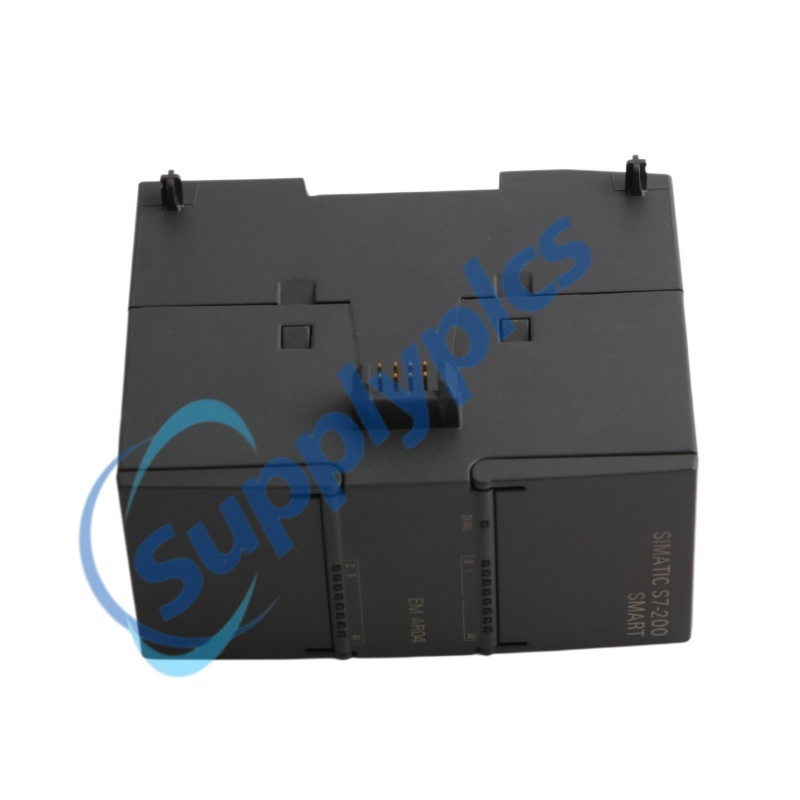

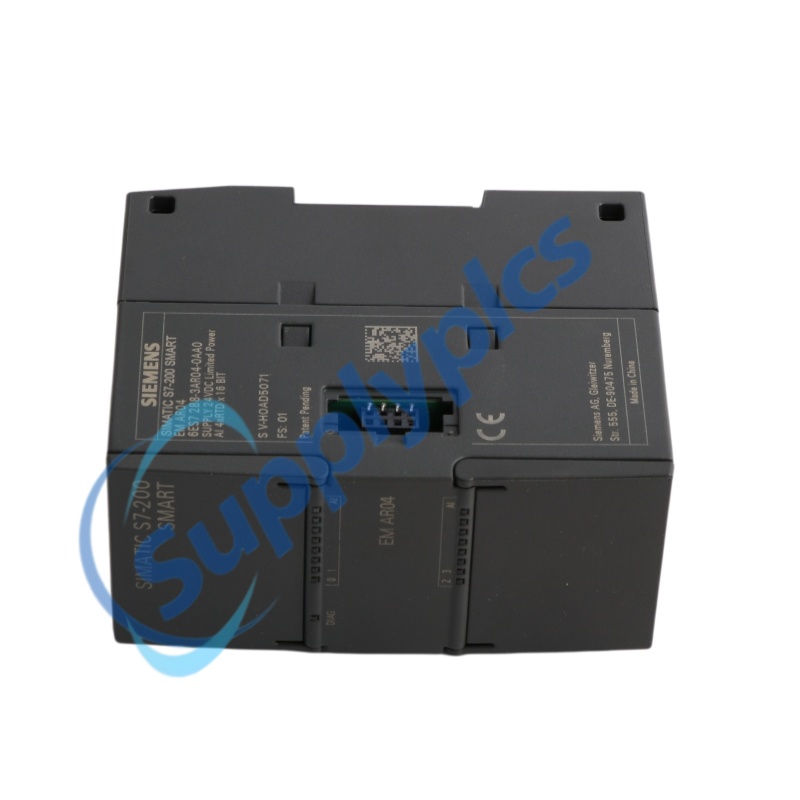

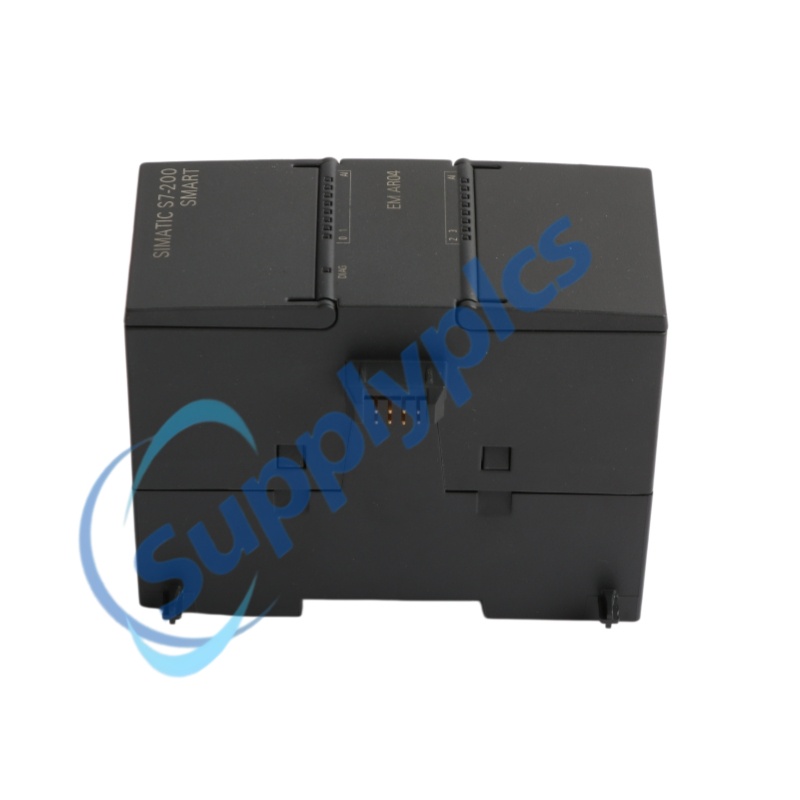

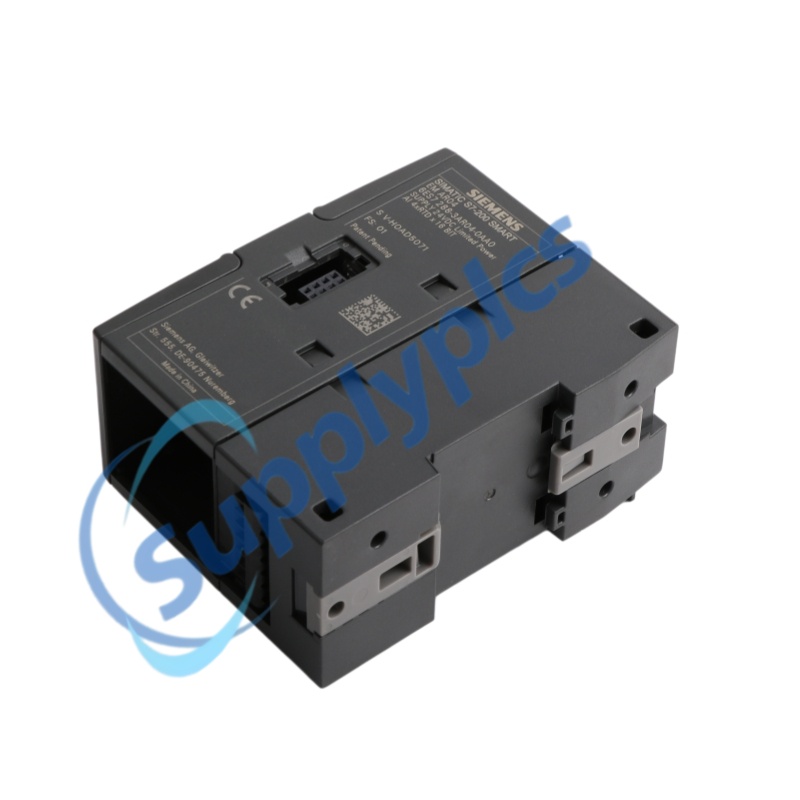

6ES7288-3AR04-0AA0

SIMATIC S7-200 SMART, Analog input SM AR04 RTD, 4xAI RTD module

Inputs
4 RTD / resistance channels

Resolution
0.1 C / 0.1 F; 15 bit + sign

Sensor wiring
2-, 3- and 4-wire
