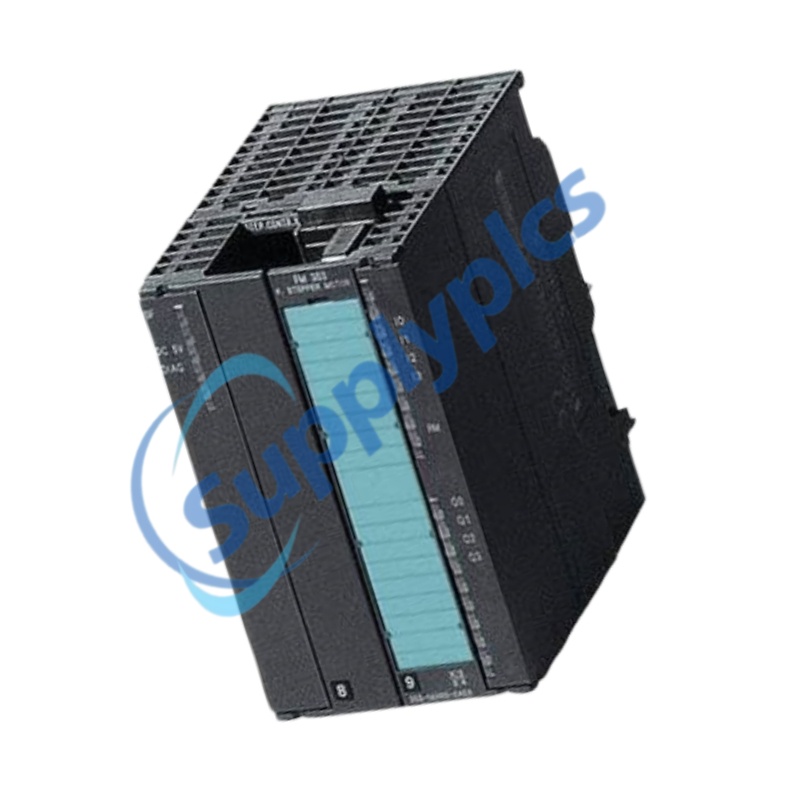

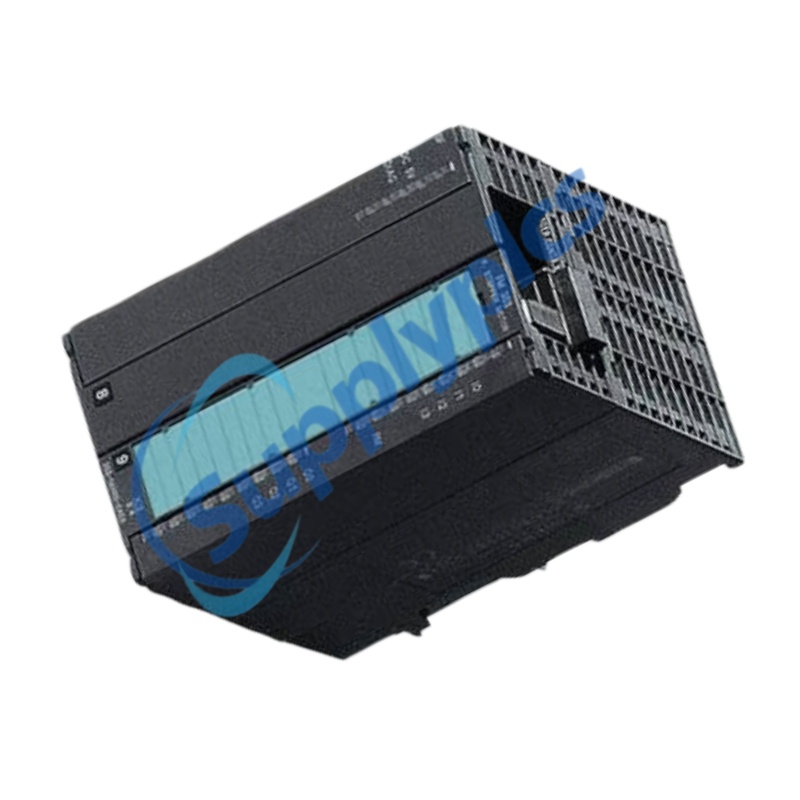

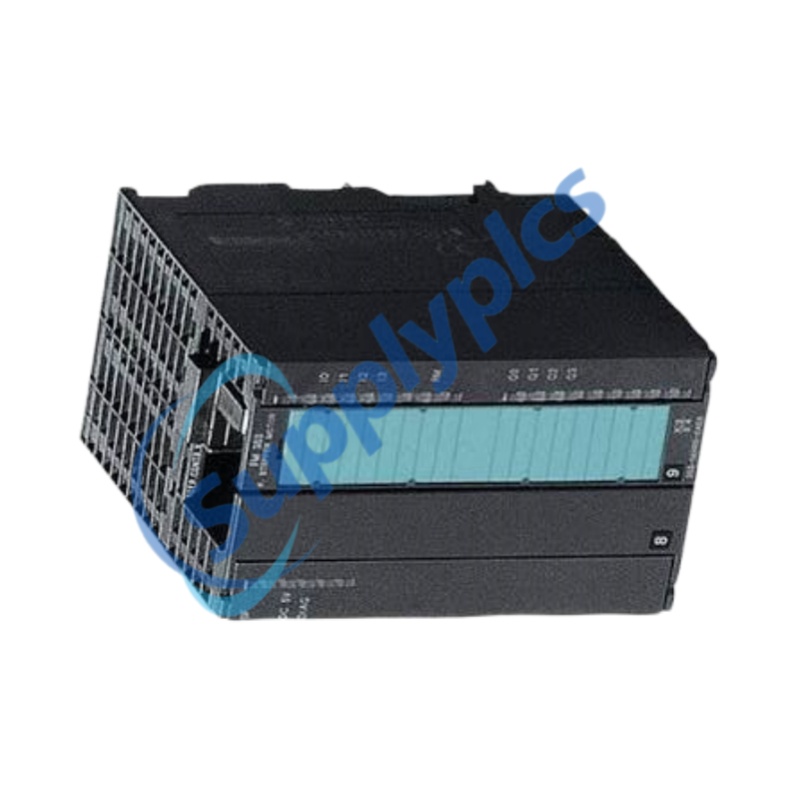

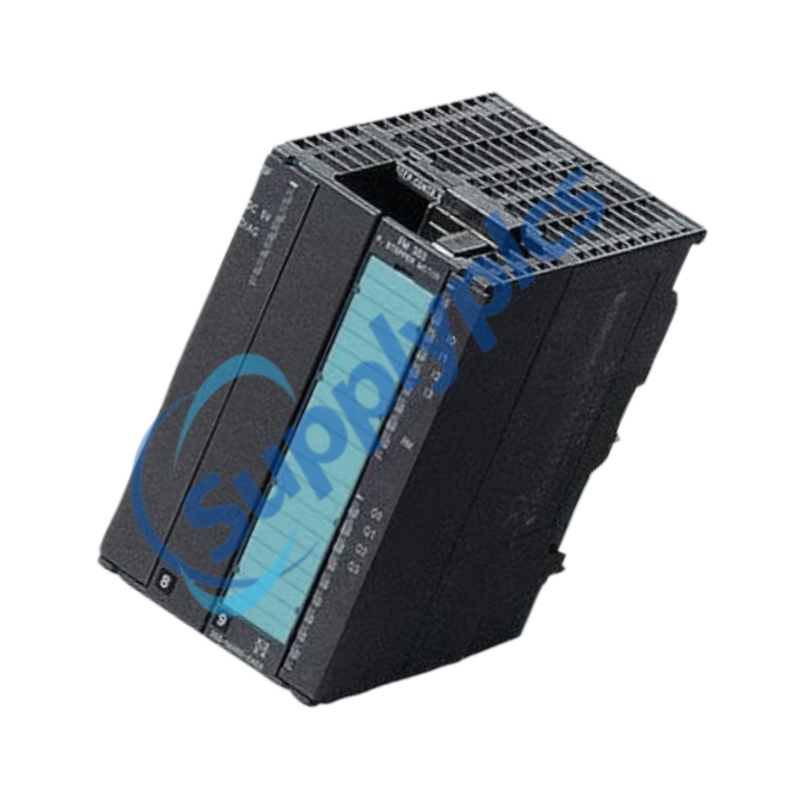

Siemens 6ES7353-1AH01-0AE0 FUNCTION MODULE FM 353 Ready For Ship

Siemens 6ES7353-1AH01-0AE0 FUNCTION MODULE FM 353 Ready For Ship

Product Name:FUNCTION MODULE FM 353

Brand Name:Siemens

Model Number:6ES7353-1AH01-0AE0

Country of Origin:Germany

Warranty:12 Months

Whatsapp：+86 18159889985

Email：[email protected]

Appurtenance:

siemens 6es7353 1ah01 0ae0 function module fm 353 ready for ship-1

Overview
Get your discount today
Specifications
Description
Applications
Control & Communication
Environment and Certification
FAQ
Spares
Recommended Products

Overview

Brand Name:	Siemens
Model Number:	6ES7353-1AH01-0AE0
Country of Origin:	Germany
Packaging Details:	Original new Factory Sealed
Delivery Time:	in stock
Payment Terms:	T/T

Get your discount today

Sales Manager:	Stella
Send an email:	[email protected]
Contact in Whatsapp:	+86 18159889985

Specifications

Parameter	Specification
Product Model	6ES7353-1AH01-0AE0, FM 353 positioning function module for stepper motor control in S7-300 systems
Power Supply	24 V DC rated input, stable operation ensures reliable industrial control performance
Current Consumption	Max 300 mA, optimized low-power design for PLC integration efficiency
Digital Inputs	4 inputs plus 1 message input, supports reference and control signal processing
Digital Outputs	4 outputs, enables motion control signals such as start, stop, and direction control
Operating Temperature	0°C to 55°C, suitable for standard industrial automation environments
Dimensions	80 mm width, 125 mm height, 118 mm depth, compact rack-mounted PLC design
Weight	Approx. 500 g, lightweight construction for easy cabinet installation
Drive Interface	Differential stepper motor interface, supports up to 35 m shielded cable length
Protection Class	IP20, designed for controlled industrial cabinet installation environments

Description

The Siemens 6ES7353-1AH01-0AE0 is an FM 353 function module designed for precise positioning control of stepper motor systems within the SIMATIC S7-300 automation platform. It enables reliable motion control performance for industrial machinery requiring accurate axis movement and coordinated positioning tasks.

The module integrates seamlessly into S7-300 PLC architectures, supporting STEP7 V3.1 configuration for efficient setup and commissioning. It provides multiple digital inputs and outputs for motion commands such as start/stop positioning, reference cam evaluation, and external block switching, ensuring flexible process control in automated environments.

Engineered for compact installation and stable operation, the 6ES7353-1AH01-0AE0 delivers robust signal handling, dependable drive interfacing, and consistent positioning accuracy, making it suitable for demanding production and motion control applications in modern industrial automation systems.

Applications

Power plants: Used for generator auxiliary positioning systems, turbine control support, and relay-based automation sequencing.
Substations: Enables switchgear positioning control, busbar coordination, and electrical automation signal handling.
Chemical plants: Supports process automation, dosing systems, and intrinsically safe motion control integration.
Steel mills: Provides stable positioning control in high-temperature and electromagnetic interference environments.
Machinery manufacturing: Applied in automated production lines, robotic positioning units, and packaging machine control systems.

Control & Communication

The 6ES7353-1AH01-0AE0 FM 353 module integrates tightly with the Siemens SIMATIC S7-300 system, enabling efficient stepper motor positioning control in industrial automation environments.
It processes multiple digital inputs to handle key motion commands such as start, stop, forward movement, reverse operation, and reference cam detection for precise axis control.
The module provides four digital outputs that support motion status signals, including positioning complete, travel direction indication, and external function switching.
Differential drive interface ensures stable pulse transmission between PLC and stepper motor drive, maintaining accurate signal integrity over distances up to 35 meters.
Supports coordinated motion sequencing, allowing external sensors and control logic to be directly integrated into positioning workflows for improved system synchronization.

Environment and Certification

The module is rated IP20 protection class, designed specifically for installation inside enclosed industrial control cabinets.
Suitable for clean, protected environments where dust ingress protection is provided by the system enclosure rather than the module itself.
Operates reliably within an ambient temperature range of 0°C to 55°C, ensuring stable performance in standard factory automation conditions.
Built to withstand typical industrial electrical noise, supporting stable operation in PLC-based control systems with multiple signal lines.
Designed in compliance with industrial automation safety and EMC standards, ensuring compatibility with modern control system requirements.

FAQ

Q1: What is the 6ES7353-1AH01-0AE0 used for?
A1: It is used for stepper motor positioning control in SIMATIC S7-300 automation systems.

Q2: Does the module support digital I/O control?
A2: Yes, it includes 4 digital inputs and 4 digital outputs for motion control functions.

Q3: What software is required for configuration?
A3: It requires STEP7 V3.1 with the appropriate configuration package for setup.

Q4: What is the operating temperature range?
A4: The module operates reliably between 0°C and 55°C in industrial environments.

Q5: Can it be used in compact control cabinets?
A5: Yes, its 80 mm width design makes it suitable for space-saving PLC installations.
