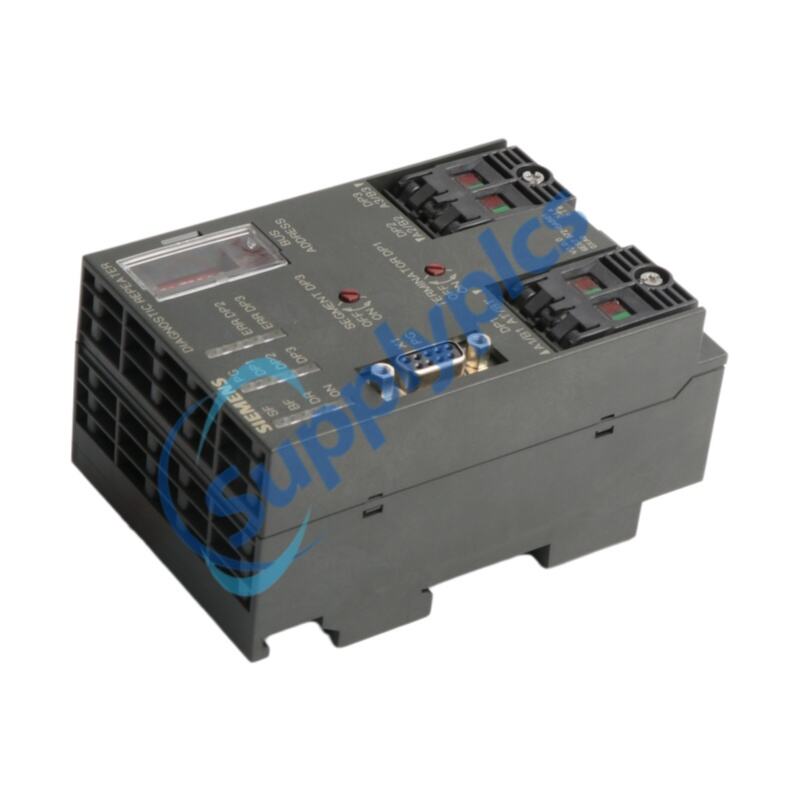

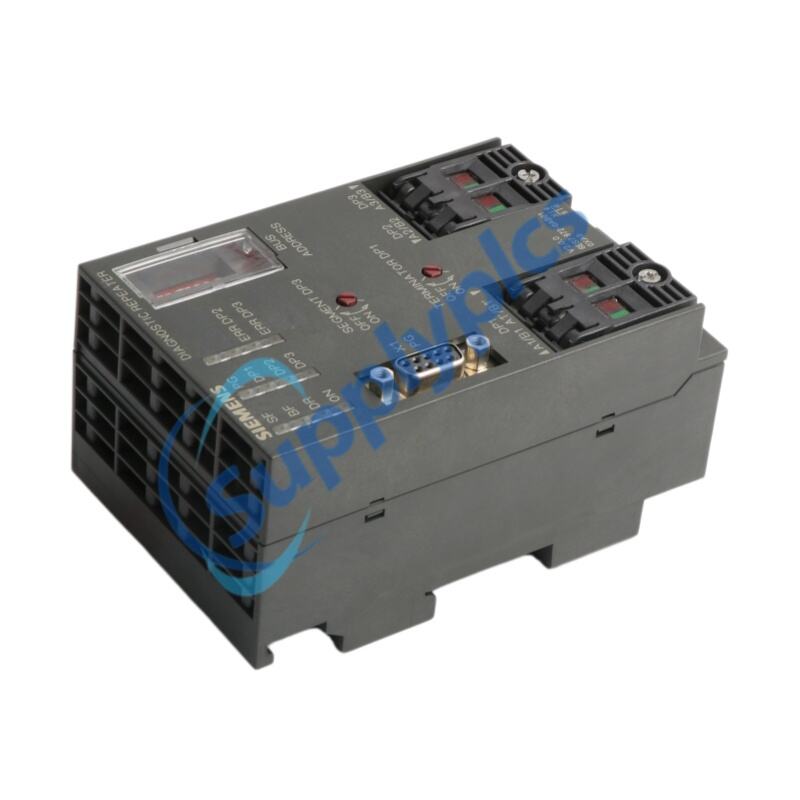

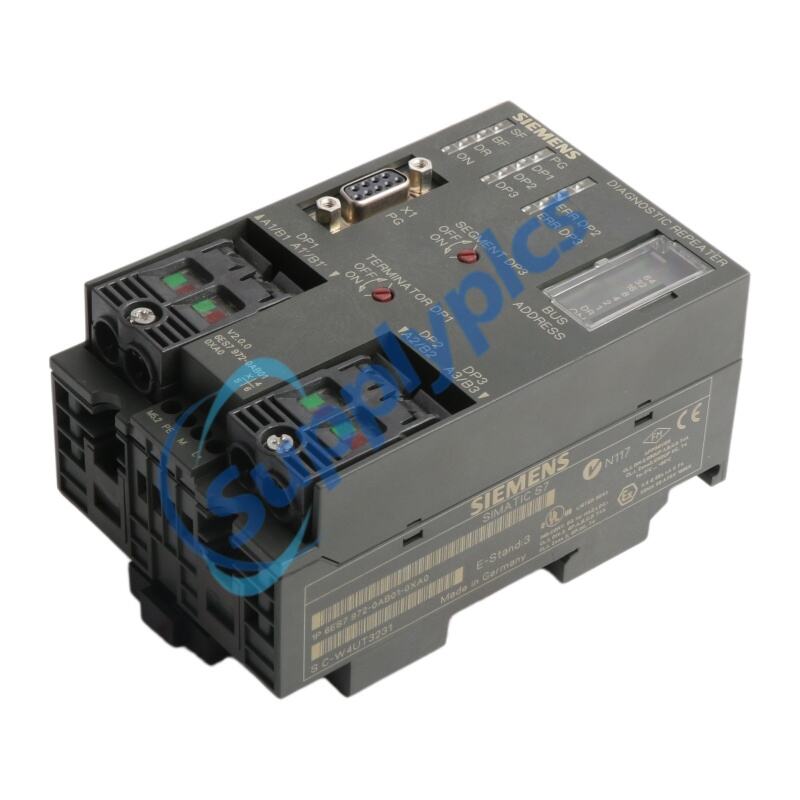

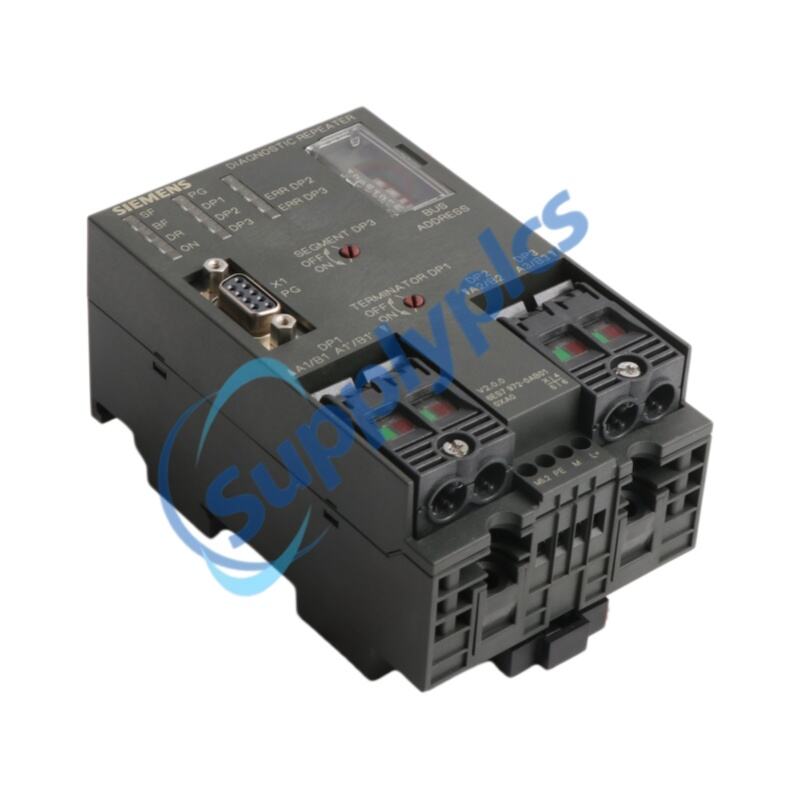

Product Name:Diagnostic repeaters for PROFIBUS DP
Brand Name:Siemens
Model Number: 6ES7972-0AB01-0XA0
Country of Origin:Germany
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
Siemens |
Model Number: |
6ES7972-0AB01-0XA0 |
Country of Origin: |
Germany |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
| Item | Details |
|---|---|
| Product Model | 6ES7972-0AB01-0XA0 |
| Device Type | PROFIBUS DP connector |
| Protocol | PROFIBUS DP |
| Transmission Rate | 9.6 kbit/s – 12 Mbit/s |
| Max Speed | 12 Mbit/s |
| Supply Voltage | 24 V DC |
| Voltage Range | 20.4 – 28.8 V DC |
| Power Loss | ~4 W |
| Protection Class | IP20 |
| Connection Type | FastConnect IDC system |
| Cable Re-termination Cycles | Up to 10 |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Humidity | Max 95% at 25°C |
| Width | 80 mm |
| Height | 125 mm |
| Depth | 67.5 mm |
| Weight | ~300 g |
The 6ES7972-0AB01-0XA0 is a SIMATIC PROFIBUS DP communication connector designed for reliable and high-speed industrial fieldbus networking. It supports transmission rates up to 12 Mbit/s, ensuring stable and efficient data exchange in automation systems.
The 6ES7972-0AB01-0XA0 operates with a 24 V DC supply (20.4–28.8 V range) and delivers robust performance under industrial conditions with low power loss of approximately 4 W. It is engineered for secure PROFIBUS cable connection using FastConnect insulation displacement technology, allowing multiple re-termination cycles for flexible installation.
With IP20 protection, compact design, and wide operating temperature range, the 6ES7972-0AB01-0XA0 ensures dependable communication performance in distributed control systems, supporting stable integration of Siemens automation networks.
Q1: What is the main function of 6ES7972-0AB01-0XA0?
A1: It is used as a PROFIBUS DP communication connector for industrial networks.
Q2: What is the maximum transmission speed?
A2: It supports up to 12 Mbit/s data transmission.
Q3: Does it support repeated wiring?
A3: Yes, it supports up to 10 FastConnect re-termination cycles.
Q4: What voltage does it require?
A4: It operates on 24 V DC within 20.4–28.8 V range.
Q5: What environments is it suitable for?
A5: It is suitable for industrial automation and harsh fieldbus environments.
|
