Product Name:Logic Module
Brand Name: SIEMENS
Model Number:6ED1052-1MD00-0BA6
Country of Origin:GERMANY
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
SIEMENS |
Model Number: |
6ED1052-1MD00-0BA6 |
Country of Origin: |
GERMANY |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Manufacturer |
Siemens |
|
Product Type |
LOGO! 12/24RC Logic Module (Basic Unit) |
|
Order Number |
6ED1052-1MD00-0BA6 |
|
Product Family |
LOGO! 0BA6 series |
|
Product Lifecycle Status |
Discontinued (no direct replacement; contact distributor) |
|
Display |
Yes, with backlight, 4 lines × 12 characters |
|
Mounting |
35 mm DIN rail, 4 spacing units wide |
|
Supply Voltage (DC) |
12 V DC / 24 V DC |
|
Permissible Range (DC) |
10.8 V … 28.8 V DC |
|
Digital Inputs |
8 |
|
Digital Inputs Configurable as Analog (0–10 V) |
4 |
|
Digital Outputs |
4, relay type |
|
Output Current (resistive load) |
max. 10 A per relay |
|
Output Current (inductive load) |
max. 3 A per relay |
|
Output Switching Voltage |
max. 250 V AC / 30 V DC |
|
Short-Circuit Protection |
No; external fusing necessary |
|
Memory Capacity |
200 function blocks |
|
Real-Time Clock |
Yes |
|
Time Switching Clocks |
8 |
|
RTC Power Reserve |
80 h |
|
Programming Interface |
RS-232 (PC cable) |
|
Expandability |
Yes, with digital (DM8/DM16), analog (AM2), and communication modules (CM) up to 24 DI, 20 DO, 8 AI, 8 AO |
|
Protection Rating |
IP20 |
|
Standards & Certifications |
CE, cULus, FM, CSA, Marine, VDE 0631, IEC 61131 |
|
Radio Interference Suppression |
EN 55011 Limit Class B (residential / light commercial) |
|
Operating Temperature |
0 °C … +55 °C (no condensation) |
|
Storage / Transport Temperature |
–40 °C … +70 °C |
|
Dimensions (W × H × D) |
72 × 90 × 55 mm |
|
Weight |
approx. 0.19 … 0.24 kg |
|
Country of Origin |
DE (Germany) |
|
RoHS Compliant |
Yes |
|
Manufacturer |
Siemens |
|
Product Type |
LOGO! 12/24RC Logic Module (Basic Unit) |
|
Order Number |
6ED1052-1MD00-0BA6 |
|
Product Family |
LOGO! 0BA6 series |
|
Product Lifecycle Status |
Discontinued (no direct replacement; contact distributor) |
|
Display |
Yes, with backlight, 4 lines × 12 characters |
|
Mounting |
35 mm DIN rail, 4 spacing units wide |
|
Supply Voltage (DC) |
12 V DC / 24 V DC |
|
Permissible Range (DC) |
10.8 V … 28.8 V DC |
|
Digital Inputs |
8 |
|
Digital Inputs Configurable as Analog (0–10 V) |
4 |

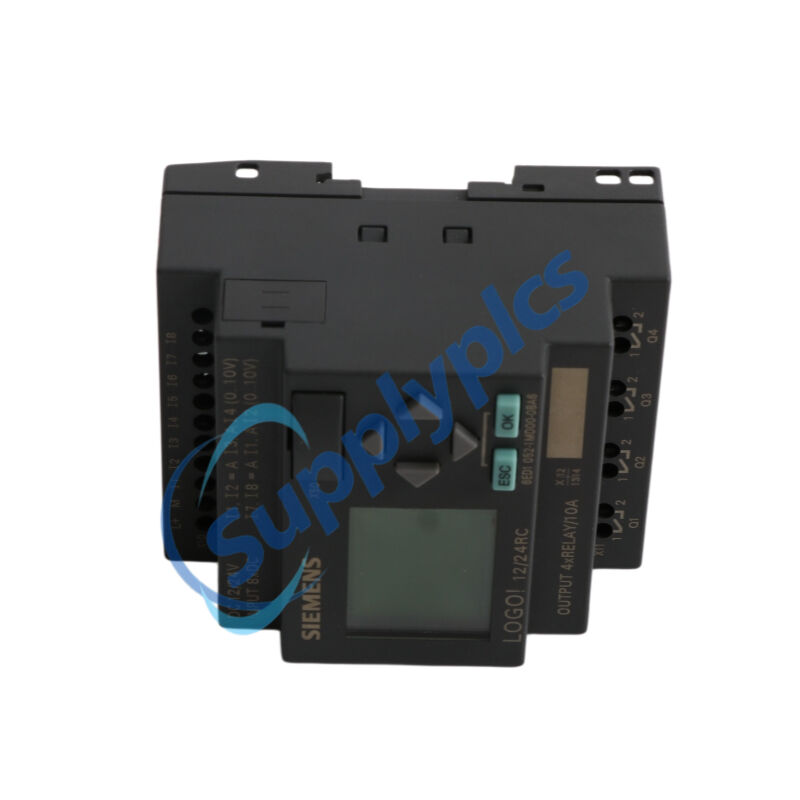

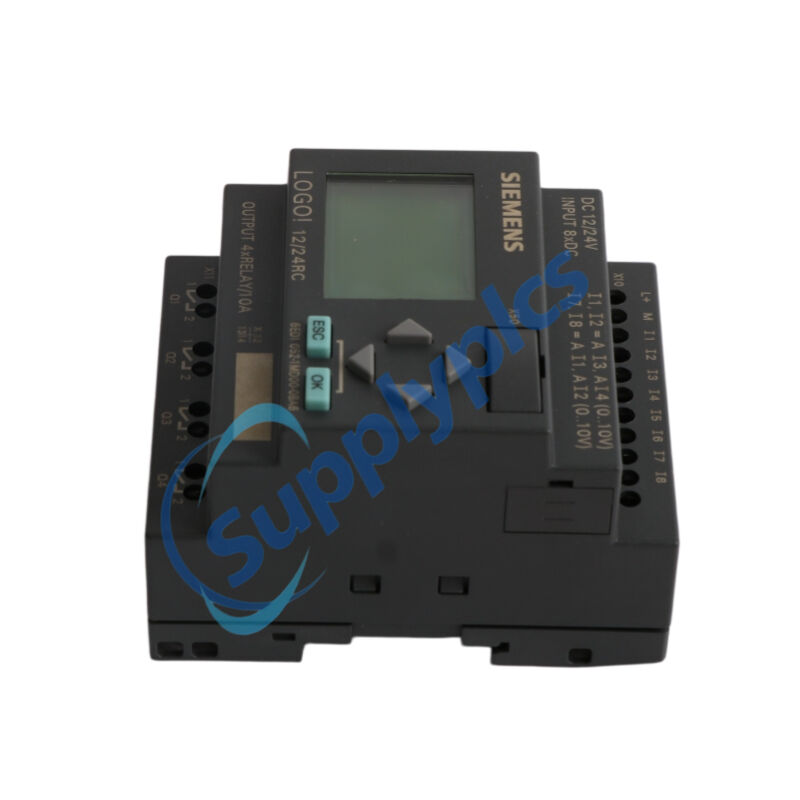

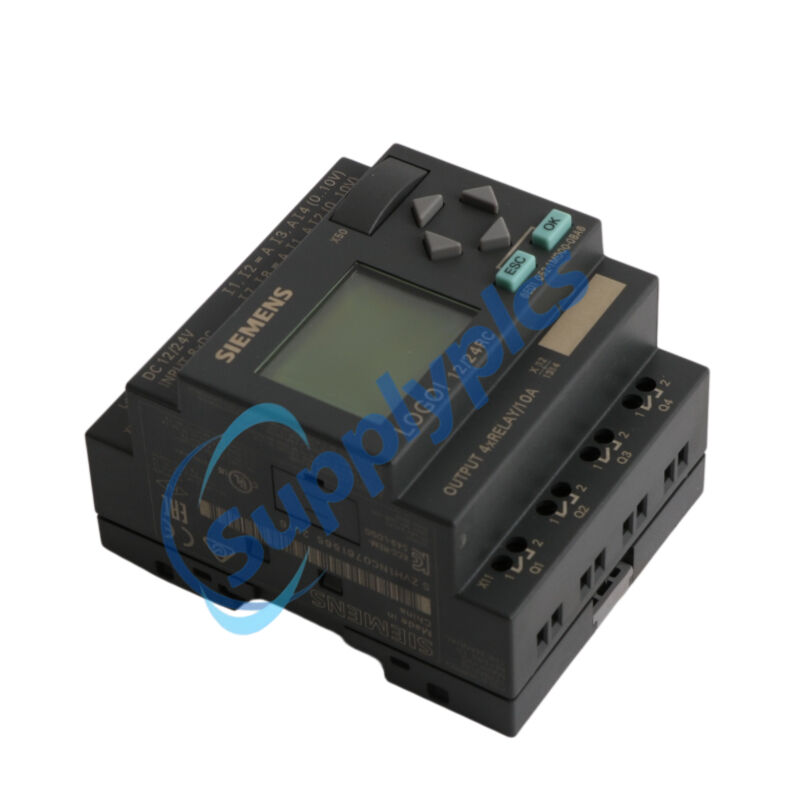

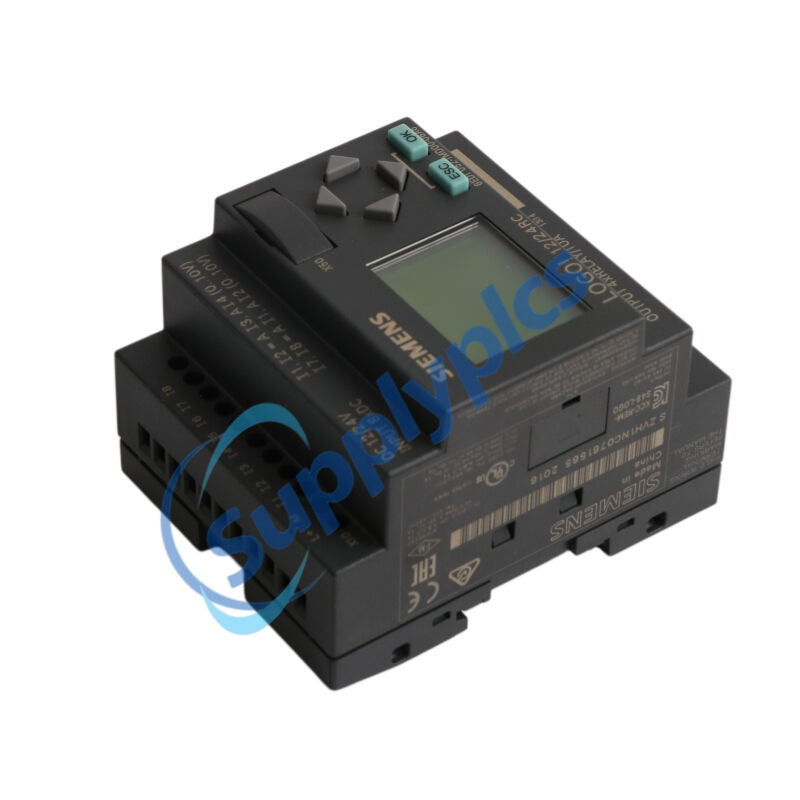

The Siemens 6ED1052-1MD00-0BA6 is a compact LOGO! 12/24RC logic module designed for small‑scale automation tasks. With a built‑in backlit display, the 6ED1052-1MD00-0BA6 operates on 12/24 V DC and provides eight digital inputs (four configurable as 0–10 V analog inputs) and four relay outputs rated up to 10 A. Memory supports 200 function blocks, and the Siemens 6ED1052-1MD00-0BA6 is modularly expandable, making it a versatile substitute for traditional relays, timers, and counters in diverse control applications.
Building automation: lighting control (stairway, corridor, outdoor, shop window), sun blinds, shutters, HVAC
Gate and door control: automatic doors, factory gates, garage automation
Industrial automation: small machine control, conveyor belt systems, packaging equipment
Pump systems: service water pumps, rainwater harvesting, irrigation control
Elevator safety: speed sensor comparison and slip detection
General automation: replacement of relay‑based and timer‑based control panels
200‑block memory for medium‑complexity automation programs
8 digital inputs, 4 of which are configurable as 0–10 V analog inputs
4 relay outputs with 10 A switching capacity (resistive load) and 3 A (inductive load)
Integrated LCD backlit display for local programming and monitoring
Built‑in real‑time clock with 8 time‑switching clocks and 80‑hour power reserve
Modular expandable with digital, analog, and communication modules (DM8/DM16, AM2, CM)
IP20 protection for control cabinet installation
EN 55011 Limit Class B certification for residential / light commercial environments
Password‑protected circuit programs and program copy protection
Timer functions: on‑delay, off‑delay, retentive on‑delay, on/off‑delay, weekly/yearly timer, pulse generator
Counter functions: up/down counter, hours counter, threshold trigger
Analog functions: comparator, threshold trigger, amplifier, differential trigger, watchdog
Basic logic: AND, OR, XOR, NOT, NAND, NOR, edge evaluation
Special functions: latching relay, pulse relay, shift register, softkey (softkey), message text display, PI controller, ramp function, analog multiplexer, PWM function
Programming: PC‑based via LOGO! Soft Comfort V6 or higher (FBD / LAD, drag‑and‑drop, offline simulation) or pre‑programmed memory module
Data retention: built‑in EEPROM for non‑volatile program and parameter storage
64‑bit memory flags (including restart bit memory) for flexible data handling
Q1: What is the Siemens 6ED1052-1MD00-0BA6 used for?
A1: It is a compact logic module for small automation tasks such as lighting control, gate automation, pump sequencing, and machine control.
Q2: Is the 6ED1052-1MD00-0BA6 still available?
A2: This product has been discontinued without direct replacement. Contact Siemens or a certified distributor for upgrade options.
Q3: Does the Siemens 6ED1052-1MD00-0BA6 have a real‑time clock?
A3: Yes. The 12/24RC version features an integrated real‑time clock with 8 time‑switching clocks and an 80‑hour power reserve.
Q4: Can the Siemens 6ED1052-1MD00-0BA6 be expanded?
A4: Yes, it is modularly expandable via digital (DM8/DM16), analog (AM2), and communication (CM) modules, supporting up to 24 DI, 20 DO, 8 AI, and 8 AO.
Q5: What software is required to program the 6ED1052-1MD00-0BA6?
A5: LOGO! Soft Comfort V6 or higher. It supports FBD and LAD programming, offline simulation, and online testing.
