Product Name:PROCESSOR MODULE
Brand Name: SIEMENS
Model Number:6DD1606-1AA0
Country of Origin:GERMANY
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
SIEMENS |
Model Number: |
6DD1606-1AA0 |
Country of Origin: |
GERMANY |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Parameter |
Specification |
|
Model Number |
6DD1606-1AA0 |
|
Product Type |
PT2 Processor Module / SIMADYN D Processor Module |
|
System Compatibility |
Siemens SIMADYN D distributed control system |
|
Components |
Processor module (MP) with onboard I/O and firmware |
|
Technology |
PT2 Technology |
|
Architecture |
32-bit RISC microprocessor |
|
Processor Speed |
32 MHz |
|
Memory |
1 MB Flash + 2 MB RAM + 32 KB EEPROM |
|
Digital Inputs |
8 (potential-separated, 24 V DC) |
|
Digital Outputs |
8 (potential-separated, 24 V DC, 0.5 A) |
|
Analog Inputs |
2 (±10 V, 11-bit + sign) |
|
Analog Outputs |
2 (±10 V, 11-bit + sign) |
|
Communication Protocols |
PROFIBUS, CAN-bus, RS-485, Ethernet |
|
Memory Card Expansion |
X50 slot for MS4x modules (4x512 KB EPROM or 1 MB Flash EPROM) |
|

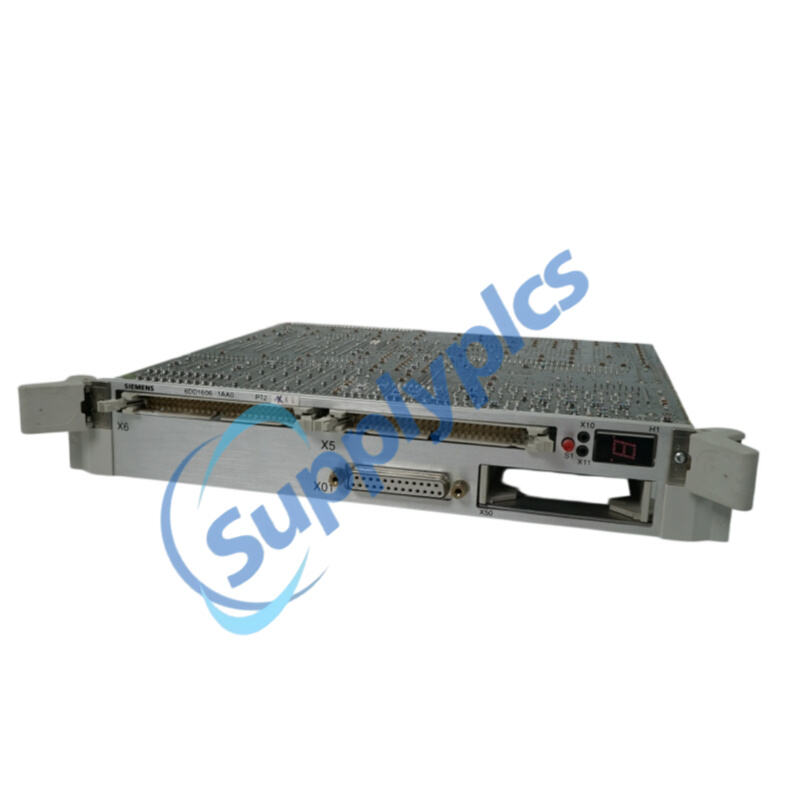

Front Panel Elements |
3 status LEDs |
|
Nominal Supply Voltage |
24 V DC (SELV, 20.4 V to 28.8 V) |
|
Current Consumption (typ.) |
200 mA from 24 V bus, 1 A from backplane |
|
Power Loss |
approx. 2.1 W (no I/O modules), typ. 4.8 W (with I/O load) |
|
Operating Temp. Range |
0°C to +55°C |
|
Storage Temp. Range |
–40°C to +70°C |
|
Relative Humidity |
5% to 95% (non-condensing) |
|
Physical |
233 mm × 55 mm × 284 mm |
|
Net Weight |
Approx. 0.61 kg per packaging data |
|
Packaging Dimensions (L×W×H) |
27.8 × 27.9 × 4.5 cm |
|
Class |
Class D: Made-to-order, custom design, engineering required, not reusable as returns |
|
RoHS Compliance |
Not RoHS-compliant |
|
Commodity Code |
85049099 |
|
Country of Origin |
Germany |
|
Lifecycle Status |
PM500: Discontinued product, no replacement available |
|
Replacement |
None |
|
Product Name |
6DD1606-1AA0, SIMADYN D PROCESSOR MODULE PT2 |
|
GTIN (UPC) |
662643264807 |
|
Catalog ID |
ST9.DA99T |
|
Associated software |
D7-SYS, STEP-5 |
|
Protection class |
IP00 |

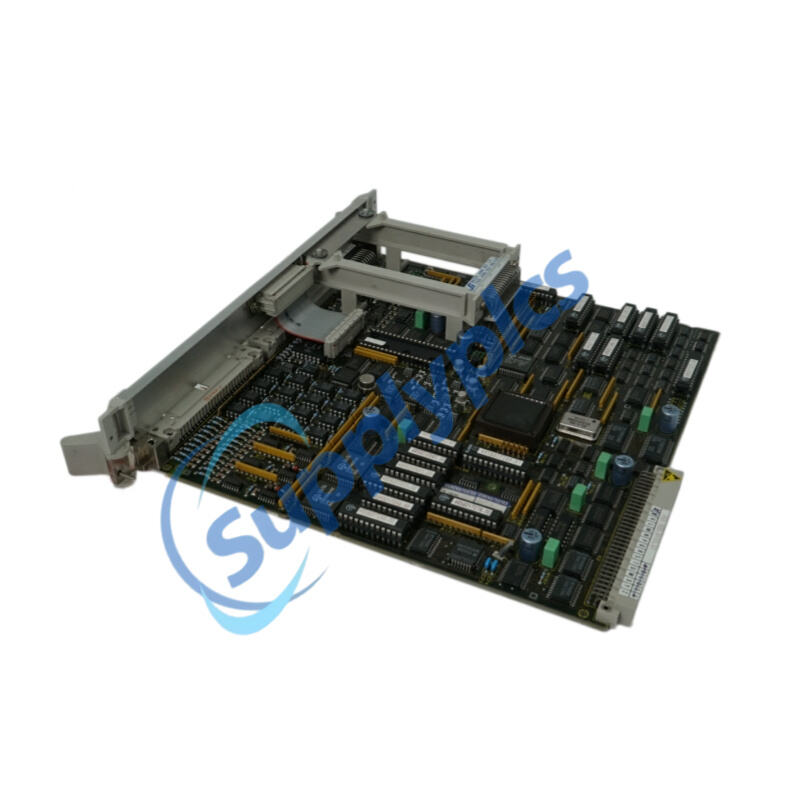

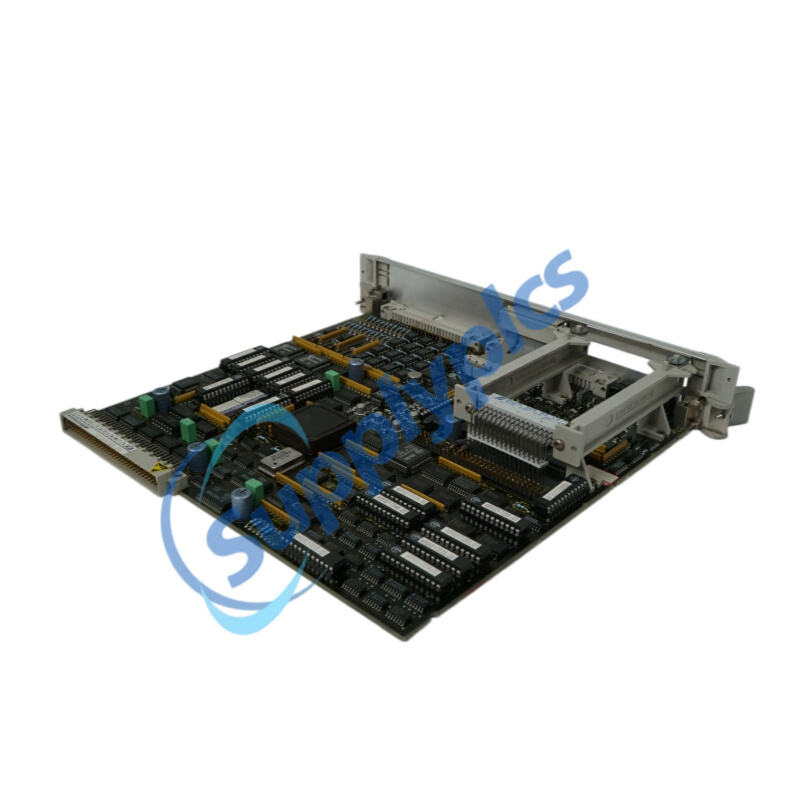

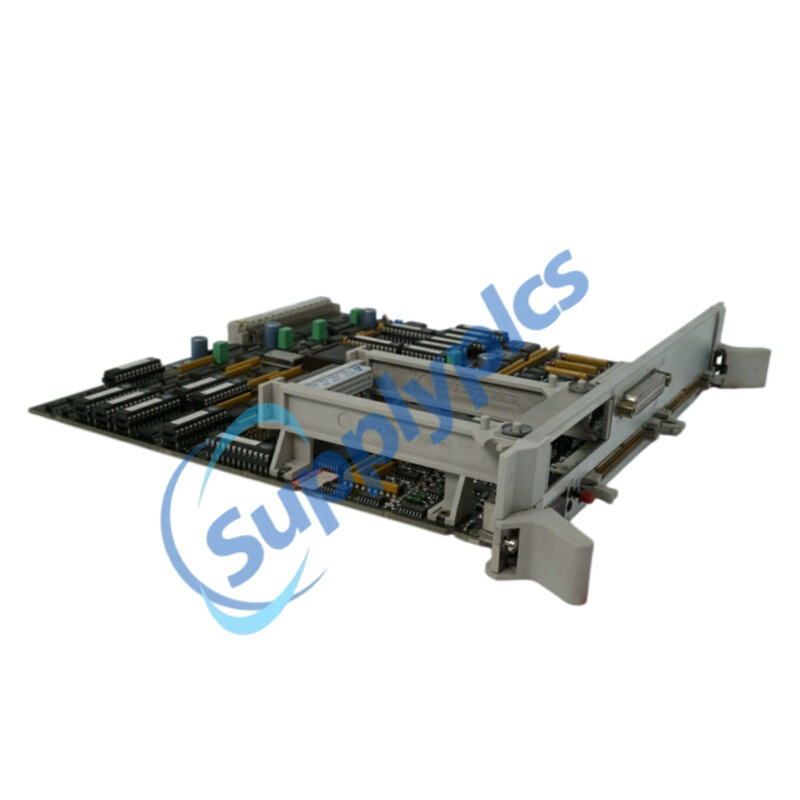

The Siemens 6DD1606-1AA0 is a PT2 processor module designed for the SIMADYN D high‑performance distributed control system. This 6DD1606-1AA0 module serves as the independent central processing unit for autonomous control tasks, featuring a 32‑bit RISC microprocessor running at 32 MHz. On‑board memory includes 1 MB Flash, 2 MB RAM and 32 KB EEPROM, with integrated digital and analog I/O for field signal handling. As a complete processing subsystem, the 6DD1606-1AA0 executes closed‑loop control algorithms without an external CPU, configured using D7‑SYS and housed in a single slot.
Drive and motion control systems in steel mills, printing presses, paper and textile machines
Power generation turbine control and excitation management
High‑performance process automation in chemical and pharmaceutical plants
Railway traction control and infrastructure automation
Oil and gas extraction and pipeline control
Cement, minerals and metals processing
Automotive assembly lines and packaging machinery
Legacy system retention and retrofit
Dedicated PT2 technology with independent execution capabilities
32‑bit RISC processor core running at 32 MHz
Memory‑rich design with 1 MB Flash, 2 MB RAM and 32 KB EEPROM
Built‑in digital and analog I/O for direct field device connection
X50 memory card slot for MS4x plug‑in expansion (EPROM/Flash EPROM)
Multi‑protocol communication support (PROFIBUS, CAN‑bus, RS‑485, Ethernet)
Industrial operating range: 0°C to +55°C, 5% to 95% non‑condensing humidity
Compact single‑slot‑occupying form factor
Status LEDs for diagnostic monitoring
Executes closed‑loop and open‑loop control tasks independently for motion, drive and process applications.
Processes digital field signals via 8 potential‑separated 24 V DC inputs and 8 outputs.
Converts and handles analog signals through 2 analog input and 2 analog output channels (±10 V).
Communicates over fieldbus networks, including PROFIBUS DP, CAN‑bus and Ethernet, to exchange data with distributed I/O devices and drives.
Expands onboard memory capacity via the X50 slot, which accepts MS4x memory cards.
Stores and retains control programs and runtime parameters in onboard Flash and EEPROM, maintaining configurations during power interruptions.
Q1: What is the Siemens 6DD1606-1AA0 used for?
The 6DD1606-1AA0 is a PT2 processor module for the SIMADYN D system, which can execute independent control tasks for drive, motion and process automation.
Q2: Does the 6DD1606-1AA0 have on‑board I/O?
Yes, the 6DD1606-1AA0 integrates 8 digital inputs, 8 digital outputs, 2 analog inputs and 2 analog outputs for direct field signal processing.
Q3: Is the 6DD1606-1AA0 still available from Siemens?
Siemens has discontinued the 6DD1606-1AA0 with PM500 lifecycle status. No direct replacement product is available.
Q4: What is the difference between 6DD1606-1AA0 and 6DD1606-2AC0?
The 6DD1606-1AA0 is a PT2 processor module with onboard I/O, whereas the 6DD1606-2AC0 is a PT20G module featuring a dedicated SITOR interface for thyristor converter control. The 6DD1606-1AA0 is more general‑purpose, while the 6DD1606-2AC0 is specialised for power electronics applications.
Q5: How do I program the 6DD1606-1AA0 module?
The 6DD1606-1AA0 is configured using Siemens D7‑SYS engineering software, with user programs stored to the onboard Flash or to MS4x memory cards inserted into the X50 slot.
