Product Name: System Cable
Brand Name: TRICONEX
Model Number: 9668-110
Place of Origin: USA
Warranty: 12 Months
Whatsapp：+86 18020776782
Email：[email protected]
Description

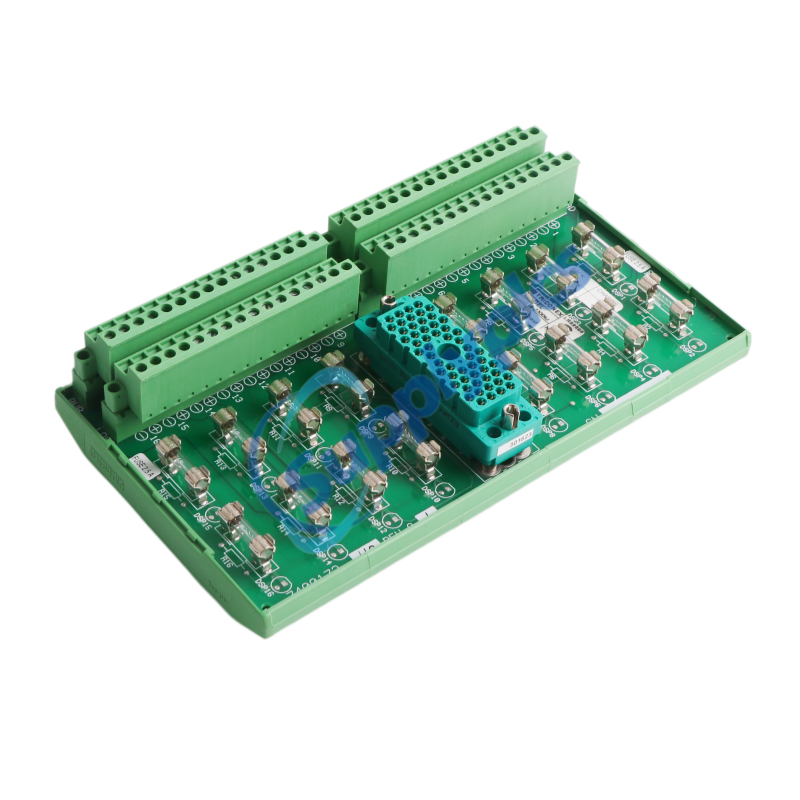

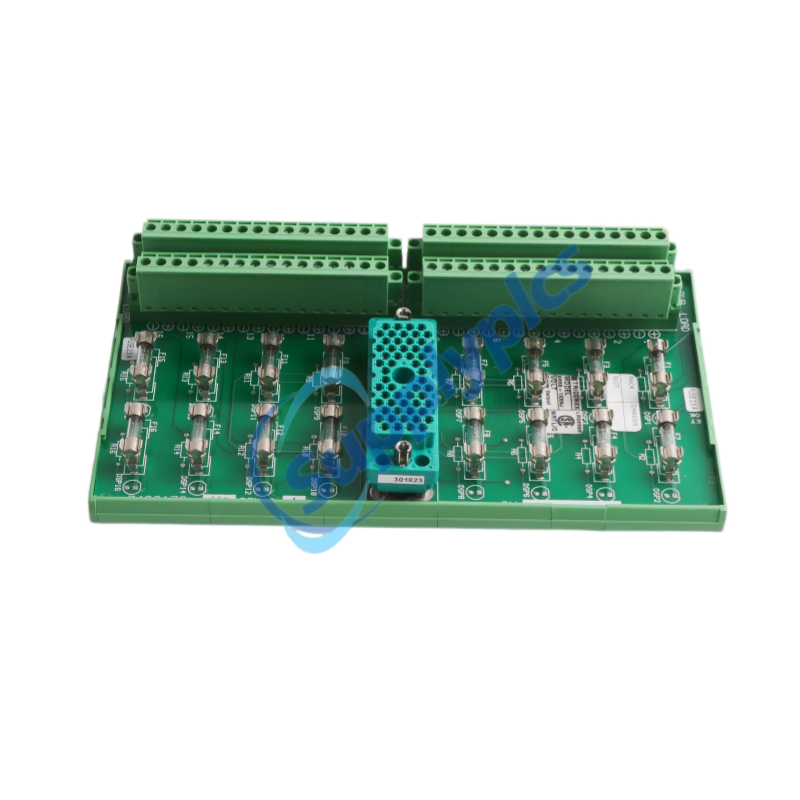

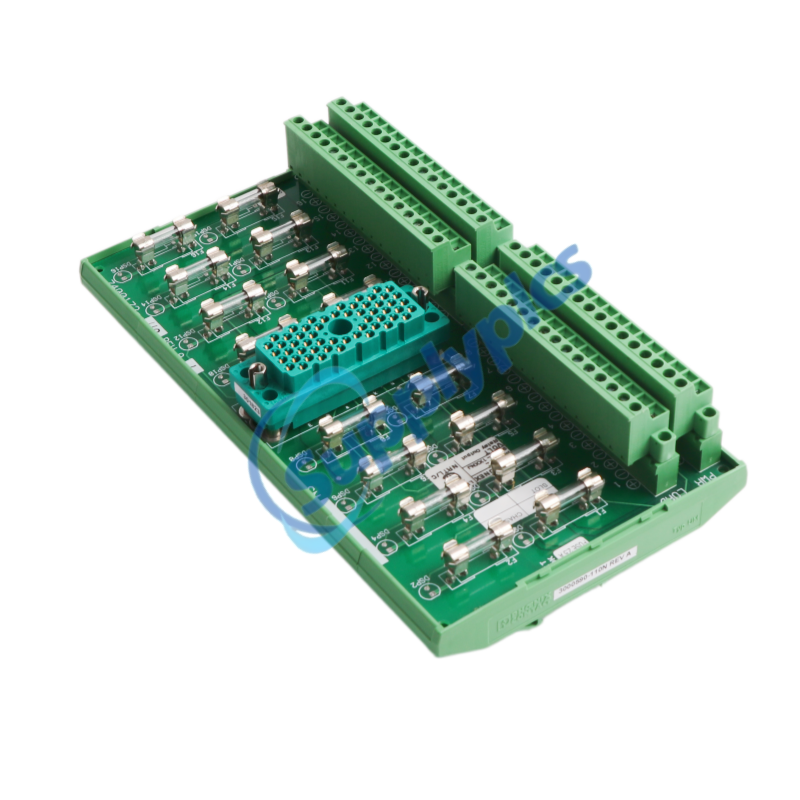

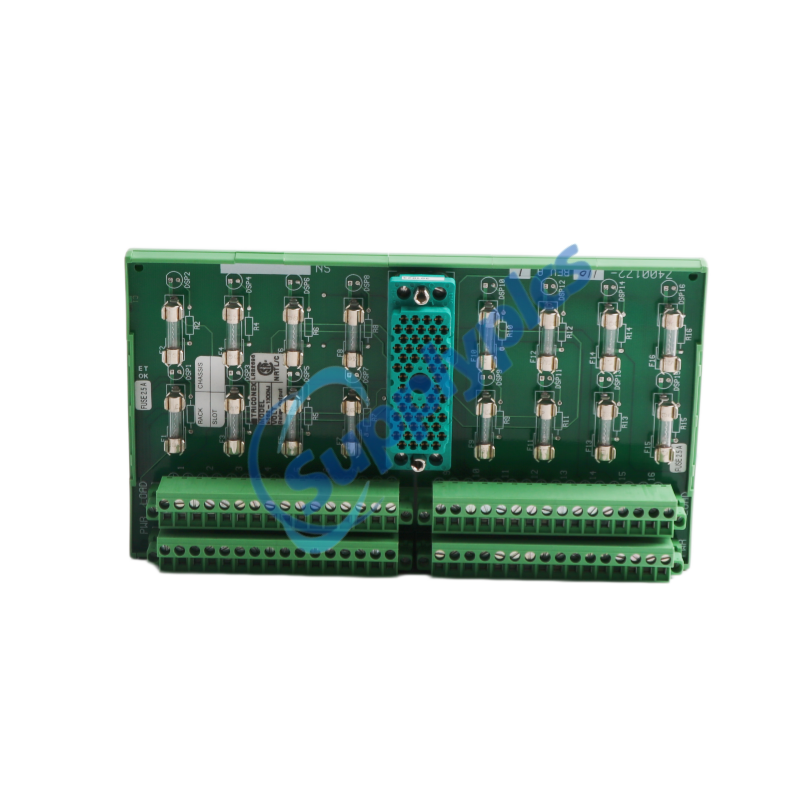

The TRICONEX 9668-110 is a 16-point, non-commoned relay output termination panel designed for use with Triconex 32-point relay output modules (e.g., 3636R or 3636T). Because the module provides 32 points, two TRICONEX 9668-110 panels are required for each relay output module to manage all field connections. Each panel is equipped with integrated fusing and dedicated terminals for LOAD and PWR connections, ensuring robust signal distribution and circuit protection in safety-critical applications.
|
Minimum Order Quantity |
1 Piece |
|
Price |
Contact for Winnie |
|
Packaging Details |
Original new Factory Sealed |
|
Delivery Time |
3–7 Days |
|
Payment Terms |
T/T |
|
Shipping Method |
DHL / FedEx / UPS / TNT |
|
Supply Ability |
In stock |
|
Sales: |
Email: |
Whatsapp: |
|
JIM |
The TRICONEX 9668-110 serves as a field termination interface for Triconex relay output modules. It provides physical connectivity for field wiring, featuring 16 non-commoned contact points per panel to facilitate galvanic isolation and flexible circuit configuration for high-reliability output signals.
|
Manufacturer |
TRICONEX |
|
Product Type |
Non-Commoned Relay Output Termination Panel |
|
Product Line |
EcoStruxure Triconex Safety Systems |
|
Part Number |
9668-110 |
|
Terminal |
16 LOAD+ and LOAD– terminals 16 PWR+ and PWR– terminals |
|
Circuit Protection |
16 integrated fuses |
|
Estimated shipping dimensions |
19.7x11x5.5cm |
|
Weight |
0.52kg |
|
Place of shipment |
Xiamen, China |
Enhanced Loop Isolation: The non-commoned architecture prevents electrical interaction between distinct safety output channels.
Systematic Wiring Architecture: Tailored precisely for high-density 32-point Triconex safety output blocks, streamlining cabinet space.
Built-In Circuit Defense: Individual fusing per channel minimizes cascading failures and safeguards downstream infrastructure.
Panel Type & Function: Operates as a 16-point non-commoned relay output (DO ETP) termination panel designed to interface field signals with Triconex safety output modules.
Module Compatibility: Specifically engineered to support 32-point relay output modules (such as models 3636R and 3636T), necessitating deployment in pairs to accommodate all 32 channels.
Non-Commoned Circuit Architecture: Provides independent electrical isolation for each of the 16 output points, preventing common-mode interaction across safety loops.
Integrated Fuse Protection: Features built-in fuse protection per channel (16 integrated fuses) to safeguard individual output loops against overcurrent conditions.
System Integration: Designed for integration within Tricon v9 through v11 safety instrumented system architectures.
Field Wiring Identification: Includes clear dual labeling layouts per panel to ensure precise and error-free field-wiring identification and maintenance.
Emergency Shutdown Systems (ESD): The TRICONEX 9668-110 is frequently deployed in ESD systems to manage the reliable disconnection of final control elements (such as valves, pumps, or motors). Its non-commoned architecture ensures that a fault in one output loop does not propagate to others, maintaining the integrity of the shutdown logic.
Fire and Gas (F&G) Systems: In F&G monitoring, the panel is used to interface with field devices like alarm sirens, beacons, or suppression system actuators. The individual channel fusing feature provides essential protection for these distributed field devices against electrical faults.
Critical Process Control (High Availability): In complex industrial processes requiring high uptime, the TRICONEX 9668-110 is utilized to route high-integrity relay outputs from Triconex 3636R/T modules to process equipment. It provides a structured, safe termination point that supports rapid diagnostics and easier loop maintenance during scheduled plant turnarounds.
Safety-Critical Interlocking: The module serves as a primary interface for interlocking safety relays, where strict electrical isolation between distinct safety zones is a design requirement. The non-commoned configuration ensures compliance with safety standards (e.g., IEC 61508) by preventing unwanted cross-coupling between separate interlock loops.
Industrial Environments with High Electrical Interference: Given its design for industrial cabinets, the TRICONEX 9668-110 is deployed in environments where robust termination is required to mitigate the effects of external electromagnetic interference (EMI) on sensitive safety-critical control signals.
Q: Why does the TRICONEX 9668-110 require two panels for one relay module?
A: Because the TRICONEX 9668-110 provides 16 points, and the associated relay output module (e.g., 3636R) supports 32 points, two panels are necessary to accommodate all 32 field connections.
Q: Is the TRICONEX 9668-110 suitable for commoned wiring applications?
A: No, the TRICONEX 9668-110 is specifically designed as a non-commoned panel to ensure independent loop isolation.
Q: Does the TRICONEX 9668-110 include built-in circuit protection?
A: Yes, each of the 16 channels on the TRICONEX 9668-110 is equipped with a fuse for individual channel protection.
