Home > Products > ABB > ABB Advant 800xA

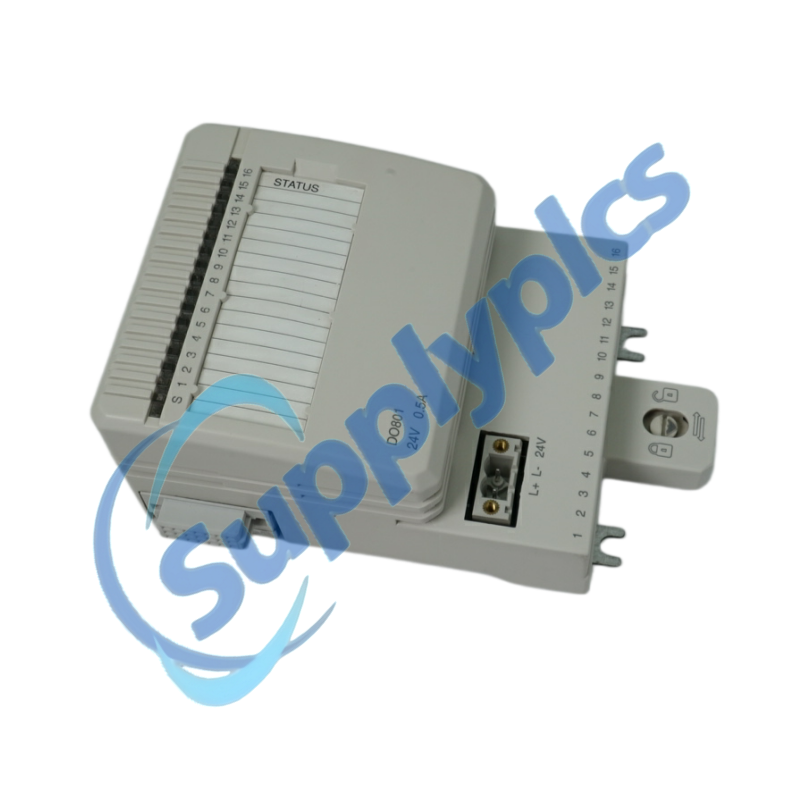

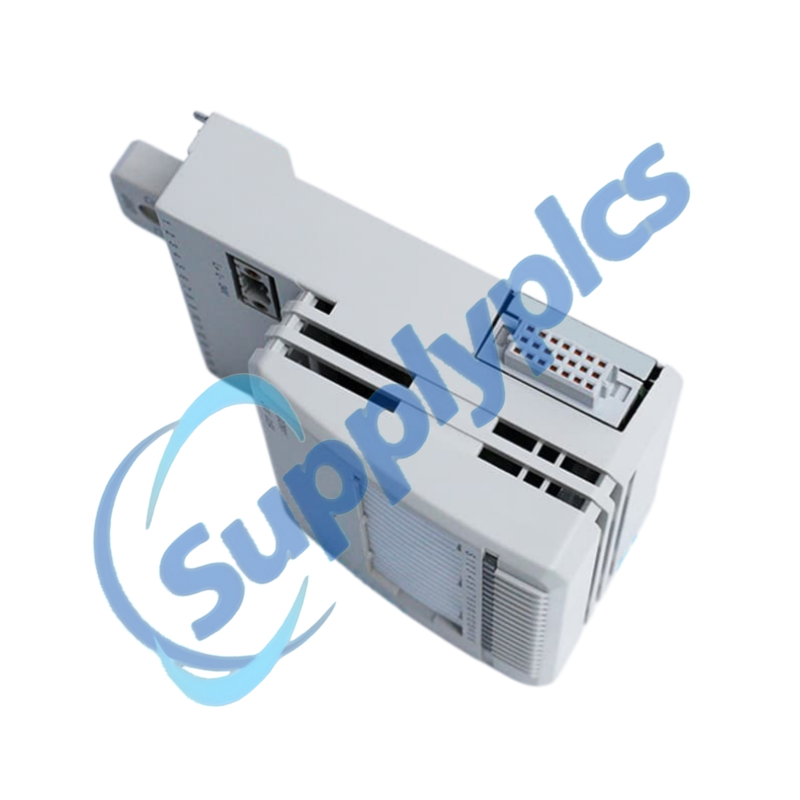

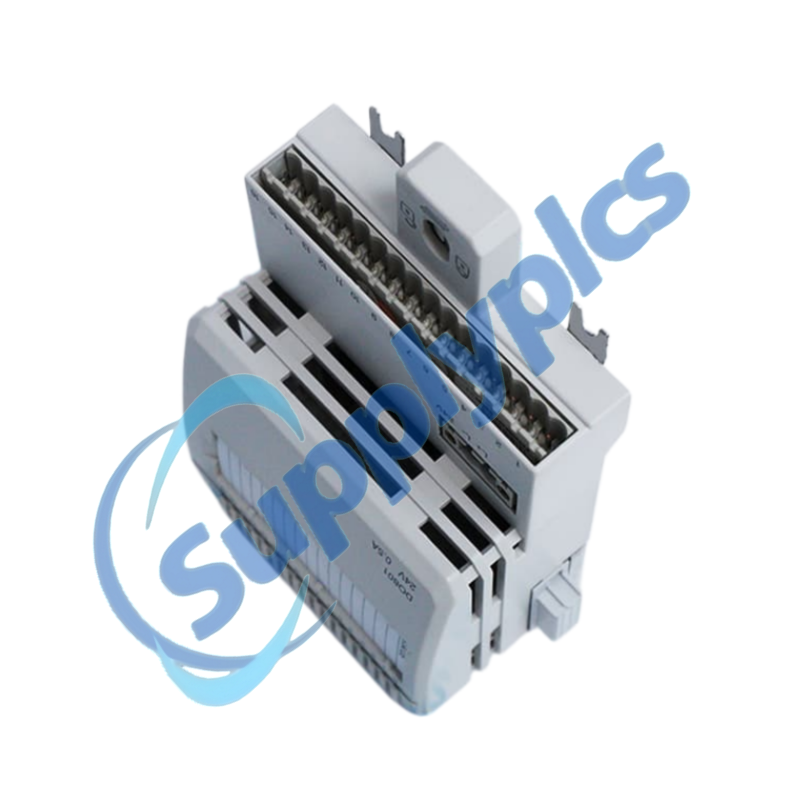

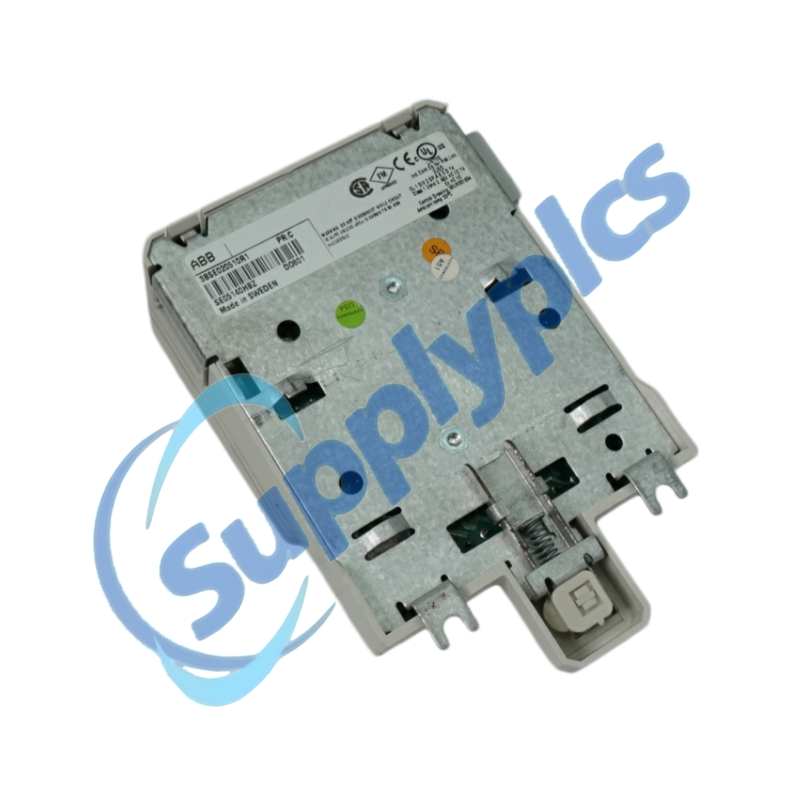

Product Name: Digital Output Module
Brand Name: ABB
Model Number: DO801 3BSE020510R1
Place of Origin: Sweden
Warranty: 12 Months
Whatsapp：+86 18020776782
Email：[email protected]
Commercial Terms
Minimum Order Quantity |
1 Piece |
Price |
Contact for Jim |
Packaging Details |
Original new Factory Sealed |
Delivery Time |
3–7 Days |
Payment Terms |
T/T |
Shipping Method |
DHL / FedEx / UPS / TNT |
Supply Ability |
In stock |
|
Sales |
|
|
|
Jim Pei |
| Product Name | ABB DO801 3BSE020510R1 Digital Output Module |
| Manufacturer | ABB |
| Product Type | Digital Output Module |
| Part Number | DO801 3BSE020510R1 |
| Estimated shipping dimensions | 9.3x13.6x5.1cm |
| Weight | 0.2kg |
| Place of shipment | Xiamen, China |
| Country of origin | SWEDEN |
| Signal specification | 24 V d.c. (12 - 32 V d.c.), 0.5 A |
| Number of channels | 16 |
| Signal type | Current sourcing, current limiting |
| Output load | < 0.4 Ω |
| Current limiting | Short circuit proof current limited output |
| Maximum field cable length | 600 meters (656 yards) |
| Rated insulation voltage | 50 V |
| Dielectric test voltage | 500 V a.c. |
| Power dissipation | Typ. 2.1 W |
| Current consumption +5 V Modulebus | 80 mA |
The ABB DO801-3BSE020510R1 is a 16-channel 24V DC digital output module designed for S800 I/O systems. It provides reliable current-sourcing outputs for industrial automation applications such as manufacturing lines, process control systems, and machine automation.
The module delivers 24V DC outputs (12–32V range) with up to 0.5A per channel and integrates comprehensive protection features, including short-circuit, over-voltage, and over-temperature protection. It also supports OSP (Output Set to Predetermined State) functionality to ensure safe output behavior during communication failures.
Q1: What is the main purpose of DO801-3BSE020510R1?
A: The DO801-3BSE020510R1 is used to control 16 digital output channels in S800 I/O systems, providing 24V DC signals to drive industrial field devices such as relays, solenoids, and indicators.
Q2: What type of output does DO801-3BSE020510R1 provide?
A: The DO801-3BSE020510R1 provides current-sourcing 24V DC outputs with a voltage range of 12–32V DC and up to 0.5A per channel.
Q3: What is the OSP function in DO801-3BSE020510R1?
A: In the DO801-3BSE020510R1, OSP (Output Set to Predetermined State) ensures all outputs automatically switch to a predefined safe state if communication with the controller is lost.
Q4: What protections are included in DO801-3BSE020510R1?
A: The DO801-3BSE020510R1 includes short-circuit protection, over-voltage protection, over-temperature protection, and EMC protection to ensure safe operation in industrial environments.
Q5: How many channels does DO801-3BSE020510R1 support?
A: The DO801-3BSE020510R1 supports 16 independent digital output channels within a single module.
Q6: What types of devices can be controlled by DO801-3BSE020510R1?
A: The DO801-3BSE020510R1 can control solenoids, relays, actuators, motor starters, and indicator lights in industrial automation systems.
|
