Product Name:ANALOG OUTPUT MODULE
Brand Name: SIEMENS
Model Number:6DD1600-0AH0
Country of Origin:GERMANY
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
SIEMENS |
Model Number: |
6DD1600-0AH0 |
Country of Origin: |
GERMANY |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |

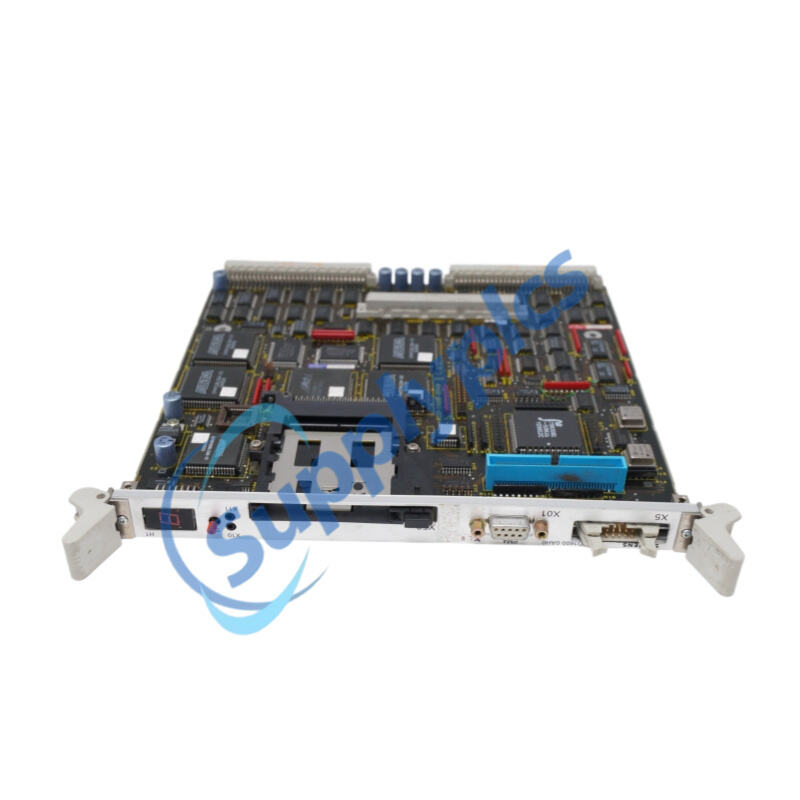

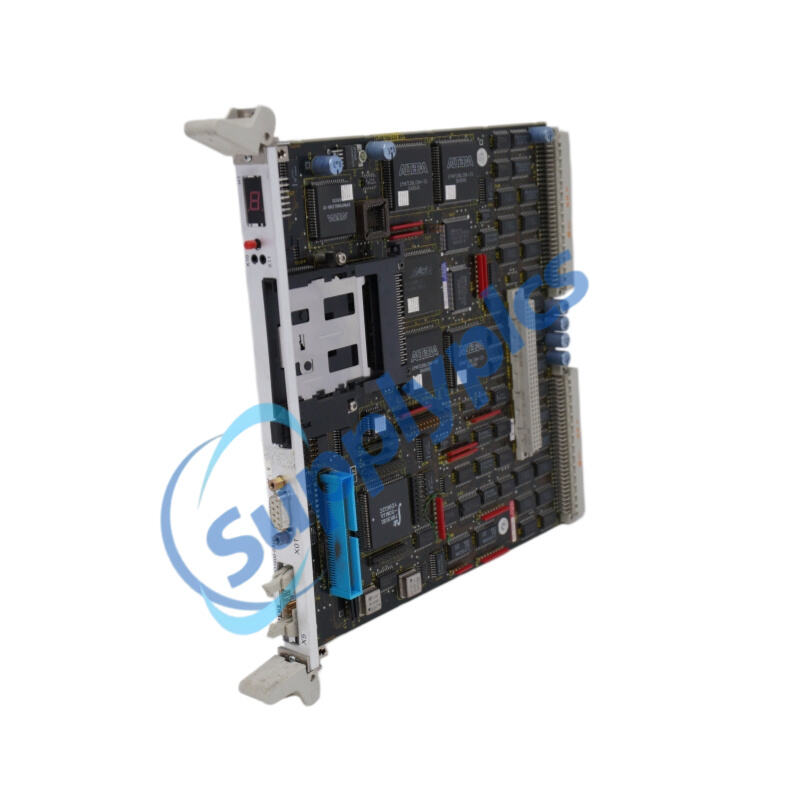

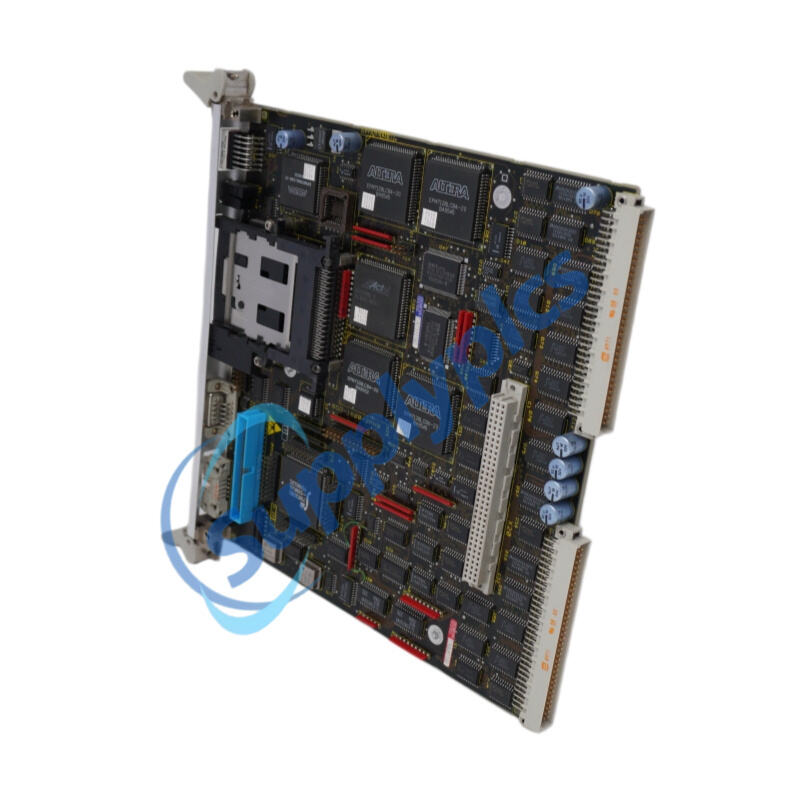

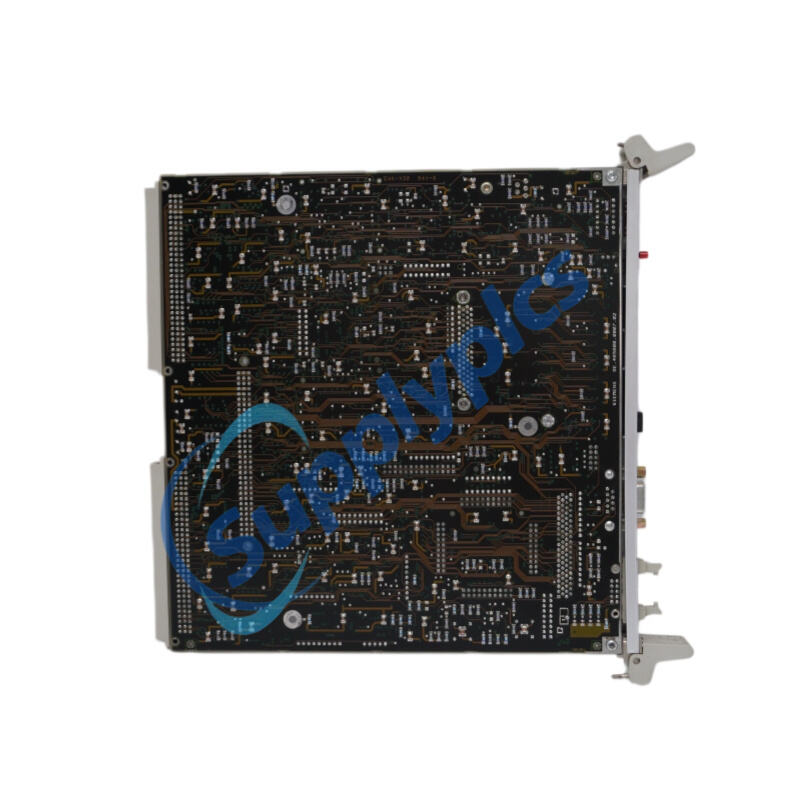

The Siemens 6DD1600-0AH0 is a PM4 processor module built for the SIMADYN D high‑performance automation platform. This 6DD1600-0AH0 module uses a 32‑bit processor architecture to serve as the central control unit for rack‑based automation systems. The 6DD1600-0AH0 supports both L‑bus and C‑bus communications and includes 4 binary inputs, 4 analog inputs, flexible parameterisation via RS‑232, and plug‑in MS5 memory card expandability for program storage. As a general‑purpose CPU, the 6DD1600-0AH0 handles open‑loop, closed‑loop and sequence control tasks across heavy industrial environments.
Steel and Metals Processing – Rolling mill control (CSP hot continuous rolling mill systems)
Power Generation – Generator excitation, steam/gas turbine governing and hydro governor control loops
Drive and Motion Control – AC/DC converter control, multi‑axis synchronisation for printing presses, winders
Process Automation – Chemical reactors, pharmaceutical batch processing, food and beverage lines
Oil and Gas – Compressor anti‑surge control systems
Factory Automation – Large assembly lines, packaging machinery, material handling
32‑bit processor architecture for high‑speed deterministic execution
Onboard 4 binary inputs (24 V DC) + 4 analog inputs integrated
L‑bus (local) + C‑bus (communication) dual‑bus independence
4 MB RAM + 4 MB Flash ROM generous onboard memory footprint
X50 memory card slot for MS5‑series plug‑in expansion (MS51/MS52)
RS‑232 (V.24/Dust1) serial interface for commissioning, diagnostics and firmware updates
7‑segment display for module status and H1 communication monitoring
Industrial‑grade reliability across a wide operating temperature range (–25 °C to +60 °C)
100% Original Quality, Brand New, Factory Sealed
Not RoHS‑compliant per used spare part application
End‑of‑Product Lifecycle (PM500) since October 1, 2017 – supported for legacy maintenance
Executes centralised control tasks as the primary CPU within a SIMADYN D subrack, handling closed‑loop, open‑loop and sequential control logic.
Exchanges data over the L‑bus (local bus) for high‑speed subrack internal communication and the C‑bus (communication bus) for distributed coordination with other racks.
Acquires field signals via 4 binary inputs (24 V DC) for status monitoring and 4 analog inputs for process variable feedback.
Stores and retains user programs using onboard 4 MB RAM and 4 MB Flash ROM, configurable via STEP‑7 (D7‑SYS) or STRUC‑L languages.
Expands program storage using MS5‑series plug‑in memory cards inserted into the X50 slot on the front panel.
Communicates for commissioning and diagnostics via the RS‑232 (V.24) serial interface using the Dust1 protocol.
Displays real‑time status through a front‑panel 7‑segment LED indicator for quick visual diagnostics and H1 communication monitoring.
Q1: What is the Siemens 6DD1600-0AH0 used for?
A1: The Siemens 6DD1600-0AH0 is a PM4 processor module for SIMADYN D systems, acting as the main CPU for open‑loop, closed‑loop and sequence control in demanding industrial automation applications.
Q2: What is the difference between the 6DD1600-0AH0 and the 6DD1600-0AK0?
A2: The 6DD1600-0AK0 is a PM6 RAPID CPU with 64‑bit architecture and 0.1 ms minimum cycle time for high‑end tasks, while the 6DD1600-0AH0 is a PM4 32‑bit processor designed for general‑purpose control applications.
Q3: Is the 6DD1600-0AH0 still available from Siemens?
A3: No. Siemens discontinued the 6DD1600-0AH0 with lifecycle status PM500 effective October 1, 2017. No direct replacement is offered, but tested spare parts remain available through specialised automation suppliers.
Q4: How many binary and analog inputs does the 6DD1600-0AH0 have onboard?
A4: The 6DD1600-0AH0 includes 4 binary inputs (24 V DC) and 4 analog inputs directly on the module for direct field signal acquisition without additional I/O submodules.
Q5: Can the 6DD1600-0AH0 communicate over PROFIBUS?
A5: The 6DD1600-0AH0 itself has no native PROFIBUS interface, but it supports PROFIBUS communication via an external module such as the 6DD1640-0AC0 PROFIBUS‑DP interface module. The module has no built‑in connection interface to PROFIBUS, so dedicated external hardware is required.
