Product Name: 35mm Proximitor Sensor
Brand Name: Bently Nevada
Model Number: 76683-90
Place of Origin: United States
Warranty: 12 Months
Whatsapp：+86 18020776782
Email：[email protected]
Alternative Name
Bently Nevada 35 mm Extended Range Proximitor Sensor
76683-90 Differential Expansion Monitoring Sensor
High-Temperature Steam Turbine Proximitor® Sensor
7200 Series 35 mm Proximity Signal Conditioner
Extended Range Eddy Current Proximitor Unit
Industrial Differential Expansion Measurement Sensor
35 mm Turbine Position Monitoring Sensor
A380 Aluminum Proximitor Signal Processing Module
Steam Turbine Axial Expansion Sensor
High-Temperature Machinery Protection Proximitor Sensor
The 76683-90 is a high-temperature 35 mm Proximitor Sensor designed for precise differential expansion (DE) and shaft position monitoring in medium and large steam turbines. It is part of a 35 mm proximity transducer system that includes a 7200 series probe, extension cable, and the Proximitor sensor, which conditions and converts displacement signals into usable electrical outputs for machinery monitoring systems.
The 76683-90 is specifically engineered for applications where the measurement range exceeds 4 mm and operating temperatures are above 125°C. It provides stable signal conditioning for critical turbine environments, ensuring accurate measurement of rotor-to-stator expansion and shaft movement under extreme conditions.
Constructed with a durable A380 aluminum housing, the sensor offers excellent corrosion resistance and long-term reliability. It supports combined system electrical lengths up to 9 meters and integrates seamlessly with Bently Nevada monitoring systems for industrial protection and diagnostics.
|
Sales |
|
|
|
Jim Pei |
|
Minimum Order Quantity |
1 Piece |
|
Price |
Contact for Winnie |
|
Packaging Details |
Original new Factory Sealed |
|
Delivery Time |
3–7 Days |
|
Payment Terms |
T/T |
|
Shipping Method |
DHL / FedEx / UPS / TNT |
|
Supply Ability |
In stock |

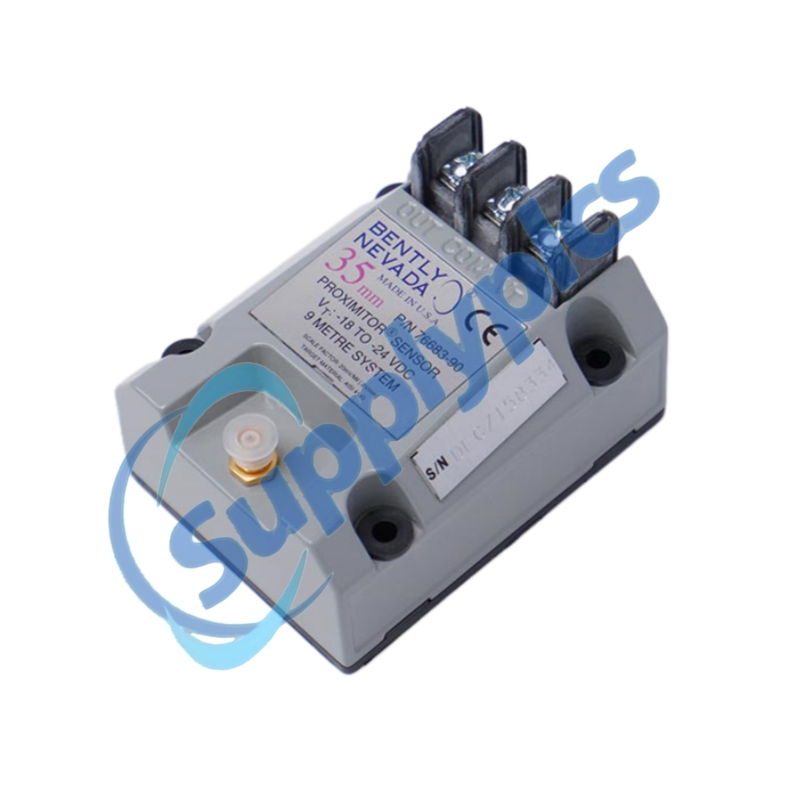

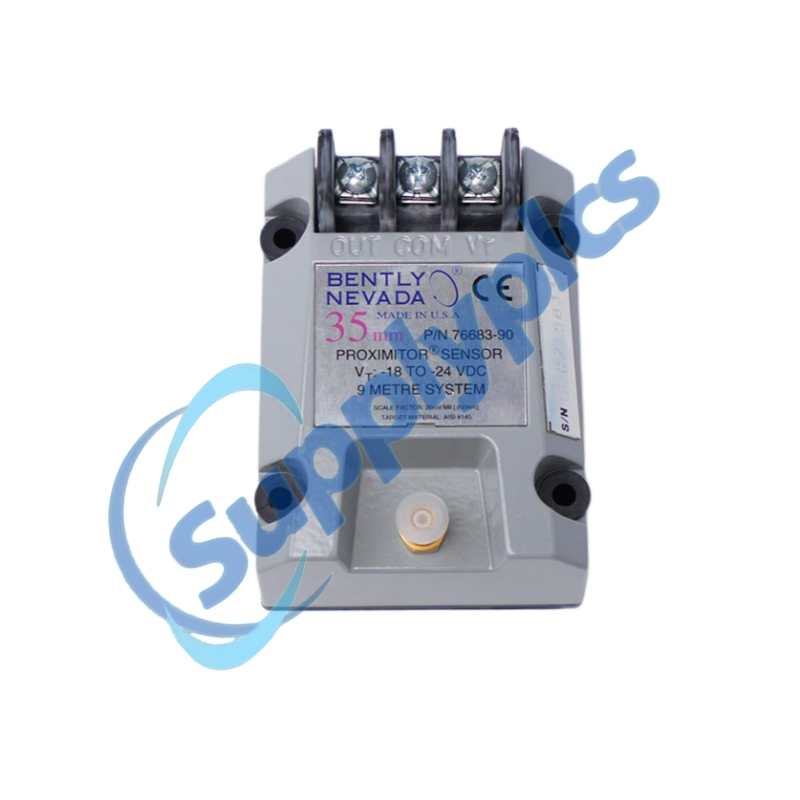

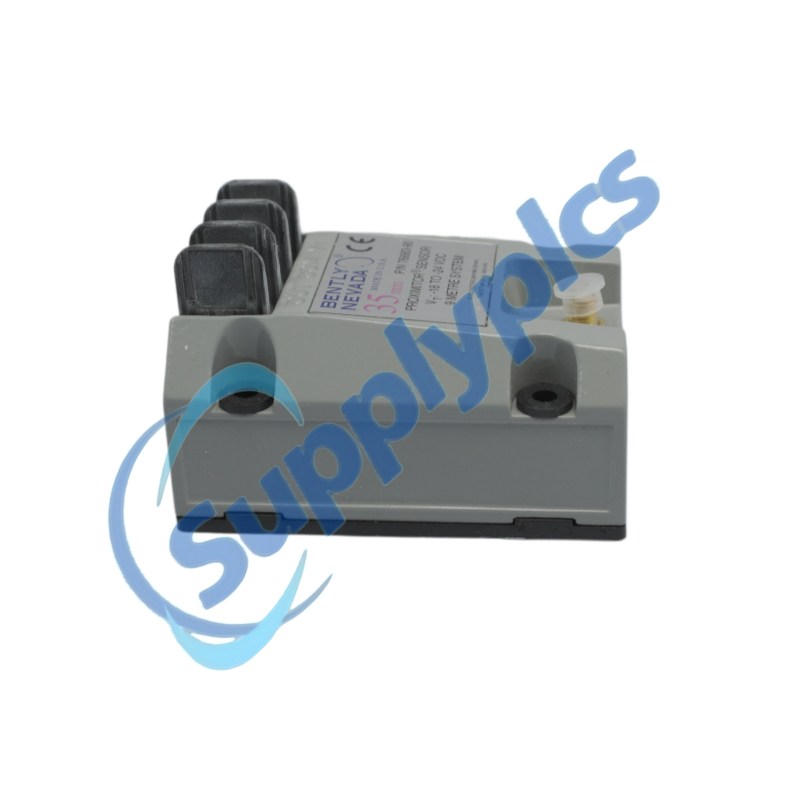

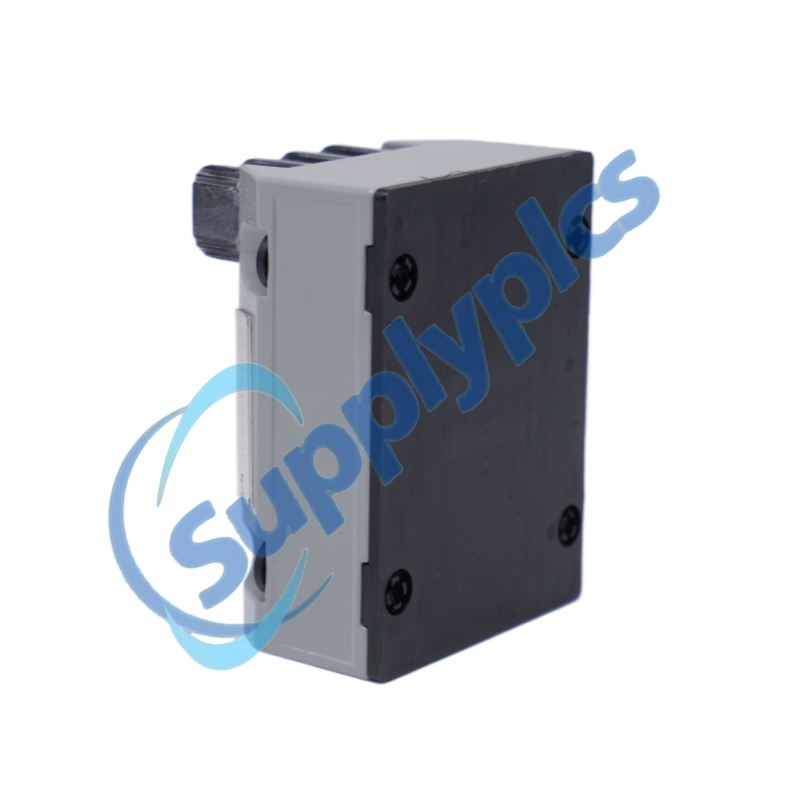

| Product Name | Bently Nevada 76683-90 35mm Proximitor Sensor |
| Manufacturer | Bently Nevada |
| Product Type | 35mm Proximitor Sensor |
| Part Number | 76683-90 |
| Dimensions | 7.8x6x4.8cm |
| Weight | 0.28kg |
| Place of shipment | Xiamen, China |
| Country of origin | USA |
| Option Description | For combined system electrical length of 9 metres |
| Operating and Storage Temperature | -34°C to + 100°C (-29°F to +212°F) |
| Relative Humidity | 95% non-condensing from +2°C to+100°C (+35°F to +212°F) when connectors are protected |
| Input | Accepts one noncontacting 7200 series 35 mm Proximity Probe and Extension Cable |
| Power | -18 Vdc to -24 Vdc at 12 mA maximum consumption |
| Output resistance | 50 Ω |
| Proximitor® Sensor Material | A380 aluminum |
| Field wiring | 3‑conductor shielded triad, max 305 m (1,000 ft) between Proximitor® Sensor and monitor |
Q1: What is the main application of 76683-90?
A1: The 76683-90 is used for differential expansion and shaft position monitoring in steam turbines.
Q2: What probe type is compatible with 76683-90?
A2: The 76683-90 is compatible with one 7200 series 35 mm proximity probe and extension cable.
Q3: What is the operating temperature range of 76683-90?
A3: The 76683-90 operates from −34°C to +100°C (−29°F to +212°F).
Q4: What is the housing material of 76683-90?
A4: The 76683-90 uses an A380 aluminum housing for durability and corrosion resistance.
Q5: What is the maximum system electrical length supported by 76683-90?
A5: The 76683-90 supports a combined system electrical length of up to 9 meters.
Q6: What is the power requirement of 76683-90?
A6: The 76683-90 operates with a power supply of −18 VDC to −24 VDC at 12 mA maximum.
Q7: What wiring type is required for 76683-90?
A7: The 76683-90 requires a 3-conductor shielded triad cable up to 305 m between sensor and monitor.
Q8: What type of machinery is 76683-90 used for?
A8: The 76683-90 is primarily used in medium and large steam turbines and other critical rotating machinery.
