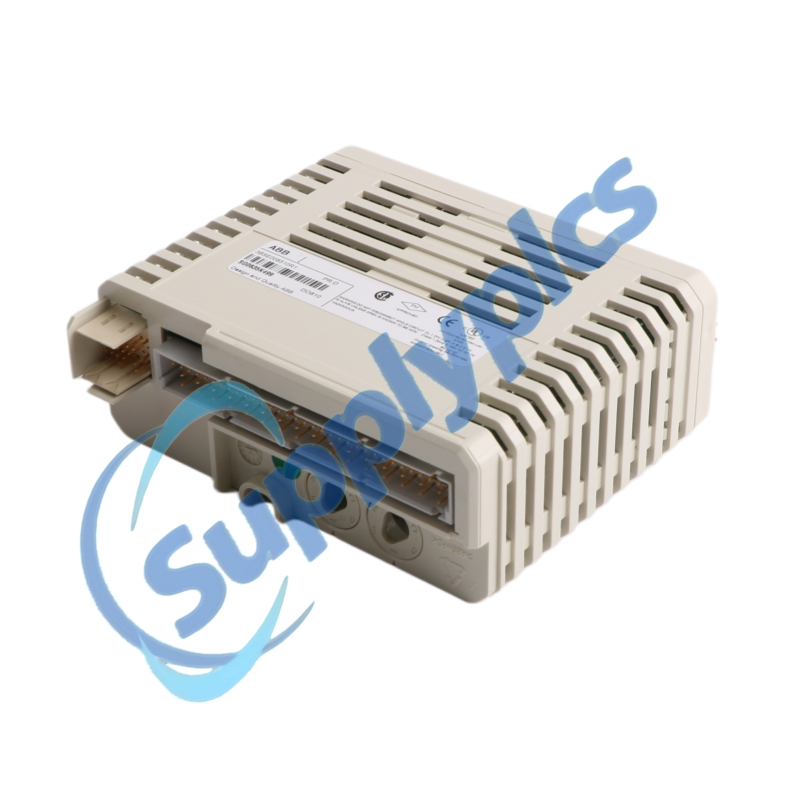

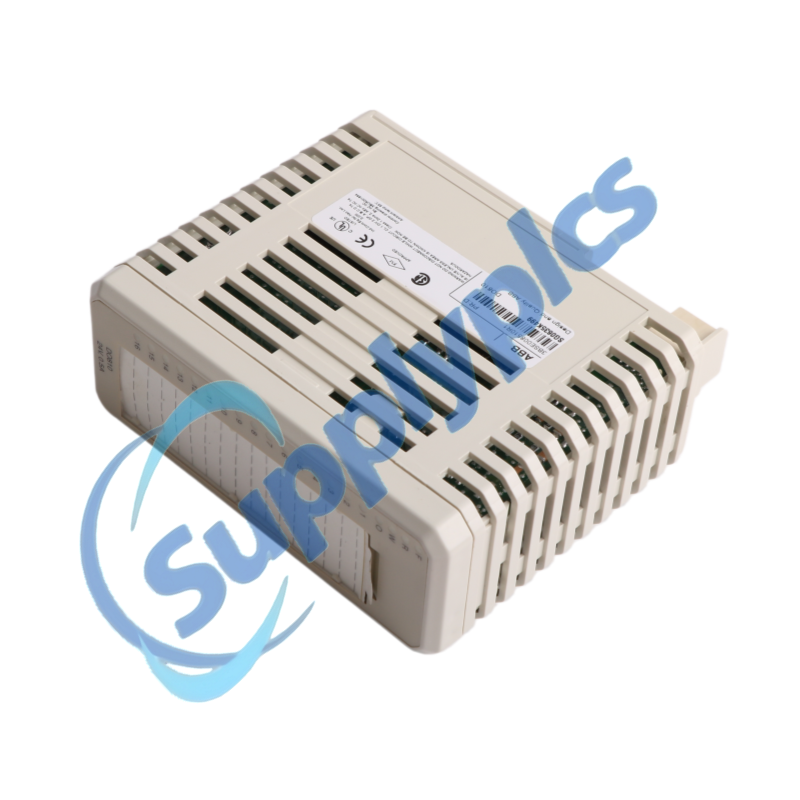

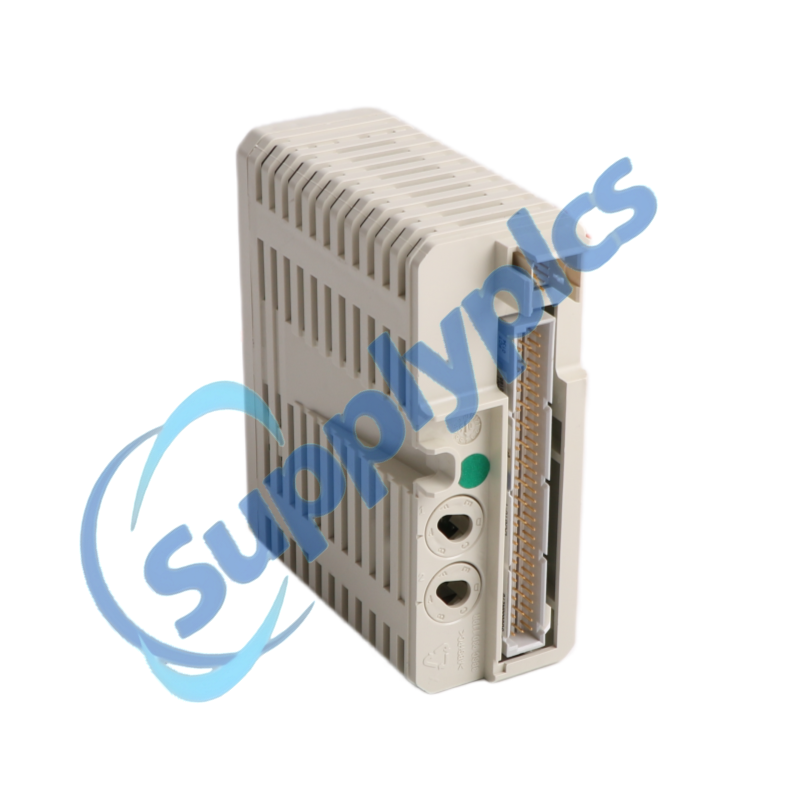

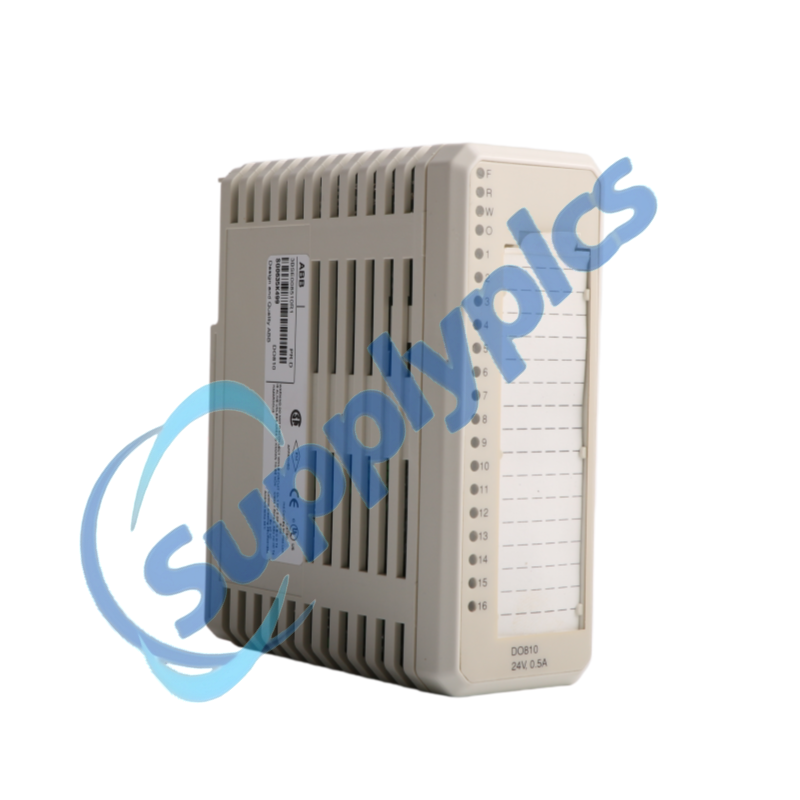

Product Name: Digital Output Module
Brand Name: ABB
Model Number: DO810 3BSE008510R1
Place of Origin: SWEDEN
Warranty: 12 Months
Whatsapp：+86 18020776782
Email：[email protected]
Minimum Order Quantity |
1 Piece |
Price |
Contact for Jim |
Packaging Details |
Original new Factory Sealed |
Delivery Time |
3–7 Days |
Payment Terms |
T/T |
Shipping Method |
DHL / FedEx / UPS / TNT |
Supply Ability |
In stock |
|
Sales |
|
|
|
Jim Pei |
| Product Name | ABB DO810 3BSE008510R1 Digital Output Module |
| Manufacturer | ABB |
| Product Type | Digital Output Module |
| Part Number | DO810 3BSE008510R1 |
| Estimated shipping dimensions | 12x10.5x4.5cm |
| Weight | 0.16kg |
| Place of shipment | Xiamen, China |
| Country of origin | SWEDEN |
| Signal specification | 24V d.c. (12 - 32 V d.c.), 0.5 A |
| Number of channels | 16 |
| Signal type | Current sourcing, current limiting Isolation Groupwise isolated from ground |
| Output load | < 0.4 Ω |
| Current limiting | Short circuit proof current limited output |
| Maximum field cable length | 600 meters (656 yards) |
| Rated insulation voltage | 50 V |
| Dielectric test voltage | 500 V a.c. |
| Power dissipation | Typ. 2.1 W |
| Current consumption +5 V Modulebus | 80 mA |
| Temperature, Operating | 0 to +55 °C (+32 to +131 °F), approvals are issued for +5 to +55 °C |
| Temperature, Storage | -40 to +70 °C (-40 to +158 °F) |
| Pollution degree | Degree 2, IEC 60664-1 |
| Corrosion protection | ISA-S71.04: G3 |
| Relative humidity | 5 to 95 %, non-condensing |
| Max ambient temperature | 55 °C (131 °F), for vertical mounting in compact MTU 40 °C (104 °F) |
| Protection class | IP20 according to IEC 60529 |
| Use with MTU | TU810, TU812, TU814, TU830 |
The ABB DO810 3BSE008510R1 is a high-performance 16-channel digital output module designed for industrial automation systems within the ABB Advant OCS and Advant-800xA platforms. It provides reliable 24 V DC current-sourcing outputs for controlling field devices such as relays, solenoids, actuators, and indicators. With its compact and robust design, the module is well-suited for demanding process control environments that require stable and precise output signal operation.
The module features dual isolated output groups with integrated process voltage supervision, enhancing both operational safety and diagnostic capability. It is engineered with advanced protection functions including short-circuit, over-voltage, and over-temperature protection, ensuring reliable performance under harsh industrial conditions. Designed for flexible integration, the DO810 supports long field cable distances and is compatible with multiple ABB MTU configurations, making it suitable for both new installations and system upgrades.
The primary function of the ABB DO810 3BSE008510R1 is to provide controlled 24 V DC digital output signals for industrial automation systems. It enables reliable switching and control of external field devices such as relays, solenoids, indicators, and actuators. Each of the sixteen output channels supports current sourcing up to 0.5 A, ensuring stable operation for a wide range of industrial loads.
The module separates its outputs into two individually isolated groups of eight channels each. Each group includes process voltage supervision functionality, allowing the system to detect loss of process voltage and generate error indications. This improves diagnostic capabilities and enhances operational safety in automated processes.
In addition to standard output control, the DO810 includes Output Set as Predetermined State (OSP) functionality. When a fault condition is detected, the module automatically places outputs into a predefined safe state, helping protect connected equipment and maintaining process integrity during abnormal operating conditions.
The ABB DO810 3BSE008510R1 is fully compatible with ABB Advant OCS and Advant-800xA automation platforms. It integrates seamlessly into ABB distributed control systems, providing reliable digital output functionality for industrial process control applications.
The module is designed for use with ABB compact MTU units including TU810, TU812, TU814, and TU830. Its standardized electrical and mechanical interface allows easy installation and integration within ABB control cabinets and I/O architectures.
The DO810 supports industrial communication and automation environments requiring isolated 24 V DC output control with advanced protection features. Its compatibility with ABB automation infrastructure ensures dependable long-term performance in both new installations and modernization projects.
