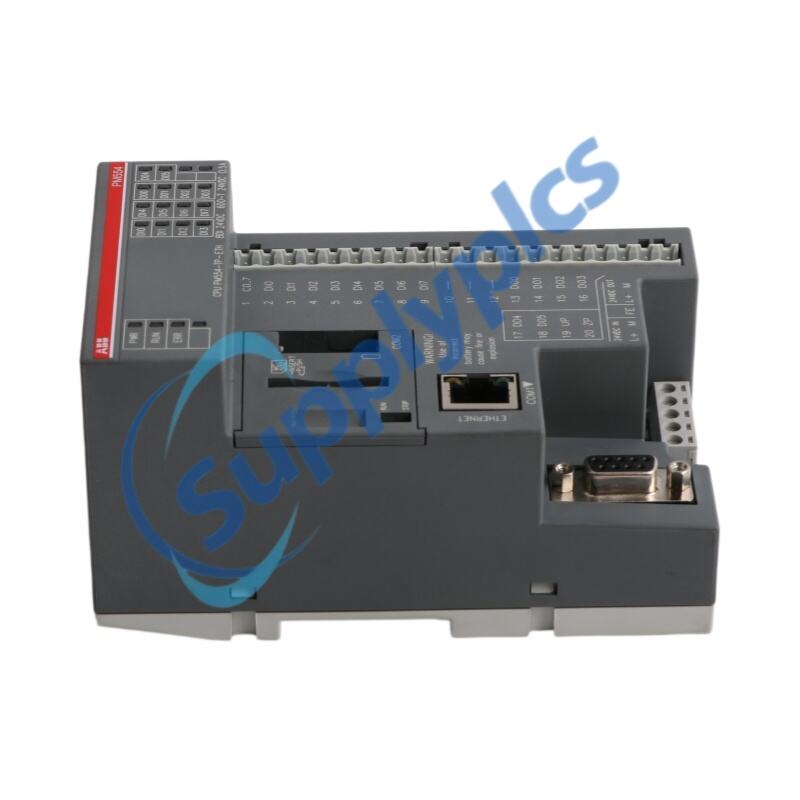

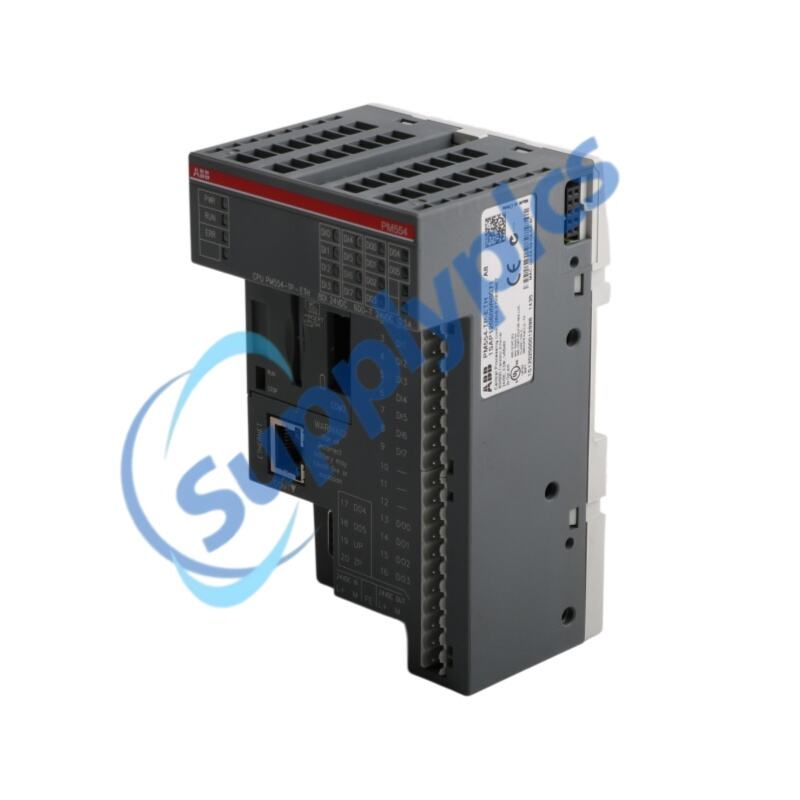

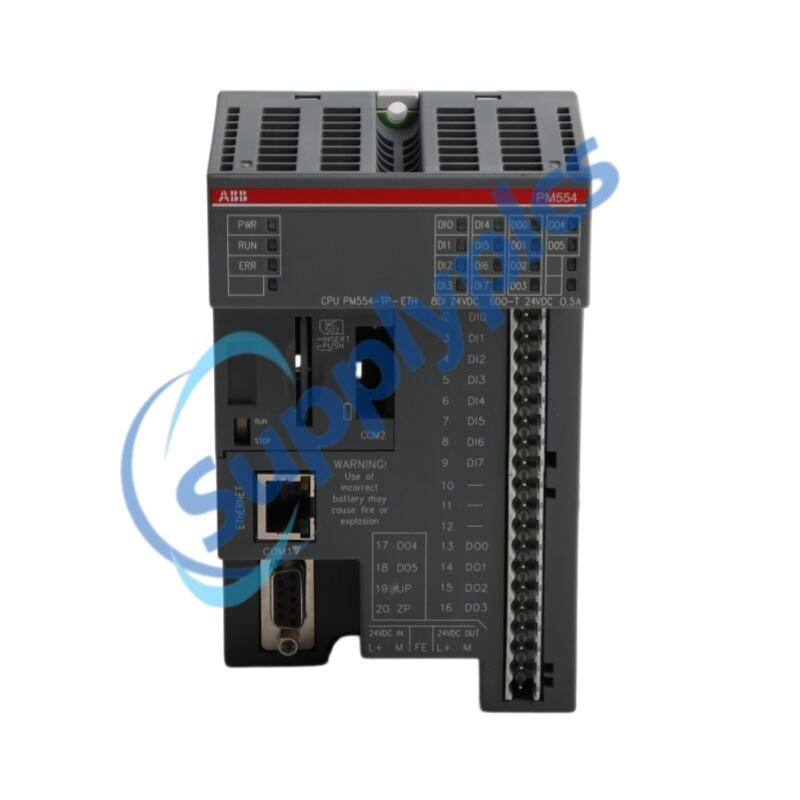

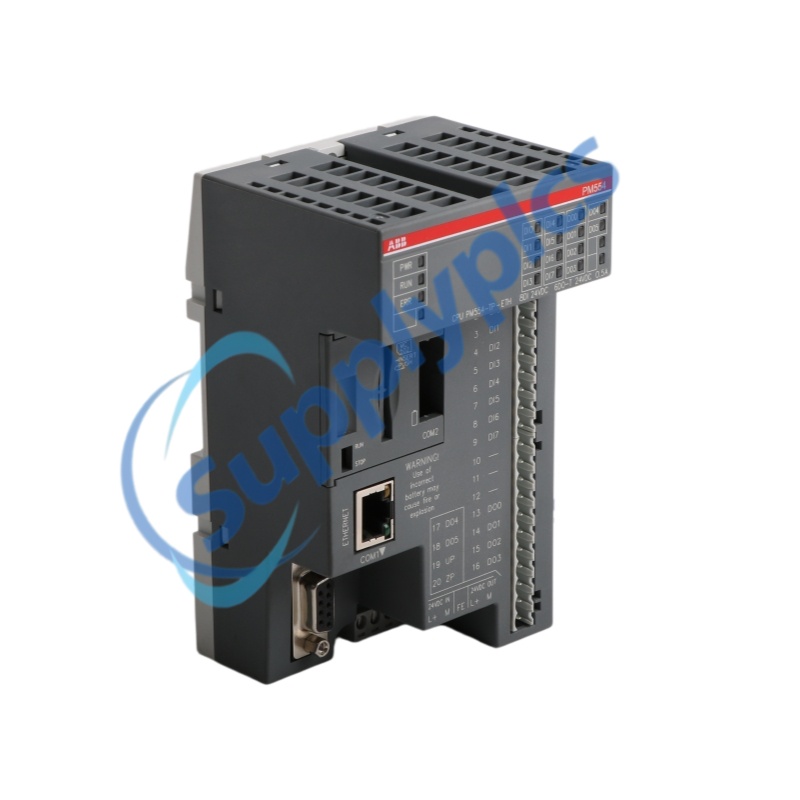

ABB PM554-TP-ETH 1SAP120600R0071 AC500 Processor Module Original new

ABB PM554-TP-ETH 1SAP120600R0071 AC500 Processor Module Original new

Product Name:AC500 Processor Module

Brand Name:ABB

Model Number:PM554-TP-ETH 1SAP120600R0071

Country of Origin: ASEA

Warranty: 12 Months

Whatsapp：+86 18159889985

Email：[email protected]

Appurtenance:

abb pm554 tp eth 1sap120600r0071 ac500 processor module original new-1

Overview
Contact for quotation
Specifications
Description
Applications
Features
Functions
FAQ
Spares
Recommended Products

Overview

Brand Name:	ABB
Model Number:	PM554-TP-ETH 1SAP120600R0071
Country of Origin:	ASEA
Packaging Details:	Original new Factory Sealed
Delivery Time:	in stock
Payment Terms:	T/T

Contact for quotation

Sales Manager:	Stella
Send an email:	[email protected]
Contact in Whatsapp:	+86 18159889985

Specifications

Item	Specification
Product Model	ABB PM554-TP-ETH
Order Number	1SAP120600R0071
Series	AC500 PLC Series
Processor Type	CPU Module
Digital Inputs	8 DI
Digital Outputs	6 DO (Transistor)
Memory	128 kB
Communication	Ethernet (Onboard)
Power Supply	24 V DC
Mounting Type	DIN Rail
Weight	0.3kg
Dimensions	8.2x7.3x13.5cm

Description

The ABB PM554-TP-ETH 1SAP120600R0071 is a compact CPU module designed for the ABB AC500 PLC system, delivering reliable performance for mid-range industrial automation tasks. It integrates 8 digital inputs and 6 transistor outputs, supporting efficient signal processing and real-time control in demanding environments.

The PM554-TP-ETH features 128 kB memory and onboard Ethernet communication, enabling seamless integration with distributed control networks. Its modular design supports flexible expansion and easy installation on DIN rail systems, making it suitable for scalable automation architectures.

As part of the AC500 series, the 1SAP120600R0071 ensures stable operation, high processing efficiency, and strong compatibility with ABB I/O modules, widely used in industrial control and monitoring applications.

Applications

Power plants: Generator set monitoring and relay protection
Substations: Bus differential control and switchgear signal acquisition
Chemical plants: Process automation and safe signal monitoring
Steel mills: High-temperature and EMI-resistant logic control
Machinery manufacturing: Production line and robotic system automation

Features

Integrated 8 DI / 6 DO control channels
Built-in Ethernet communication interface
Compact modular DIN rail design
High-speed processing for real-time automation
Compatible with ABB AC500 I/O expansion modules

Functions

Logic control and sequence execution
Data acquisition and signal processing
Network communication via Ethernet
Industrial equipment monitoring and control

FAQ

Q1: What is ABB PM554-TP-ETH used for?
A1: It is used as a CPU module in ABB AC500 PLC systems for industrial automation and control.

Q2: How many I/O points does 1SAP120600R0071 support?
A2: It supports 8 digital inputs and 6 transistor outputs.

Q3: Does PM554-TP-ETH support Ethernet communication?
A3: Yes, it includes onboard Ethernet for industrial network integration.

Q4: Is ABB PM554-TP-ETH suitable for harsh environments?
A4: Yes, it is designed for stable operation in industrial environments like power and steel plants.

Q5: Can this module be expanded with other ABB AC500 modules?
A5: Yes, it is fully compatible with ABB AC500 series expansion I/O modules.
