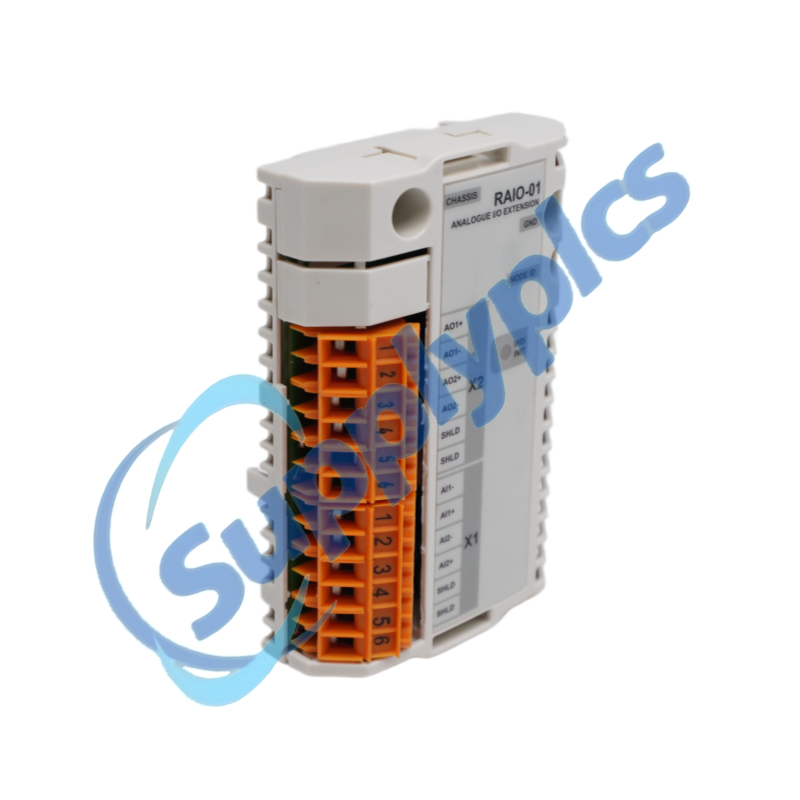

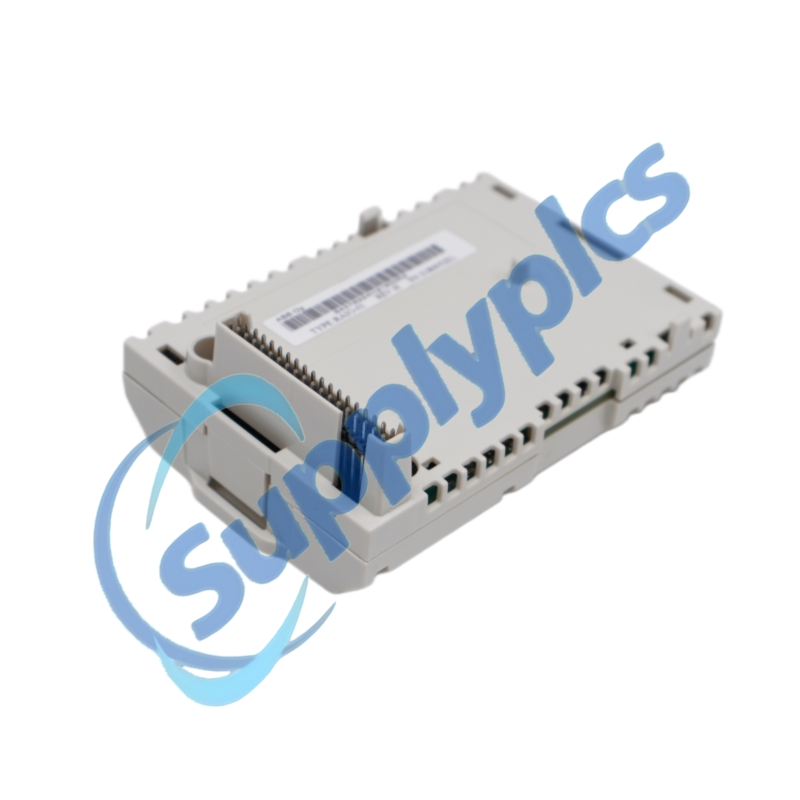

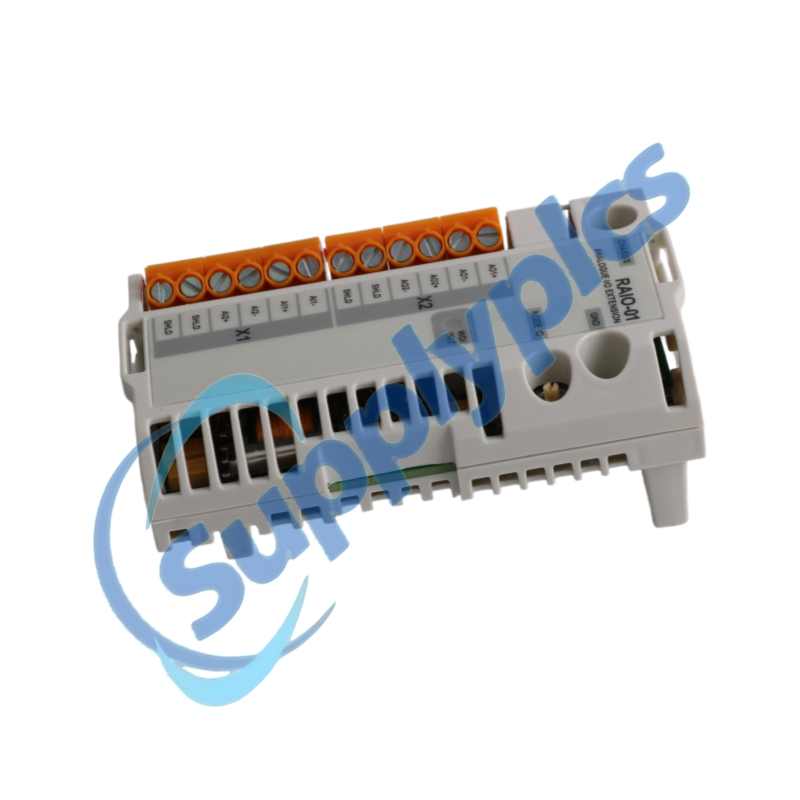

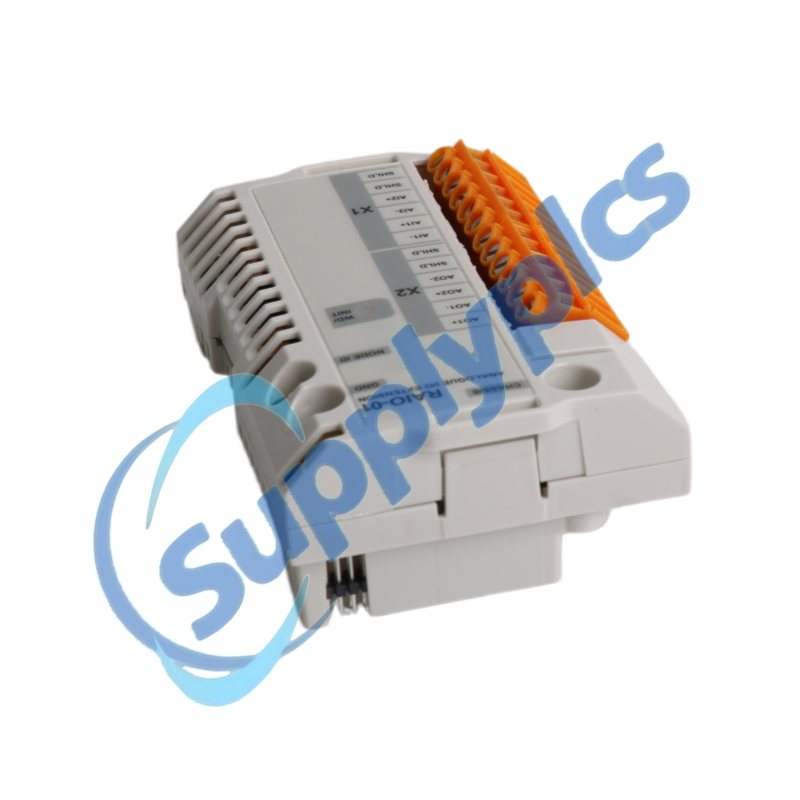

ABB RAIO-01 Analog I/O Extension Module

Product Name: Analog I/O Extension Module

Brand Name: ABB

Model Number: RAIO-01

Place of Origin: Sweden

Warranty: 12 Months

Whatsapp：+86 18020776782

Email：[email protected]

Appurtenance:

Overview
Contact Info
Parameter Information
Description
Functions
Features
FAQ
Recommendations
Recommended Products

Commercial Terms

Minimum Order Quantity	1 Piece
Price	Contact for Jim
Packaging Details	Original new Factory Sealed
Delivery Time	3–7 Days
Payment Terms	T/T
Shipping Method	DHL / FedEx / UPS / TNT
Supply Ability	In stock

Contact Info

Sales	Email	Whatsapp
Jim Pei	[email protected]	+86 18020776782

Parameter Information

Product Name	ABB RAIO-01 Analog I/O Extension Module
Manufacturer	ABB
Product Type	Analog I/O Extension Module
Part Number	RAIO-01
Estimated shipping dimensions	9.4x6.1x3.4cm
Weight	0.08kg
Place of shipment	Xiamen, China
Country of origin	SWEDEN
Mounting	Into an option slot of the RMIO board of the drive or onto external AIMA-01 I/O Module Adapter.
Degree of protection	IP 20
Hardware settings	Rotary switch for node ID selection (range 1…15), One DIP switch per input for selection between bipolar mode (default) and unipolar mode, Two DIP switches per input for signal type and level selection
Connectors	38-pin parallel bus connector, Two 6-pole non-detachable screw-type terminal blocks for max. 2.5 mm2 wire
Signal types	±(0)4…20 mA, ±(0)2…10 V, ±0…2 V
Input impedance	00 Ω (current), 200 kΩ (voltage)
Resolution in unipolar mode	0.024% (12 data bits)
Resolution in bipolar mode	0.048% (11 data bits + sign)
Inaccuracy	±0.5% (Full Scale Range) at 25 °C
Temperature coefficient	±100 ppm/°C max.
Common mode voltage	±15 V max.
HW filtering	2 ms approx.
Signal type	0(4)...20 mA
Load resistance max.	700 Ω
Resolution	0.024% (12 bits)
Inaccuracy	±0.5% (Full Scale Range) at 25 °C
Temperature coefficient	±100 ppm/°C max.
Max. power consumption	100 mA (5 V) + 120 mA (24 V)

Description

The ABB RAIO-01 is a high-precision Analog I/O Extension Module designed to expand analogue signal processing capabilities in ABB drive and automation systems. The module provides two bipolar analogue inputs and two unipolar analogue outputs, supporting multiple current and voltage signal types for flexible industrial integration and accurate process control applications.

The ABB RAIO-01 delivers reliable signal acquisition and output performance with 12-bit resolution, galvanic isolation, and low signal inaccuracy. Its advanced analogue characteristics help minimize electrical interference while ensuring stable operation in demanding industrial environments. The module also includes configurable hardware settings for signal mode, signal type, and node ID selection.

Designed for flexible installation, the ABB RAIO-01 can be mounted directly into an RMIO board option slot or connected through an external AIMA-01 I/O Module Adapter. Its compact IP20-protected design, low power consumption, and robust communication interface make it suitable for ABB drive systems requiring precise analogue expansion and dependable long-term operation.

Functions

Expands analogue input and output capability in ABB drive systems
Processes bipolar current and voltage analogue input signals
Provides unipolar analogue output signals for external control devices
Supports accurate signal conversion with 12-bit resolution
Enables configurable signal type and mode selection
Reduces electrical interference through galvanic isolation
Supports integration with RMIO boards and AIMA-01 adapters

Features

Two bipolar analogue inputs and two unipolar analogue outputs
Supports signal types: ±(0)4…20 mA, ±(0)2…10 V, and ±0…2 V
12-bit analogue resolution with high signal accuracy
Full galvanic isolation between I/O and power supply
Input impedance: 100 Ω (current) and 200 kΩ (voltage)
Resolution: 0.024% in unipolar mode and 0.048% in bipolar mode
Inaccuracy: ±0.5% full scale at 25°C
Temperature coefficient: ±100 ppm/°C maximum
Approximate 2 ms hardware signal filtering
Maximum load resistance: 700 Ω
Compact IP20-rated industrial design
Flexible mounting on RMIO board or AIMA-01 adapter
Low power consumption: 100 mA (5 V) + 120 mA (24 V)

FAQ

Q1: What is RAIO-01 used for?

A1: RAIO-01 is used to extend analogue input and output capabilities in ABB drive and automation systems.

Q2: What signal types does RAIO-01 support?

A2: RAIO-01 supports ±(0)4…20 mA, ±(0)2…10 V, and ±0…2 V analogue signal types.

Q3: What is the resolution of RAIO-01?

A3: RAIO-01 provides 12-bit resolution with 0.024% resolution in unipolar mode.

Q4: Does RAIO-01 provide galvanic isolation?

A4: Yes, RAIO-01 provides full galvanic isolation between inputs, outputs, and the power supply.

Q5: Where can RAIO-01 be installed?

A5: RAIO-01 can be mounted into an RMIO board option slot or onto an external AIMA-01 I/O Module Adapter.

Q6: What is the protection rating of RAIO-01?

A6: RAIO-01 has an IP20 protection rating for industrial indoor applications.
