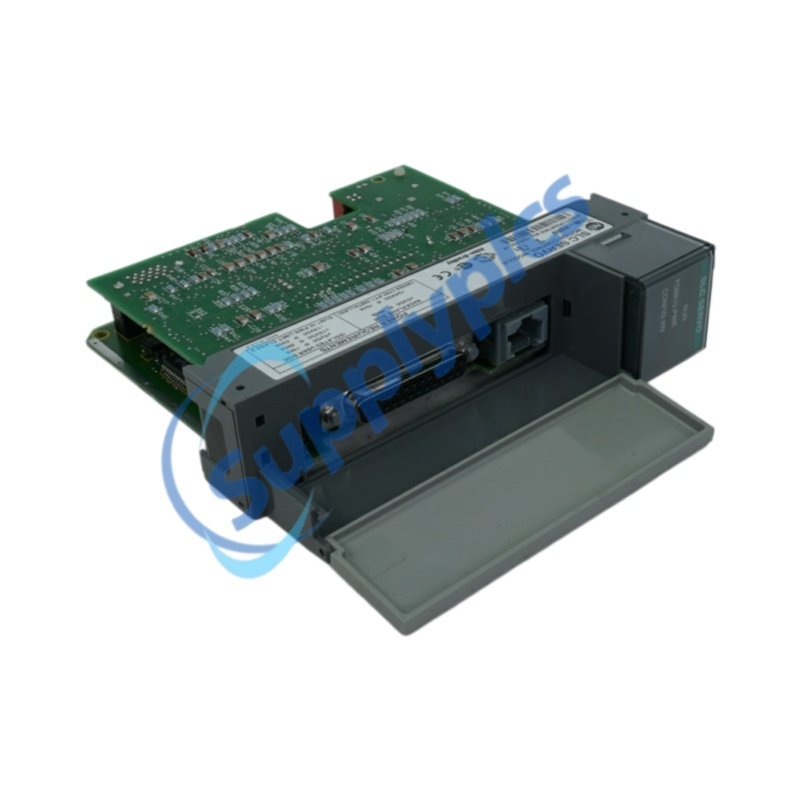

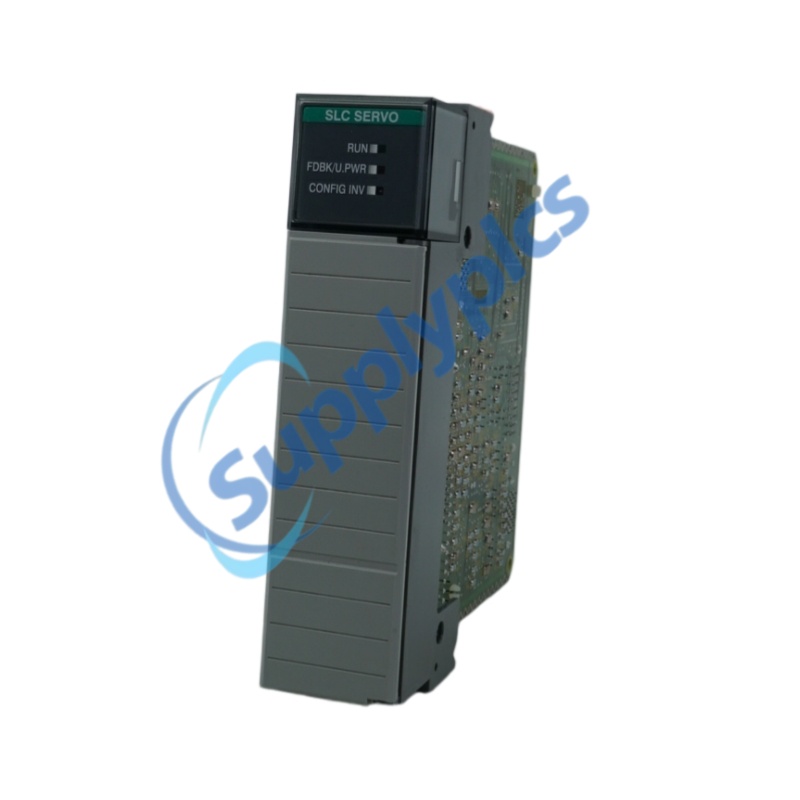

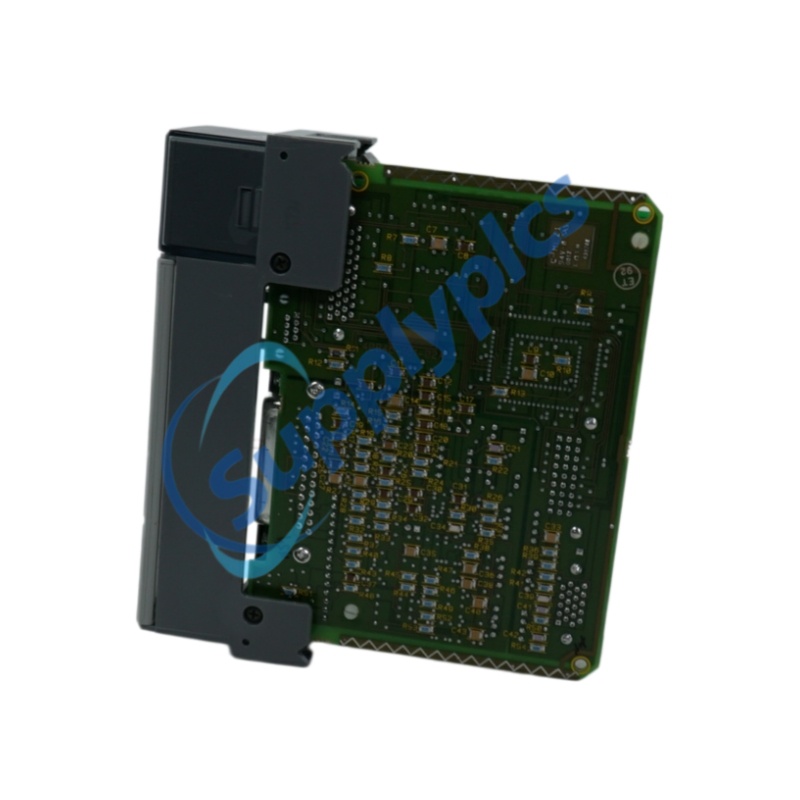

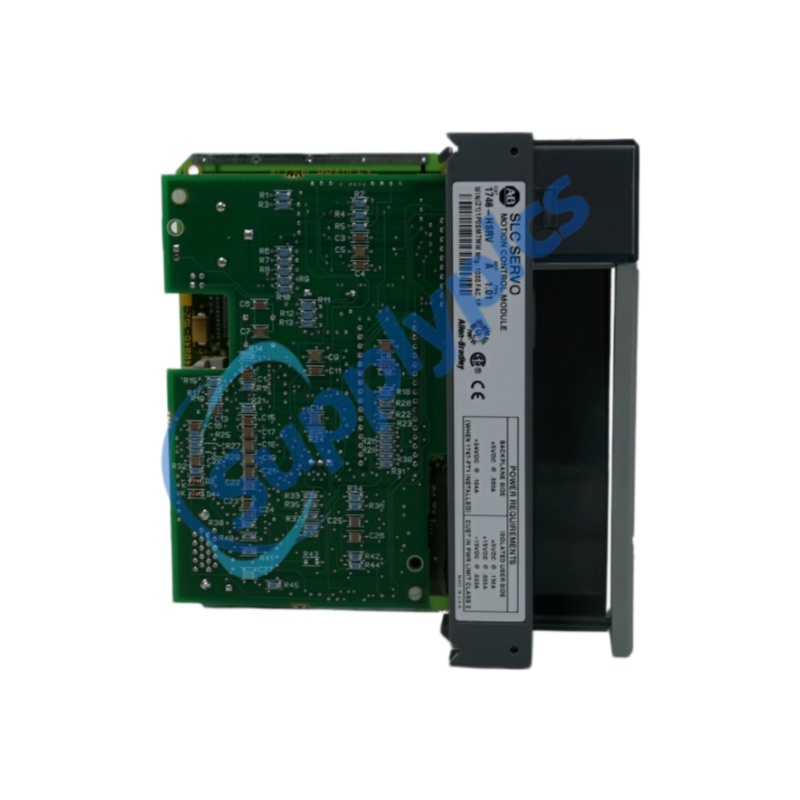

Allen-Bradley 1746-HSRV SLC Servo Control Module Ready For Ship

Allen-Bradley 1746-HSRV SLC Servo Control Module Ready For Ship

Product Name:SLC Servo Control Module

Brand Name:Allen-Bradley

Model Number:1746-HSRV

Country of Origin:USA

Warranty:12 Months

Whatsapp：+86 18159889985

Email：[email protected]

Appurtenance:

allen bradley 1746 hsrv slc servo control module ready for ship-1

Overview
Contact us
Specifications
Description
Applications
Environment and Certification
High-Resolution Measurement
FAQ
Spares
Recommended Products

Overview

Brand Name:	Allen-Bradley
Model Number:	1746-HSRV
Country of Origin:	USA
Packaging Details:	Original new Factory Sealed
Delivery Time:	in stock
Payment Terms:	T/T

Contact us

Sales Manager:	Stella
Send an email:	[email protected]
Contact in Whatsapp:	+86 18159889985

Specifications

Parameter	Specification
Manufacturer	Rockwell Automation
Brand	Allen-Bradley
Catalog Number	1746-HSRV
Product Series	SLC 500
Module Type	Single Axis Servo Motion Controller Module
Controlled Axes	1 Axis
Motion Modes	Incremental, Absolute, Speed Control
Position Control	32-bit Absolute Positioning
Homing Methods	Encoder Marker, Limit Switch, or Limit Switch + Marker
Motion Profile	Blended Motion, 2–32 Segments
Programming Software	RSLogix 500, AI500, APS (Version 5.0 or later)
Compatible Controllers	SLC 5/03 FRN 5.0+, SLC 5/04, SLC 5/05
Configuration Mode	M Files
Input Words	12
Output Words	12
Recommended Slot	Slot 1 or Lowest Numbered I/O Slot
Maximum Modules per Rack	Up to 12 (with suitable power supply)
Communication	SLC Backplane
Module Memory Configuration	M0 File: 1664 Words, M1 File: 1659 Words
Operating Temperature	0°C to 60°C (32°F to 140°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Relative Humidity	5–95% RH, Non-condensing
Dimensions	Approx. 145 × 35 × 145 mm (5.7 × 1.4 × 5.7 in.)*
Weight	Approx. 0.45 kg (0.99 lb)*

Description

The Allen-Bradley 1746-HSRV is a dedicated single-axis servo motion controller developed for the SLC 500 automation platform. Designed for demanding positioning applications, it executes incremental, absolute, and speed-based motion commands independently of the PLC scan cycle, delivering precise and repeatable machine movement for industrial automation systems.

Fully compatible with SLC 5/03, SLC 5/04, and SLC 5/05 processors, the 1746-HSRV integrates seamlessly with RSLogix 500, AI500, and APS programming software. Its advanced blended motion capability supports complex motion profiles with up to 32 consecutive segments, improving production efficiency while simplifying sophisticated machine control strategies.

The 1746-HSRV also features high-precision homing functions using encoder markers, limit switches, or combined reference signals to maintain accurate absolute positioning. With flexible motion programming, reliable synchronization, and fast execution, this module is an excellent solution for packaging equipment, CNC machinery, material handling systems, robotics, and automated manufacturing applications.

Applications

Power plants: Controls positioning mechanisms for turbine auxiliaries, damper actuators, and automated maintenance equipment requiring precise servo motion.
Substations: Supports intelligent positioning devices, automated switching equipment, and auxiliary motion control systems.
Chemical plants: Provides accurate servo positioning for dosing machines, filling systems, and process automation equipment.
Steel mills: Performs high-speed motion control for rolling equipment, feeders, and positioning systems operating under severe industrial conditions.
Machinery manufacturing plants: Integrates with CNC machines, robotic workstations, indexing tables, assembly systems, and automated production lines.
Packaging industry: Controls labeling, sealing, cutting, and synchronized conveyor positioning with high repeatability.
Material handling systems: Improves positioning accuracy for conveyors, transfer stations, palletizers, and warehouse automation equipment.

Environment and Certification

Operates reliably in industrial environments using the SLC 500 control platform.
Designed for installation in local SLC chassis without remote rack operation.
Supports long-term operation with stable motion performance and dependable controller communication.
Fully compatible with RSLogix 500, AI500, and APS engineering software.
Integrates seamlessly with SLC 5/03, SLC 5/04, and SLC 5/05 processors.
Engineered for continuous industrial automation and precision machine control.
Built to deliver dependable positioning accuracy in demanding manufacturing environments.

High-Resolution Measurement

Executes precise 32-bit absolute position control for highly accurate servo positioning.
Supports incremental, absolute, and speed motion commands for flexible machine applications.
Performs independent motion execution without relying on PLC scan time.
Provides blended motion profiles with up to 32 programmable movement segments.
Supports encoder marker, limit switch, and combined homing methods for repeatable reference positioning.
Maintains accurate synchronization between servo motion and PLC logic.
Delivers fast response suitable for CNC systems, robotics, packaging, and automated assembly equipment.
Simplifies complex motion programming through structured motion commands and flexible configuration.

FAQ

A1: The 1746-HSRV is a single-axis servo motion controller designed for precise positioning and motion control in SLC 500 automation systems.

Q2: Which PLC processors are compatible with the 1746-HSRV?
A2: It supports SLC 5/03 FRN 5.0 or later, SLC 5/04, and SLC 5/05 processors.

Q3: Does the 1746-HSRV support blended motion profiles?
A3: Yes. The module can execute blended motion profiles containing up to 32 consecutive motion segments.

Q4: Which homing methods are available on the 1746-HSRV?
A4: The module supports encoder marker homing, limit switch homing, and combined marker-plus-limit-switch homing.

Q5: Can the 1746-HSRV operate in a remote I/O rack?
A5: No. The 1746-HSRV is designed exclusively for installation in a local SLC 500 chassis.
