Product Name:Comfor Panel
Brand Name: SIEMENS
Model Number:6AV2124-0MC01-0AX0
Country of Origin:GERMANY
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
SIEMENS |
Model Number: |
6AV2124-0MC01-0AX0 |
Country of Origin: |
GERMANY |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Parameter |
Specification |
|
Model Number |
6AV2124-0MC01-0AX0 |
|
Product Type |
SIMATIC HMI TP1200 Comfort Touch Panel |
|
Design |
Comfort Panel, touch operation |
|
Product Family |
SIMATIC HMI TP1200 Series |
|
Display Type |
TFT (Thin-Film Transistor) |
|
Screen Diagonal |
12.1 inches |
|
Display Resolution |
1280 x 800 pixels (Widescreen, WXGA) |
|
Display Colors |
16,777,216 (16 million) |
|
Backlight |
LED-backlit, dimmable 0–100%, MTBF 80,000 h at 25°C |
|
User Memory |
12 MB (configuration memory / user data) |
|
Operating System |
Windows CE 6.0 |
|
Configuration Software |
WinCC Comfort V11 (TIA Portal) |
|
Processor Type |
X86 |
|
Power Supply |
24 V DC (nominal) |
|
Permissible Supply Voltage Range |
19.2 V to 28.8 V DC |
|
Current Consumption (rated) |
0.85 A |
|
Power Consumption (typ.) |
20 W |
|

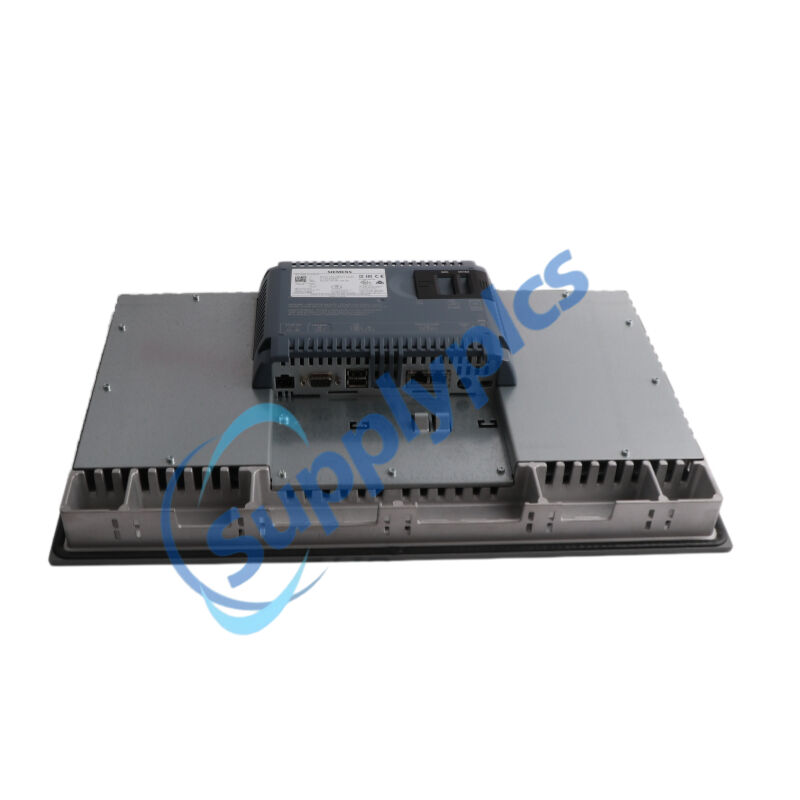

Interfaces |
1 x PROFINET (2-port switch), 1 x RS-485 (MPI/PROFIBUS DP), 2 x USB 2.0, 1 x USB Mini-B (5-pin), 2 x SD card slots |
|
Mounting Type |
Panel-mounted |
|
Front Protection Rating |
IP65 |
|
Rear Protection Rating |
IP20 |
|
Enclosure Material (Front) |
Aluminum (from 7" and larger) |
|
Dimensions (Front bezel W x H) |
330 mm (13.0 in) x 241 mm (9.5 in) |
|
Mounting Cutout (W x H) |
310 mm (12.2 in) x 221 mm (8.7 in) |
|
Mounting Depth |
64 mm (2.5 in) |
|
Weight |
2.8 kg (6.17 lbs) to 3.72 kg (8.2 lbs) |
|
Operating Temperature |
0°C to 50°C (32°F to 122°F) |
|
Storage Temperature |
-20°C to 60°C (-4°F to 140°F) |
|
Relative Humidity |
≤ 95% (non-condensing) |
|
Certifications / Approvals |
CE, cULus, RCM, KC, ATEX Zone 2 & 22, IECEx Zone 2 & 22, GL, ABS, BV, DNV, LRS, Class NK, PRS |
|
RoHS Compliance |
Yes |
|
Country of Origin |
Germany |
|
Lifecycle Status |
PM300: Active (per SiePortal), but some sources indicate discontinued configurations & security updates |
The Siemens 6AV2124-0MC01-0AX0, also known as the SIMATIC HMI TP1200 Comfort panel, brings high-performance visualization within reach. The 6AV2124-0MC01-0AX0 features a vivid 12.1-inch widescreen TFT display with a high-resolution of 1280 x 800 pixels and over 16 million colors, providing exceptional industrial graphics. Operating on Windows CE 6.0 and configurable via WinCC Comfort V11 within the TIA Portal, the robust 6AV2124-0MC01-0AX0 provides versatile connectivity including PROFINET, MPI/PROFIBUS DP, and USB ports, allowing seamless integration into any Totally Integrated Automation solution.
Machine-Level HMI: High-performance visualization and operator control for complex machinery
Production Lines: Process monitoring, parameter setting, quality tracking in automotive, packaging, printing, and textile lines
Process Automation: Chemical reactors, pharmaceutical batch processing, food & beverage systems
Building Automation: HVAC system monitoring, lighting and energy management for large facilities
Harsh Environments: Industrial applications requiring wide temperature tolerance and ingress protection (IP65 front)
Marine Applications: Compliant with major maritime approvals
State-of-the-Art Technology: High-performance X86 processor and 12 MB configuration memory for demanding applications
High-Resolution Widescreen Display: 12.1" TFT with 1280 x 800 resolution and 16 million colors for outstanding detail and clarity
Dimmable LED Backlight: Backlight MTBF of 80,000 hours and 0-100% dimming via PROFIenergy
Comprehensive Connectivity: Built-in PROFINET interface with integrated 2-port switch, MPI/PROFIBUS DP interface, dual USB 2.0, and Dual SD card slots for data archiving, user data, and automatic backup
Integrated High-End Functionality: Supports various advanced functions, including archive handling, Visual Basic scripts, Internet Explorer, Web Server, PDF viewer, and Media Player
Aluminum Front Enclosure: Our 12.1-inch Comfort Panel features a sleek cast aluminum front design
Data Security: Maintains data integrity during power failures for the device and connected memory cards
Approvals: Suitable for harsh industrial environments with ATEX Zone 2/22 and marine approvals
OPC UA Implementation: Can be used as an OPC UA client or server for vendor-independent data exchange
Totally Integrated Automation (TIA) Integration: Powerful engineering via WinCC in the TIA Portal
High-Availability HMI Display: Provides a reliable industrial operator interface with an exceptionally durable backlight (80,000 hours MTBF)
Local Data Management: Stores process data, configuration settings, and archive logs within the onboard memory
Secure Data Transfer: Communicates with SIMATIC controllers via PROFINET and PROFIBUS DP interfaces, utilizing secure and deterministic protocols
Industrial Network Integration: Acts as a node on industrial networks with its PROFINET interface (2-port switch) and MPI/PROFIBUS DP interface for cycle times of up to 12 Mbps
Process Visualization: Displays real-time process values, trends, alarms, and diagnostic messages on a high-resolution widescreen to enable effective plant monitoring and immediate operator responses
Multilingual Operation: Supports up to 32 online languages (including Asian and Cyrillic character sets), enabling easy deployment in global production facilities across multiple sites
OPC UA Connectivity: Functions as an OPC UA client or server, enabling secure, cross-vendor data exchange with other automation systems
Data Backup & Restore: Allows automatic backup and restore via optional SIMATIC HMI memory cards or USB storage devices for quick commissioning and service
Q1: What does the 6AV2124-0MC01-0AX0 need to be configured? The 6AV2124-0MC01-0AX0 is configured using the SIMATIC WinCC Comfort engineering software (V11 or higher) within the TIA Portal.
Q2: Is the 6AV2124-0MC01-0AX0 a color display? Yes, the 6AV2124-0MC01-0AX0 features a 12.1-inch widescreen TFT display, supporting 16,777,216 colors.
Q3: Is the SAP 6AV2124-0MC01-0AX0 considered obsolete? While the Siemens Mall lists it as Active (PM300), several suppliers report that security updates have been discontinued or the unit is in its end-of-life phase.
Q4: Is the 6AV2124-0MC01-0AX0 compatible with Siemens PLCs? Yes. The 6AV2124-0MC01-0AX0 is fully compatible and supports direct communication with SIMATIC S7-200, S7-300, and S7-400 via its integrated PROFINET and PROFIBUS DP interfaces.
Q5: What approvals does the SIMATIC HMI TP1200 Comfort 6AV2124-0MC01-0AX0 have? The 6AV2124-0MC01-0AX0 features advanced approvals for use in special environments, including ATEX Zone 2/22 (industrial environments with potentially explosive atmospheres) and various maritime approvals (GL, ABS, BV, DNV, LRS, Class NK, PRS).
