Product Name: Adjustable Frequency AC Drive
Brand Name: Allen Bradley
Model Number:1746-OAP12
Country of Origin:USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
Allen Bradley |
Model Number: |
1746-OAP12 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Parameter |
Specification |
|
Manufacturer |
Rockwell Automation / Allen-Bradley |
|
Catalog Number |
1746-OAP12 |
|
Product Type |
SLC 500 Discrete AC Output Module |
|
Output Channels |
12 (2 groups of 6, each with independent common) |
|
Output Voltage Category |
120/240V AC |
|
Operating Voltage Range |
85 – 265V AC @ 47 – 63 Hz |
|
Output Delay |
OFF→ON: 11 ms; ON→OFF: 1 ms (resistive load) |
|
Off-State Leakage |
2 mA max |
|
Minimum Load Current |
10 mA |
|
Continuous Current per Point |
2.0 A @ 30°C; 1.25 A @ 55°C; 1.0 A @ 60°C |
|
Continuous Current per Module |
9.0 A @ 30°C; 6.8 A @ 55°C; 6.0 A @ 60°C |
|
Backplane Draw (5V DC) |
370 mA |
|
Backplane Draw (24V DC) |
0 A |
|
Heat Dissipation |
Min 1.85 W / Max 10.85 W |
|
Fuse Protection |
Two fused commons (6.3A SAN-O HQ per group; replacement kit 1746-F9) |
|
Blown Fuse Indicator |
Red LED (active when backplane and load power present) |
|
JP1 Jumper |
Pins 1-2 = processor continues on fuse blow; pins 2-3 = processor faults |
|
Isolation |
1500V electro-optical (field to logic) |
|
Agency Approvals |
UL Listed, CSA Certified, CE Compliant |
|
Hazardous Location |
Class I, Division 2, Groups A, B, C, D |
|
Terminal Block |
Removable, colour-coded |
|
Dimensions |
Approx. 127 × 51 × 152 mm |
|
Weight |
Approx. 0.4 – 0.56 kg |
|
Chassis Slot |
Any SLC 500 slot except slot 0 |

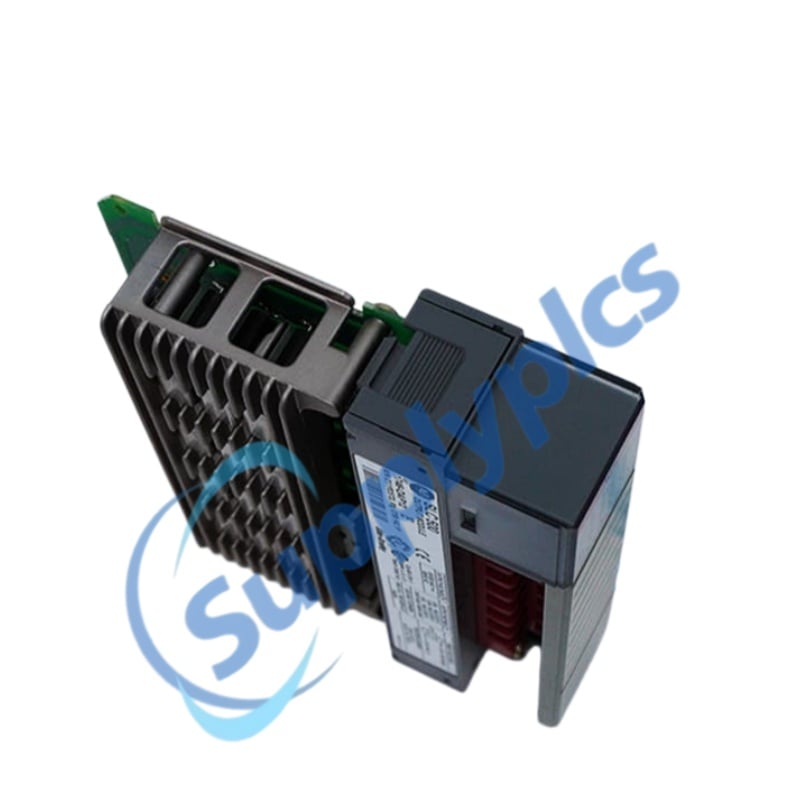

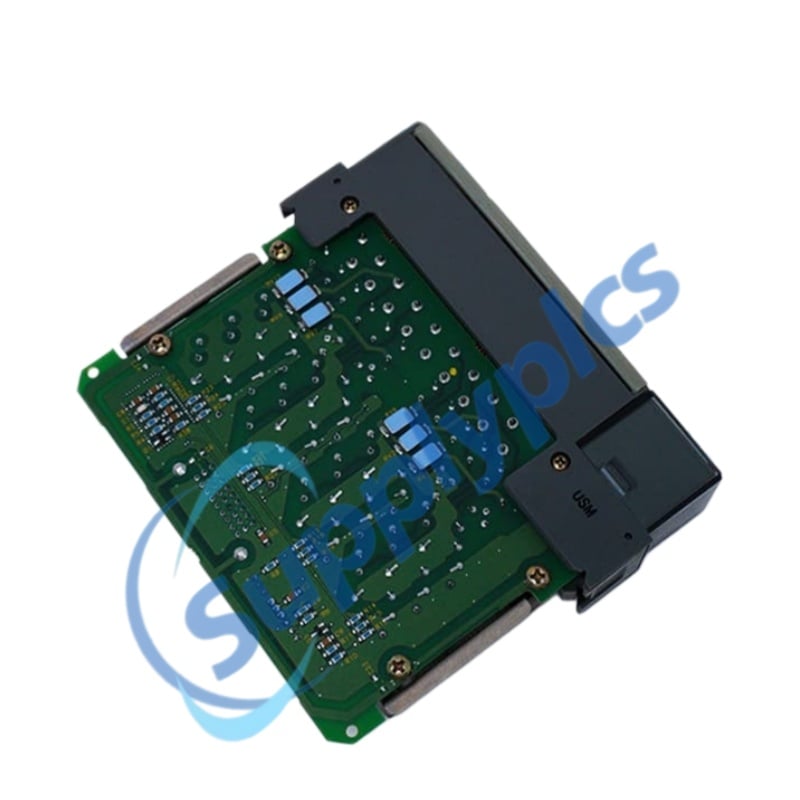

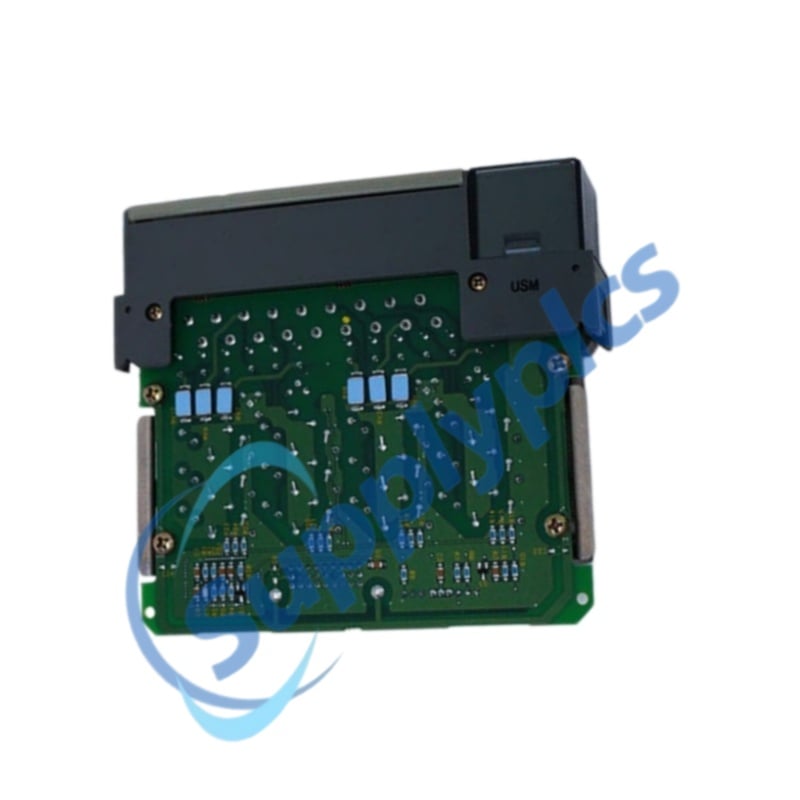

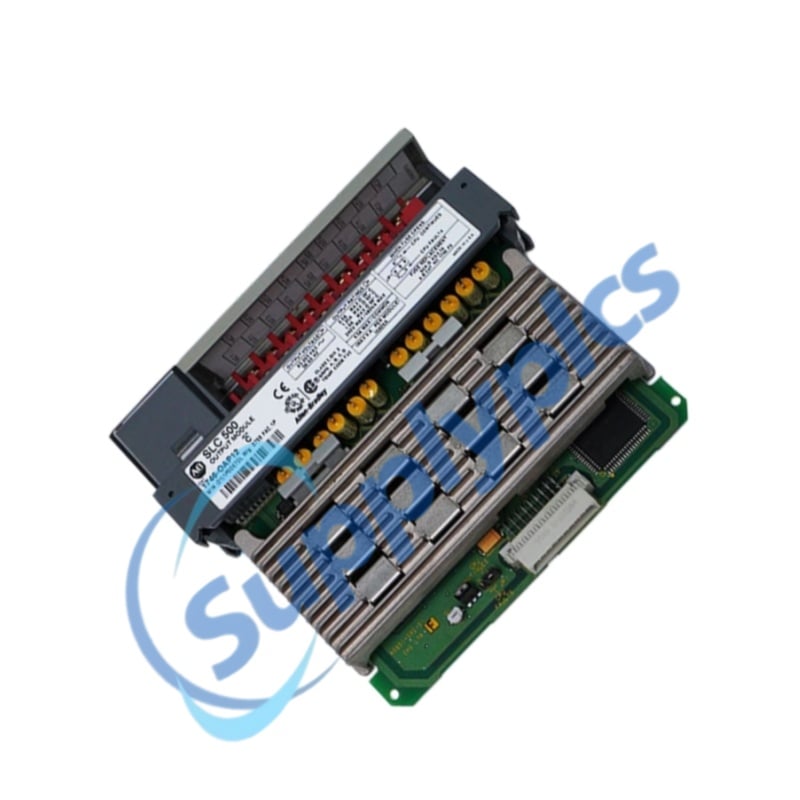

The Allen‑Bradley 1746‑OAP12 is a 12‑point high‑current AC output module for the SLC 500 system. This 1746‑OAP12 provides 120/240V AC switching across two independently fused six‑channel groups, suited for motors, heaters, solenoids, and other AC loads. The 1746‑OAP12 features fast 1 ms ON‑to‑OFF response and a dedicated blown‑fuse LED for instant diagnostics. Its configurable JP1 jumper allows the processor to either continue running or fault upon fuse failure, offering flexible safety integration. With Class I Div 2 certification and wide voltage tolerance, the 1746‑OAP12 delivers robust, reliable output control for demanding industrial applications.
Independent fused groups – Each 6‑channel bank has its own fuse; if one blows, the other group continues operating.
Configurable fault handling – JP1 jumper lets you choose continued operation or processor shutdown on fuse failure.
High output current – 2.0 A per point (9.0 A per module) at 30°C handles heavy loads in a compact 12‑point footprint.
Global voltage support – 85‑265V AC range covers 120V and 240V systems without derating.
Immediate fault visibility – Blown‑fuse LED speeds troubleshooting and reduces downtime.
Hazardous area ready – UL/CSA Class I, Division 2 approved for explosive environments.
12 solid‑state AC outputs arranged in two isolated groups of 6
Wide input voltage: 85 – 265V AC, 47 – 63 Hz
Fast switching: 1 ms OFF‑to‑ON, 11 ms ON‑to‑OFF
Each group fused with a 6.3A SAN‑O HQ fuse (field‑replaceable)
Blown‑fuse LED indicator per group
JP1 jumper for processor response selection (continue / fault)
Removable terminal block with screw connections (accepts two 14 AWG wires)
1500V electro‑optical isolation between I/O and logic
Class I Division 2 Groups A,B,C,D hazardous location certification
UL, CSA, CE compliant
The 1746‑OAP12 translates logic signals from the SLC 500 processor into AC power switching for field loads. The processor sends commands via the 5V backplane; the module’s internal triac circuits then connect or disconnect the AC line voltage (85‑265V) to the corresponding output terminals. The 12 outputs are split into two galvanically isolated groups of six, each with a common return and a dedicated fuse (6.3A). The triac design yields fast OFF‑to‑ON transition (1 ms) suitable for both resistive and inductive loads.
The JP1 jumper defines system behaviour on fuse failure. In its factory position (pins 1‑2), the processor continues running; only the group with the blown fuse is de‑energised. When set to pins 2‑3, a blown fuse triggers a non‑recoverable processor fault, forcing all outputs OFF and setting the major fault bit. The front‑panel red LED lights up immediately when a fuse opens, provided the module has both backplane and external load power. The module draws 370 mA from the 5V backplane and uses no 24V current, simplifying power supply sizing. All field wiring terminates on a removable colour‑coded terminal block. Optical isolation (1500V) protects the controller from field transients and ground loops.
|
Item |
Description |
Part Number / Reference |
|
AC Output Module |
12-point 120/240V AC output |
1746-OAP12 |
|
Replacement Fuse Kit |
5 x SAN-O HQ 6.3A fuses |
1746-F9 |
|
Individual Fuse |
SAN-O HQ 6.3A (for UL/CSA compliance) |
SAN-O HQ 6.3A |
|
External Overload Fuse |
SAN-O HT (field-supplied, max 2.0A per load) |
SAN-O HT |
|
Replacement Terminal Block |
Colour-coded removable block |
1746-RTB (series-specific) |
|
Slot Filler |
Blank cover for unused chassis slots |
1746-N2 |
|
Octal Label Kit |
For converting decimal to octal addressing |
Order by catalog number |
|
Installation Guide |
SLC 500 Digital I/O Modules instructions |
1746-IN027 |
