Product Name: Universal AC Power Input Module
Brand Name: Bently Nevada
Model Number: 106M1081-01
Place of Origin: United States
Warranty: 12 Months
Whatsapp：+86 18020776782
Email：[email protected]
overview
| Product Name | Universal AC Power Input Module |
| Brand Name | Bently Nevada |
| Model Number | 106M1081-01 |
| Place of Origin | USA |
| Warranty | 12 months |
| Payment Methods | T/T |
| Shipment | DHL/UPS/EMS/Fedex... |

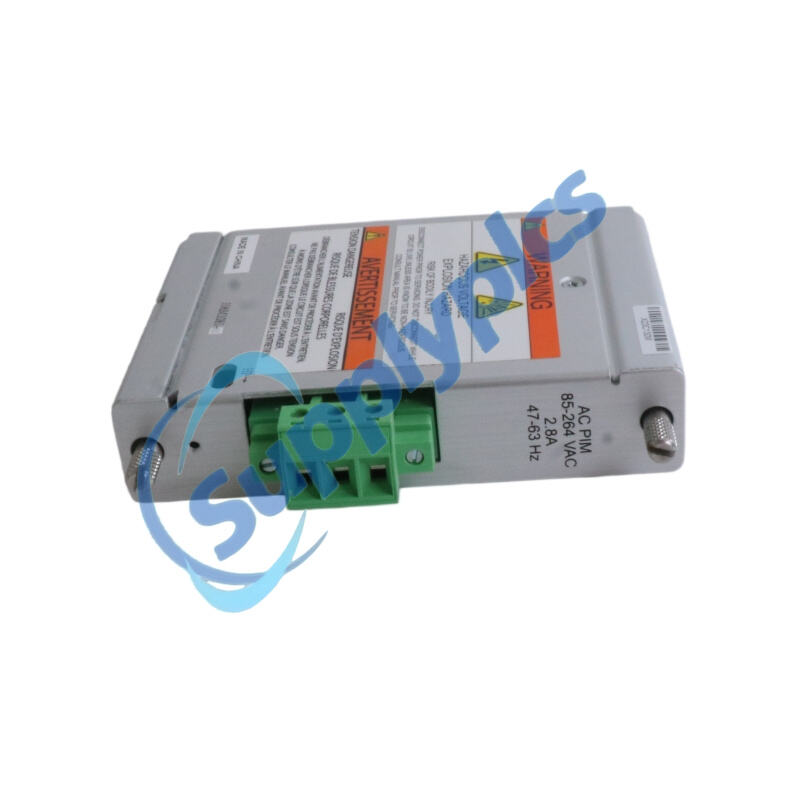

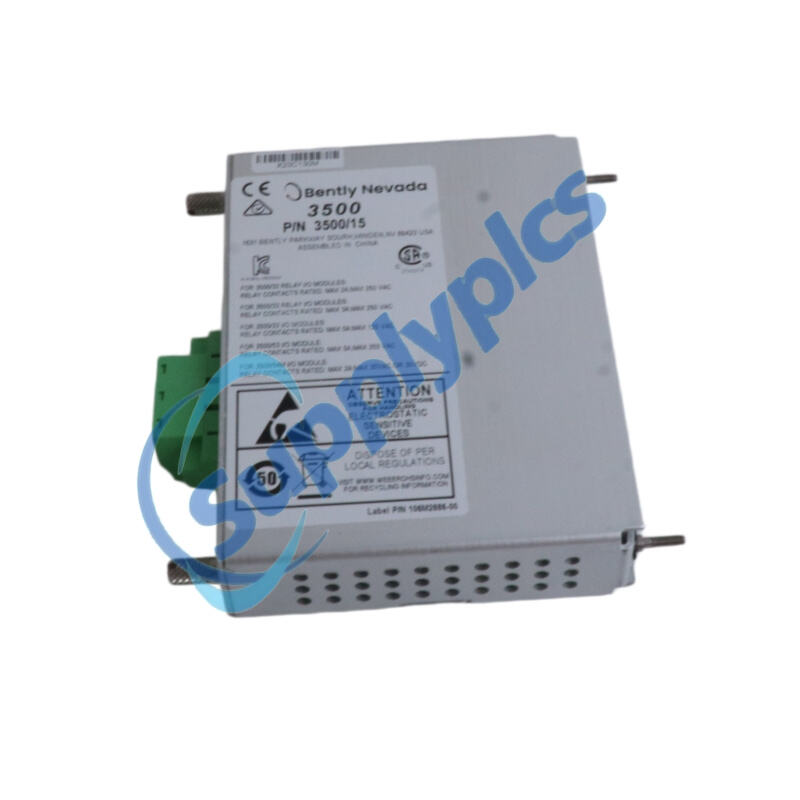

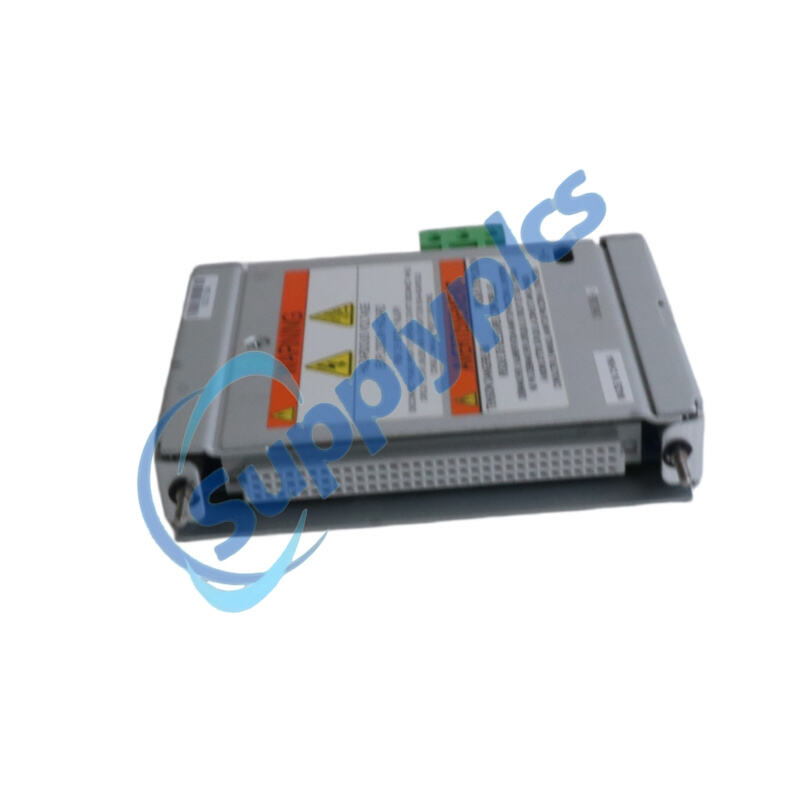

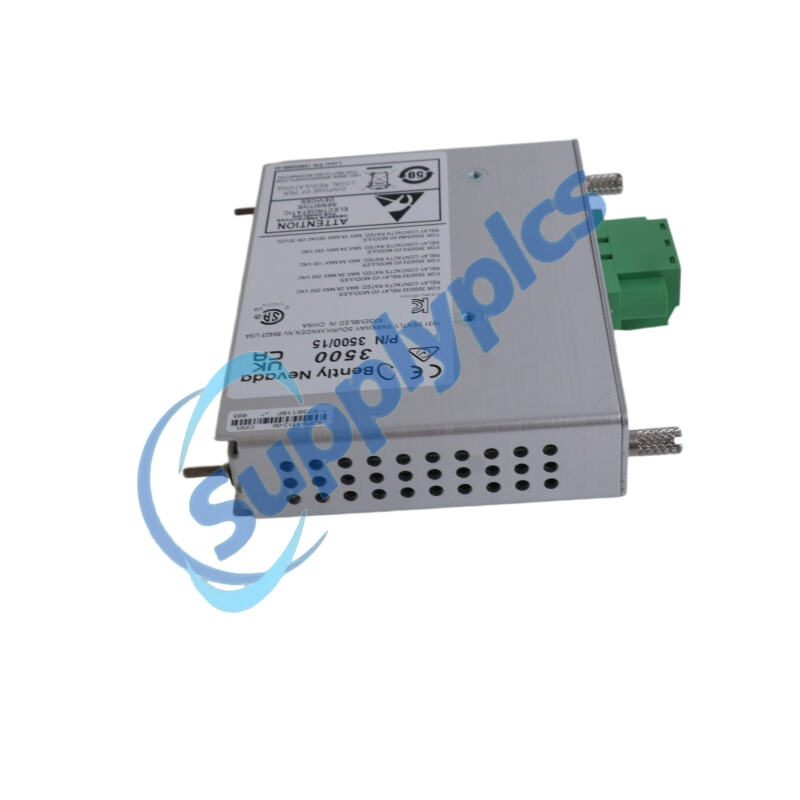

The Bently Nevada 106M1081-01 Universal AC Power Input Module is an industrial-grade power interface designed for the 3500/15 mechanical protection rack system. It receives external AC power and converts it into stable internal voltages required by rack modules. Installed on the left rear side of the rack, it ensures reliable and continuous power distribution for monitoring and protection systems in industrial environments.
Accepts and conditions external AC power for the 3500/15 rack system
Converts wide-range AC input into stable DC supply for rack modules
Enables continuous system operation during power module replacement
Supports redundant power supply configurations (primary and backup operation)
Ensures uninterrupted power delivery to vibration monitoring and protection modules
|
Sales: |
Email: |
Whatsapp: |
|
Jim Pei |
| Product Name | Bently Nevada 106M1081-01 Universal AC Power Input Module |
| Manufacturer | Bently Nevada |
| Product Type | Universal AC Power Input Module |
| Part Number | 106M1081-01 |
| Dimensions | 2.5x12x12cm |
| Weight | 0.32 kg |
| Place of shipment | Xiamen, China |
| Country of origin | USA |
| Condition | New & Original in Factory Packing |
| Frequency | 47 – 63 Hz |
| In-rush Current | ≤ 30 A peak |
| Isolation | 2 kV AC input-to-output |
| Operating Temp | -30 °C to +65 °C-22 °F to +150 °F |
| Storage Temp | -40 °C to +85 °C-40 °F to +185 °F |
| Humidity | 95 % RH non-condensing |
| Input Voltage: | 110 to 220 Vac nominal |
| Non-hazardous areas | 85 to 264 Vac rms |
| Hazardous areas | 85 to 250 Vac rms，120 to 373 Vac pk |
Wide AC input range: 110–220 Vac nominal (up to 85–264 Vac in non-hazardous areas)
Frequency compatibility: 47–63 Hz
High in-rush current tolerance: ≤ 30 A peak
Strong electrical isolation: 2 kV AC input-to-output
Supports hazardous and non-hazardous area voltage ranges
Dual power supply compatibility for redundancy
Designed for hot-swappable rack operation (no downtime during replacement)
Compact industrial design for rack integration (2.5 × 12 × 12 cm)
Factory-new and original packaging condition
The Bently Nevada 106M1081-01 Universal AC Power Input Module is engineered for high reliability in harsh industrial environments. It maintains stable power conversion across fluctuating input voltages and frequencies, ensuring consistent system performance. With robust 2 kV isolation and high humidity tolerance (up to 95% non-condensing), it provides strong electrical safety and operational stability. Its redundant power architecture improves system uptime by allowing seamless switching between power supplies, reducing downtime risks in critical machinery protection applications.
Environmental performance:
Q1: What is the Bently Nevada 106M1081-01 used for?
A: The 106M1081-01 Universal AC Power Input Module is used in the 3500/15 rack system to receive external AC power and distribute stable operating power to all rack modules.
Q2: Can the Bently Nevada 106M1081-01 operate in harsh industrial environments?
A: Yes, the 106M1081-01 operates reliably in harsh environments with temperatures from -30 °C to +65 °C and humidity up to 95% non-condensing.
Q3: Does the 106M1081-01 support redundant power configurations?
A: Yes, the Bently Nevada 106M1081-01 supports dual power supply configurations, allowing one unit to act as primary and the other as backup for continuous operation.
Q4: What input voltage range is supported by the Bently Nevada 106M1081-01?
A: The 106M1081-01 supports 110–220 Vac nominal input and a wider range of 85–264 Vac in non-hazardous applications.
Q5: Can the 106M1081-01 be replaced without shutting down the system?
A: Yes, the 106M1081-01 supports continuous system operation and allows module replacement without interrupting the 3500/15 rack system.
Q6: What is the electrical isolation rating of the Bently Nevada 106M1081-01?
A: The 106M1081-01 provides 2 kV AC input-to-output isolation to ensure safe and stable power conversion within the rack system.
