Product Name:3300 XL 8 mm Proximity Probes
Brand Name: BENTLY NEVADA
Model Number:330101-00-63-10-02-00
Country of Origin:USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
BENTLY NEVADA |
Model Number: |
330101-00-63-10-02-00 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |

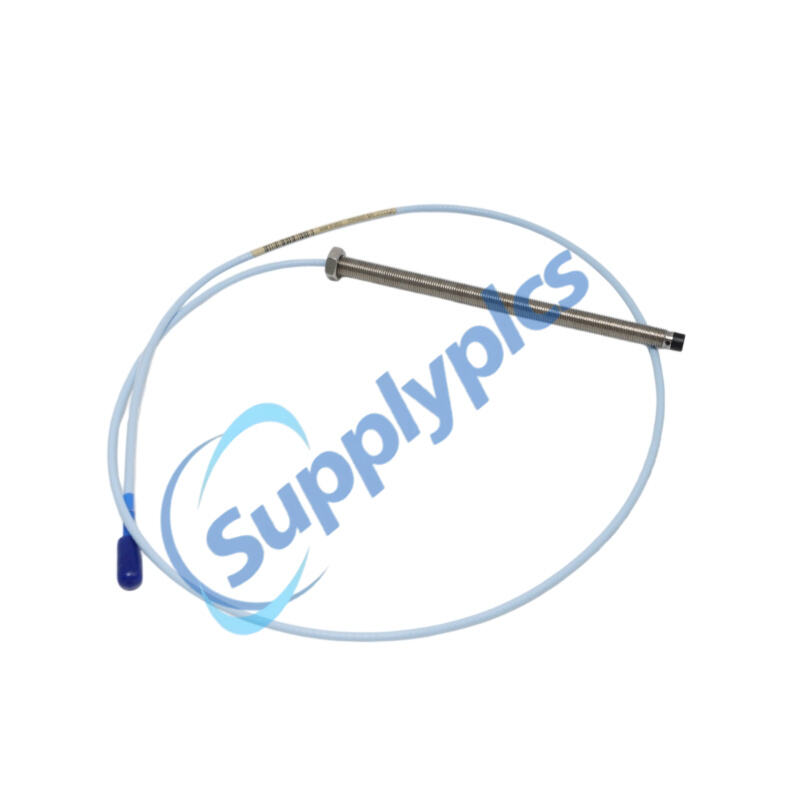

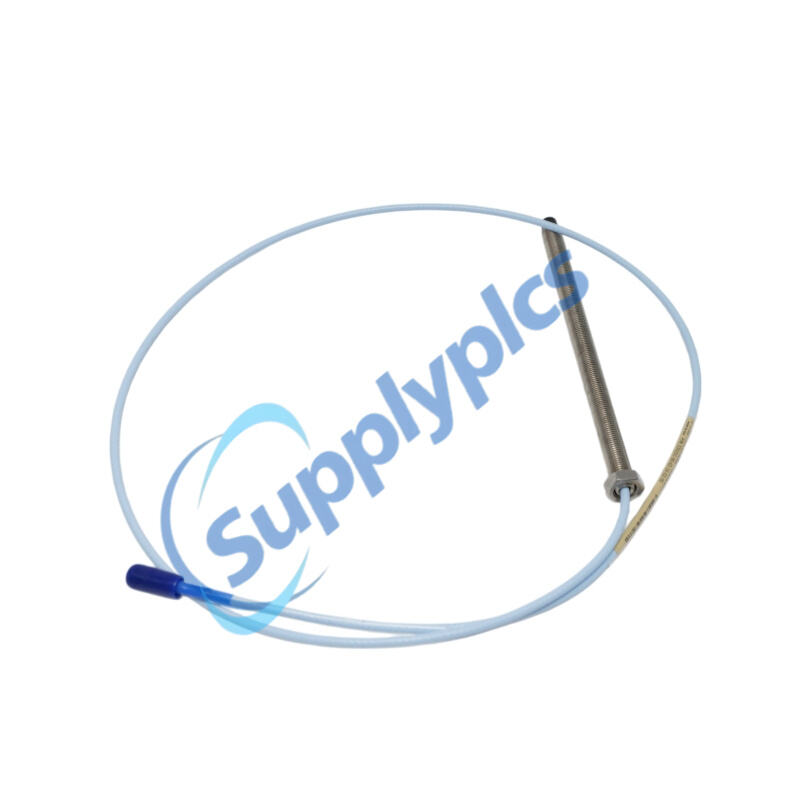

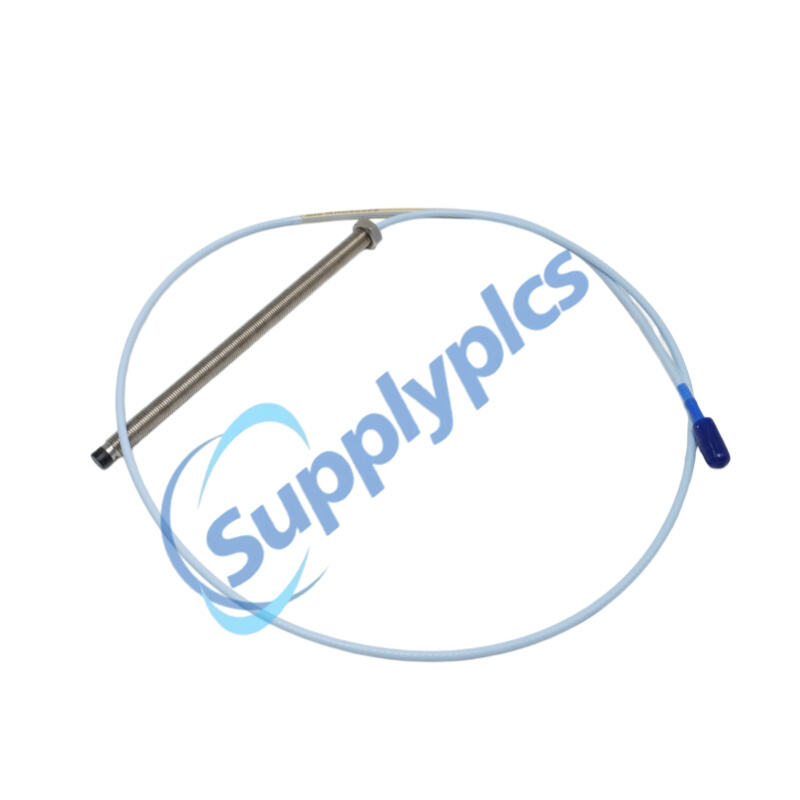

The Bently Nevada 330101-00-63-10-02-00 is a high-performance eddy current proximity probe from the 3300 XL 8 mm series, designed for non-contact vibration and position monitoring of rotating machinery.
Steam Turbines – Radial vibration monitoring on high-speed rotating shafts
Gas Turbines – Non‑contact shaft displacement and position measurement
Compressors – Early fault detection and predictive maintenance
Pumps – Bearing health monitoring and speed reference
Fluid‑Film Bearing Machines – Vibration and position measurements in oil‑film bearings
Keyphasor And Speed Measurements – Zero‑speed and overspeed detection systems
Power Generation Plants – Continuous monitoring for root cause analysis and machine protection
Industrial Automation – Integration with Bently Nevada 3500, 1900/65, Trendmaster® systems, and other TSI platforms
API 670 Compliant – Fully meets the American Petroleum Institute API 670 (4th Edition) standard for mechanical configuration, linear range, accuracy, and temperature stability
Fully Interchangeable System – Eliminates the need to match or bench calibrate individual probes, extension cables, and Proximitor sensors
Eddy Current Technology – Outputs a voltage directly proportional to the distance between the probe tip and the conductive target surface, allowing measurement of both static (position) and dynamic (vibration) values
Robust Physical Design – Patented TipLoc molding for enhanced bond between probe tip and body; CableLoc provides 330 N (75 lbf) pull strength for probe cable to tip security
Gold‑Plated ClickLoc Connectors – Corrosion‑resistant connectors requiring only finger‑tight torque; connectors “click” when tight, with a specially engineered locking mechanism that prevents loosening
Extended EMI/RFI Immunity – Highly resistant to radio frequency interference; can be installed in fiberglass housings without adverse effects and satisfies European CE mark approvals without requiring special shielded conduit or metallic housings, lowering installation costs and complexity
Backward Compatible – Electrically and physically interchangeable with non‑XL 3300 series 5 mm and 8 mm transducer system components; includes compatibility with 3300 5 mm probe for applications with limited mounting space
Optional FluidLoc Cabling – Prevents oil and other liquids from leaking out of the machine through the cable’s interior (separate part number option)
Exhaustive Environmental Testing – Validated to remain within specification across humidity extremes and a wide operating temperature range
Non‑Contact Vibration Monitoring – Detect and analyze vibration levels in rotating equipment to identify potential faults such as imbalances, misalignments, looseness, and bearing failures
Axial Position (Thrust) Monitoring – Measure static shaft position to detect abnormal thrust loading or axial displacement in fluid‑film bearing machines
Shaft RPM And Keyphasor Reference – Provide once‑per‑revolution timing reference for machinery protection systems such as 3500 rack monitors; also used for speed detection and overspeed protection applications
Radial Vibration Measurement – Capture peak‑to‑peak vibration displacement for real‑time condition assessment in power plant turbines, compressors, and pumps
Compatible With Bently Nevada Monitoring Systems – Interfaces with 3500 Monitor Racks, 1900/65 General Purpose Monitors, and Trendmaster® online condition monitoring platforms across Ethernet, Modbus, and legacy analog interfaces
Early Fault Detection And Predictive Maintenance – Continuous real‑time data feedback supports condition‑based maintenance strategies and enables root cause analysis of machinery degradation
Q1: Does the Bently Nevada 330101-00-63-10-02-00 meet API 670 standards?
A1: Yes. The 3300 XL 8 mm system fully complies with the American Petroleum Institute API 670 Standard (4th Edition) for mechanical configuration, linear range, accuracy, and temperature stability. The 330101-00-63-10-02-00 benefits from this compliance as part of the complete 3300 XL transducer system.
Q2: Is an extension cable required for this model?
A2: No. This version has a total cable length of 1.0 meter (3.3 feet) from the probe to the Proximitor sensor connection. One‑meter systems do not use an extension cable.
Q3: What are the temperature limits?
A3: The standard probe operates from –52°C to +177°C (–62°F to +350°F). For higher temperatures, the extended temperature range (ETR) version is available, rated for up to +218°C (425°F) at the probe tip. Note that suffix 00 denotes the standard‑temperature configuration.
Q4: Is the probe interchangeable with older 3300 series components?
A4: Yes. The 330101-00-63-10-02-00 is backward compatible and electrically/physically interchangeable with non‑XL 3300 series 5 mm and 8 mm components. However, mixing XL and non‑XL components limits system performance to the specifications of the non‑XL system.
Q5: Does this probe have hazardous area approvals?
A5: Suffix 00 indicates no hazardous area approval. For CSA, ATEX, and IECEx approvals for hazardous locations, order the same base probe with suffix 05 in the agency approval position (e.g., 330101- 00- 63- 10- 02- 05). Other suffixes are also available for specific regional certifications.
