Product Name: Proximity Probes
Brand Name: Bently Nevada
Model Number:330106-05-30-15-02-00
Country of Origin:USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
Bently Nevada |
Model Number: |
330106-05-30-15-02-00 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Parameter |
Value |
|
Model Number |
330106-05-30-15-02-00 |
|
Probe Type |
Reverse Mount, 3300 XL 8 mm Proximity Probe |
|
Thread Size |
M10 x 1 (metric) |
|
Unthreaded Length Option |
Fixed (part of -05-30 base configuration) |
|
Overall Case Length Option |
Fixed (part of -05-30 base configuration) |
|
Total Length (C) |
1.5 meters (4.9 feet) |
|
Connector & Cable Type |
02 – Miniature ClickLoc coaxial connector, standard cable (no connector protector) |
|
Agency Approval |
00 – Not required |
|
Probe Tip Material |
Polyphenylene sulfide (PPS) |
|
Probe Case Material |
AISI 303 or 304 stainless steel |
|
Cable Type |
75Ω triaxial, FEP insulated |
|
Measurement Principle |
Eddy current (non-contact) |
|
Linear Range |
2 mm (80 mils) from 0.25 mm to 2.3 mm (approx. -1 to -17 Vdc) |
|
Incremental Scale Factor (ISF) |
7.87 V/mm (200 mV/mil) ±5% (with interchangeability) |
|
Recommended Gap (Radial Vibration) |
-9 Vdc (~1.27 mm / 50 mils) |
|
Frequency Response |
0 to 10 kHz, +0, -3 dB (with up to 305m field wiring) |
|
Minimum Target Diameter |
15.2 mm (0.6 in) flat target |
|
Recommended Shaft Diameter |
≥76.2 mm (3 in) |
|
Probe Temperature Range (Standard) |
-52°C to +177°C (-62°F to +350°F) |
|
Cable Temperature Range |
-52°C to +177°C (-62°F to +350°F) |
|
Max Rated Torque (Reverse Mount) |
22.6 N·m (200 in·lbf) |
|
Recommended Torque |
7.5 N·m (66 in·lbf) |
|
Tensile Strength (Probe case to lead) |
330 N (75 lbf) |
|
Connector Material |
Gold-plated brass or beryllium copper |
|
Min Cable Bend Radius |
25.4 mm (1.0 in) |
|
Weight (approx.) |
323 g/m (probe only) |

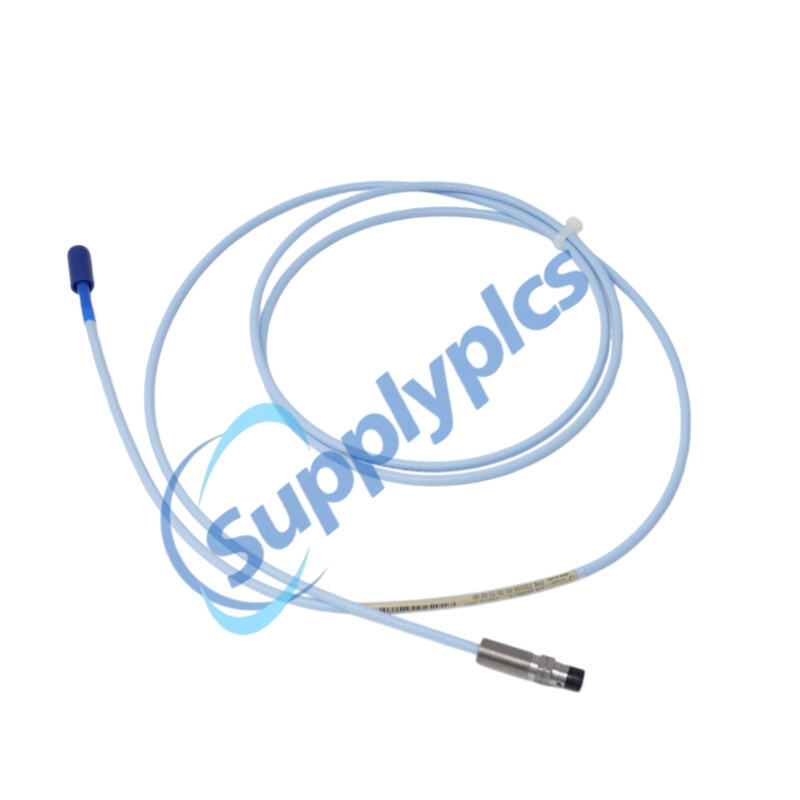

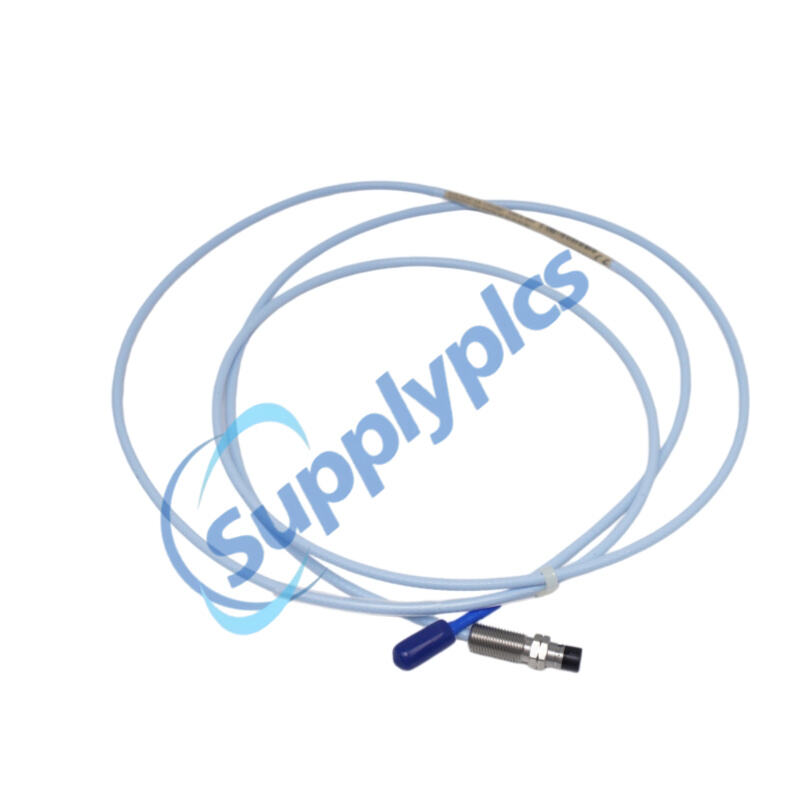

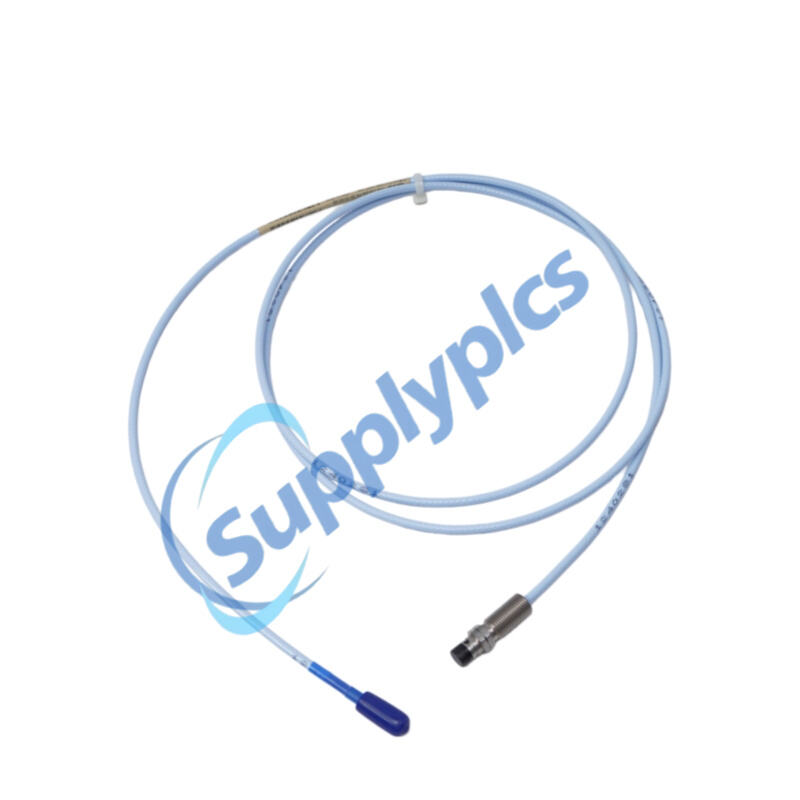

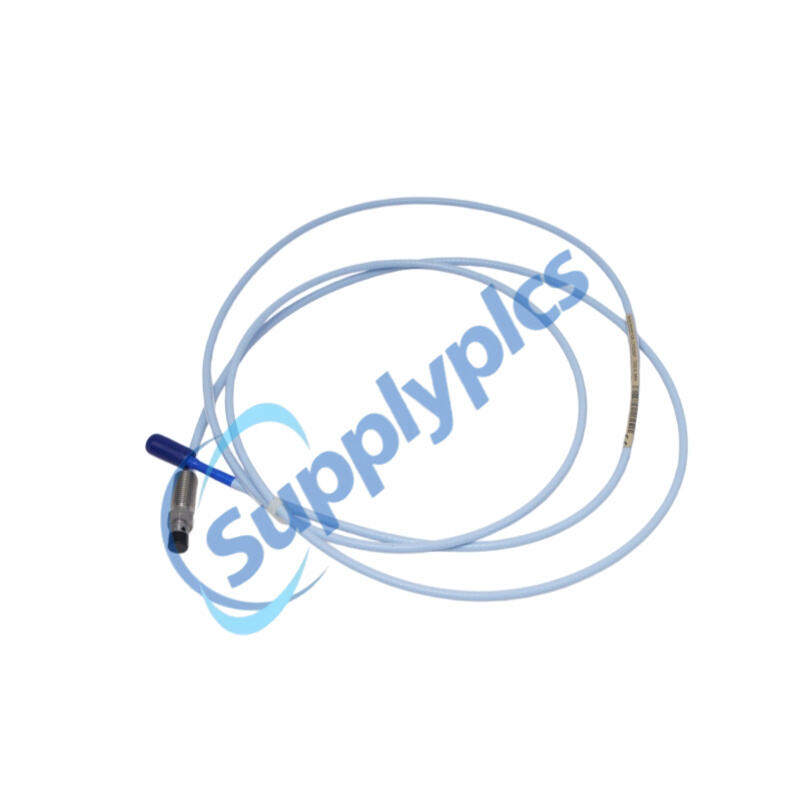

The 330106-05-30-15-02-00 is a reverse-mount variant of the 3300 XL 8 mm proximity probe, specifically threaded with M10 x 1 for metric mounting requirements. Reverse mounting allows the probe to be installed from behind the observed surface, ideal for machine casings where front access is impossible or unsafe. The probe uses a patented TipLoc molding method for a robust bond between the tip and body, and a CableLoc design providing 330 N pull strength. The ClickLoc gold-plated connector requires only finger-tight torque (audible click) and resists loosening from vibration. The standard FEP-insulated triaxial cable ensures reliable signal transmission up to 1.5 meters total length. This model does not include connector protectors or hazardous area certifications, suitable for non-classified environments.
Reverse-mount vibration and position monitoring on fluid-film bearing machines (e.g., steam turbines, compressors)
Axial (thrust) position measurement where probe access is from the rear of the bearing housing
Radial vibration detection on shafts with limited front clearance
Keyphasor reference and speed measurement (non-overspeed protection use – consult application note)
Retrofitting older 3300 series 5 mm probes when physical mounting space is constrained but 8 mm probe body can be accommodated from reverse side
Interchangeable without calibration: Fully compatible with other 3300 XL 8 mm components and backward compatible with non-XL 3300 5/8 mm systems (though performance then limited to non-XL specs)
Reverse-mount geometry: Enables installation in tight casings where standard forward probes cannot fit
ClickLoc connectors: Finger-tight, corrosion-resistant, gold-plated connectors with positive locking mechanism – no special tools needed
High RFI/EMI immunity: CE marked without shielded conduit, reducing installation cost
FluidLoc option available (not on this model, but note): Prevents oil leakage through cable interior – here standard cable suffices for most reverse-mount installations due to probe sleeve presence
Durable construction: PPS probe tip and stainless steel case withstand harsh industrial environments
Thread engagement limits: Designed per 1.5x nominal thread diameter standard; exceeding 15 mm for M10 may cause binding
Converts proximity (gap) between probe tip and conductive target into a linear analog voltage (-1 to -17 Vdc over 2 mm range)
Simultaneously measures static gap (position) and dynamic gap variation (vibration amplitude)
Interfaces directly with 3300 XL Proximitor Sensor (not included) which conditions the signal for monitoring systems
Provides reliable, non-contact measurement without rubbing or loading the rotating shaft
Supports both standard and extended temperature range applications when paired with appropriate extension cables and Proximitor sensors
Q1: What is the difference between this reverse-mount probe and a standard forward-mount probe?
A: The reverse-mount design (330106) allows installation from behind the target surface using M10 x 1 threads. Standard forward probes mount from the front. Reverse mounting is essential when casing design blocks front access.
Q2: Can I use this probe with a 3300 XL Proximitor Sensor that has a different total length?
A: Yes, but the combined probe + extension cable length must match the Proximitor sensor’s total length rating (1, 5, or 9 meters). For 1.5 m probe, use a 330180 Proximitor sensor with 1 m total length (probe + extension = 1 m) – note that 1.5 m probe alone exceeds 1 m system, so you may need a 5 m system and adjust extension cable accordingly. Always sum probe + extension equals Proximitor length.
Q3: Is this probe compatible with non-XL 3300 series components?
A: Electrically and physically interchangeable with non-XL 3300 5 mm and 8 mm components. However, mixing limits overall performance to non-XL specifications.
Q4: What torque should I apply when installing this reverse-mount probe?
A: Recommended torque is 7.5 N·m (66 in·lbf). Maximum rated torque is 22.6 N·m (200 in·lbf). Exceeding recommended values may cause binding or damage, especially with thread engagement longer than 15 mm.
Q5: Does this probe include a connector protector?
A: No, option “02” means standard ClickLoc connector without protector. You can order connector protectors separately (e.g., 40180-02) for field installations where environmental protection is needed.
