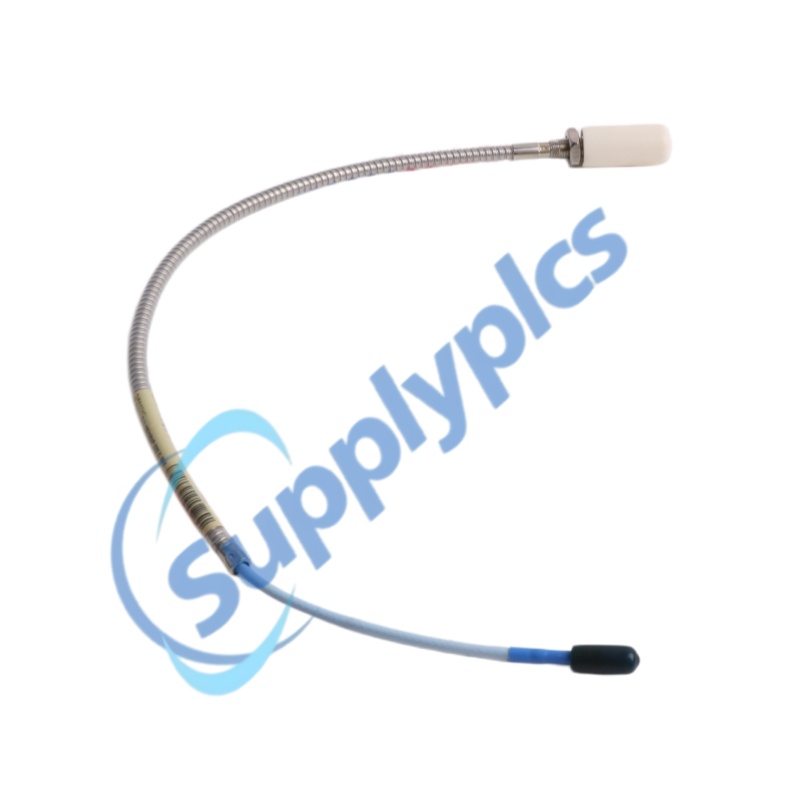

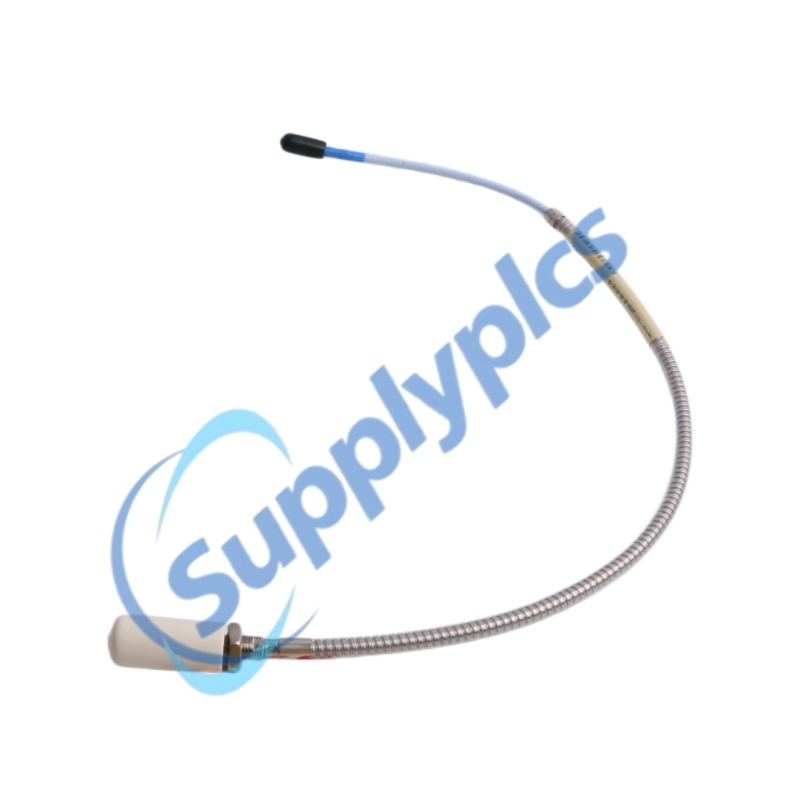

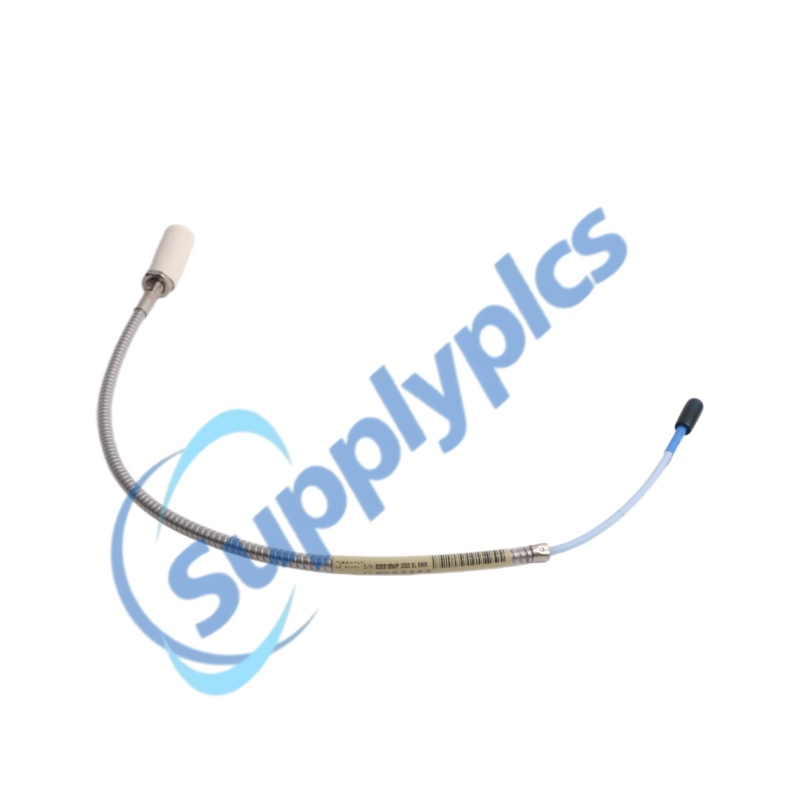

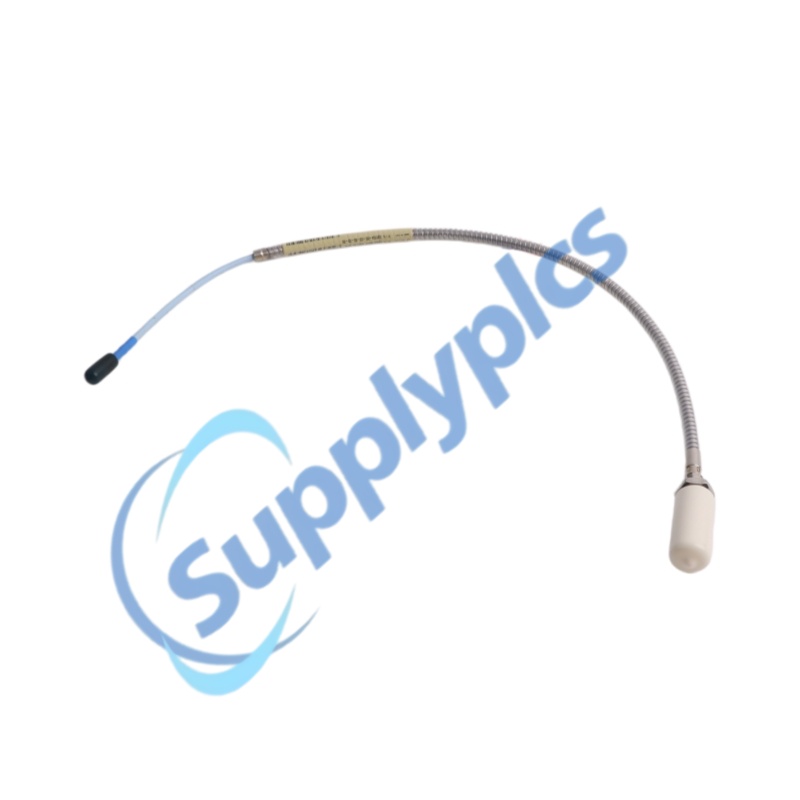

Product Name:3300 XL 8 mm Proximity Probes
Brand Name:Bently Nevada
Model Number:330104-00-03-05-02-00
Country of Origin:USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
Bently Nevada |
Model Number: |
330104-00-03-05-02-00 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
| Item | Description |
|---|---|
| Model | 330104-00-03-05-02-00 |
| Series | 3300 XL 8 mm Proximity Probe |
| Thread Type | M10 x 1 |
| Probe Type | Armored coaxial probe |
| Measurement Type | Eddy current non-contact sensing |
| Output Signal | Voltage proportional to shaft distance |
| Linear Range | Approx. 2 mm |
| Operating Temperature | -52°C to +177°C |
| Cable Type | Coaxial / armored option |
| Connection Type | ClickLoc connector system |
| Sensitivity | 7.87 V/mm (typical system) |
| Weight | ~0.3–0.35 kg (depending on length) |
| Probe Diameter | 8 mm |
| Overall Length | Custom configuration based on order code |
The 330104-00-03-05-02-00 is part of the advanced 3300 XL 8 mm proximity probe series designed for precise vibration and position measurement in industrial rotating machinery. Built on a robust eddy current sensing principle, it delivers stable, high-accuracy non-contact monitoring for critical equipment such as turbines, compressors, and pumps.
The 330104-00-03-05-02-00 features an armored M10 x 1 threaded probe design, offering enhanced mechanical protection and long-term durability in harsh environments. It ensures reliable signal transmission even under high vibration, oil exposure, and temperature variation, making it suitable for continuous industrial monitoring applications.
As part of the 3300 XL system, the 330104-00-03-05-02-00 works seamlessly with extension cables and Proximitor sensors, providing interchangeable and maintenance-friendly configuration. Its stable output performance supports both static and dynamic measurements, helping improve machine reliability and predictive maintenance efficiency.
Q1: What is the 330104-00-03-05-02-00 used for?
A1: It is used for non-contact vibration and position measurement in rotating industrial machinery.
Q2: Is the 330104-00-03-05-02-00 compatible with other 3300 XL components?
A2: Yes, it is fully compatible and interchangeable with 3300 XL extension cables and Proximitor sensors.
Q3: Can this probe be used in harsh environments?
A3: Yes, its armored design provides strong resistance to vibration, oil, and industrial contamination.
Q4: What type of measurement technology does it use?
A4: It uses eddy current proximity sensing technology for accurate displacement monitoring.
Q5: Where is this probe commonly installed?
A5: It is commonly installed in turbines, compressors, pumps, and other rotating equipment.
| Number | Description |
|---|---|
| 04310310 | 3300 XL Proximitor Sensor panel-mount screw, 6-32 UNC thread forming mounting screw. Four screws required per Proximitor sensor (included with standard 3300 XL panel-mount housings). |
| 03200006 | Silicone self-fusing tape, 9.1-meter (10-yard) roll. Provides electrical insulation and environmental protection for connectors. Not recommended for internal machine casing use. |
| 40113-02 | Connector Protector Kit for 3300 XL 8 mm probes and extension cables. Includes connector protectors and installation tools for environmental sealing. |
| 136536-01 | Connector protector adapter enabling compatibility with pre-1998 installation tools for 75Ω ClickLoc connector systems. |
| 40180-02 | Connector protectors set, includes 10 pairs for 3300 XL 8 mm probes and extension cables, ensuring secure environmental sealing of connections. |
| 03839410 | 75Ω triaxial male connector protector designed for extension cables, providing environmental shielding and secure connector mating protection. |
| 03839420 | 75Ω triaxial female connector protector for probe leads or extension cable interfaces, ensuring dust, oil, and moisture resistance. |
| 04301007 | 3/8-24 probe lock nut with safety wire holes, designed with dual holes for secure locking using safety wire in industrial installations. |
| 04301008 | M10 x 1 probe lock nut with safety wire holes, provides secure mechanical fastening and vibration-resistant installation for proximity probes. |
| 330153-01 | 3300 XL connector kit for 8 mm probes and extension cables. Includes male/female ClickLoc connectors, color-coded sleeves, slit FEP tubing, and silicone tape strip. |
