Product Name:3300 XL 8 mm Proximity Probes
Brand Name:Bently Nevada
Model Number:330104-01-06-10-02-00
Country of Origin: USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
Bently Nevada |
Model Number: |
330104-01-06-10-02-00 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Parameter |
Specification |
|
Model Number |
330104-01-06-10-02-00 |
|
Product Series |
3300 XL 8 mm Proximity Probe |
|
Thread Type |
M10 × 1 Metric Thread |
|
Probe Type |
Armored Proximity Probe |
|
Unthreaded Length |
10 mm |
|
Overall Case Length |
60 mm |
|
Total Cable Length |
1.0 meter (3.3 ft) |
|
Connector Type |
Miniature ClickLoc Connector |
|
Cable Type |
Standard Cable |
|
Linear Range |
2 mm (80 mils) |
|
Sensitivity |
7.87 V/mm (200 mV/mil) |
|
Frequency Response |
0 to 10 kHz |
|
Probe Tip Material |
Polyphenylene Sulfide (PPS) |
|
Probe Case Material |
AISI 303/304 Stainless Steel |
|
Operating Temperature |
-52°C to +177°C |
|
Recommended Gap Setting |
1.27 mm (50 mils) |
|
Minimum Shaft Diameter |
50.8 mm |
|
Dimension |
1.8x1.5x109cm |
|
Weight |
0.12kg |

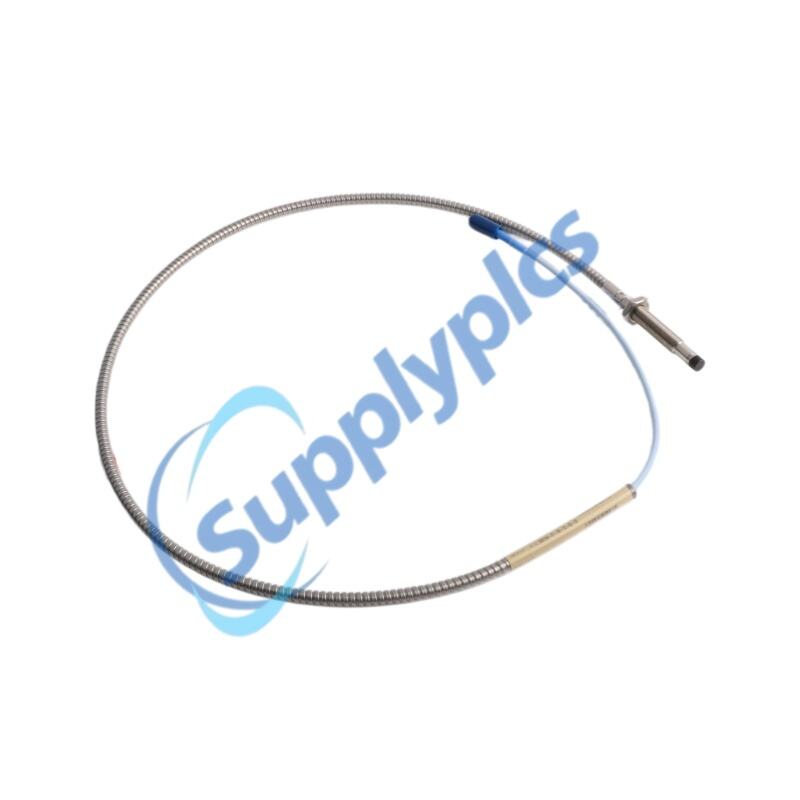

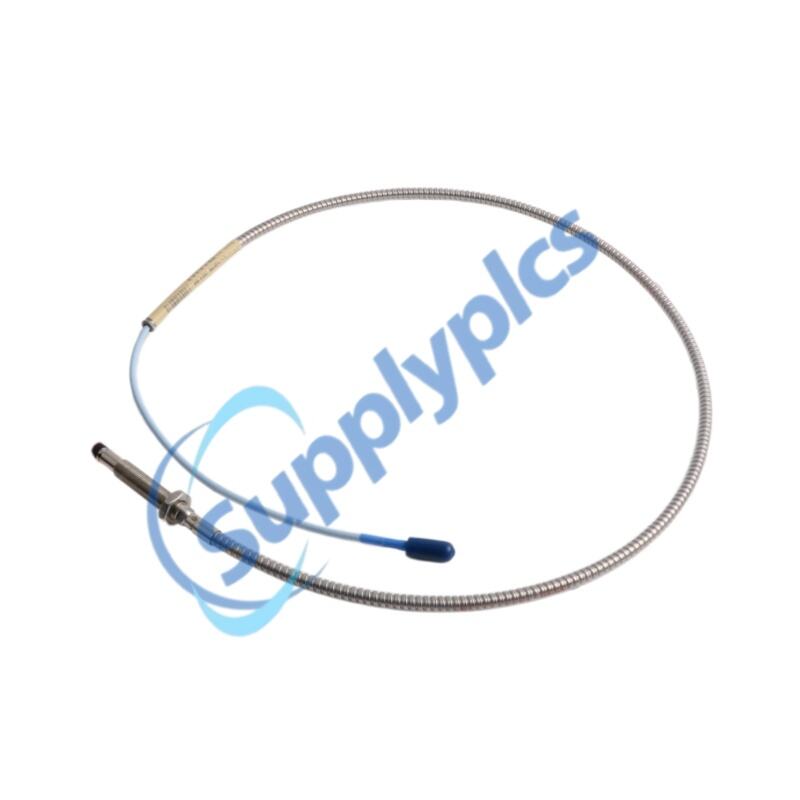

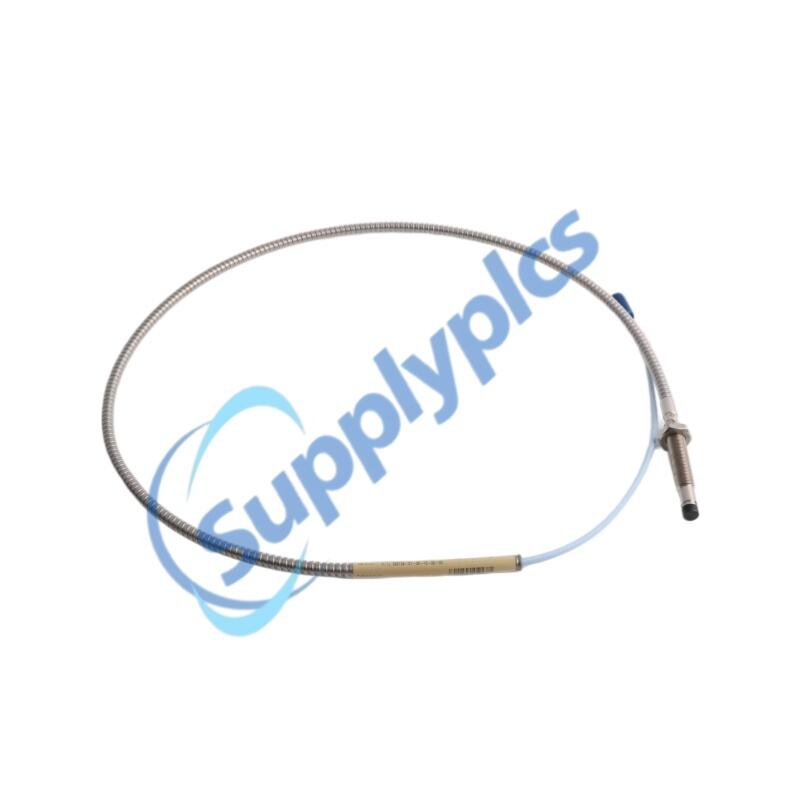

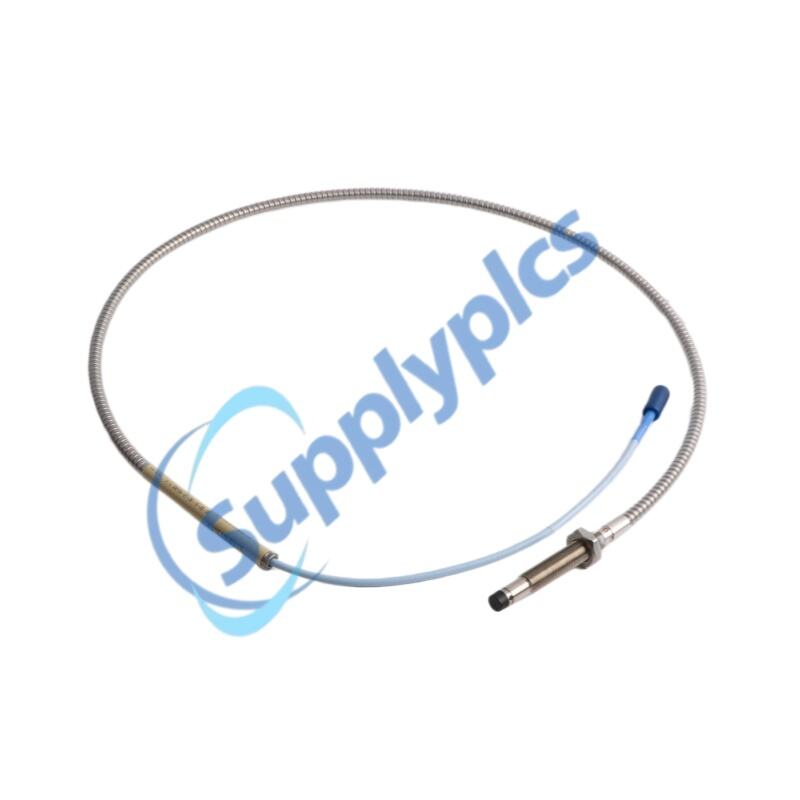

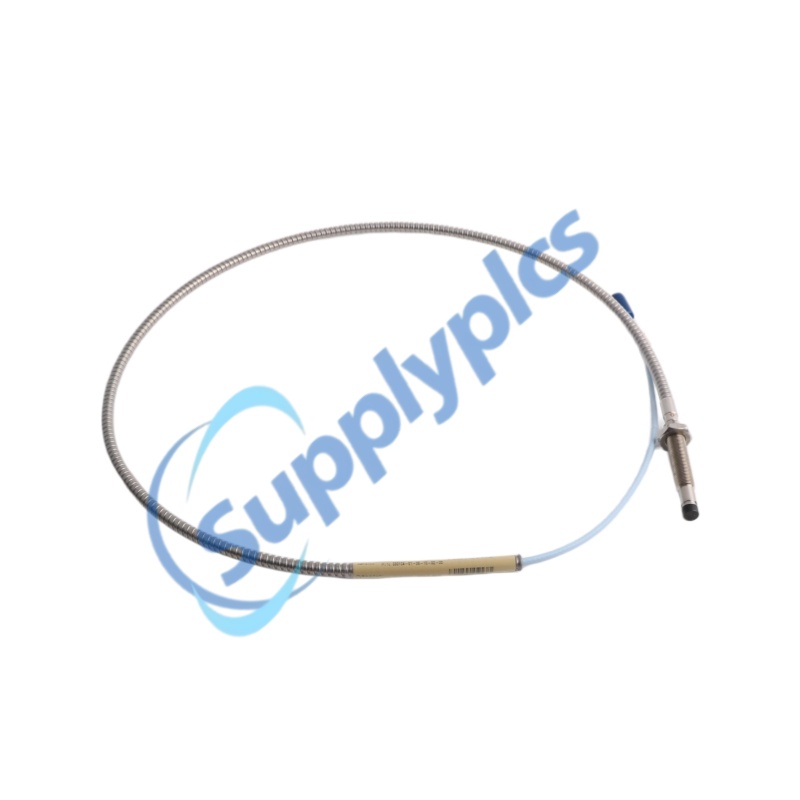

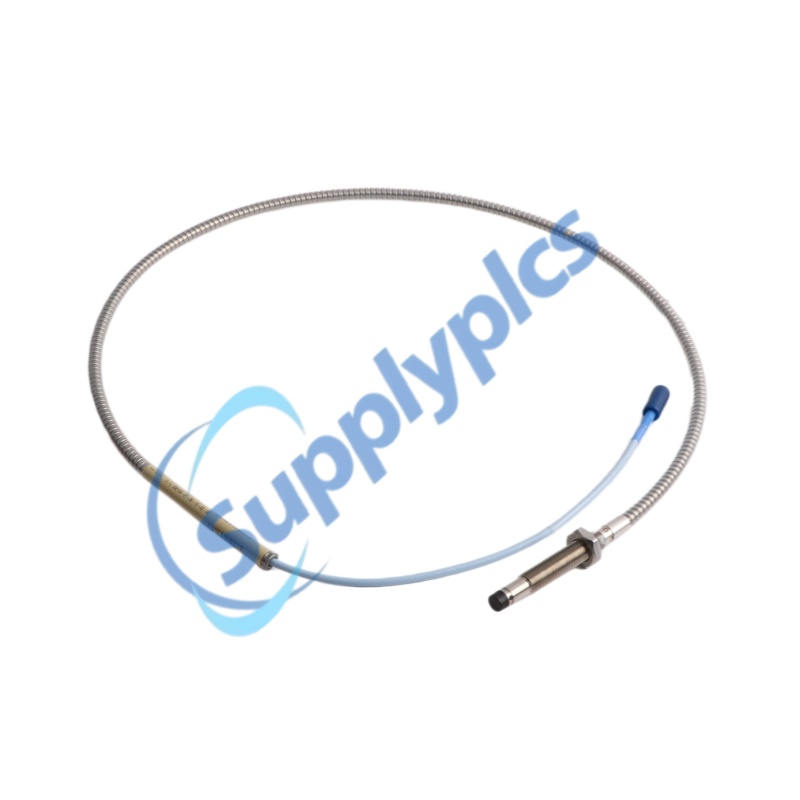

Bently Nevada 330104-01-06-10-02-00is a high-performance eddy current proximity probe designed for accurate shaft vibration and position monitoring in critical rotating machinery. As part of the3300 XL 8 mm Proximity Transducer System, this model features an armored M10 × 1 threaded probe with a 1.0-meter cable configuration, providing stable signal transmission and enhanced mechanical durability in industrial environments.
The330104series is widely used with3300 XL Proximitor Sensorsand extension cables for turbine, compressor, motor, and pump protection systems. Its advanced probe construction delivers excellent linearity, reliable temperature stability, and strong resistance to EMI/RFI interference. The integrated ClickLoc connector design also simplifies installation and maintenance in confined control cabinets or field applications.
Compatible with multipleBently Nevada 3300 XLmonitoring components, the330104-01-06-10-02-00probe supports API 670-compliant machinery protection systems and is suitable for continuous vibration analysis, shaft displacement monitoring, Keyphasor reference measurement, and predictive maintenance programs across demanding industrial sectors.
Q1: What is the main function of the 330104-01-06-10-02-00 probe?
A1: It is used for non-contact vibration and shaft position monitoring in rotating machinery systems.
Q2: Is the 330104-01-06-10-02-00 compatible with other 3300 XL components?
A2: Yes, it is compatible with standard Bently Nevada 3300 XL extension cables and Proximitor sensors.
Q3: What industries commonly use this proximity probe?
A3: Power generation, oil & gas, chemical processing, steel manufacturing, and industrial automation industries commonly use it.
Q4: Does this probe support harsh industrial environments?
A4: Yes, the armored cable structure and stainless-steel housing provide strong durability and environmental resistance.
Q5: What is the operating temperature range of this probe?
A5: The standard operating temperature range is from -52°C to +177°C.
| Number | Describe |
|---|---|
| 141078 | 3300 XL 8 mm and 3300 5 mm Proximity Transducer System manual for installation, operation, and maintenance reference |
| 175751 | Multi-purpose stainless steel housing, 12”×12”×6”, supports up to 8 DIN-mount or 6 panel-mount Proximitor Sensors with hazardous area certification options |
| 176467 | Compact stainless steel housing, 12”×8”×6”, supports up to 4 3300 XL Proximitor Sensors in DIN-mount or panel-mount configurations |
| 330181 | Stainless steel hazardous-area housing, 13”×9.5”×7”, designed for up to 8 DIN-mount or 6 panel-mount Proximitor Sensors |
| 02120015 | Bulk field wire, 1.0 mm² (18 AWG), 3-conductor twisted shielded cable with drain wire, custom length available |
| 138492-01 | Replacement panel-mount mounting pad for 3300 XL Proximitor Sensor installation |
| 138493-01 | Replacement DIN-mount mounting pad for DIN rail Proximitor Sensor mounting applications |
| 148722-01 | 3300 XL test plug with color-coded banana plug leads for Proximitor Sensor signal testing and diagnostics |
| 04310310 | Panel-mount screw for 3300 XL Proximitor Sensor installation, 6-32 UNC thread forming type |
| 03200006 | Silicone self-fusing protective tape roll for connector insulation and environmental sealing protection |
