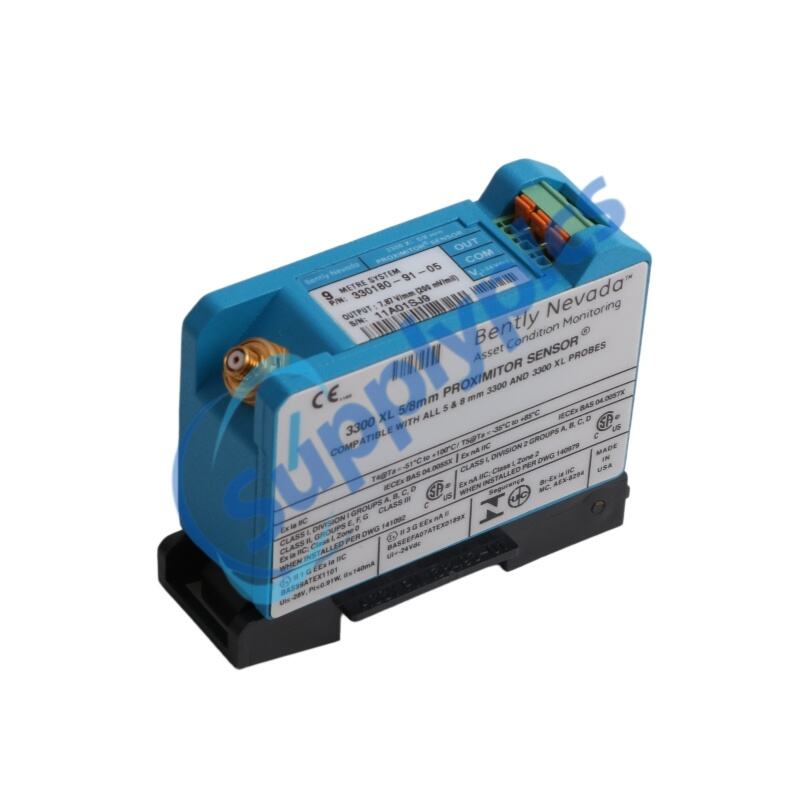

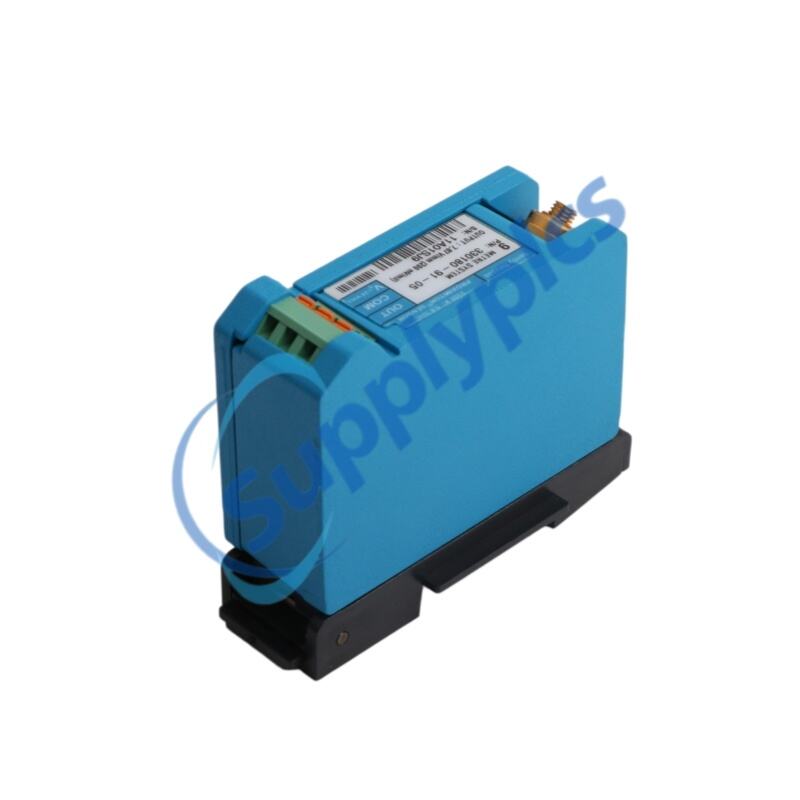

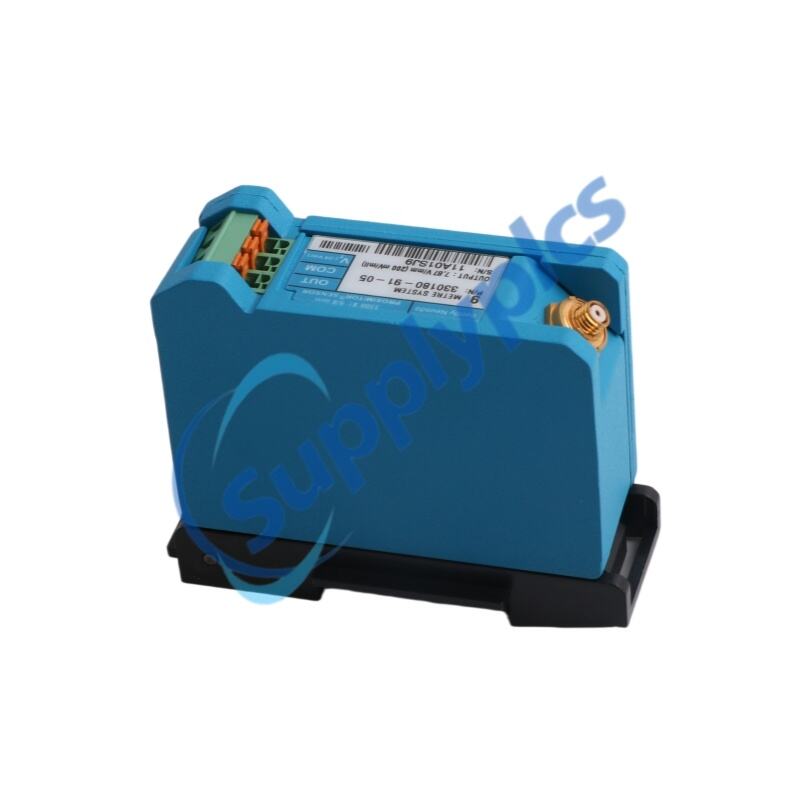

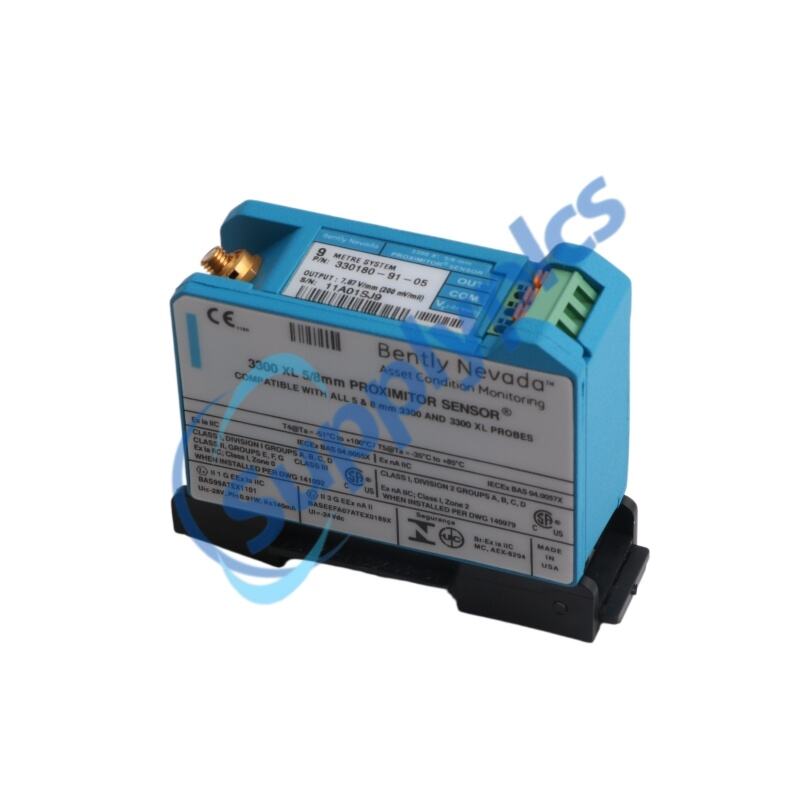

Product Name: 3300 XL Proximitor Sensor
Brand Name:Bently Nevada
Model Number: 330180-91-05
Country of Origin: USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
Bently Nevada |
Model Number: |
330180-91-05 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Item |
Description |
|
Model |
330180-91-05 |
|
System Type |
Eddy current proximity transducer system |
|
Total Length and Mounting Option |
9.0 meters (29.5 feet) system length, DIN mount |
|
Agency Approval Option |
CSA, ATEX, IECEx Approvals |
|
Approval |
CSA, ATEX, IECEx |
|
Output Type |
Voltage proportional to displacement |
|
Operating Temp |
-52°C to +177°C |
|
Storage Temp |
-52°C to +105°C |
|
Dimension |
8.8x3.5x7cm |
|
Weight |
0.22kg |
The 330180-91-05 Proximity Transducer System is part of the advanced 3300 XL series, engineered for precise non-contact measurement of vibration and position in industrial machinery. Built on a modular architecture, it integrates a high-performance probe, extension cable, and Proximitor sensor to deliver stable and accurate signal output proportional to target displacement. The system is widely applied in rotating equipment monitoring, including turbine and compressor condition analysis.
As part of the 3300 XL family, including variants such as 330130-040-00-00 and 330106-05-30-05-02-00, this model ensures high interchangeability and installation flexibility. It supports both DIN-rail and panel-mount configurations with certified hazardous-area compliance (CSA, ATEX, IECEx).
Designed for harsh industrial environments, the system provides long-term stability, strong EMI/RFI resistance, and reliable performance in continuous condition monitoring applications.
Q1: What is the 330180-91-05 used for?
A1: It is used for vibration, position, and speed monitoring in rotating industrial machinery.
Q2: Is the 330180-91-05 suitable for hazardous areas?
A2: Yes, it is certified with CSA, ATEX, and IECEx approvals for safe operation.
Q3: Can it be used in high-temperature environments?
A3: Yes, it operates reliably up to 177°C depending on configuration.
Q4: Is the system compatible with other 3300 XL components?
A4: Yes, it supports full interchangeability with 3300 XL probe and sensor modules.
Q5: What industries commonly use this system?
A5: It is widely used in power plants, chemical plants, steel mills, and manufacturing automation.
| Number | Describe |
|---|---|
| 141078 | 3300 XL 8 mm and 3300 5 mm Proximity Transducer System Manual |
| 175751 | 3300 XL multi-purpose stainless steel housing 12"x12"x6", supports up to 8 DIN-mount or 6 panel-mount Proximitor sensors, ATEX Zone 0/1 certified |
| 176467 | 3300 XL stainless steel housing 12"x8"x6", supports up to 4 Proximitor sensors, DIN or panel mount, ATEX Zone 0/1 certified |
| 330181 | 3300 XL stainless steel housing 13"x9.5"x7", supports up to 8 DIN or 6 panel sensors, hazardous area approved (ATEX Zone 0/1, Division 1/2) |
| 02120015 | Bulk field wire 1.0 mm² (18 AWG), 3-conductor twisted shielded cable with drain wire, length specified per order |
| 138492-01 | Replacement panel-mount mounting pad for Proximitor sensor installation |
| 138493-01 | Replacement DIN-mount mounting pad for Proximitor sensor installation |
| 148722-01 | 3300 XL test plug with 3-pin adapter and color-coded leads for sensor diagnostics without removing wiring |
| 04310310 | 3300 XL panel-mount screw, 6-32 UNC thread forming screw, 4 required per sensor |
| 03200006 | Silicone self-fusing tape (9.1 m roll) for connector protection and electrical insulation |
| 40113-02 | Connector protector kit for 3300 XL probes and extension cables, includes installation tools |
| 136536-01 | Connector protector adapter for compatibility with pre-1998 installation tools |
| 40180-02 | Connector protectors set (10 pairs) for environmental sealing of probe and extension cable connections |
| 03839410 | 75Ω triaxial male connector protector for extension cable-side protection |
| 03839420 | 75Ω triaxial female connector protector for probe-side or sensor-side protection |
| 04301007 | 3/8-24 probe lock nut with safety wire holes for secure mechanical locking |
| 04301008 | M10 x 1 probe lock nut with safety wire holes for secure installation |
| 330153-01 | 3300 XL connector kit with ClickLoc connectors, sleeves, FEP tubing, and silicone tape |
| 330153-09 | ETR connector kit for high-temperature applications with heat-resistant components |
| 163356 | Connector crimp tool kit with inserts and installation tools, compatible with ClickLoc systems |
