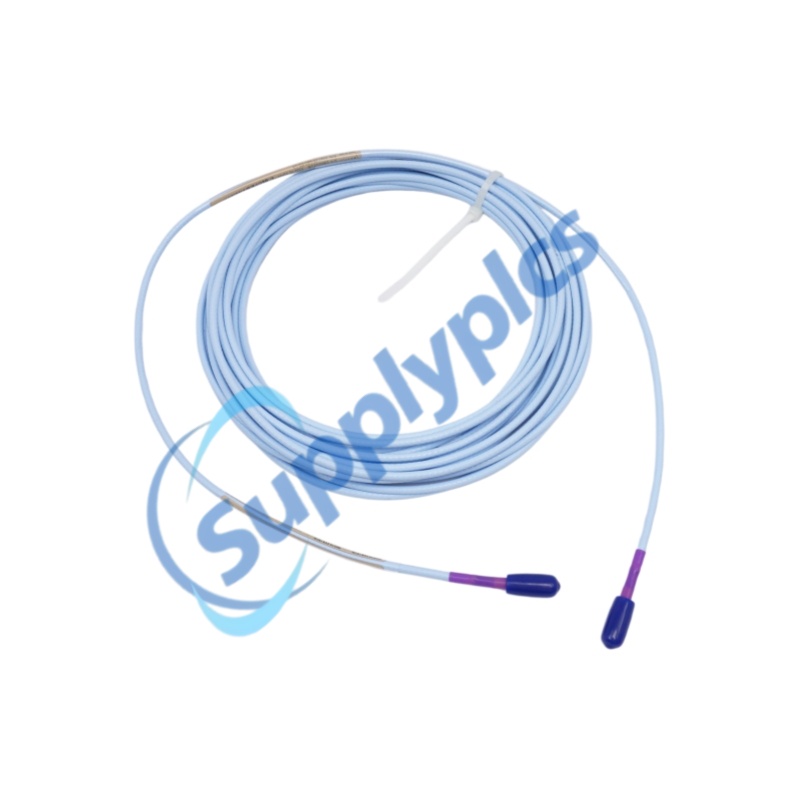

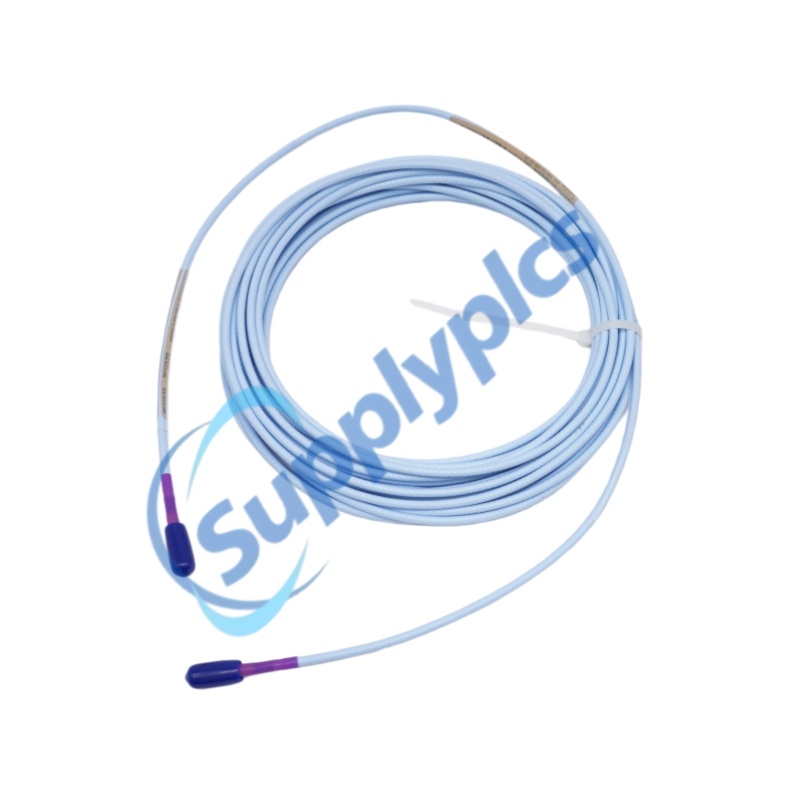

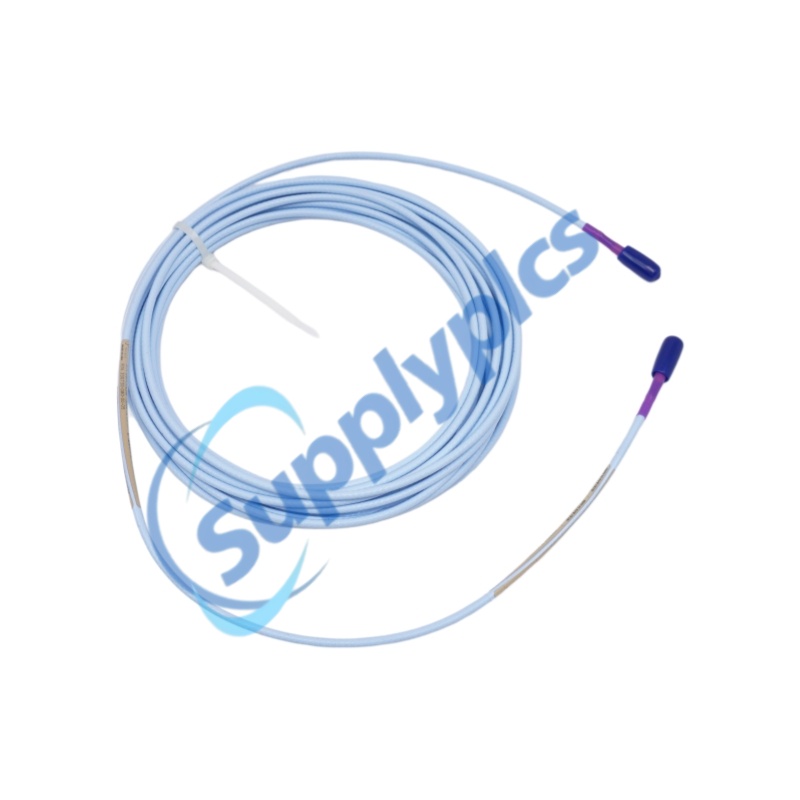

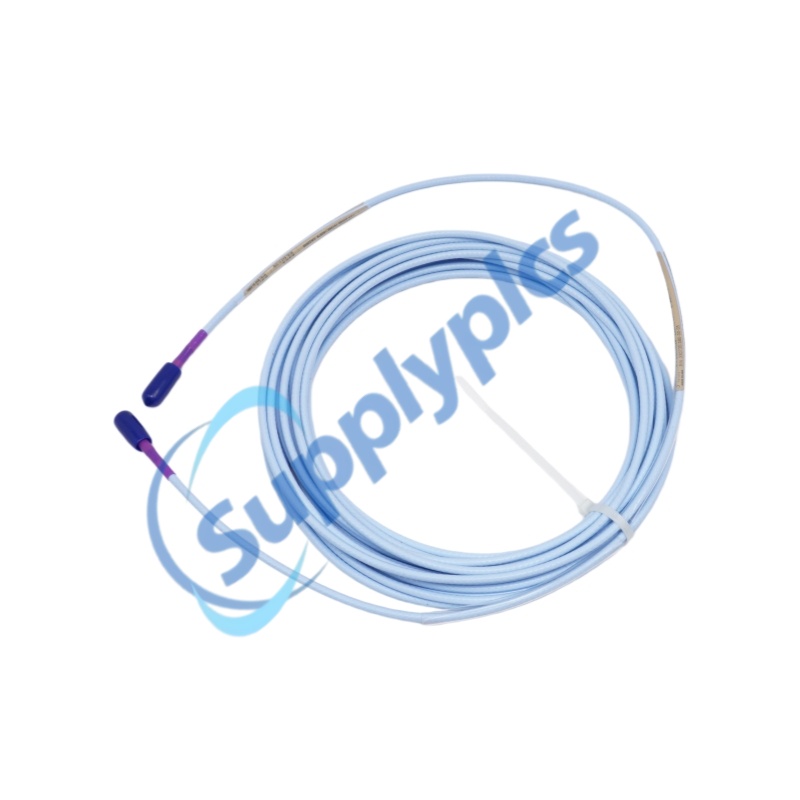

Product Name:3300 XL 11 mm Extension Cable
Brand Name:Bently Nevada
Model Number:330730-080-00-05
Country of Origin: USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
Bently Nevada |
Model Number: |
330730-080-00-05 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
| Item | Details |
|---|---|
| Model | 330730-080-00-05 |
| Series | Bently Nevada 3300 XL 11 mm |
| Cable Length | 8.0 meters (26.2 ft) |
| Cable Type | Triaxial FEP insulated cable |
| Connector Type | ClickLoc gold-plated brass |
| Operating Temp | -52°C to +177°C |
| Storage Temp | -52°C to +177°C |
| Impedance | 75 Ω |
| Weight | ~140 g/m (armored optional varies) |
| Min Bend Radius | 25.4 mm (1.0 in) |
| Installation | Probe + Proximitor compatible system |
The 330730-080-00-05 is part of the Bently Nevada 3300 XL 11 mm extension cable series designed for reliable signal transmission in high-precision proximity transducer systems. It works seamlessly with 3300 XL 11 mm probes and Proximitor sensors, ensuring stable performance in vibration and displacement monitoring applications across industrial environments.
As part of the 3300 XL NSv / 11 mm transducer architecture, the system supports flexible installation options, including armored and FluidLoc cable configurations. The 330730-080-00-05 variant is optimized for extended cable routing while maintaining low signal loss and high electromagnetic resistance, even in harsh operating conditions.
This extension cable is widely used in turbines, compressors, and rotating machinery systems where accurate shaft position and vibration measurement are critical for predictive maintenance and operational safety.
Q1 A1 What is the 330730-080-00-05 used for?
A1 It is an extension cable used in 3300 XL 11 mm proximity transducer systems for signal transmission.
Q2 A2 Is it compatible with all Bently Nevada probes?
A2 It is designed specifically for 3300 XL 11 mm probes and Proximitor sensors.
Q3 A3 Can it be used in harsh environments?
A3 Yes, its armored and FluidLoc options support industrial and harsh operating conditions.
Q4 A4 What is the cable length of this model?
A4 The 330730-080-00-05 provides an 8.0-meter extension length.
Q5 A5 Does it support vibration monitoring applications?
A5 Yes, it is widely used for vibration, displacement, and shaft position monitoring.
| number | describe |
|---|---|
| 146255 | 3300 XL 11 mm user guide providing installation, configuration, and system operation guidance for proximity transducer applications. |
| 144979 | Performance specification document defining system accuracy, linear range, electrical behavior, and environmental limits for 3300 XL 11 mm system. |
| 02120015 | Bulk field wire, 1.0 mm² (18 AWG), 3-conductor shielded twisted cable with drain wire, supplied in custom lengths for field wiring. |
| 02173009 | Bulk field wire, 1.0 mm² (18 AWG), 3-conductor shielded twisted cable for industrial signal transmission, length customizable per requirement. |
| 138492-01 | Replacement panel-mount pad designed for restoring or upgrading 3300 XL Proximitor sensor panel installation setup. |
| 138493-01 | Replacement DIN-mount pad for secure DIN rail installation of Proximitor sensor modules in control cabinet environments. |
| 01609137 | BNC (F) to banana plug adapter used for signal testing and diagnostic connections in proximity transducer systems. |
| 01609138 | Proximitor connector test pin wiring set, converting two test pins into a BNC (F) interface for system diagnostics. |
| 40971-04 | 50 Ω dual BNC (M) cable used with adapters for verifying transducer system performance via Proximitor test pin access. |
| 04310310 | Panel-mount screws kit (6-32 UNC thread forming) for secure installation of 3300 XL Proximitor housings. |
| 03200006 | Silicone self-fusing tape (9.1 m roll) for connector insulation, environmental protection, and electrical isolation in field applications. |
| 40113-02 | Connector protector kit for 3300 XL probes and extension cables, including installation tools for environmental sealing protection. |
| 136536-01 | Connector protector adapter enabling compatibility between older connector protector tools and 75 Ω ClickLoc connectors. |
| 40180-02 | Connector protectors set containing 10 pairs designed to protect probe and extension cable connectors from moisture and contamination. |
| 03839410 | Male connector protector installed on extension cable for environmental sealing and secure connector protection. |
| 03839420 | Female connector protector used on probe lead and extension cable connection points to prevent dust, oil, and moisture ingress. |
| 330153-01 | 3300 XL connector kit including male/female ClickLoc connectors, sleeves, and silicone tape for probe and cable assembly. |
| 163356 | Connector crimp tool kit for installing 75 Ω ClickLoc inserts, supplied with tools and installation instructions in a carrying case. |
