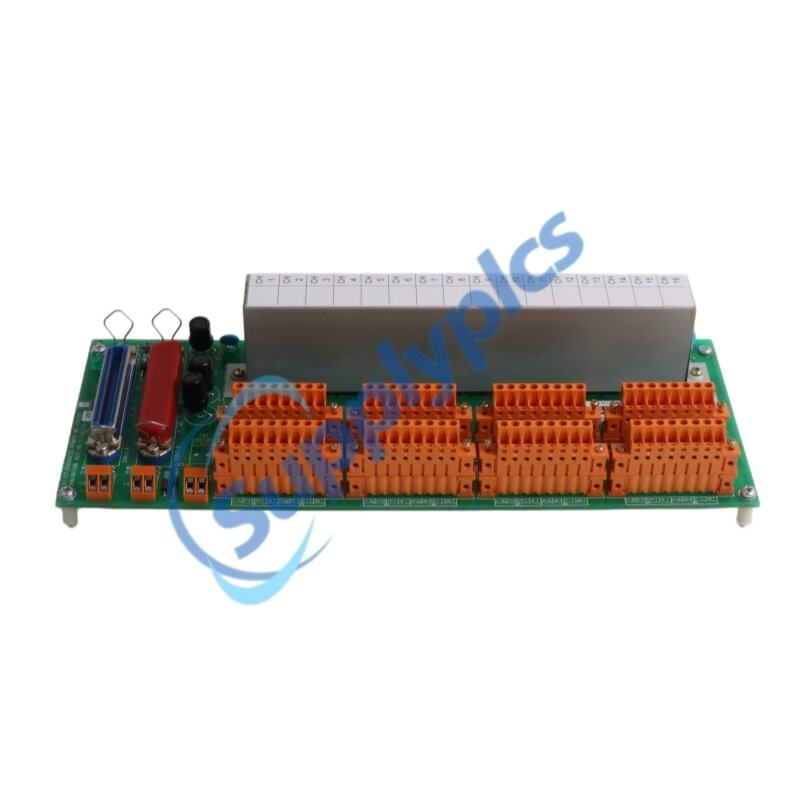

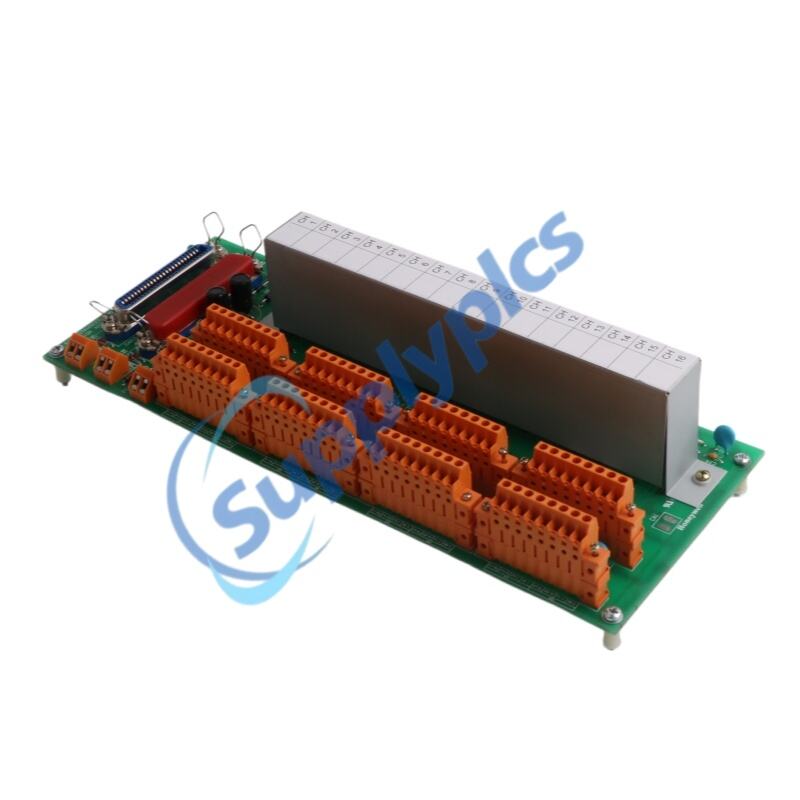

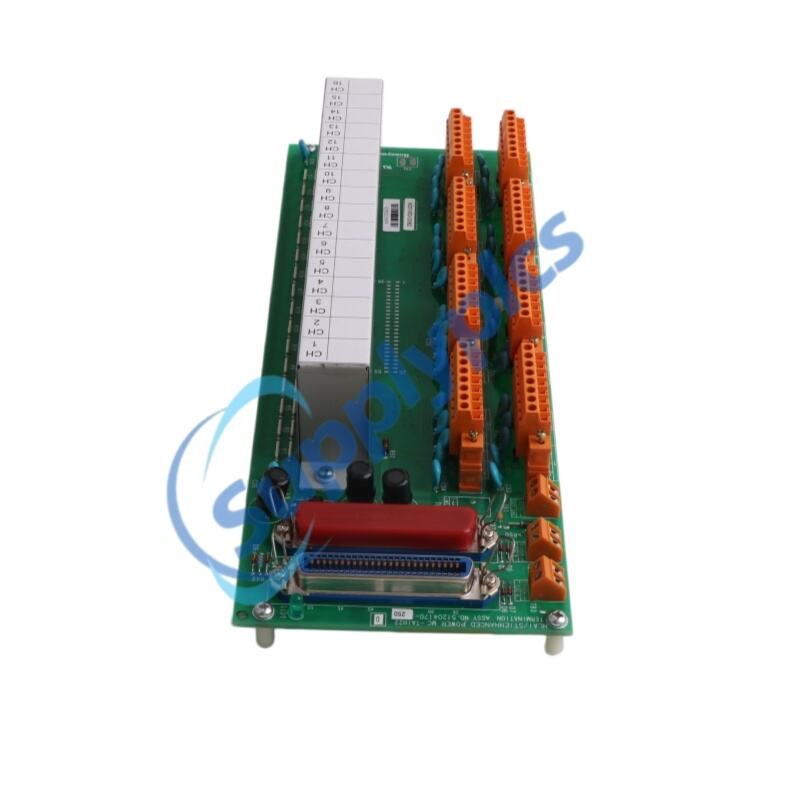

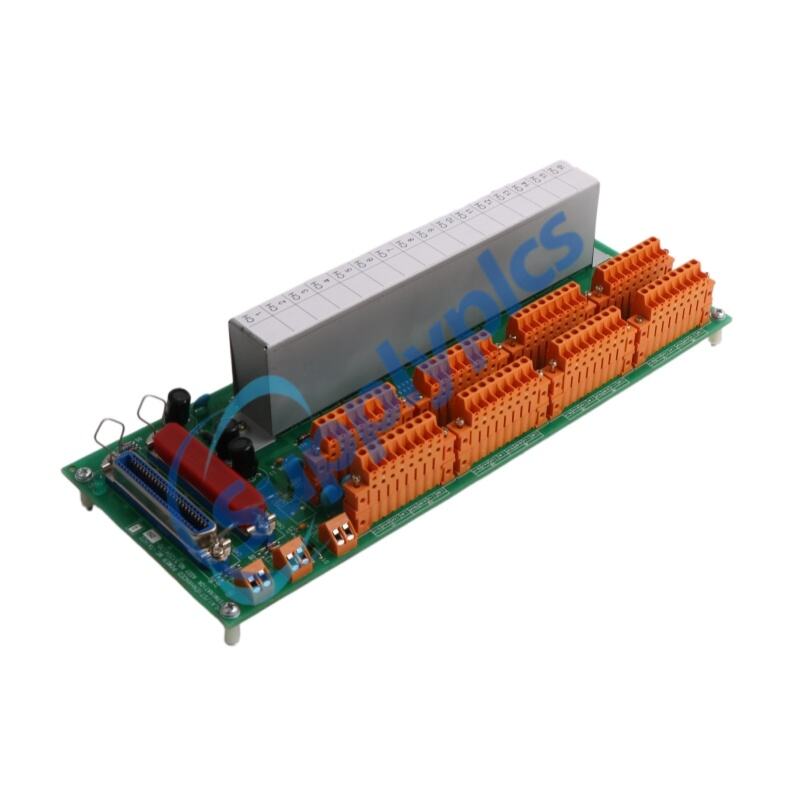

Honeywell MC-TAIH22 51204170-250 High Level Analog Input/STI with compression term Original new, China Honeywell MC-TAIH22 51204170-250 High Level Analog Input/STI with compression term Original new Manufacturers, Suppliers, Factory

Overview

Brand Name:	Honeywell
Model Number:	MC-TAIH22 51204170-250
Country of Origin:	USA
Packaging Details:	Original new Factory Sealed
Delivery Time:	in stock
Payment Terms:	T/T

Contact for quotation

Sales Manager:	Stella
Send an email:	[email protected]
Contact in Whatsapp:	+86 18159889985

Specifications

Item	Specification
Model	MC-TAIH22 51204170-250
Type	High Level Analog Input Module
Input Channels	16-channel analog input
Signal Type	High-level voltage input
Terminal Type	Screw terminals
Isolation	Channel-to-channel isolation
Scan Rate	System dependent (I/O link controlled)
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 85°C
Humidity	5%–95% non-condensing
Dimension (H×W×D)	30.6x12x7.5cm
Weight	0.78kg
Mounting	Rack / Card file installation
Compliance	Industrial automation standard

Description

TheMC-TAIH22 51204170-250is a high-level analog input module designed for reliable signal acquisition in industrial process control systems. It belongs to Honeywell’s advanced I/O processor series and is widely used alongside models such asMC-TAIH53andMC-TAIH62for scalable automation architectures.

Engineered for accurate voltage measurement, theMC-TAIH22 51204170-250supports stable analog data conversion in high-noise environments. Its robust design ensures consistent performance across distributed control systems, making it suitable for complex monitoring applications in critical industries.

As part of the High Level Analog Input (HLAI) family, this module integrates seamlessly into HPM-based systems. It is optimized for screw terminal connectivity, offering secure wiring, simplified installation, and long-term operational stability in demanding industrial environments.

Applications

Power plants: Used for generator set status monitoring and relay protection.
Substations (substations): Enable bus differential control, line protection, and switchyard signal acquisition.
Chemical plants: Integrate process control automation and intrinsically safe signal monitoring.
Steel mills (metallurgical plants): Perform equipment logic control in harsh environments with high temperature and strong electromagnetic interference.
Machinery manufacturing plants: Used for automated production lines, robotic workstations, and packaging equipment control.

Features

High-level analog signal acquisition capability
Screw terminal design for secure wiring
Modular integration with HPM system architecture
Stable operation in electrically noisy environments
Supports scalable distributed control systems
Industrial-grade rugged construction

Functions

Converts field analog voltage signals into digital data
Supports real-time process monitoring and control
Ensures stable signal transmission to control processors
Enables multi-channel input processing
Enhances system diagnostic and reliability performance

FAQ

Q1: What is MC-TAIH22 used for?
A1: It is used for high-level analog signal input in industrial automation and process control systems.

Q2: Is MC-TAIH22 compatible with HPM systems?
A2: Yes, it is designed for seamless integration with HPM-based control architectures.

Q3: What type of terminals does it use?
A3: It uses screw terminals for secure and stable field wiring connections.

Q4: Can it operate in harsh environments?
A4: Yes, it is built for industrial environments with electrical noise and temperature variation.

Q5: Does MC-TAIH22 support multi-channel input?
A5: Yes, it supports multi-channel analog input for distributed control applications.
