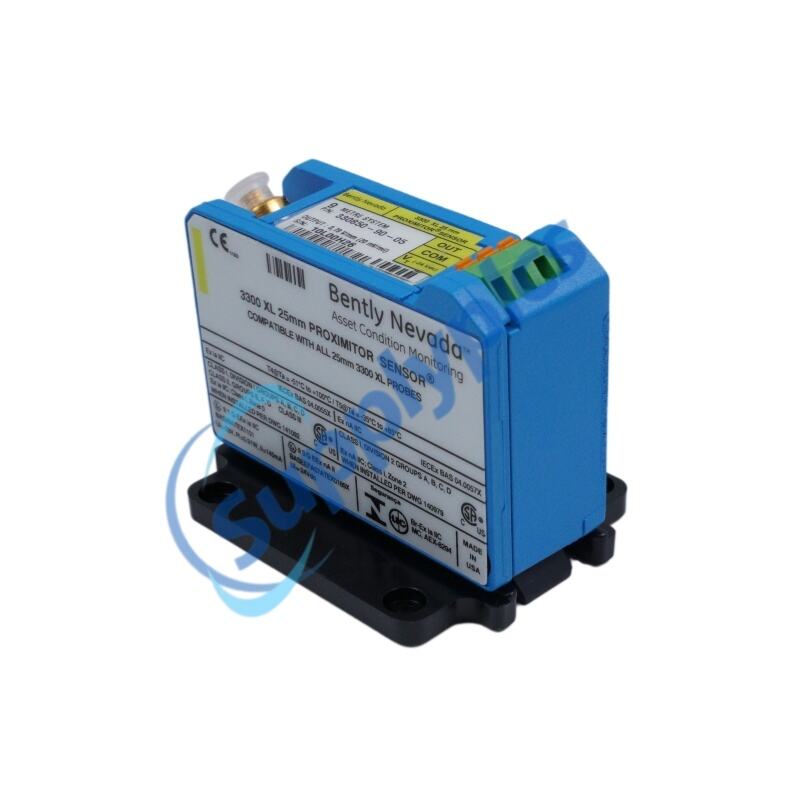

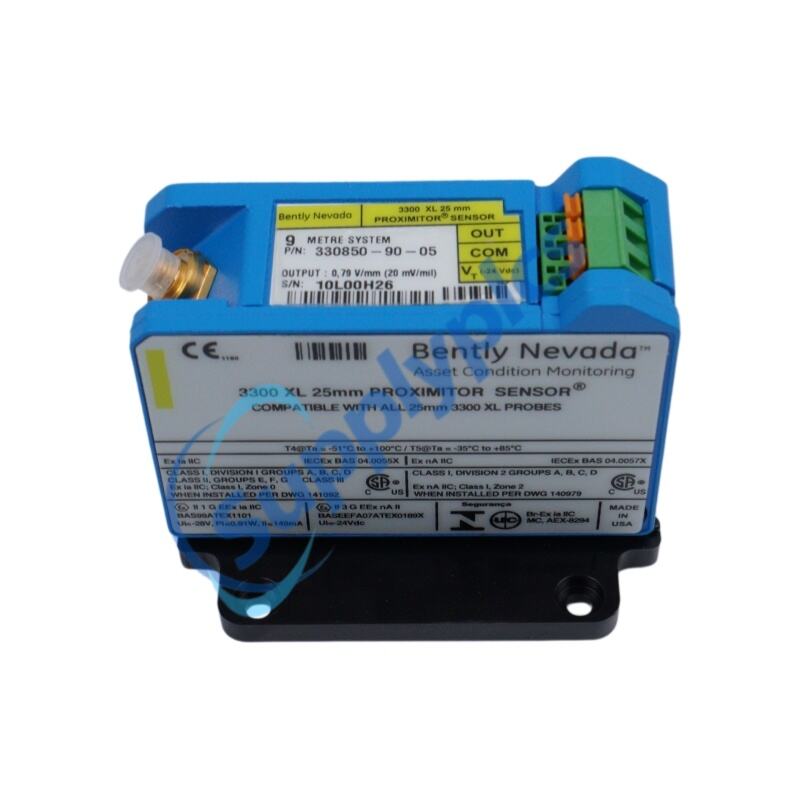

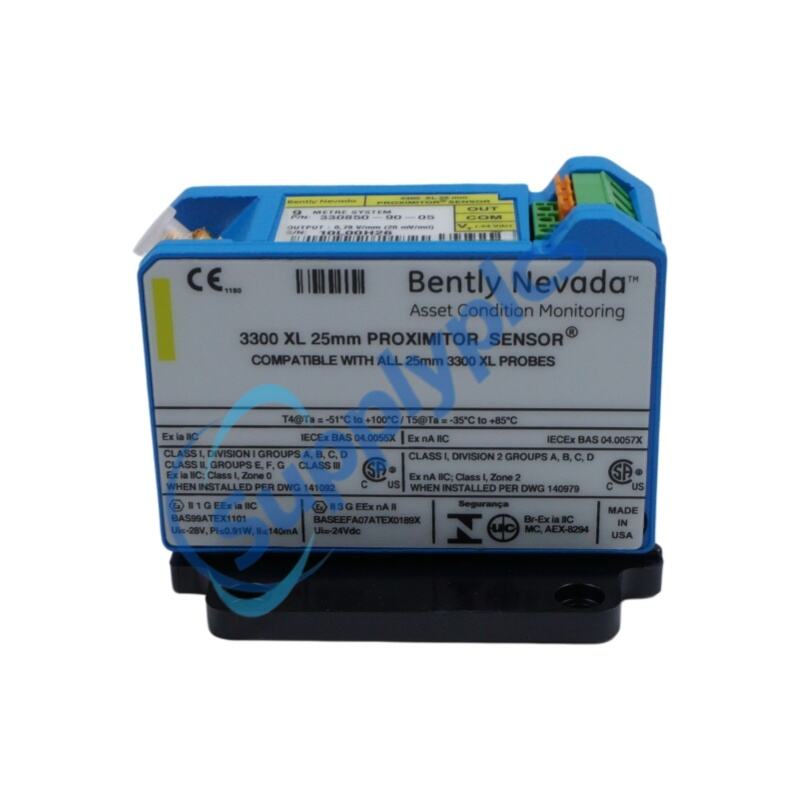

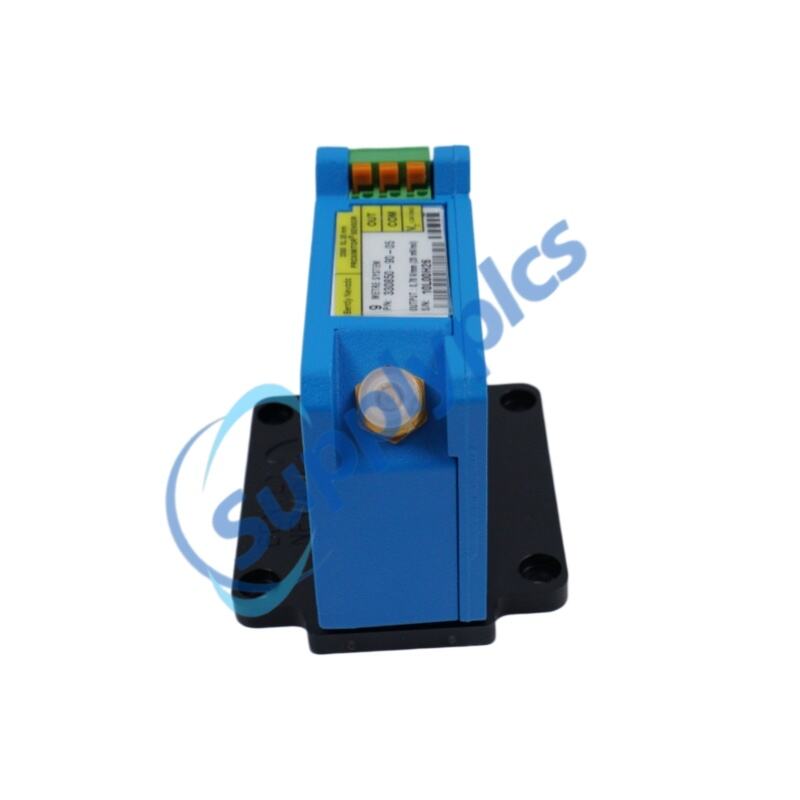

Product Name:3300 XL 25 mm Proximitor Sensor
Brand Name:Bently Nevada
Model Number:330850-90-05
Country of Origin: USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
Bently Nevada |
Model Number: |
330850-90-05 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
| Specification Item | Details |
|---|---|
| Product Model | 330850-90-05 |
| Product Type | 3300 XL 25 mm Proximitor Sensor |
| System Length | 9.0 metres (29.5 feet) |
| Mounting Type | Panel Mount |
| Linear Range | 12.7 mm (500 mils) |
| Output Scale Factor | 0.787 V/mm (20 mV/mil) |
| Frequency Response | 0 to 2.7 kHz |
| Operating Voltage | -17.5 Vdc to -26 Vdc |
| Probe Material | AISI 304 Stainless Steel |
| Probe Tip Material | PEEK |
| Extension Cable Type | 75 Ω PFA insulated FluidLoc cable |
| Operating Temperature | -35°C to +200°C |
| Short-Term Temperature | Up to +250°C for less than 24 hours |
| Protection Capability | Excellent RFI/EMI immunity |
| Dimension | Approx. 255 g sensor body, compact DIN/panel structure |
| Weight | Approx. 255 g (sensor only) |
| Certification | CE, RoHS, ATEX, IECEx |
The Bently Nevada 330850-90-05 3300 XL 25 mm Proximitor Sensor is engineered for high-precision differential expansion monitoring in large rotating machinery and steam turbine systems. Designed for demanding industrial environments, this transducer system delivers stable long-range displacement measurement with reliable signal accuracy and enhanced EMI/RFI resistance. The system is widely applied in power generation, petrochemical, and heavy industrial process applications.
The 330850-90-05 integrates a durable 25 mm proximity probe, extension cable, and advanced Proximitor sensor to provide continuous shaft movement and axial position monitoring. Compared with earlier 7200 series systems, the 3300 XL platform offers improved installation flexibility, stronger environmental protection, and simplified maintenance while maintaining backward system compatibility.
Built for harsh operating conditions, the 330850-90-05, 3300 XL, and related Bently Nevada transducer models support high-temperature turbine environments up to 200°C continuous operation. Its rugged stainless-steel construction, FluidLoc cable technology, and ClickLoc connectors help ensure dependable long-term machinery protection and optimized predictive maintenance performance.
Q1: What is the main use of the 330850-90-05?
A1: It is primarily used for differential expansion and shaft displacement monitoring in steam turbines and rotating machinery.
Q2: Can the 330850-90-05 operate in high-temperature environments?
A2: Yes, the probe supports continuous temperatures up to 200°C and short-term exposure up to 250°C.
Q3: Is the 330850-90-05 compatible with older Bently Nevada systems?
A3: Yes, it is designed to replace many legacy 7200 series transducer systems.
Q4: What industries commonly use this Proximitor sensor?
A4: Power generation, petrochemical, marine, steel, and heavy industrial sectors widely use this product.
Q5: Does the system support hazardous area certifications?
A5: Yes, the product supports ATEX, IECEx, CE, and other industrial approvals.
| Model Number | Description |
|---|---|
| 163235 | 3300 XL 25 mm Manual |
| 148722-01 | 3300 XL Test Plug |
| 330187 | Extended Range Micrometer Kit |
| 02120015 | Bulk Field Wire, Shielded Cable |
| 02173009 | Bulk Field Wire, Twisted Shielded Cable |
| 138492-01 | Replacement Panel-Mount Mounting Pad |
| 138493-01 | Replacement DIN-Mount Mounting Pad |
| 04310310 | Panel-Mount Screw Package |
| 03200006 | Silicone Self-Fusing Tape |
| 40113-02 | Connector Protector Kit |
| 29660-01 | Transducer Clamp |
| 136536-01 | Connector Protector Adapter |
| 40180-02 | Connector Protectors |
| 03839410 | Male Connector Protector |
