Product Name:Transmitter Interface Input
Brand Name:Honeywell
Model Number:MC-TSTX03 51309140-175
Country of Origin: USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
Honeywell |
Model Number: |
MC-TSTX03 51309140-175 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Parameter |
Details |
|
Model |
MC-TSTX03 / 51309140-175 |
|
Type |
Smart Transmitter Interface FTA |
|
Input Channels |
Up to 16 smart transmitters |
|
Communication Protocol |
Honeywell DE (digital bi-directional) |
|
Mounting Type |
Field termination assembly (cabinet mounted) |
|
Operating Voltage |
24 Vdc (system dependent) |
|
Dimension (H x W x D) |
30.7x12x5cm |
|
Weight |
0.4kg |
|
Operating Temperature |
Industrial grade (see system specification) |
|
Redundancy Support |
Available with MC-TSTX13 |

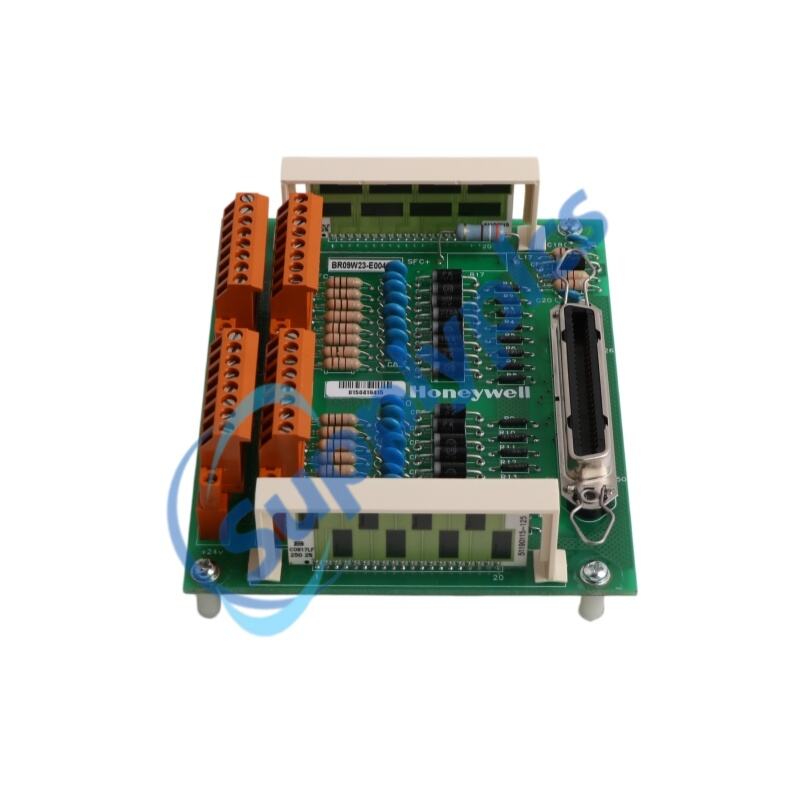

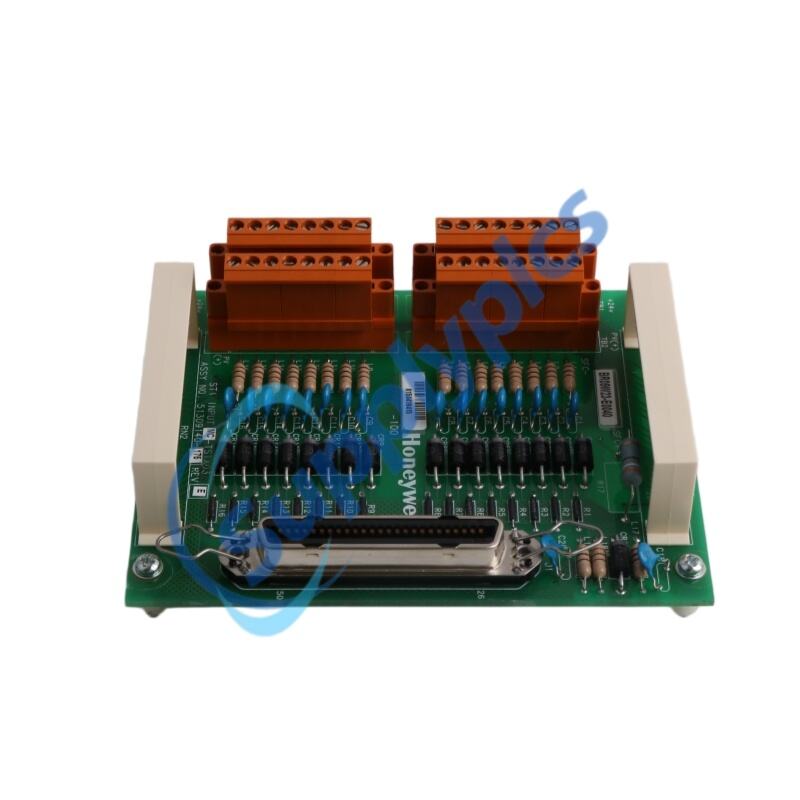

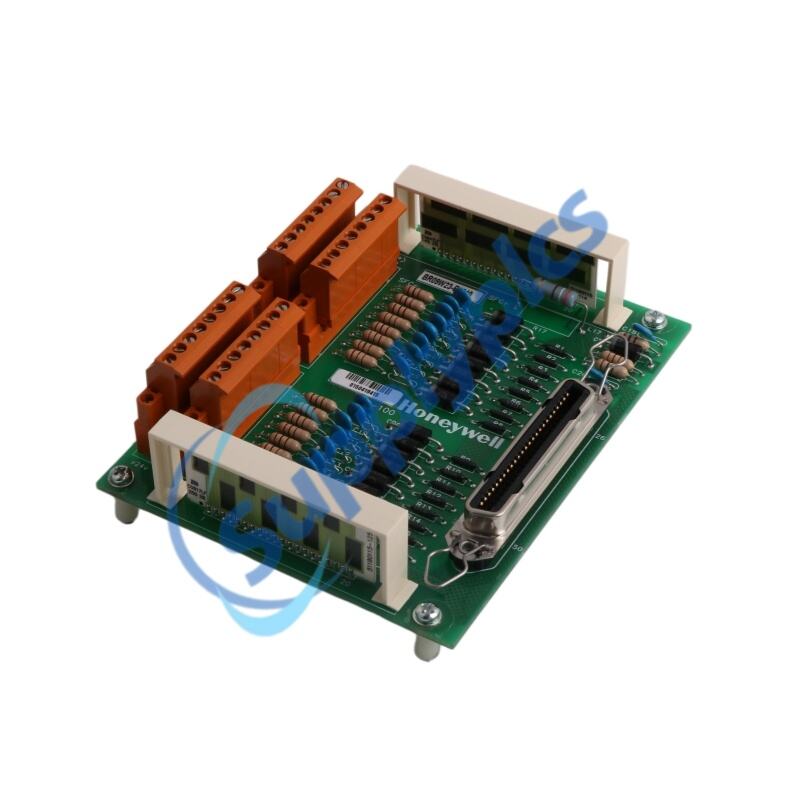

TheMC-TSTX03 51309140-175Smart Transmitter Interface FTA is designed for high-performance industrial process control systems, enabling reliable digital communication between field transmitters and Honeywell control platforms. It supports advanced data acquisition and ensures stable integration within distributed I/O architectures.
TheMC-TSTX03model, along with related versions such asMC-TSTX13, provides seamless connectivity for smart transmitters used in pressure, temperature, and flow monitoring applications. It is engineered to enhance signal accuracy while reducing wiring complexity through a single digital communication loop.
As part of the Honeywell Smart Transmitter Interface family, includingMC-TSTX03andMC-TAIH series, this FTA delivers robust diagnostic capabilities, improved signal integrity, and dependable operation in demanding industrial environments such as oil & gas, chemical, and power generation plants.
Q1: What is MC-TSTX03 used for?
A1: It is used for connecting smart transmitters to Honeywell control systems for accurate process monitoring and data acquisition.
Q2: How many devices can MC-TSTX03 support?
A2: It can communicate with up to 16 smart transmitters in a single interface module.
Q3: Does MC-TSTX03 support redundancy?
A3: Yes, redundancy is available when paired with models like MC-TSTX13.
Q4: What communication protocol does it use?
A4: It uses Honeywell’s digital enhanced (DE) bi-directional communication protocol.
Q5: In which industries can MC-TSTX03 be applied?
A5: It is widely used in power plants, chemical plants, steel mills, substations, and manufacturing automation systems.
| Number | Describe |
|---|---|
| MC-TAIH53 | High Level Analog Input with screw terminals |
| MC-TAIH62 | High Level Analog Input/STI with screw terminals |
| MC-TSTX03 | Smart Transmitter Interface with Compression Term |
| MC-TSTX13 | Smart Transmitter Interface with Compression Term |
| MC-TSTX53 | Smart Transmitter Interface with Screw Terminals |
| MC-TAIL02 | Low Level Analog Input with compression terminals |
| MC-TAIL03 | Low Level Analog Input with compression terminals |
| MC-TAMR02 | LLMux Analog Input RTD with compression terminals |
| MC-TAMR03 | LLMux Analog Input RTD with compression terminals |
| MC-TAMT02 | LLMux Analog Input TC with compression terminals |
| MC-TAMT03 | LLMux Analog Input TC with compression terminals |
| MC-TAMT12 | LLMux Analog Input TC with remote CJR, comp term |
| MC-TAMT13 | LLMux Analog Input TC with remote CJR, comp term |
| MC-TAOX02 | Analog Output with compression terminals |
| MC-TAOX12 | Analog Output with compression terminals |
| MC-TAOX52 | Analog Output with screw terminals |
| MC-TAOY22 | Analog Output with compression terminals |
