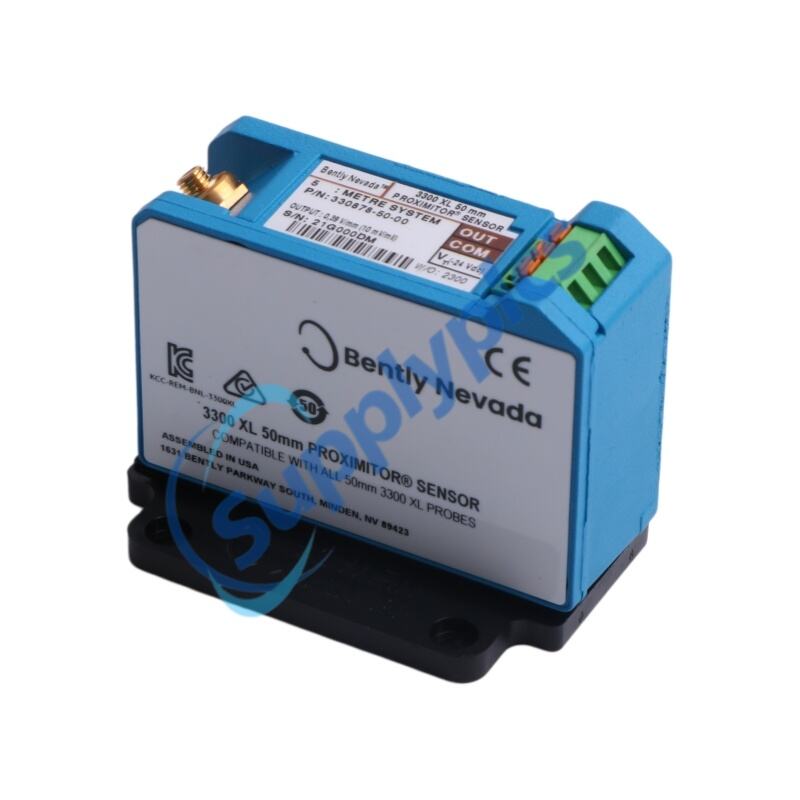

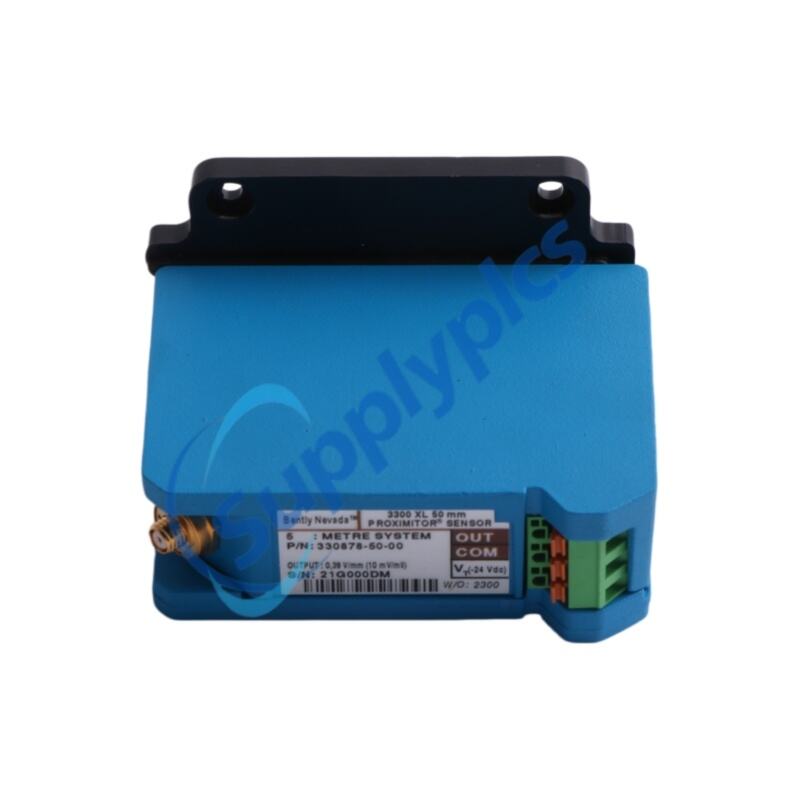

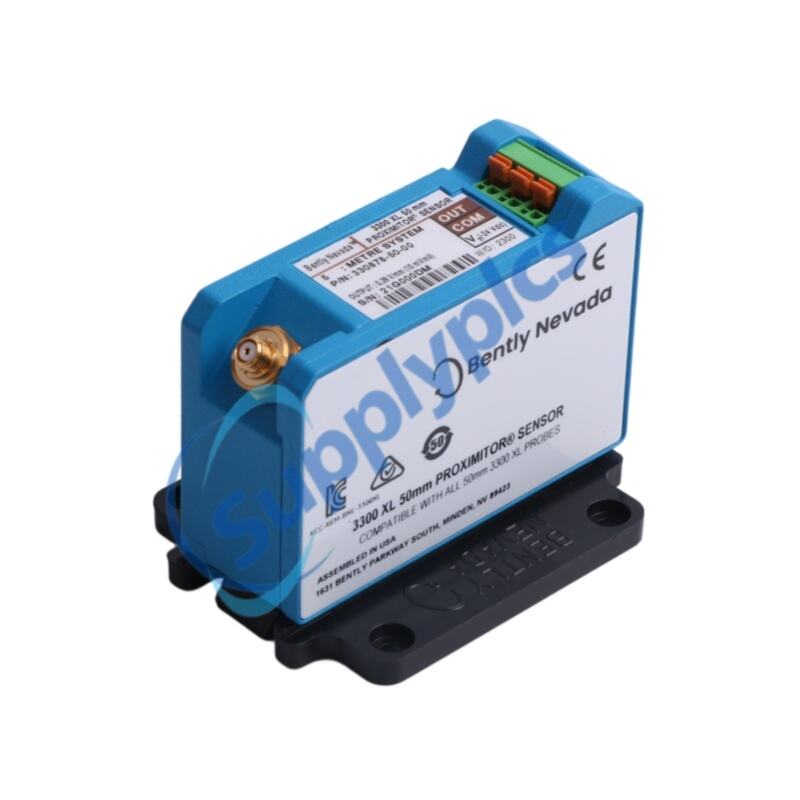

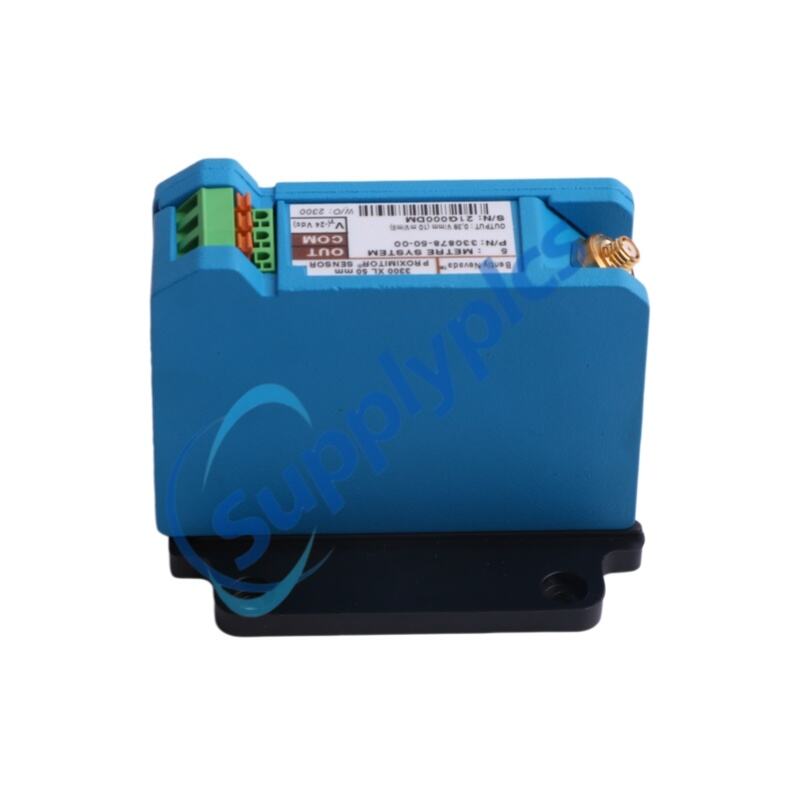

Product Name:3300 XL 50 mm Proximitor Sensor
Brand Name:Bently Nevada
Model Number:330878-50-00
Country of Origin: USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
Bently Nevada |
Model Number: |
330878-50-00 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Item |
Specification |
|
Model |
330878-50-00 |
|
System Type |
3300 XL 50 mm Proximitor Transducer System |
|
System Length |
5 m or 9 m options (depending configuration) |
|
Mounting Option |
Panel mount / DIN rail mount |
|
Output Scale Factor |
394 mV/mm (10 mV/mil) |
|
Linear Range |
0 to 27.9 mm |
|
Operating Temp (Probe) |
-35°C to +200°C |
|
Operating Temp (Sensor) |
-51°C to +100°C |
|
Probe Diameter |
Approx. 50 mm system probe design |
|
Dimensions |
7.8x6x6.2cm |
|
Weight |
0.2kg |
The 330878-50-00 is part of the advanced 3300 XL 50 mm Proximitor Transducer System, designed for precise measurement of shaft displacement and differential expansion in large rotating machinery. It combines a 50 mm proximity probe, extension cable, and Proximitor sensor to deliver a long linear measurement range of up to 27.9 mm, making it suitable for steam turbine and heavy-duty industrial monitoring applications.
Built for system compatibility, the 330878-50-00 is fully interchangeable with legacy 7200 series setups, enabling straightforward upgrades without modifying existing monitoring systems. It supports both panel and DIN-rail mounting options, offering flexible installation in control cabinets and high-density automation environments.
Engineered for harsh industrial conditions, the system features strong EMI/RFI immunity, high-temperature resistance up to 200°C, and sealed probe protection. The 330878-50-00 ensures stable signal output and reliable performance in power generation and critical process industries.
Q1: What is the main use of the 330878-50-00 system?
A1: It is used for precise shaft position and differential expansion measurement in turbines and rotating equipment.
Q2: Can the 330878-50-00 replace older systems?
A2: Yes, it is fully compatible with 7200 series systems for easy upgrade without system redesign.
Q3: What is the maximum operating temperature?
A3: The probe can operate continuously up to 200°C in industrial environments.
Q4: Does it support DIN rail mounting?
A4: Yes, it supports both DIN rail and panel mounting configurations.
Q5: What industries commonly use this system?
A5: It is widely used in power generation, petrochemical, steel, and heavy machinery industries.
| Number | Describe |
|---|---|
| 02120015 | Bulk field wire, 1.0 mm² (18 AWG), 3 conductor, twisted, shielded cable with drain wire, specify length in feet |
| 02173009 | Bulk field wire, 1.0 mm² (18 AWG), 3 conductor, twisted, shielded cable, specify length in feet |
| 138492-01 | Replacement panel-mount mounting pad |
| 138493-01 | Replacement DIN-mount mounting pad |
| 04310310 | 3300 XL Proximitor Sensor panel-mount screws, includes four 6-32 UNC thread forming mounting screws |
| 03200006 | Silicone self-fusing tape, 9.1 meter (10 yard) roll for connector protection and environmental isolation |
| 40180-02 | Connector protectors, package includes 10 pairs for environmental sealing of connectors |
| 03839410 | Male connector protector for extension cable and probe connection environmental protection |
| 03839420 | Female connector protector for probe lead, extension cable, and Proximitor Sensor protection |
| 330153-10 | 3300 XL 50 mm connector kit including male/female ClickLoc connectors, sleeves, and PFA tubing |
| 163356 | Connector crimp tool kit with multi-connector inserts and installation instructions in carrying case |
| 173873 | High temperature cable zip ties made of PEEK material rated up to 200°C continuous use |
| 174804-01 | Side exit probe adapter kit for 330187 extended range verification kit compatibility |
