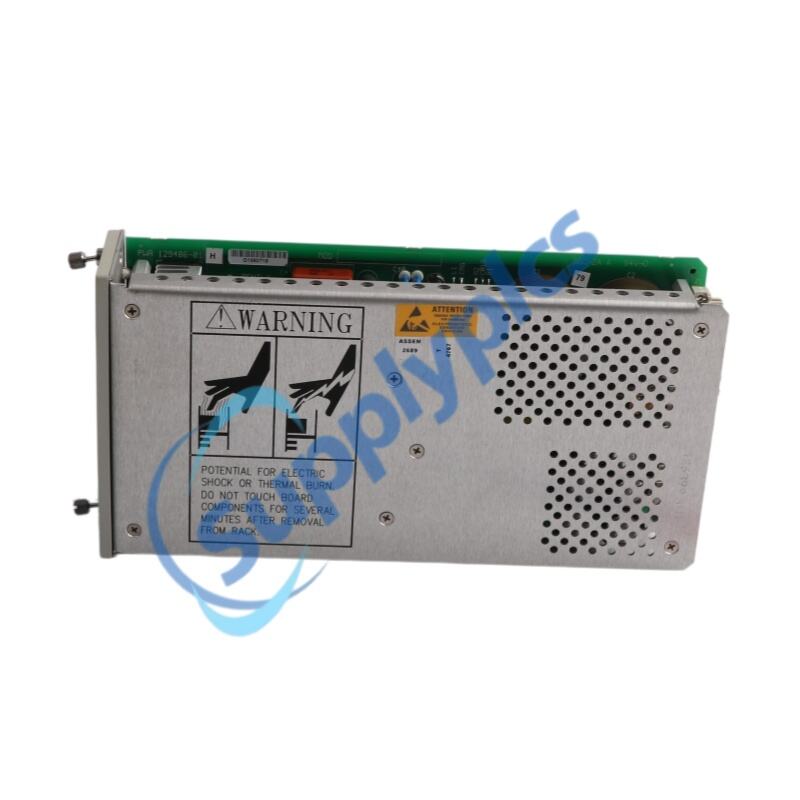

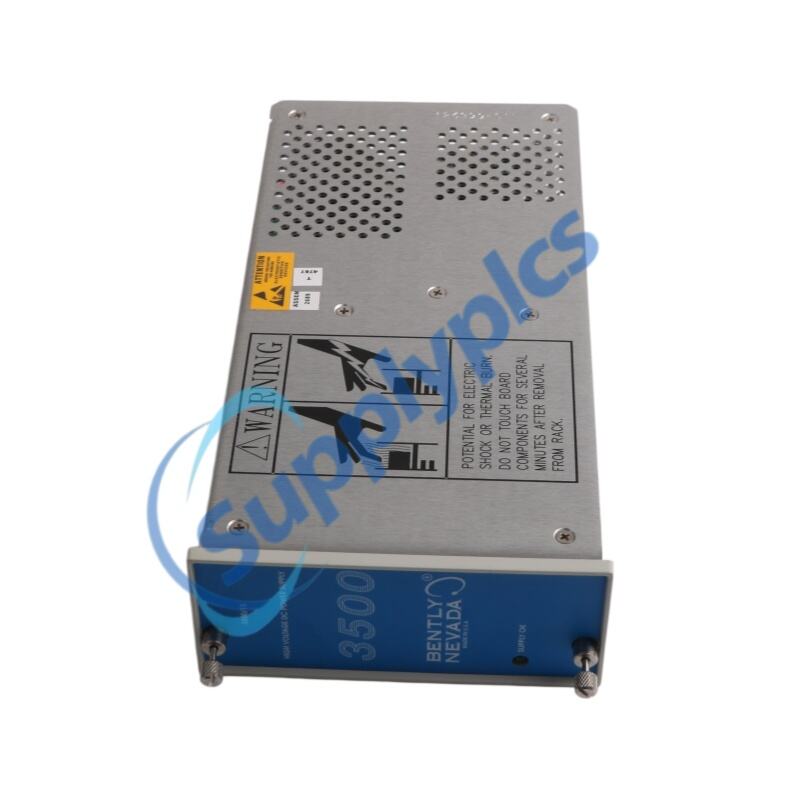

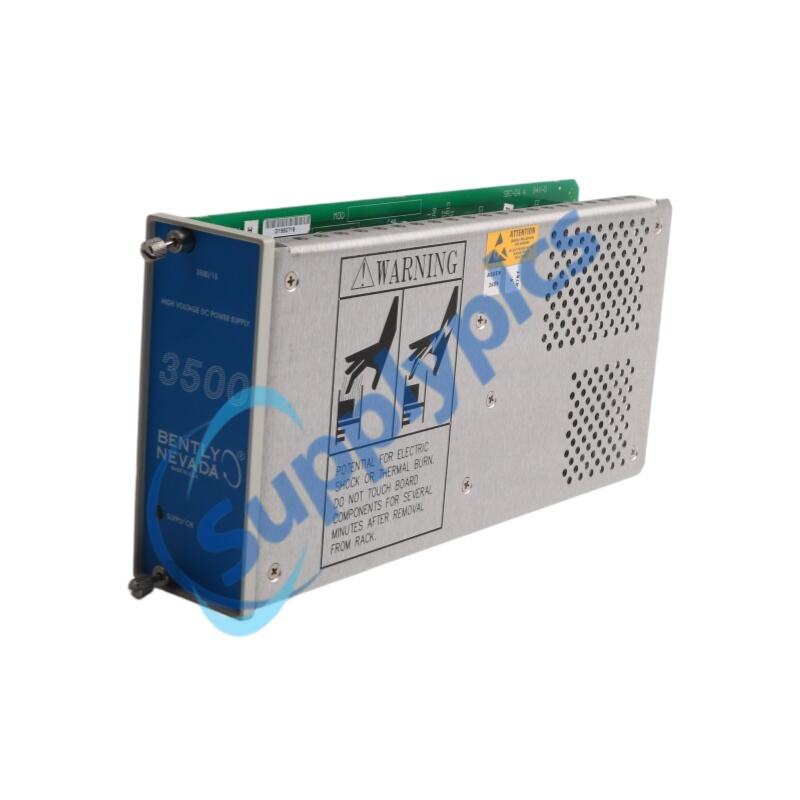

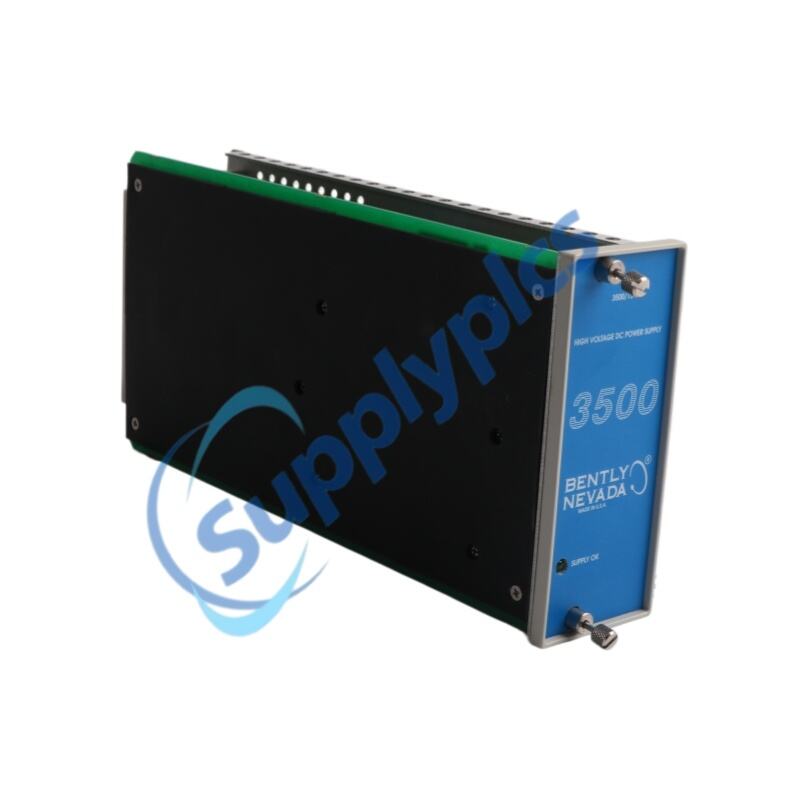

Bently Nevada 3500/15 129486-01 3500/15 AC and DC Power Supplies Ready For Ship

Bently Nevada 3500/15 129486-01 3500/15 AC and DC Power Supplies Ready For Ship

Product Name:3500/15 AC and DC Power Supplies

Brand Name:Bently Nevada

Model Number:3500/15 129486-01

Country of Origin: USA

Warranty: 12 Months

Whatsapp：+86 18159889985

Email：[email protected]

Appurtenance:

Overview
Contact for quotation
Specifications
Description
Applications
Features
Functions
FAQ
Spares
Recommended Products

Overview

Brand Name:	Bently Nevada
Model Number:	3500/15 129486-01
Country of Origin:	USA
Packaging Details:	Original new Factory Sealed
Delivery Time:	in stock
Payment Terms:	T/T

Contact for quotation

Sales Manager:	Stella
Send an email:	[email protected]
Contact in Whatsapp:	+86 18159889985

Specifications

Item	Description
Product Model	3500/15 129486-01
Module Type	High Voltage DC Power Supply Module
Input Voltage	88–140 Vdc
Output Function	Regulated DC supply for 3500 rack modules
Compatibility	Bently Nevada 3500 Series racks
Installation Slot	Left-side rack power slot
Redundancy Support	Yes (dual power configuration)
Operating Temperature	-30°C to +65°C
Storage Temperature	-40°C to +85°C
Humidity	Up to 95% non-condensing
Dimensions	5x25.2x12cm
Weight	1.18kg

Description

The 3500/15 129486-01 High Voltage DC Power Supply Module is engineered as a critical power component within the Bently Nevada 3500 machinery protection system. It is designed to convert and regulate incoming DC voltage into stable operating power for rack-level monitoring and control modules, ensuring continuous system availability in demanding industrial environments.

The 129486-01 module works in coordination with other 3500 power elements, including 3500/15, 129478-01, and related power input modules (PIM), providing stable electrical performance and supporting redundant rack configurations. It is commonly used in high-reliability installations where uninterrupted operation is essential.

Built for industrial monitoring systems, the 3500/15 129486-01 delivers dependable voltage regulation, overload protection, and compatibility with legacy 3500 DC architectures, making it suitable for retrofit upgrades and long-term asset protection strategies.

Applications

Power plants: Used for generator set status monitoring and relay protection
Substations: Enable bus differential control, line protection, and switchyard signal acquisition
Chemical plants: Integrate process control automation and intrinsically safe signal monitoring
Steel mills: Support control systems in high-temperature and high-EMI environments
Machinery manufacturing plants: Applied in automated production lines and robotic control systems

Features

High-voltage DC regulated power output
Compatible with 3500/15 rack architecture
Supports redundant power supply configuration
Stable performance under industrial harsh conditions
Designed for long-term continuous operation
Built-in protection against overload conditions

Functions

Converts DC input into stable rack power supply
Supports continuous operation of monitoring modules
Enables redundant power architecture in 3500 systems
Provides voltage stabilization for sensitive control electronics
Ensures uninterrupted machinery protection system performance

FAQ

Q1: What is the main function of 3500/15 129486-01?
A1: It provides regulated high-voltage DC power for Bently Nevada 3500 rack systems.

Q2: Is 129486-01 compatible with redundant systems?
A2: Yes, it supports dual power supply configurations for redundancy.

Q3: What voltage range does it support?
A3: It operates within an 88–140 Vdc input range.

Q4: Can it replace legacy DC power modules?
A4: Yes, it is designed for compatibility with selected legacy 3500 DC systems.

Q5: Where is this module commonly used?
A5: It is widely used in power plants, substations, and industrial automation systems.

Spares

Number	Describe
106M1079-01	Universal AC Power Supply Module for 3500/15 system, designed to provide stable AC power conversion for industrial monitoring racks.
106M1081-01	Universal AC Power Input Module used in Bently Nevada 3500 power systems for AC input regulation and safe voltage interface control.
129486-01	Legacy High Voltage DC Power Supply Module for 3500/15 rack system, ensuring regulated DC output for continuous machinery protection operation.
129478-01	Legacy High Voltage DC Power Input Module for 3500 system, supporting safe DC input conversion and stable rack power distribution.
133292-01	Legacy Low Voltage DC Power Supply Module designed for reliable low-voltage power delivery in Bently Nevada 3500 monitoring systems.
133300-01	Legacy Low Voltage DC Power Input Module providing controlled low-voltage DC interface for 3500 rack power architecture.
114M5329-01	High Voltage DC Power Supply Module engineered for industrial 3500 system applications requiring stable high-voltage DC power output.
115M7750-01	High Voltage DC Power Input Module (PIM) for secure DC input handling and system-level power conversion in 3500 platforms.
114M5330-01	Low Voltage DC Power Supply Module delivering regulated low-voltage DC power for 3500 machinery protection systems.
114M5335-01	Low Voltage DC Power Input Module (PIM) designed for efficient and safe low-voltage DC power integration.
01720025	Replacement fuse compatible with AC Power Input Module and legacy high-voltage DC input modules for protection and safety.
01720045	Replacement fuse designed for low-voltage DC Power Input Modules, ensuring circuit protection and system reliability.
120M3877	Fast-blow replacement fuse (5A/500 Vac, 6.3×32 mm) used in Universal AC Power Input Module for overcurrent protection.
131150-01	Power Supply Blank Front Panel kit including mounting screws for unused 3500/15 power supply slots.
128085-01	Rear input connector cover for 3500/15 power supply module, used to protect rear interface connections.
04310251	Mounting screws set for securing power supply input cover in Bently Nevada 3500 rack systems.
129767	3500/15 Power Supply User Guide providing installation, configuration, and maintenance instructions.
118M0915-01	Replacement connector for Universal AC Power Input Module ensuring secure electrical connection and stable operation.
118M0915-02	Replacement connector for DC Power Input Module used for stable DC power interface in 3500 system architecture.
129M0198	Replacement fuse for High Voltage DC Power PIM ensuring circuit protection and safe operation under overload conditions.
