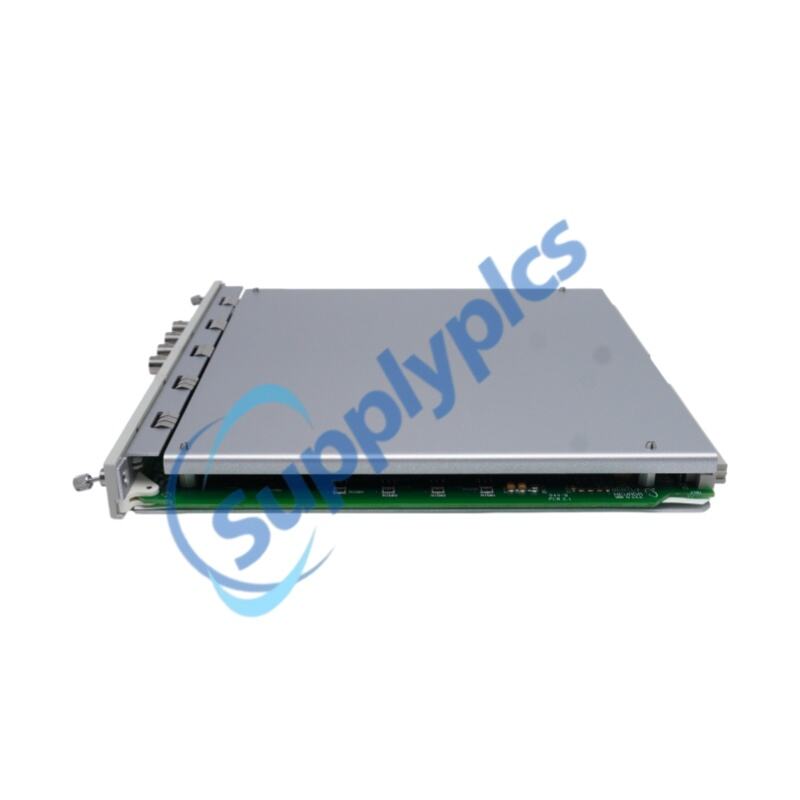

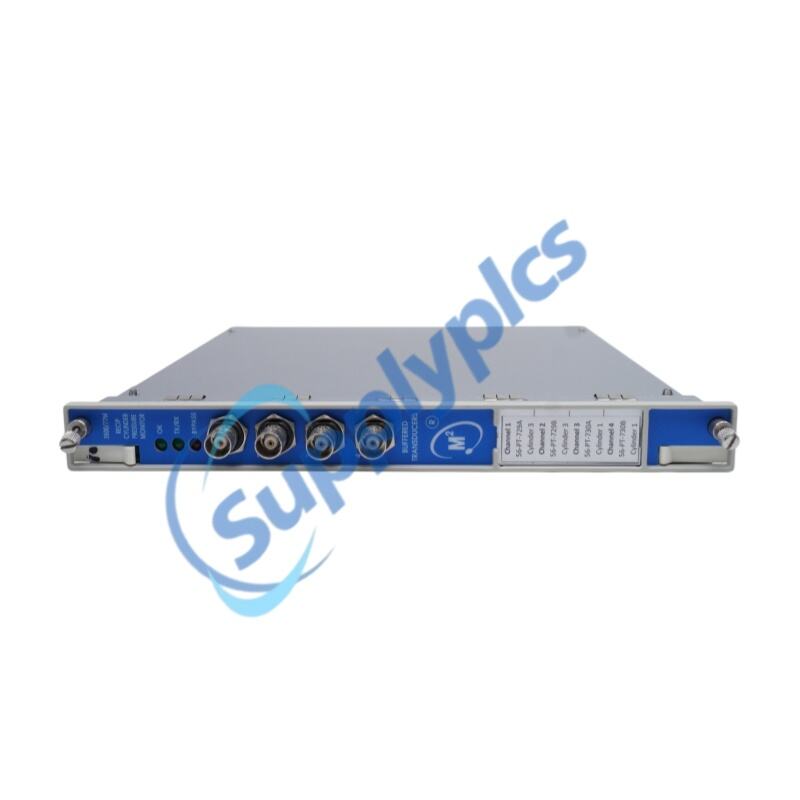

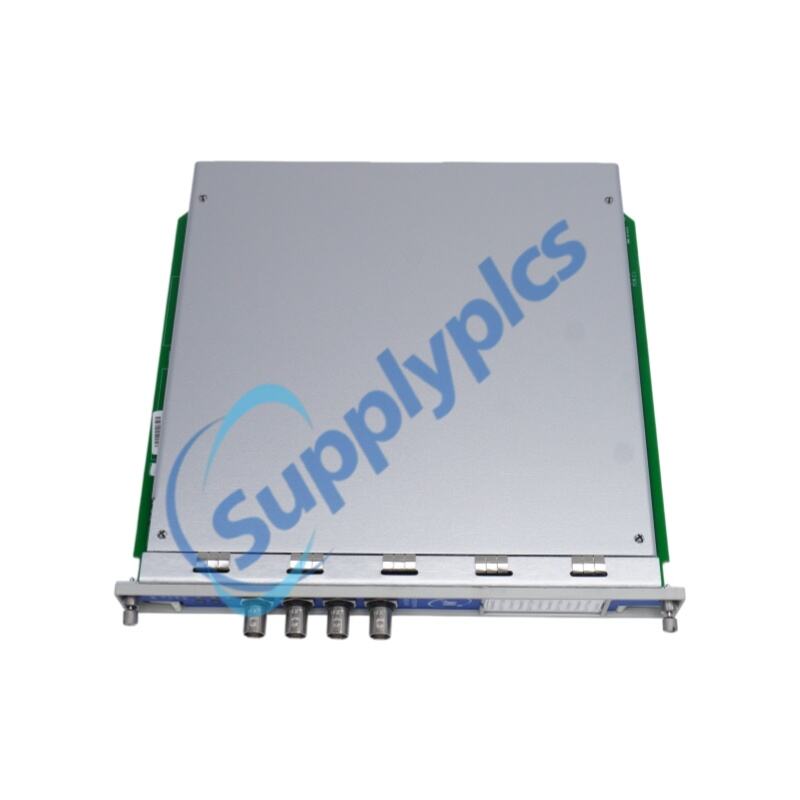

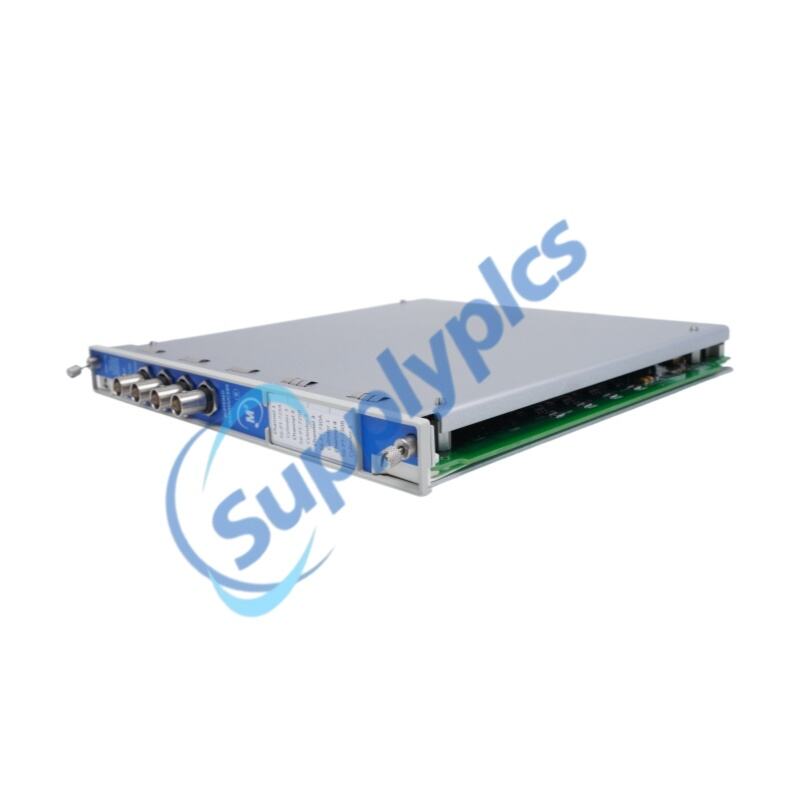

Product Name:Cylinder Pressure Monitor
Brand Name:Bently Nevada
Model Number:3500/77M 140734-07
Country of Origin: USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
Bently Nevada |
Model Number: |
3500/77M 140734-07 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
| Item | Details |
|---|---|
| Product Model | 3500/77M (140734-07) |
| System Type | Reciprocating Cylinder Pressure Monitor |
| Channels | 4-channel input |
| Input Signal | Pressure transducer (psia) |
| Frequency Response | 0 – 5.5 kHz |
| Accuracy | ±0.5% FS @ 25°C / ±1.0% over temp |
| Power Consumption | 7.8 W |
| Output Impedance | 550 Ω |
| Operating Temp | -30°C to +65°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 95% non-condensing |
| Dimension (Module) | 241.3 × 24.4 × 241.8 mm |
| Dimension (I/O) | 241.3 × 24.4 × 99.1 mm |
| Weight (Monitor) | 0.82 kg |
| Weight (I/O) | 0.45 kg |
| Rack Slot | 1 full-height front/rear slot |
The3500/77M (140734-07)Reciprocating Cylinder Pressure Monitor is a high-performance 4-channel module designed for advanced compressor monitoring within the Bently Nevada 3500 Series platform. It processes signals from approved pressure transducers and converts them into accurate diagnostic parameters for real-time machinery analysis.
Integrated with the3500 system, including related modules such as3500/77Mconfigurations, it continuously evaluates cylinder pressure behavior to detect abnormal operating conditions. The system generates proportional values such as suction, discharge, and compression ratio for improved equipment visibility and protection.
Built for industrial reliability, the3500/77M 140734-07ensures fast response monitoring, alarm triggering, and stable performance under harsh operating environments, making it suitable for critical reciprocating compressor protection and predictive maintenance applications.
Q1: What is the 3500/77M (140734-07) used for?
A1: It is used for monitoring reciprocating compressor cylinder pressure and providing protection and diagnostics.
Q2: How many channels does the module support?
A2: It supports up to 4 independent pressure input channels.
Q3: What systems is it compatible with?
A3: It is designed for the Bently Nevada 3500 Series monitoring platform.
Q4: Can it operate in harsh environments?
A4: Yes, it is built for industrial environments with high temperature and EMI conditions.
Q5: What parameters can it measure?
A5: It measures suction pressure, discharge pressure, compression ratio, and rod load conditions.
| Number | Describe |
|---|---|
| 146282-01 | 3500/77M Monitor Manual |
| 140734-07 | 3500/77M Cylinder Pressure Monitor |
| 143729-01 | Cylinder Pressure I/O Module with Internal Terminations for Bently Approved Third Party Pressure Transducers |
| 143737-01 | Cylinder Pressure I/O Module with External Terminations for Bently Approved Third Party Pressure Transducers |
| 00580434 | Internal I/O Module connector header Euro Style 8 pin used on 143729-01 I/O modules |
| 00580441 | Internal I/O Module connector header Euro Style 3 pin used on 143729-01 I/O modules |
| 146973-01 | Recip Multi-Event Wheel Kit |
| 145732-01 | Recip Multi-Event Wheel |
| 146622-01 | Recip Multi-Event Wheel Stud |
| 165855-XX | Recip Cylinder Pressure Transducer (refer to 165855 datasheet) |
